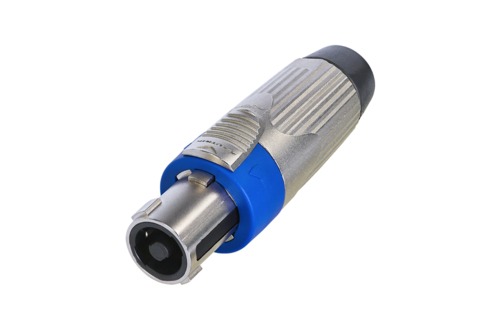

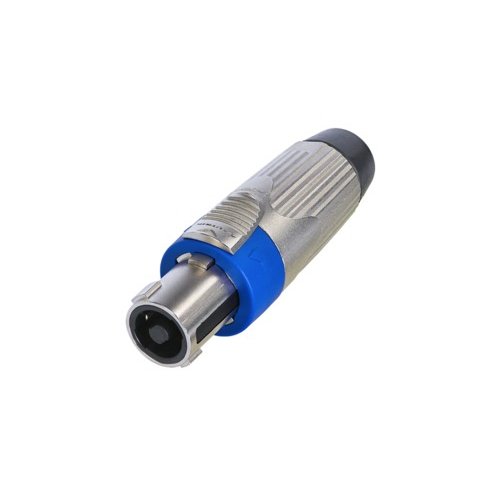

Neutrik NLT4FXX 4 Pole Female speakON Cable Connector
Model: NLT4FXX
About: Neutrik NLT4FXX 4 Pole Female speakON Cable Connector
4 pole female cable connector, metal housing, chuck type strain relief
This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984.
The speakON STXX Series was especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable STXX Series features an all metal housing.
Features & Benefits
- IEC 61984 certified, IEC 62368-1 compliant
- Uses precise “Quick Lock” system
- Weatherproof built-in gasket meets IP 54 protection class in mated condition
- Extremely robust metal housing and glass reinforced V-0 material insert designed for harsh and demanding environment
- Extra large solder contacts for up to 6 mm² (AWG 10) wires
Technical Information
- Electrical
- Contact resistance < 2 mΩ
- Dielectric strength 2.8 kVac
- Insulation resistance >0.1 GΩ (after dampheat)
- Rated current per contact 30 A rms continuous
- Rated voltage 250 V ac
- Attention speakON is NOT to be used as an AC mains or power supply connector!
- Mechanical
- Cable O.D. 9 - 16 mm
- Lifetime > 5000 mating cycles
- Wiresize 6 mm²
- Wiresize 10 AWG
- Termination Solder contacts
- Locking device Quick Lock (latch)
- Material
- Contact plating Ag
- Contacts Copper Alloy
- Shell Zinc diecast, Ni plated
- Insert Polyamide (PA 66)
- Locking element Zinc diecast, Ni plated
- Strain relief Polyacetal (POM)
- Environmental
- Temperature range -30 °C to +80 °C
- Flammability UL 94 V-0
- Protection class IP 54 (mated condition)
- Solderability Complies with IEC68-2-20
