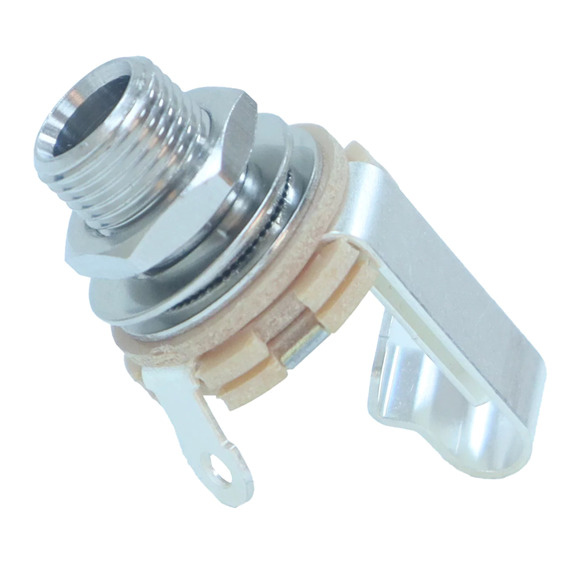

Switchcraft L12A 1/4in TS Open Frame Jack - Long Bushing
Model: L12A
About: Switchcraft L12A 1/4in TS Open Frame Jack - Long Bushing
1/4" Mono 2 Conductor Jack w/Nut & Washer, .375" Long Bushing, Tip is Shunt
Configuration
- Number of Conductors: 2
- Product Line: Littel Jacks
- Mounting Type: Panel
- Mounting Feature: Extended Bushing
- Termination Style: Solder
- Contact Plating: Nickel
- Locking: Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 1/4" Phone Jacks & Plugs
- Shunt: Shunted
- Jack-Plug Type: Jack
- Special Feature: Open Frame
Electrical
- Contact Resistance: 0.03 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 10000 MOhms
- Voltage Rating: 25 Volts
- Current Rating: 1 Amps
- Circuit-Schematic: Tip Shunt
Mechanical
- Life Cycle: 10000 Cycles
- Operating Force: 7 lbs
- Coupling Locking Style: Threaded
- Panel Thickness: 0.25 in
Environmental
- Temperature Range: -55C to +85C
- Shielding: Unshielded
- Humidity Rating: MIL-STD-202 Method 106
- Moisture Resistance: MIL-STD-202 Method 106
- Salt Spray: MIL-STD-202 Method 101
- Minimum Temperature: -55 C
- Maxiumum Temperature: 85 C
Compliance
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Body Material: Copper Alloy
- Body Plating: Nickel
- Contact Material: Copper Alloy
- Insert Material Type: Rigid Plastic Insulating Spacers
- Terminal Material: Copper Alloy
- Spring Material: Copper Alloy
- Sleeve Material: Copper Alloy
