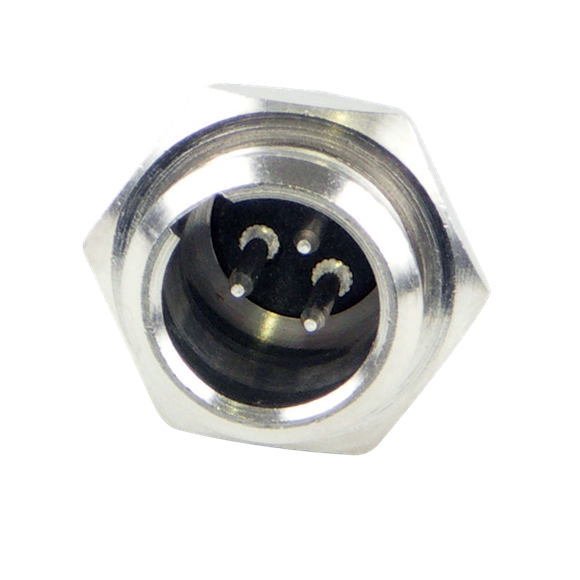

Switchcraft TB3M 3-Pin Mini XLR Panel Mount
Model: TB3M
About: Switchcraft TB3M 3-Pin Mini XLR Panel Mount
Tini-QG "Mini XLR", 3 Pin Male, Circular Panel Mount - Nickel Housing
Configuration
- Number of Conductors: 3
- Product Line: Tini-QG
- Mounting Type: Panel
- Gender: Male
- Contact Size: 24 AWG
- Termination Style: Solder Cup
- Contact Plating: Silver
- Color: Nickel
- Locking: Locking
- Handle Material: Thermoplastic
- Packaging Type: Bulk
- Standard Connector Type: Mini-XLR
Electrical
- Contact Resistance: 0.01 Ohms
- Dielectric Withstanding Voltage: 250 Volts
- Insulation Resistance: 510000 MOhms
- Current Rating: 5 Amps
Mechanical
- Life Cycle: 2000 Cycles
- Operating Force: 13 lbs
- Coupling Locking Style: Button Latch
- Wire Size: 28 AWG
Environmental
- Flame Rating: UL 94V-0
Certification
- RoHS Compliant: Compliant
- REACH Compliant: Compliant
- Brand: Switchcraft
Material
- Body Material: Copper Alloy
- Body Plating: Nickel
- Contact Material: Copper Alloy
- Insert Material Type: Thermoplastic
- Terminal Material: Copper Alloy
- Frame Material: Thermoplastic
