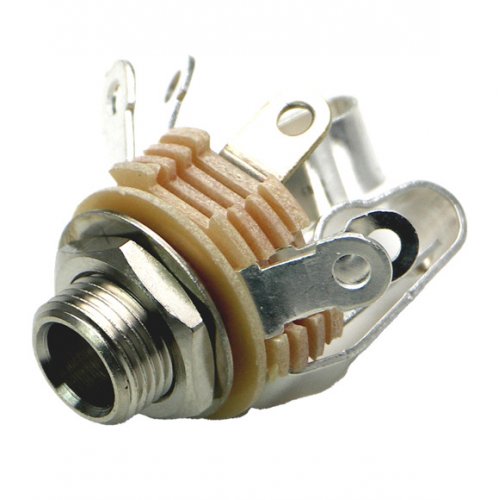

Switchcraft 14B 1/4in TRS Open Frame Jack - Bag of 20 (B-Stock)
Model: 14BPKG-20(BS)
About: Switchcraft 14B 1/4in TRS Open Frame Jack - Bag of 20 (B-Stock)
1/4" Stereo 3 Conductor Jack w/Nut & Washer, Double Closed Circuit.
- Bag of 20 jacks
Specifications
- Configuration
- Number of Conductors: 3
- Product Line: Littel Jacks
- Mounting Type: Panel
- Termination Style: Solder
- Contact Plating: Nickel
- Locking: Locking
- Sealed: Not Sealed
- Packaging Type: Bulk
- Standard Connector Type: 1/4" Phone Jacks & Plugs
- Shunt: Shunted
- Jack-Plug Type: Jack
- Special Feature: Open Frame
- Electrical
- Contact Resistance: 0.03 Ohms
- Dielectric Withstanding Voltage: 500 Volts
- Insulation Resistance: 10000 MOhms
- Voltage Rating: 25 Volts
- Current Rating: 1 Amps
- Circuit-Schematic: Double Closed
- Mechanical
- Life Cycle: 10000 Cycles
- Operating Force: 7 lbs
- Coupling Locking Style: Threaded
- Panel Thickness: 0.156 in
- Environmental
- Temperature Range: -55C to +85C
- Shielding: Unshielded
- Humidity Rating: MIL-STD-202 Method 106
- Moisture Resistance: MIL-STD-202 Method 106
- Salt Spray: MIL-STD-202 Method 101
- Minimum Temperature: -55 C
- Maxiumum Temperature: 85 C
NOTE: These jacks are new, however the metal has been tarnished.
