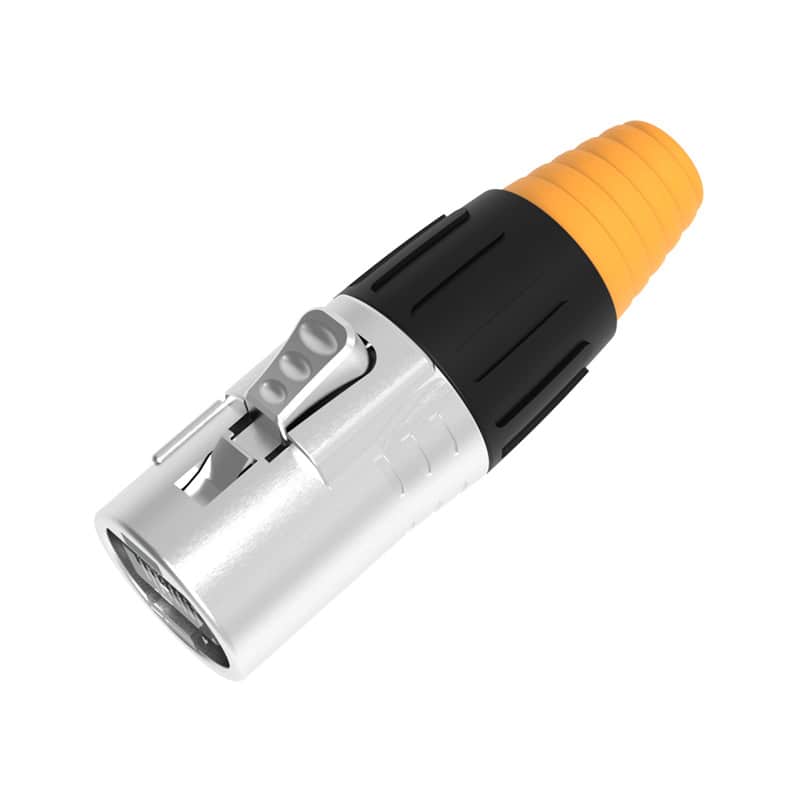

Seetronic SE8MC-05-NEW RJ45 Connector

About: Seetronic SE8MC-05-NEW RJ45 Connector

The SE8MC-05-NEW is an advanced waterproof RJ45 plug tailored to meet the rigorous demands of various commercial applications. Featuring a high waterproof rating of IP65, this RJ45 plug offers reliable protection against dust and water, making it an ideal choice for outdoor and industrial environments.

Key Features:

• Upgraded Design: This model is an enhanced version of the SE8MC-02-NEW, boasting improvements that provide superior waterproofing.
• RJ45 Cable Carrier Connector: The SE8MC-05-NEW comes with a chrome housing, ensuring durability and a professional finish.
• Compatibility: Specifically designed for the 05 series connectors, this plug is not compatible with other RJ45 connectors on the market.
• Efficient Operation: The plug features a quick release mechanism, allowing for exceptionally fast and easy plugging and unplugging with one-handed operation—significantly reducing setup time compared to traditional connectors.
• Robust Construction: The plug includes a push-button lock with a sturdy internal spring mechanism that maintains functionality even if the spring breaks. This provides greater stability than traditional signal connectors.
• Die-Cast Housing and Unique Cable Clamp: Ensures a secure and reliable connection.
• Protective Design: Its sleek design offers excellent protection for Ethernet connections, thus ensuring long-term reliability in commercial applications.

Technical Specifications:

• Product Type: IP65 RJ45 Plug
• Product Model: SE8MC-05-NEW
• Connection Type: RJ45
• Gender: Male
• Cable O.D.: 5-7 mm
• Insertion Force: ≤ 50 N
• Withdrawal Force: ≤ 50 N
• Service Life: > 1000 mating cycles
• Locking Device: Latch lock

Material and Environmental Specifications:

• Boot: PA (Polyamide)
• Housing: Zinc Alloy with Chromium Plating
• Push Button: Zinc Alloy
• Operating Temperature Range: -30°C to +80°C
