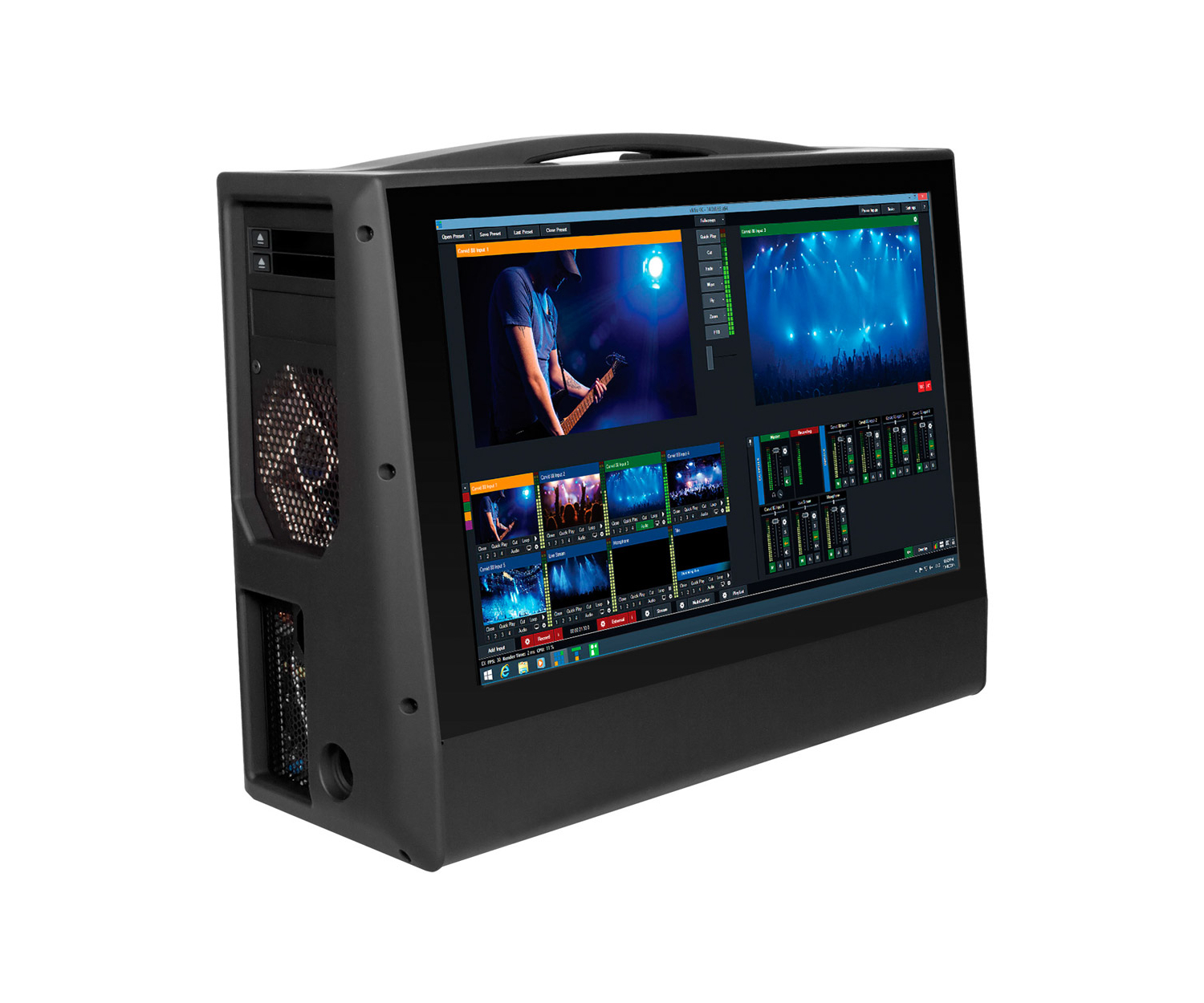

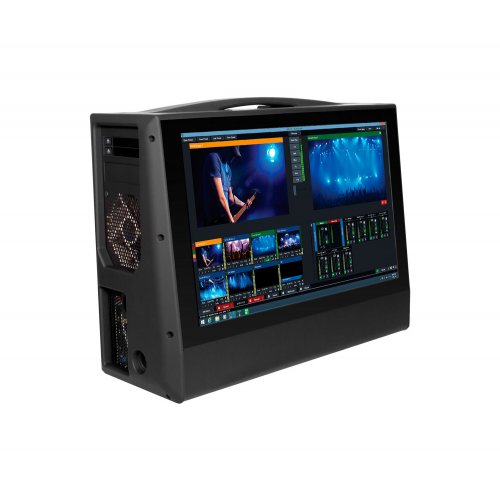

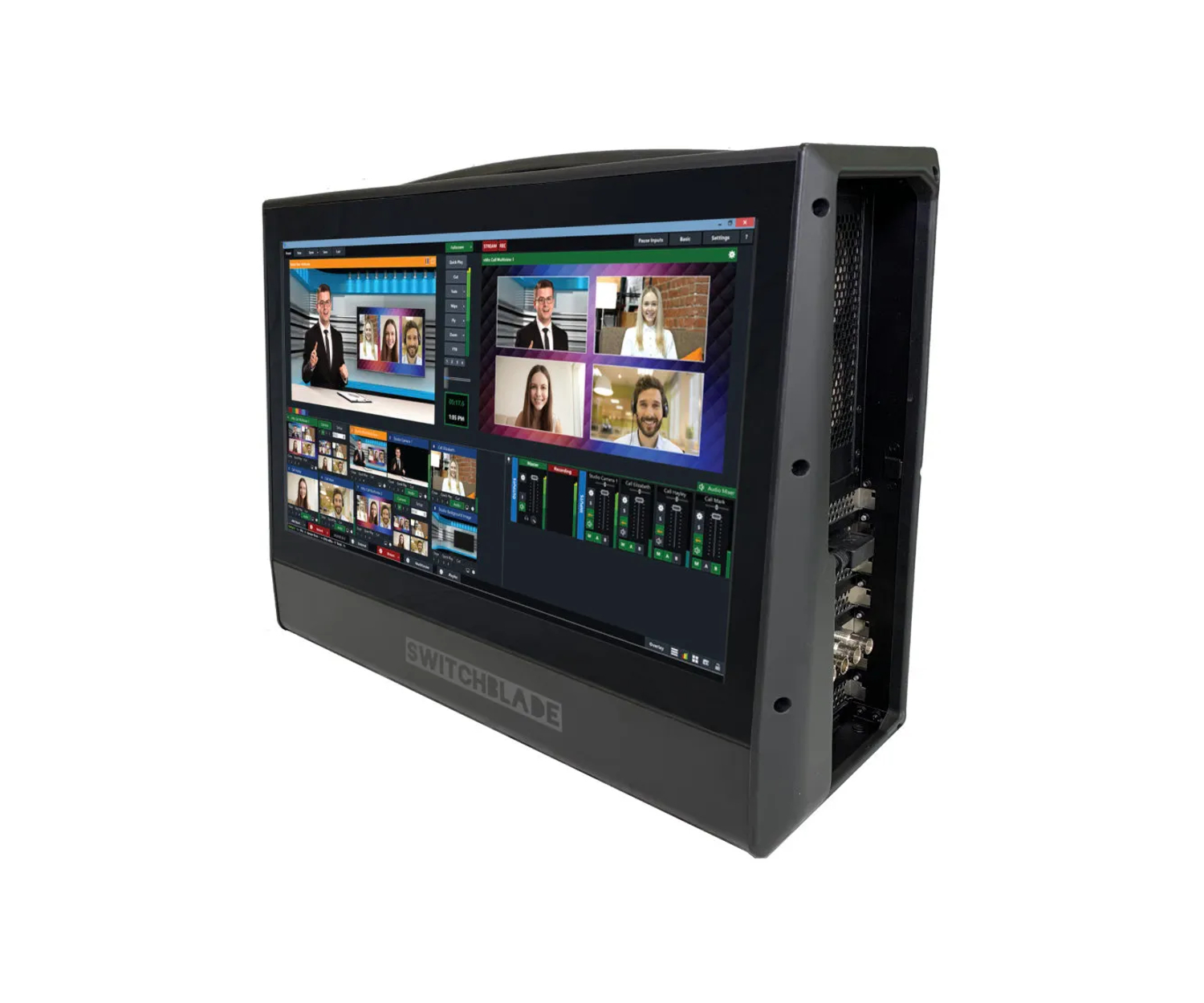

Switchblade Turbo X Portable All-In-One vMix Production System

About: Switchblade Turbo X Portable All-In-One vMix Production System

The Switchblade Turbo is a professional portable production system built for teams that need broadcast-level performance outside the studio. Connect SDI cameras, laptops, and IP video sources — then switch, mix, replay, and stream to multiple destinations, all from a single self-contained unit with a built-in 17-inch monitor. When the event is over, pack up and move on.

• Professional SDI and HDMI video inputs
• Integrated 17-inch Full HD monitor — no external display needed
• Powerful Intel Core processor and NVIDIA graphics
• vMix 4K or Pro software included — no subscription
• NDI and SRT support for IP video workflows
• Dual hot-swap removable SSD bays — ideal for recording storage and media offload

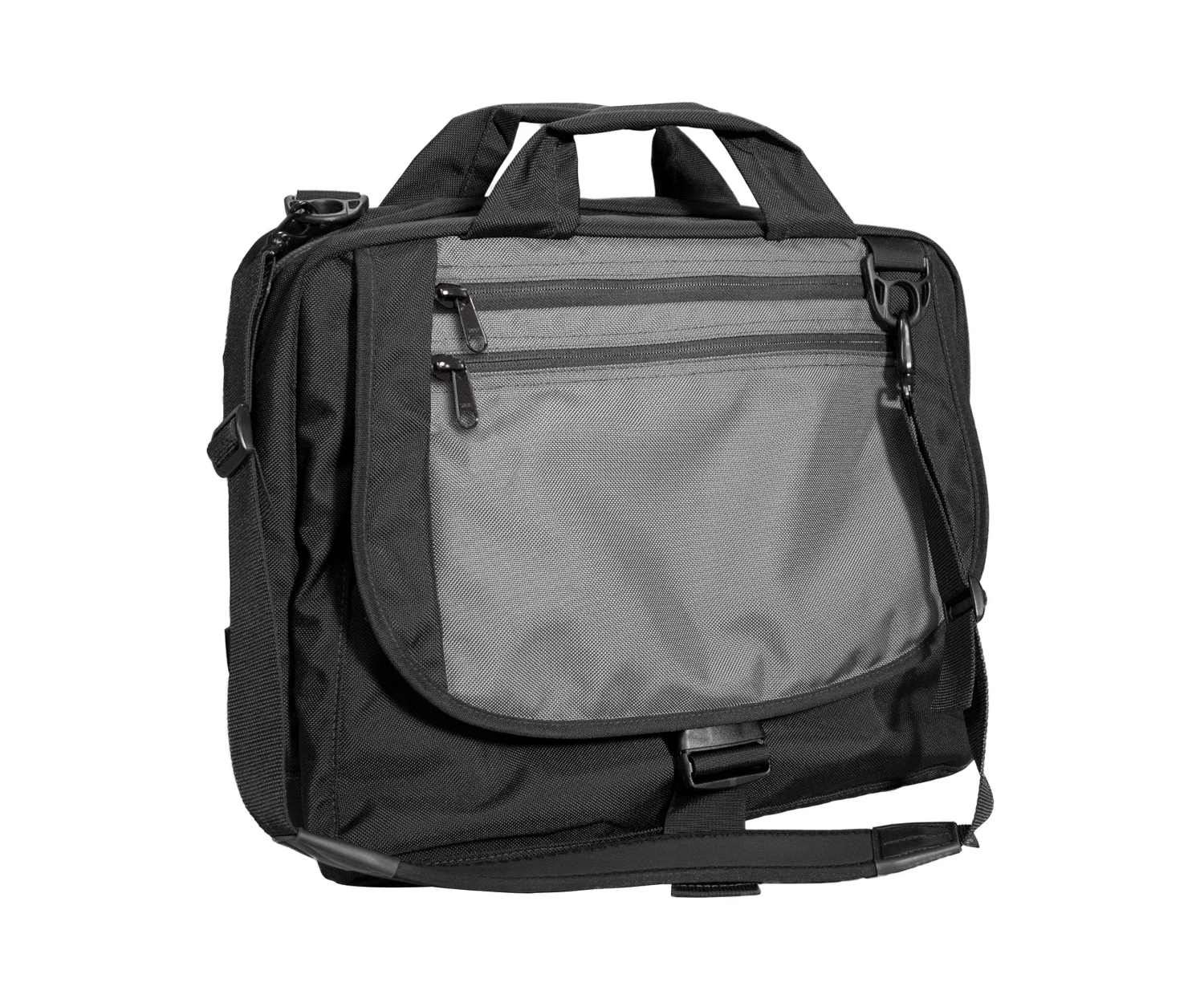

• Padded carrying case included

Available Systems

The Switchblade Turbo is available in several versions to suit varying levels of production complexity. All Turbo models come complete with vMix software, US-based support, and free training resources.

• Turbo X
  • The professional SDI entry point for schools and production teams ready to step up from consumer gear. Combines 4x 3G-SDI and 4x HDMI inputs with vMix 4K in a portable broadcast studio built for live sports and events.
    • 4x 3G-SDI + 4x HDMI inputs for flexible camera setups
    • Includes vMix 4K for HD and 4K live production
    • NVIDIA RTX 5060 Ti handles demanding multi-camera workflows
    • Ideal for high school and college sports, streaming, and live events
• Turbo X 12G
  • Built for production teams running 4K60 or multi-format broadcast workflows. Four 12G-SDI inputs, a workstation-class RTX A4500 GPU, and a 24-core processor make this the choice for college sports and professional streaming crews.
    • 4x 12G-SDI inputs support up to 4K60 per channel
    • Intel Core Ultra 7 270K Plus 24-core processor and RTX A4500 GPU
    • Includes vMix 4K for advanced live production
    • Ideal for college sports broadcasts, production companies, and network affiliates
• Turbo Elite
  • The flagship Turbo for broadcast professionals who need bi-directional 12G-SDI I/O, up to 8x configurable SDI inputs, and the full power of vMix Pro — including 8-channel replay. Built for network-level productions with no compromises.
    • 4x Bi-directional 12G-SDI I/O + 8x configurable SDI inputs
    • NVIDIA RTX PRO 4000 Blackwell and Intel Core Ultra 7 270K Plus 24-core
    • Includes vMix Pro with 8-channel replay, 8 remote callers, and advanced scripting
    • Ideal for professional sports production, broadcast trucks, and network-level events​

Specifications

• Video & Audio Connections
  • Video Inputs/Outputs: 4x 3G-SDI inputs, 4x HDMI inputs
  • Audio
    • Inputs: 1x 3.5mm line-in, 1x 3.5mm mic-in
    • Outputs: 1x 3.5mm line-out
• Hardware
  • Display: 17.3-inch (diagonal) Full HD 1920x1080 resolution
  • Processor (CPU): Intel Core Ultra 7 265K processor
  • Graphics (GPU): NVIDIA GeForce RTX 5060 Ti, 16GB GDDR7 RAM
  • Memory (RAM): 32GB DDR5 RAM
  • Storage:
    • 1TB NVMe M.2 Solid State Drive (SSD)
    • 2x Hot-swap removable 2.5" SATA SSD bays
  • Network: 1x 5Gbps Ethernet RJ-45 port, Wi-Fi 7
  • Included: USB wired keyboard, USB wired mouse, padded carrying case
• Software
  • Included Software: vMix 4K
  • Replay Channels: 1-channel instant replay with vMix Replay (included)
  • Remote Callers: 4 remote callers with vMix Call (included)
  • Overlay Channels: 8 channels
  • Recorder: 2 independent recorders
  • Streaming Outputs: 5 simultaneous live streams
  • NDI Inputs: Unlimited NDI inputs (depending on video and project settings)
  • NDI Outputs: 4 NDI outputs
  • SRT Inputs: Unlimited SRT inputs (depending on video and project settings)
  • SRT Outputs: 4 SRT outputs
  • Fullscreen Outputs: 2 additional external monitor outputs from graphics card (HDMI or DisplayPort)
  • Titling Software:
    • GT Designer Standard - Includes 100+ Built-In Animated Titles, Scoreboards, Tickers
    • GT Designer Advanced - Build custom animated titles, including using layered Adobe PSD files
  • Color Correction: Professional color correction on every input, including lift, gamma, gain, luminance, hue, saturation with real-time vectorscope monitoring.
  • Playlist: Switch between multiple live inputs or prerecorded videos without manual intervention.
  • Video list: Create playlists of video files to play in sequence - a great way to stream pre-recorded content when your event is offline
  • Scripting: Create complex automations with VB.NET and URL scripting.
  • PTZ Control: Control multiple Pan Tilt and Zoom cameras directly from the main interface and by shortcut and/or joystick control.
  • Mix Input: Add up to 15 additional "mini mixers" that support basic transitions and cuts between two different inputs.
  • Vertical HD: Multiple tools supporting vertical 1920p production, including project presets, safe areas, source rotation, and vertical titles.
  • Zoom Integration: Hosting and joining a Zoom meeting within a live production. Receive the audio and video of each participant as separate inputs.
  • Telestrator: Draw over any input using a web browser. Display lines, shapes, text, and images to telestrate sports, presentations, and more!
• Physical
  • Weight: 25 lbs
  • Dimensions (WxHxD): 16.75 x 13.69 x 6.67 inch (425.45 x 347.73 x 169.41 mm)

NOTE: Images are for display purposes only. Inputs/Outputs vary based on model.
