Muxlab HDMI 1x4 HDBT Splitter Extender Kit 120m, 4K/60

About: Muxlab HDMI 1x4 HDBT Splitter Extender Kit 120m, 4K/60

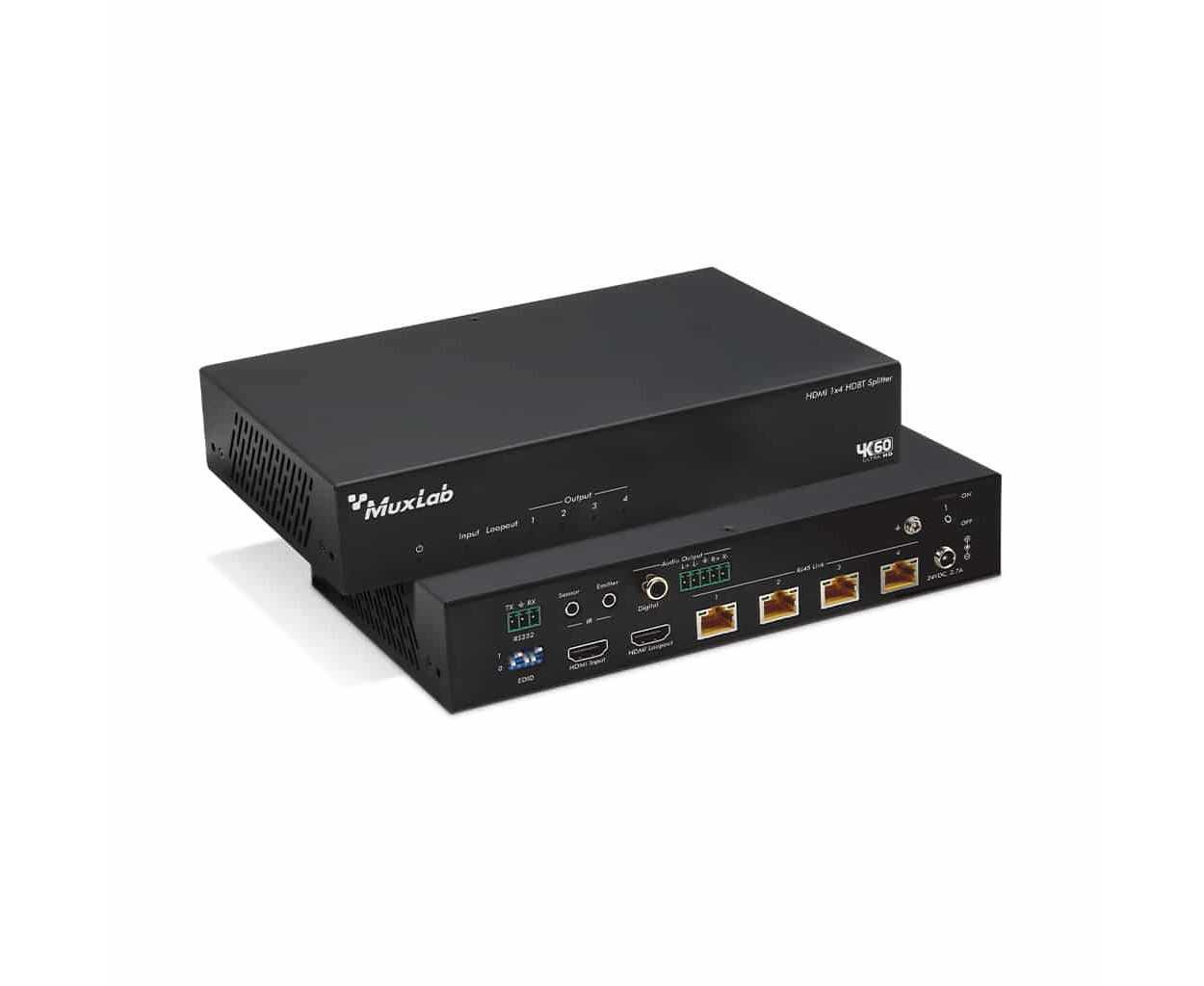

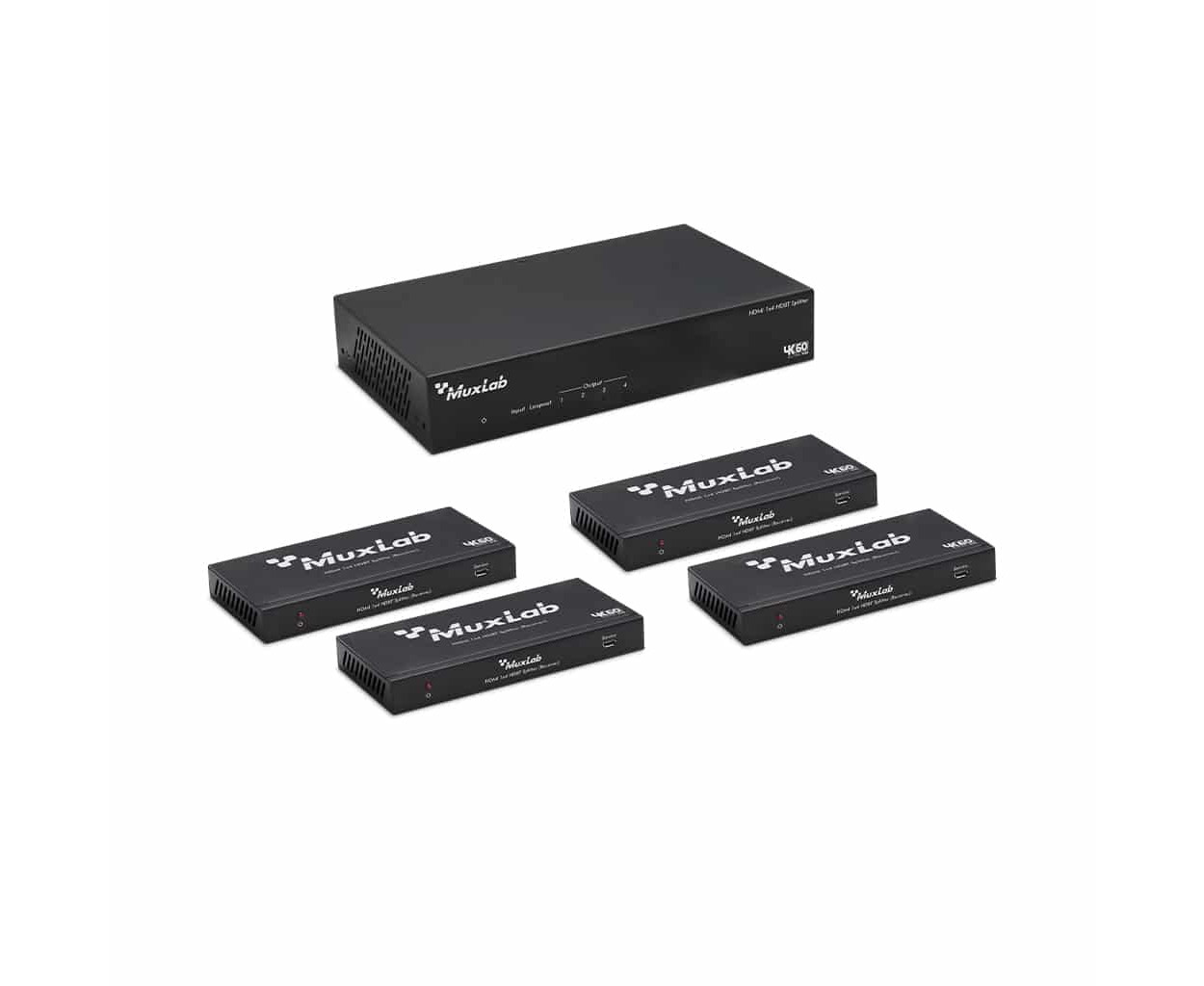

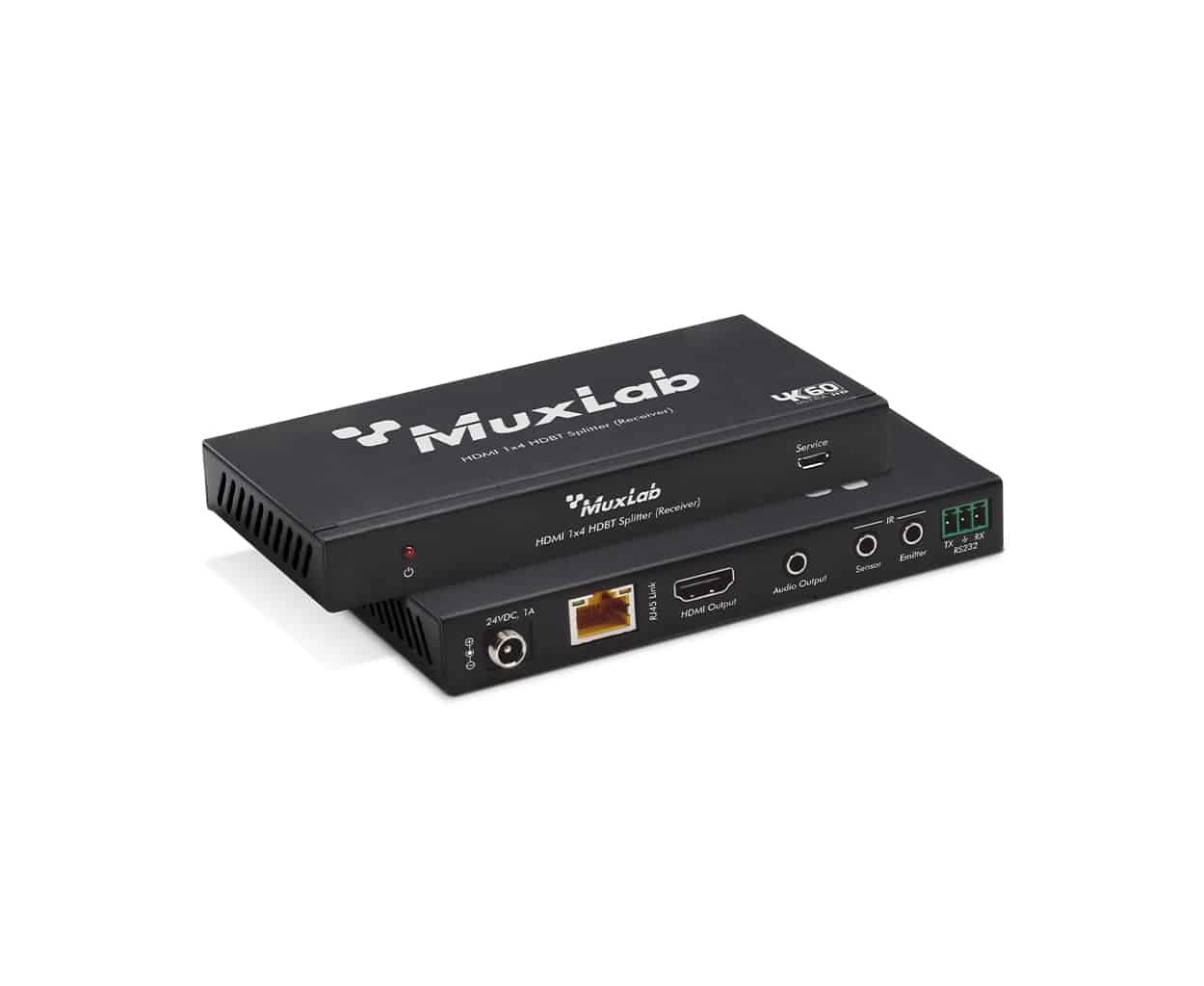

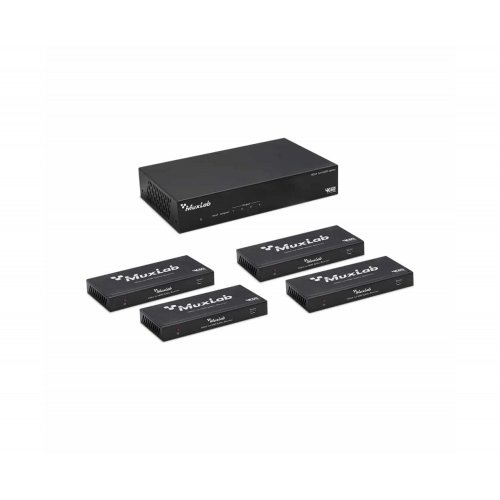

The HDMI 1x4 HDBT Splitter Extender Kit 120m, 4K/60 enables HDMI 2.0 connectivity at data rates up to 18Gbps & extends 4K/60 up to 120m (394ft) and 1080p up to 150m (492ft) over standard Cat6/6a/7 UTP cable. The splitter features HDMI input & loop out, bidirectional IR, analog & digital audio de-embedding, four HDBT output ports and RS-232 pass-through. The four receivers features HDMI output, bidirectional IR, digital audio de-embedding, HDBT input port and RS-232 pass-through. The device also supports 24VDC PoC delivery to the receiver.

The HDMI 1x4 HDBT Splitter Extender Kit 120m, 4K/60 support IR and RS232 signal pass-through, audio de-imbedding function and advance EDID management.

• HDMI 2.0, HDCP 2.3 and HDCP 1.4 compliant
• Supports 18Gbps video bandwidth
• Supports video resolution up to 4K/60Hz 4:4:4
• Supports HDR, HDR10+, HLG and Dolby Vision
• Supports up to 7.1 channels audio pass-through
• Supports digital and analog audio de-embedded output
• Advanced EDID management
• Supports one way PoC function (Power over Cable)
• Compact design for easy and flexible installation

Specification

• Technical
  • Protocol Compliance: HDMI 2.0 and HDCP 2.2 8 1.4
  • Transmission Rate: Up to 594MHz/18Gbps
  • Video Resolution: Up to 4K/60Hz (4:4:4)
  • Transmission Distance
  • 4K/60 up to 120m/394ft over CAT6/6a/7 (F/FTP) cable
  • 1080p up to 150m/492ft over CAT6/6a/7 (F/FTP) cable
  • IR Frequency: Wideband 20KHz to 60KHz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
  • Color Depth: 8, 10, 12 bit
  • HDR Standard: HDR, HDR10, HDR10+, HLG and Dolby Vision
  • HDMI Audio Format: LPCM up to 7.1 channels, Dolby up to Dolby TrueHD and DTS up to DTS HD Master
  • Digital Audio Format: LPCM 2.0, Dolby Digital / Plus, DTS 2.0 8 5.1
  • Analog Audio Format: LPCM 2.0 Channels
• Connection
  • Splitter
    • Input: 1x HDMI Input [HDMI Type A, 19-pin female
    • Output
      • 1x HDMI Loopout [HDMI Type A, 19-pin female]
      • 1x HDBT Output [RJ45, 8-pin female]
      • 1x Digital Audio Output [RCA female]
      • 1x Balanced Audio Output [5pin-3.5mm Phoenix Connector]
    • Control
      • 1x RS232 [3pin-3.5mm Phoenix Connector]
      • 1x EDID [5-pin DIP Switches]
      • 1x IR Input [ 3.5mm stereo mini jack]
      • 1x IR Output [ 3.5mm stereo mini jack]
  • Receiver
    • Input: 1x HDBT Input [RJ45, 8-pin female]
    • Output:
      • 1x HDMI Output [HDMI type A, 19-pin female]
      • 1x Digital Audio Output [RCA Female female]
    • ​Control
      • 1x IR Input [3.5mm stereo mini jack]
      • 1x IR Output [3.5mm stereo mini jack
      • 1x RS232 [3pin-3.5m phoenix connector]
      • 1x Service [USB-C female]
• Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Power Supply
    • Input: 100~240VAC 50/60Hz
    • Output: 24VDC/2.7A
  • Power Consumption: 35W
  • Operating Temperature: 0C~ 40C /32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (non-condensing)
• Dimensions (WxDxH)
  • Splitter: 8.66 x 5.12 x 1.58 in (220 x 130 x 40mm)
  • Receiver: 5.51 x 2.56 x 0.71 in (140 x 65 x 18mm)
• Weight
  • Splitter: 1.88 lbs (853g),
  • Receiver: 0.54 lbs (246g)
