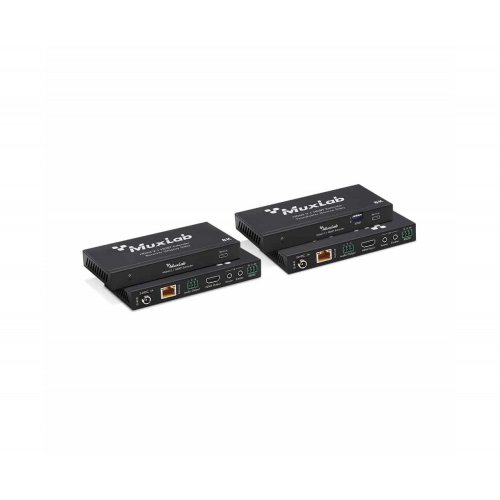

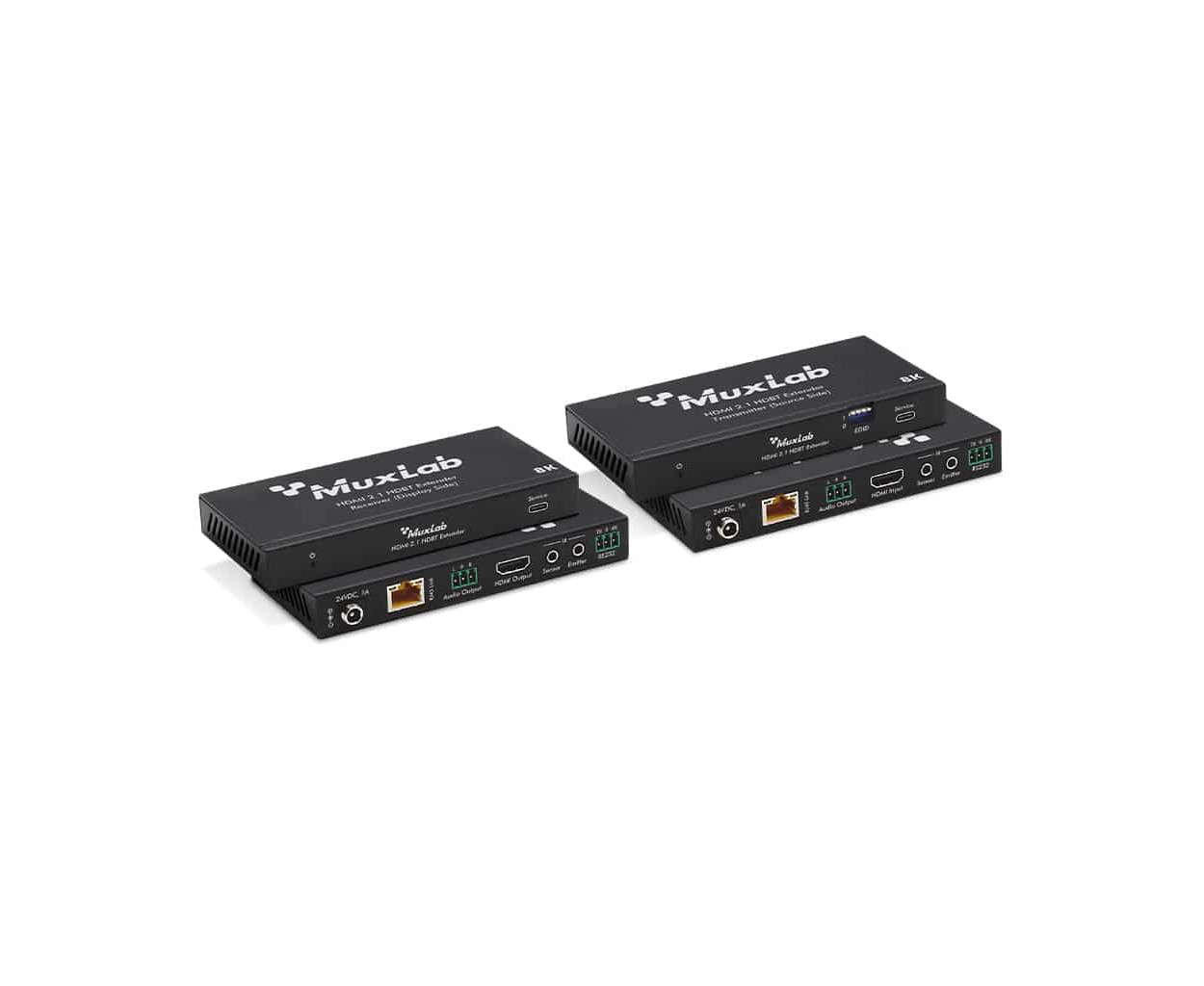

Muxlab HDMI 2.1 40Gbps HDBT Extender Kit, 90m

About: Muxlab HDMI 2.1 40Gbps HDBT Extender Kit, 90m

The HDMI 2.1 40Gbps HDBT Extender Kit, 90m enables HDMI 2.1 connectivityat data rates up to 40Gbps & extends HDMI 8K up to 90m (295ft), HDMI 4K up to 120m(394ft) and 1080p up to 150m (492ft) over standard Cat6 UTP cable.

• Video bandwidth up to 40Gbps FRL and 18Gbps TMDS
• Supports all industry standard video resolution
• HDMI re-clocking on the HDBT receiver is helpful to solve HDMI and HDCP compatibility and hand-shaking issues
• Supports bidirectional IR, RS232 and CEC pass-through
• Supports VRR, FVA and ALLM
• Supports HDR10, HDR10+, HLG and Dolby Vision pass-through
• Supports bidirectional PoC (Power over Cable)
• Both the transmitter and receiver support analog audio de-embedding
• Simple plug and play installation

Transmitter features withHDMI input, bidirectional IR, analog audio de-embedding and RS-232 pass-through. Receiverfeatures with HDMI output, bidirectional IR, analog audio de-embedding and RS-232 pass-through. The device also supports 24V Bidirectional PoC.

The HDMI 2.1 40Gbps HDBT Extender Kit, 90m supports advanced functionalities like VRR, FVA,ALLM, HDR10, HDR10+, HLG and Dolby Vision. All audio format are supported.

Specification

• Technical
  • Protocol Compliance: HDMI 2.1 and HDCP 2.3
  • Transmission Rate: Up to 40Gbps FRL and 18Gbps TMDS
  • Video Resolution: Up to 8K/30Hz (4:4:4)
  • Transmission Distance
    • 8K/30 up to 90m/295ft, 4K/60 up to 120m/394ft and
    • 1080p up to 150m/492ft over CAT6 (F/FTP) cable
  • IR Frequency: Wideband 20KHz to 60KHz
  • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2 and YCbCr 4:2:0
  • Color Depth: 8, 10, 12 bit
  • HDR Standard: HDR, HDR10, HDR10+, HLG and Dolby Vision
  • HDMI Audio Format: LPCM up to 7.1 channels, Dolby up to Dolby Atmos and DTS up to DTS:X
• Connection

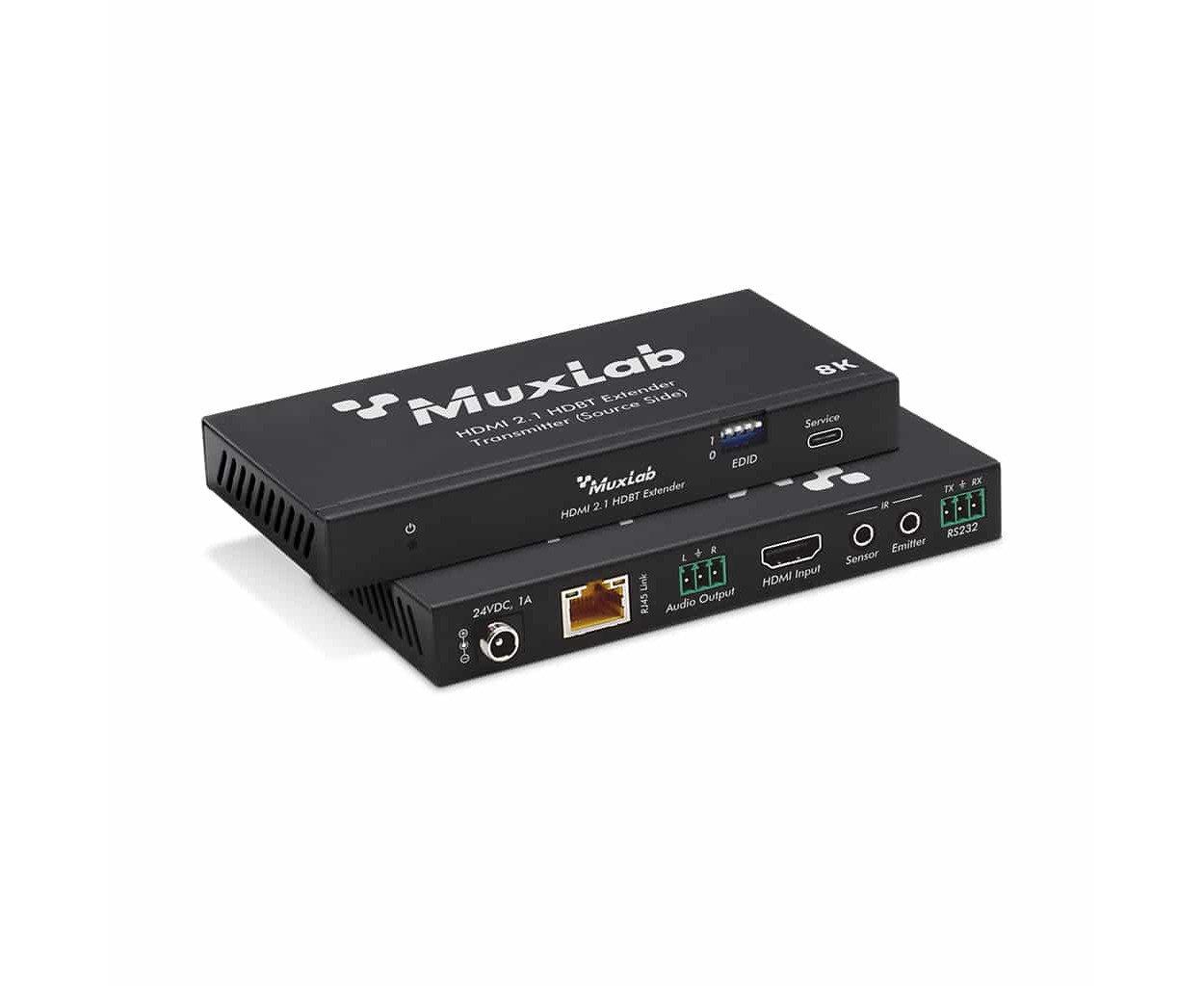

  • Transmitter
    • Input: 1x HDMI Input [HDMI Type A, 19-pin female]
    • Output: 1 HDBT Output [RJ45, 8-pin female]
    • Control
      • 1 x IR Input [3.5mm stereo mini jack]
      • 1x IR Output [3.5mm stereo mini jack]
      • 1x RS232 [3pin-3.5mm Phoenix Connector]
      • 1x USB-C Service [USB-C female]
      • 1x EDID [4-pos DIP Switches]

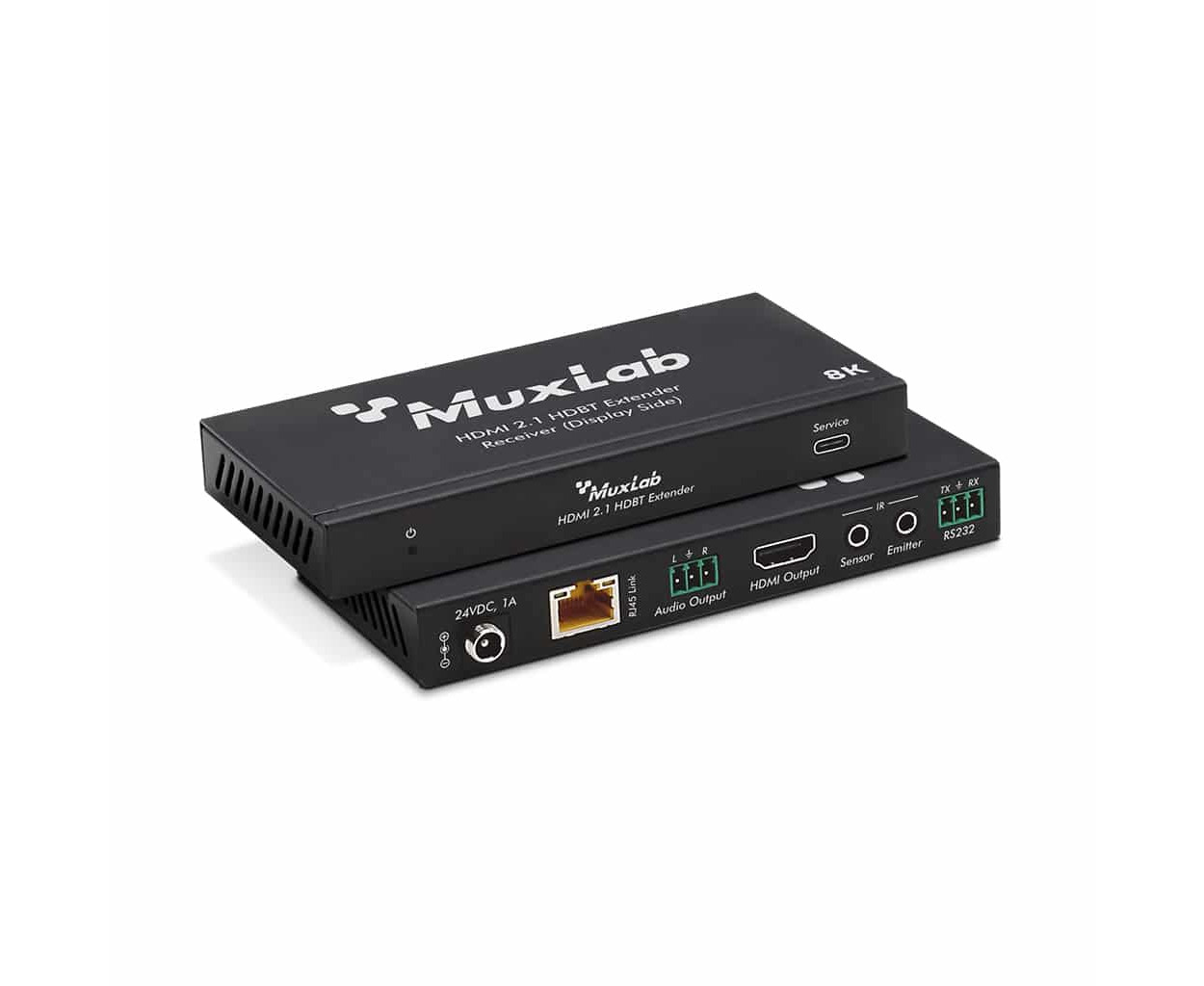

  • Receiver
    • Input: 1x HDBT Input [RJ45, 8-pin female]
    • Output: 1x HDMI Output [HDMI type A, 19-pin female]
    • Control
      • 1x IR Input [3.5mm stereo mini jack]
      • 1x IR Output [3.5mm stereo mini jack]
      • 1x RS232 [3pin-3.5m phoenix connector]
      • 1x Service [USB-C female]
• Mechanical
  • Housing: Metal Enclosure
  • Color: Black
  • Power Supply
    • Output: 24VDC/1A
    • Input: 100~240VAC 50/60Hz
  • Power Consumption
    • Transmitter: 11.28W
    • Receiver: 10.8W
  • Operating Temperature: 0°C ~40C /32°F ~104°F
  • Storage Temperature: -20°C ~60C / -4°F ~140°F
  • Relative Humidity: 20~90% RH (non-condensing)
  • Dimensions (WxDxH): 5.51 x 2.56 x 0.71 in (140 x 65 x 18mm)
  • Weight (TX & RX): 0.53 lbs (240g)
