TP-Link DS105G MK2 5-Port 2.5G Multi-Gigabit Switch

About: TP-Link DS105G MK2 5-Port 2.5G Multi-Gigabit Switch

• Five 2.5 Gbps Ports. 5× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25 Gbps of switching capacity.
• Super-Fast Connections. Provides super-fast connections to 2.5G NAS, 2.5G Server, gaming computer, 2.5G WiFi 6 AP, 4K video, and more.
• Ideal for Various Scenarios. Built for LAN parties, home entertainment, small and home offices, and instant transfer for workstations,
• Hassle-Free Cabling. Instantly upgrade to 2.5 Gbps without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.*
  • *Only Cat5e or better cables do not need to be replaced.
• Silent Operation. Industry-leading fanless design ensures silent operation, ideal for any home or business.
• Plug and Play. No configuration or central management required.**
  • **Omada Unmanaged Switches do not support Omada SDN central management.

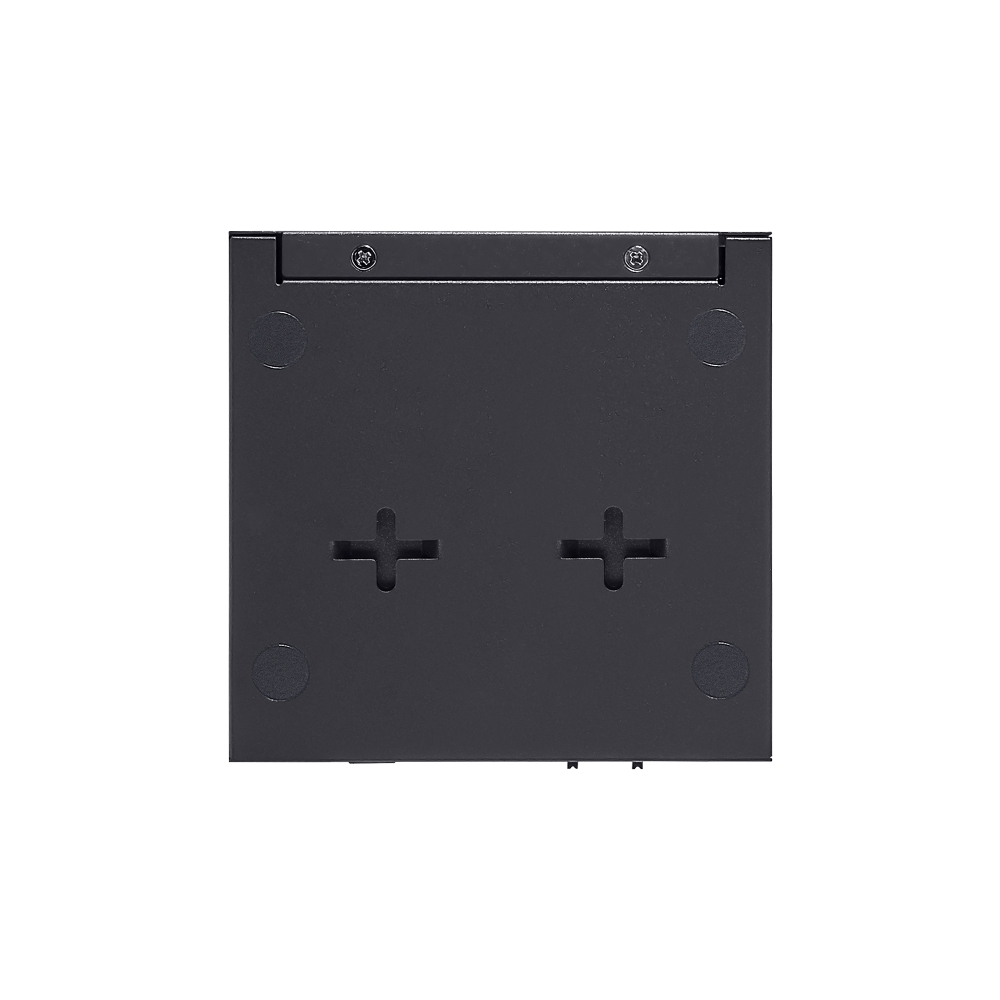

• Metal Casing. Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Specifications

• HARDWARE FEATURES
• Standards and Protocols: IEEE 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
• Interface: 5x 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Fan Quantity: Fanless
• External Power Supply: External Power Adapter (Output: 9 VDC / 0.6 A)
• LED Indicator
  • Power
  • Link/Act Indicators
• Dimensions (WxDxH): 3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)
• Max Power Consumption: 5.81 W
• Max Heat Dissipation: 19.754 BTU/h
• PERFORMANCE
  • Switching Capacity: 25 Gbps
  • Packet Forwarding Rate: 18.6 Mpps
  • MAC Address Table: 4 K
  • Jumbo Frame: 12 KB
• SOFTWARE FEATURES
  • Advanced Features
    • 802.3X Flow Control
    • 802.1p/DSCP QoS
    • IGMP Snooping
  • Transfer Method: Store and Forward
• OTHERS
  • Certification: CE, FCC ,RoHS
  • Environment
    • Operating Temperature: 0–40 °C (32–104 °F)
    • Storage Temperature: -40–70 °C (-40–158 °F)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing

What's in the Box

• DS105G-M2
• Power Adapter
• Installation Guide
• Rubber Feet
