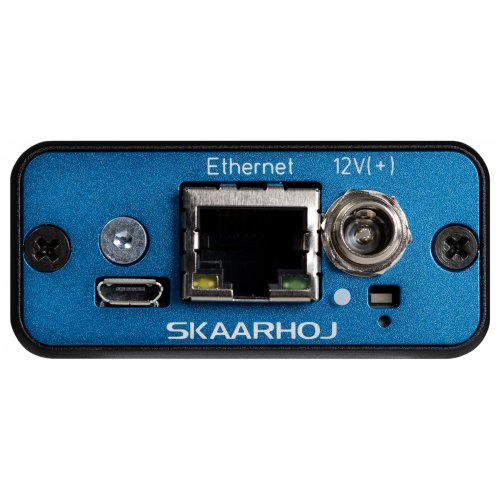

SKAARHOJ ETH-B4 Link
Model: ETH-B4-Link-V2
About: SKAARHOJ ETH-B4 Link

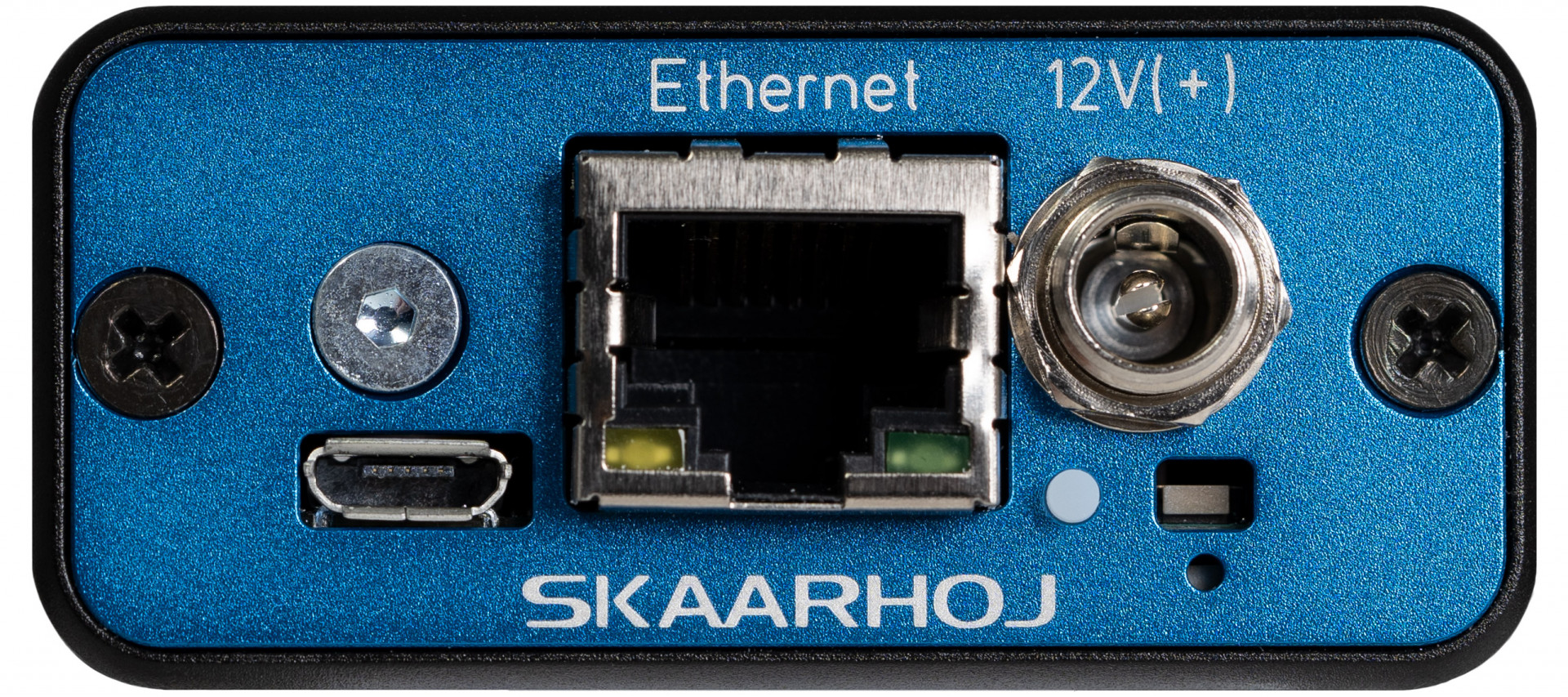

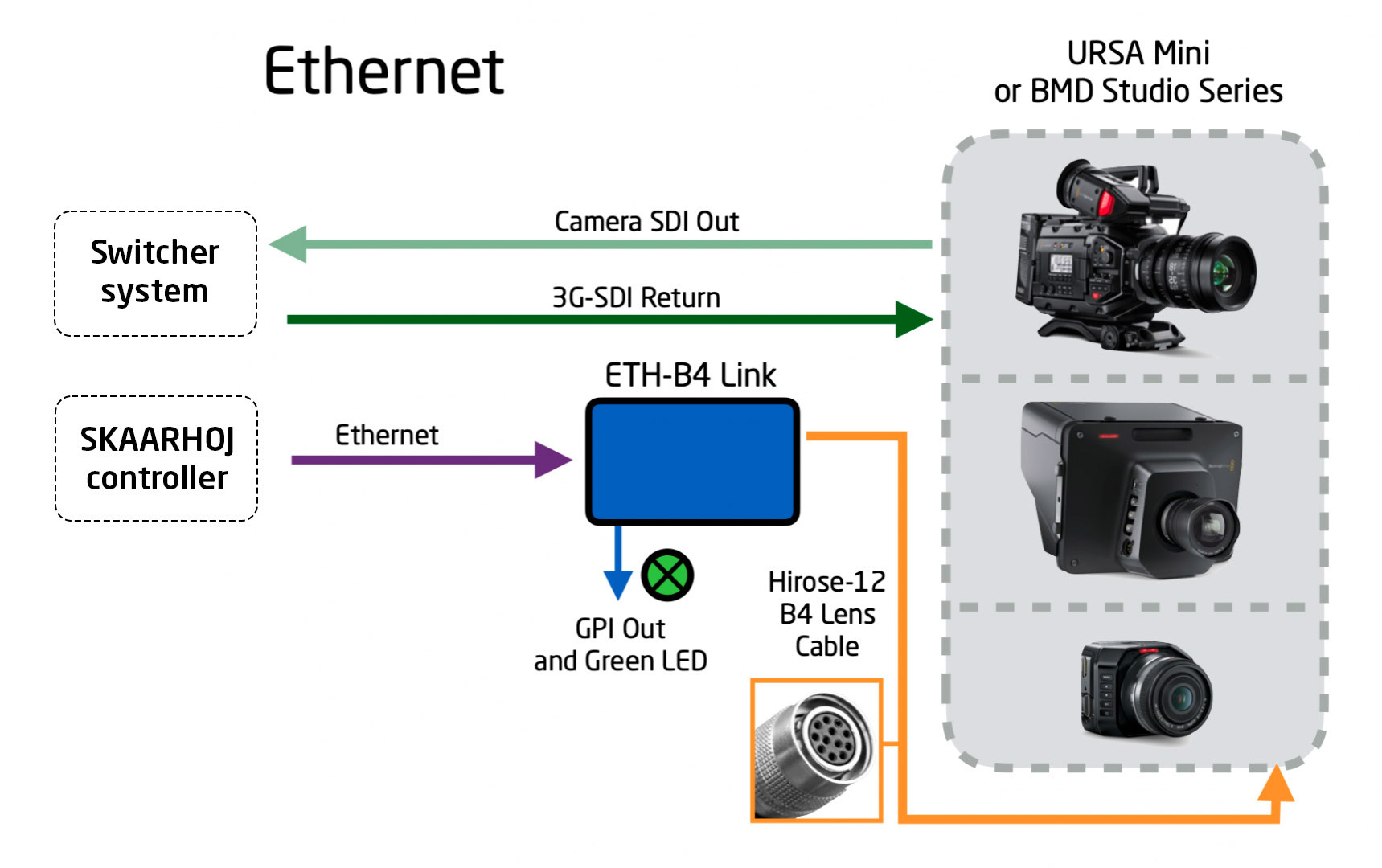

With the SKAARHOJ ETH-B4 Link the iris control data is sent separately from the camera control data over ethernet instead of over SDI. The ETH-B4 Link has a camera selector switch that sets it’s camera ID filter as well as its IP address and the iris data it receives is output on the Hirose-12 connector. It also features a tally lamp (red/green) and a relay output (PGM tally out).

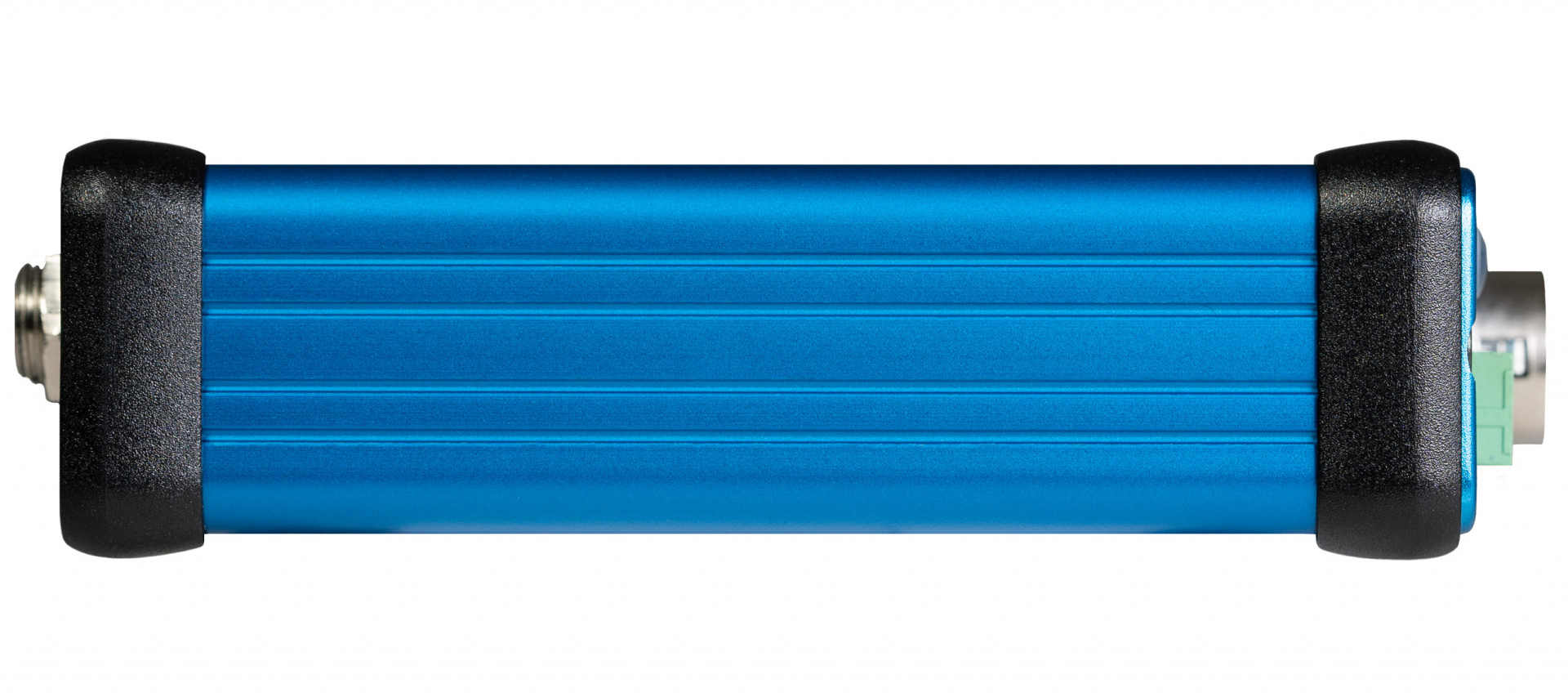

Similar to SDI-B4 Link but the data input is via network instead of SDI. The protocol is also Blackmagic Camera Control, but over UDP (“UDP Camera Control”) and typically served by a SKAARHOJ controller. Has an incredibly light and compact form factor.
Features

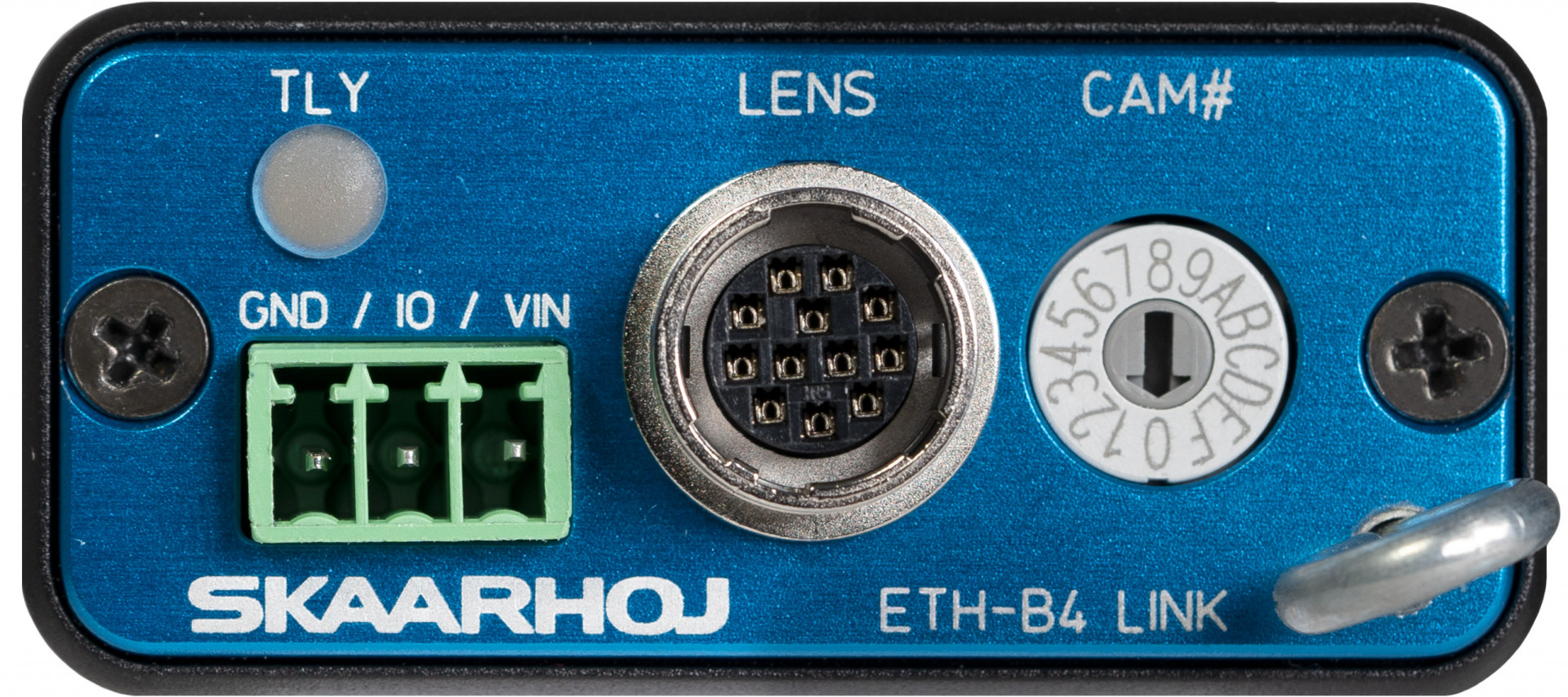

- Hirose 12-pin connector
- Tally on small LED
- Preview/program tally on small LED
- Selector switch
- Set camera number via selector switch
- 3-pin phoenix connector
- Program tally from 3-pin phoenix connector: Ground, IO, 12V (VIN)
Whats in the Box?
- ETH- B4 Link
- 12V Power Supply
- USB Programming Cable (1m)
- Networking Cable (2m)
UPC: 5714074002451
