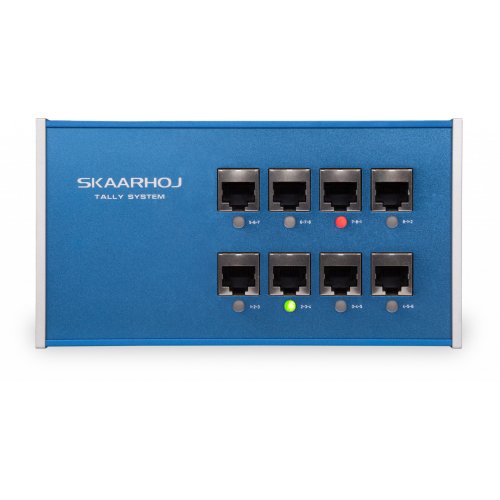

SKAARHOJ Tally Box
Model: ETH-TALLY-LINK-V2
About: SKAARHOJ Tally Box
The SKAARHOJ Tally System is a great add-on for your live video-production.
The tally light have two LEDs - one facing the camera operator and the big one facing the presenter.
The operator LED have both program and preview tally while the presenter LED is just for program.
The two switches on the tally light enables the operator to turn on/off the main LED and to dim the operator LED.
The Tally Box System handles up to 8 tally lights, connecting either directly via the box, or by daisy chain running from tally light to tally light.
Features
- Strong and sturdy mountable cold shoe adapter in metal with locking washer.
- Ready to take a beating for a life on the road.
- Two switches are integrated on the Tally Light
- The main LED (red) provides a large, clear and bright light easy visible for the presenter to know which camera is on program.
- The LED can be turned on/off with a switch on the tally light.
- The operator LED shines red when on program and green when on preview.
- With the swich on the tally light the operator LED can be dimmed when used in very low light conditions to avoid blinding the camera operator.
- Ethernet with PoE (IEEE802.3af)
- Daisy chain up to 3 tally lights
- In a daisy chain configuration this would result in:
- Output 1-2-3 = Tally 5-6-7
- Output 2-3-4 = Tally 6-7-8
- Output 3-4-1 = Tally 7-8-5
- Etc.
- In a daisy chain configuration this would result in:
UPC: 5714074001638
