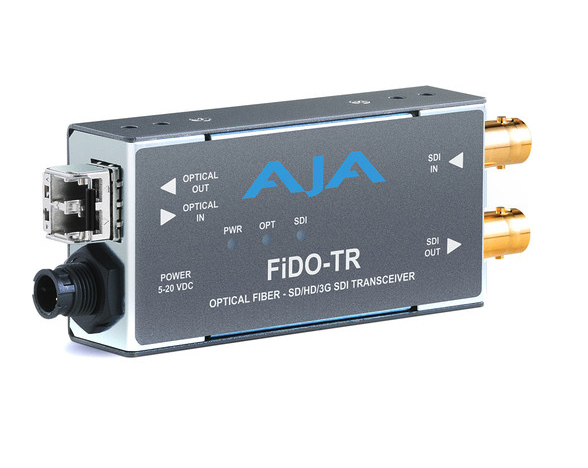

AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
Model: FiDO-TR-MM
About: AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
AJA FiDO-TR-MM is a compact and versatile 1-channel 3G-SDI/LC Multi-Mode fiber transceiver designed to facilitate seamless 3G-SDI to optical fiber conversion and vice versa. This device enables the transmission of high-quality video signals over extended distances, making it ideal for broadcast, production, and professional AV environments.
Features
- Bidirectional 3G-SDI to Multi-Mode LC fiber conversion
- Supports 3G-SDI, HD-SDI, and SD-SDI formats
- Extends signal reach up to 700 meters (2296 feet) over OM4 fiber and up to 300 meters (984 feet) over OM3 fiber
- Compact and rugged design suitable for various installation scenarios
- Universal power supply with international plug adapters included
- Five-year warranty
Specifications
| Video Formats | 150 Mbps to 3 Gbps, format agnostic |
|---|---|
| Video Input | 1 x 3G-SDI BNC; 1 x Multi-Mode LC Fiber |
| Video Output | 1 x 3G-SDI BNC; 1 x Multi-Mode LC Fiber |
| Nominal Wavelength | 850 nm |
| Optical Sensitivity | 0 dBm (Min), -15 dBm (Min) |
| Optical Power | -7 dBm (Min), -2 dBm (Max) |
| Extinction Ratio | 7.5 dB (Typ) |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select; all other rates are passed through and not reclocked |
| Dimensions (W x D x H) | 4.6 x 1.71 x 0.85 inches (117.0 x 43.5 x 21.6 mm) |
| Weight | 0.4 lb (0.2 kg) |
| Power | 3 watts max; uses 5-20 VDC power (universal power supply included) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Storage Temperature | -40 to 60°C (-40 to 140°F) |
| Operating Humidity | 10-90% non-condensing |
| Operating Altitude | <3,000 meters (<10,000 feet) |
UPC: 812321030471
Reviews: AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
Warranty: AJA FiDO-TR-MM 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
All AJA Mini-Converters are covered by a 5 year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
