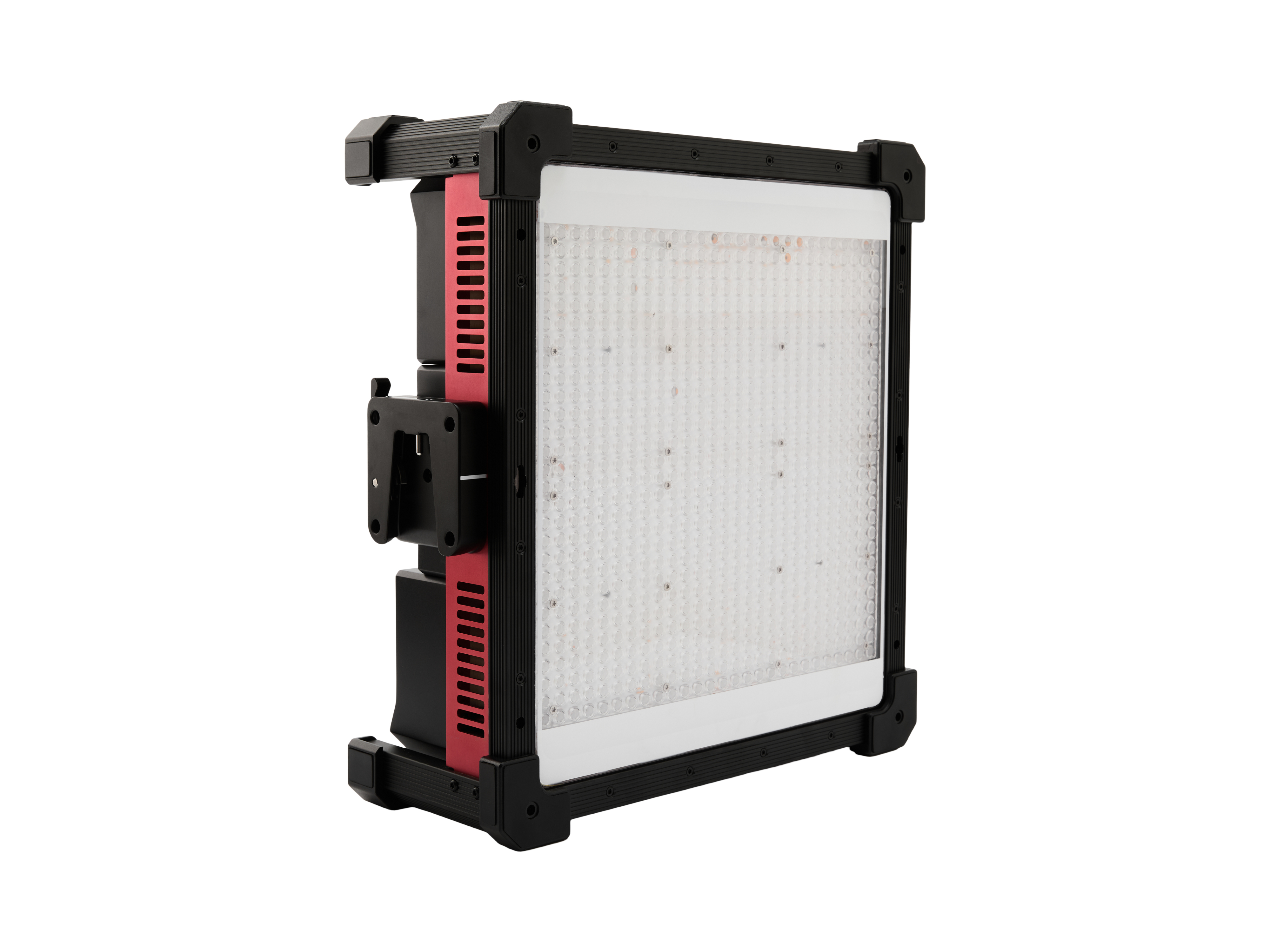

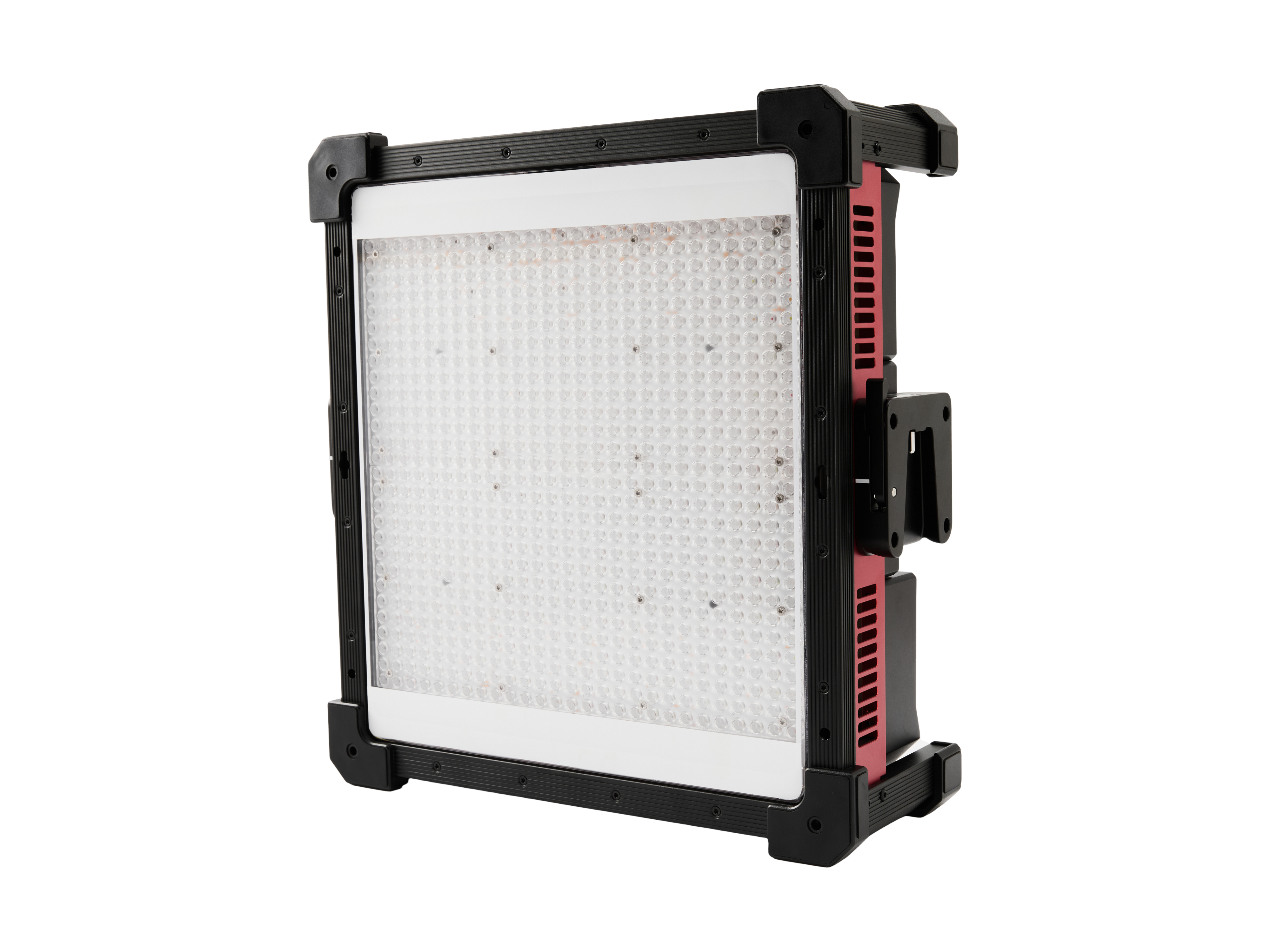

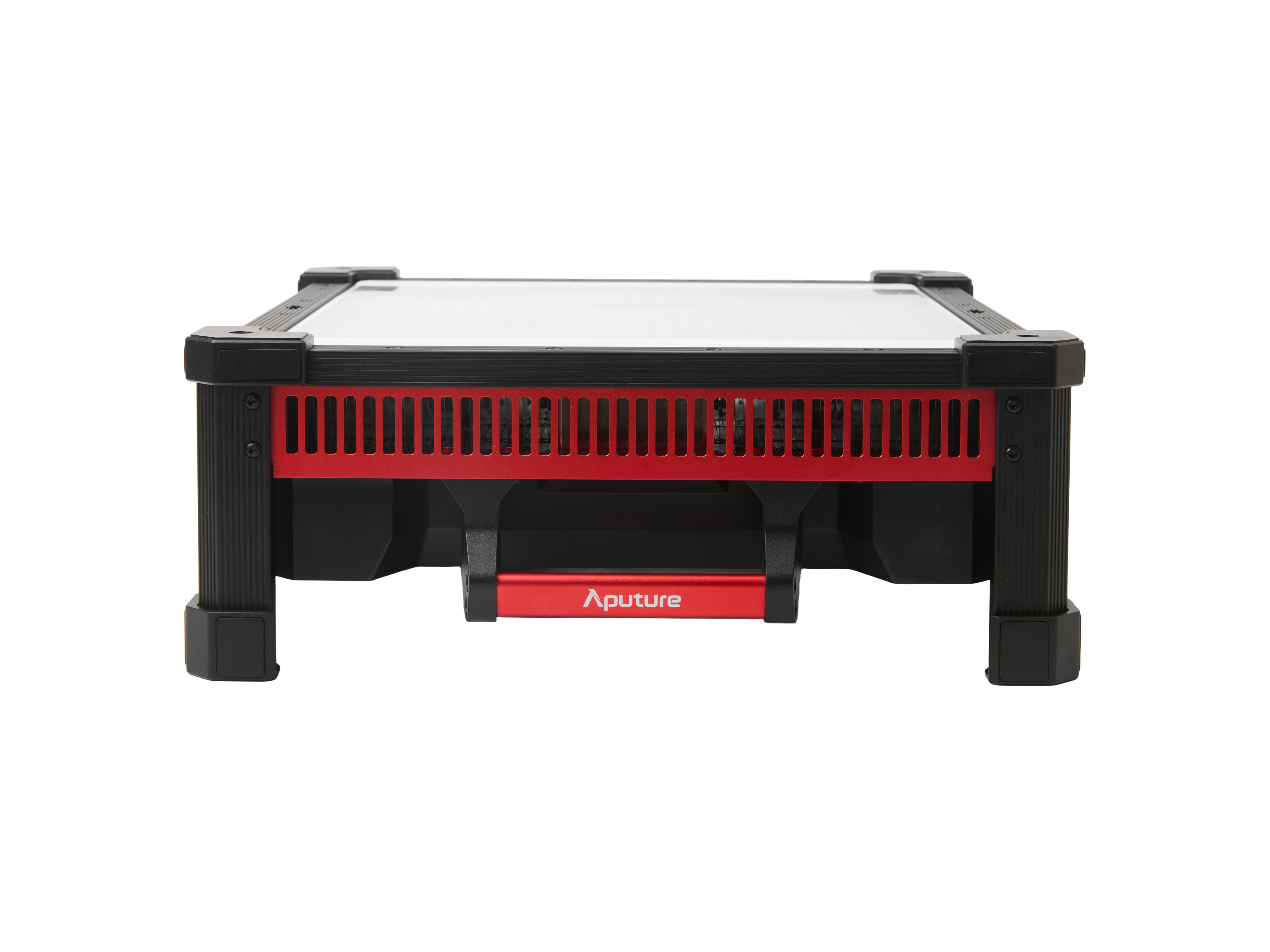

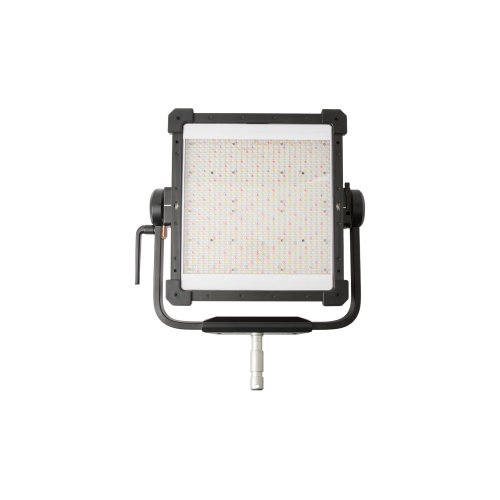

Aputure NOVA II 1x1 Tunable Color High Fidelity Panel Light

About: Aputure NOVA II 1x1 Tunable Color High Fidelity Panel Light

The Aputure NOVA II 1x1 is a next-generation full-color LED panel designed to redefine what a compact professional lighting fixture can achieve. Building on the legacy of the Nova P300c, the NOVA II 1x1 delivers more than twice the diffused output and greater creative control than its predecessor, all within a rugged, IP65-rated housing engineered for the most demanding film, television, and broadcast environments.

• 500W output LED panel light fixture
• BLAIR-CG chipset: Blue, Lime, Amber, Indigo, Red, Cyan, Green diodes
• Advanced white point control with green/magenta color correction (±G 100% Full ASC MITC Range)
• CCT range of 1,800K-20,000K
• Bare bulb output: 13,300 lux @3m 5600K
• Included flat diffusion panel: 2,466 lux @3m 5600K
• Ultra-high color accuracy: CRI≥95, TLCI≥95, CQS [CIE D5600]≥96, SSI [P3200]: 90, SSI [CIE D5600]: 86, TM-30 Rf (avg) 95, TM-30 Rg (avg) 100
• New QuickClip direct front-mounting accessory ecosystem

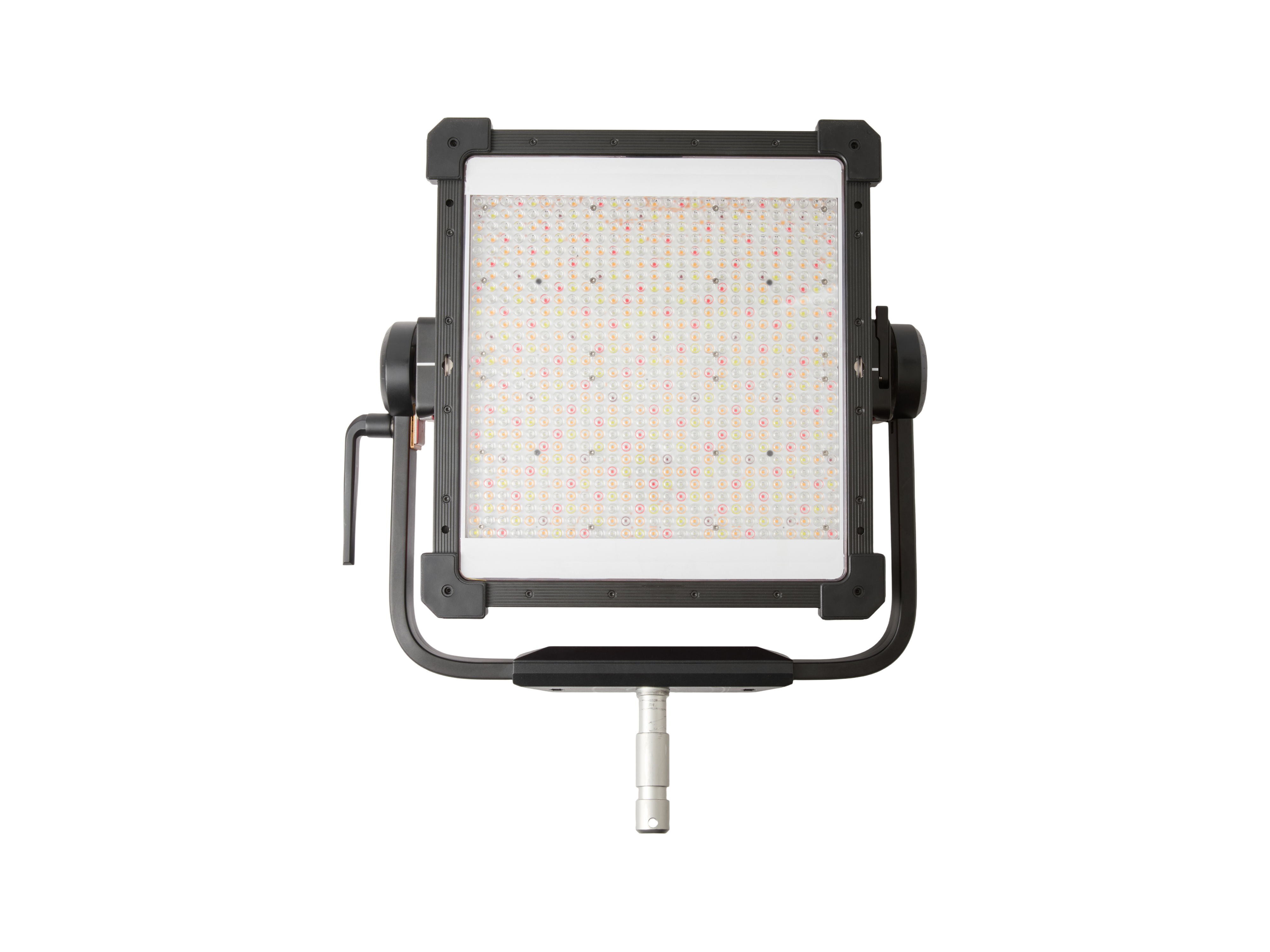

• Features removable yoke for rigging flexibility
• High output to weight ratio: lamp head weight with yoke: 11.35 kg / 25.02 lbs
• IP65 weather resistance
• Pro control protocols: Sidus Link, Sidus Link Pro, DMX, CRMX, Art-Net/sACN
• 16-bit 5-Pin DMX512 in & out ports
• 2x locking Ethernet ports
• Smooth 0.1-100% stepless dimming
• Dual output modes: Max and Constant
• Lead-follow and studio mode
• 4 fan modes: Smart, High, Medium, Silent (DMX controllable)
• 4 dimming curves: Linear, Exponential, Logarithmic, S-shaped
• 15 built-in light effects
• 10 savable presets
• Supports batch firmware upgrades of lamps through Sidus Link Pro/Sidus Link, USB drive, and DMX

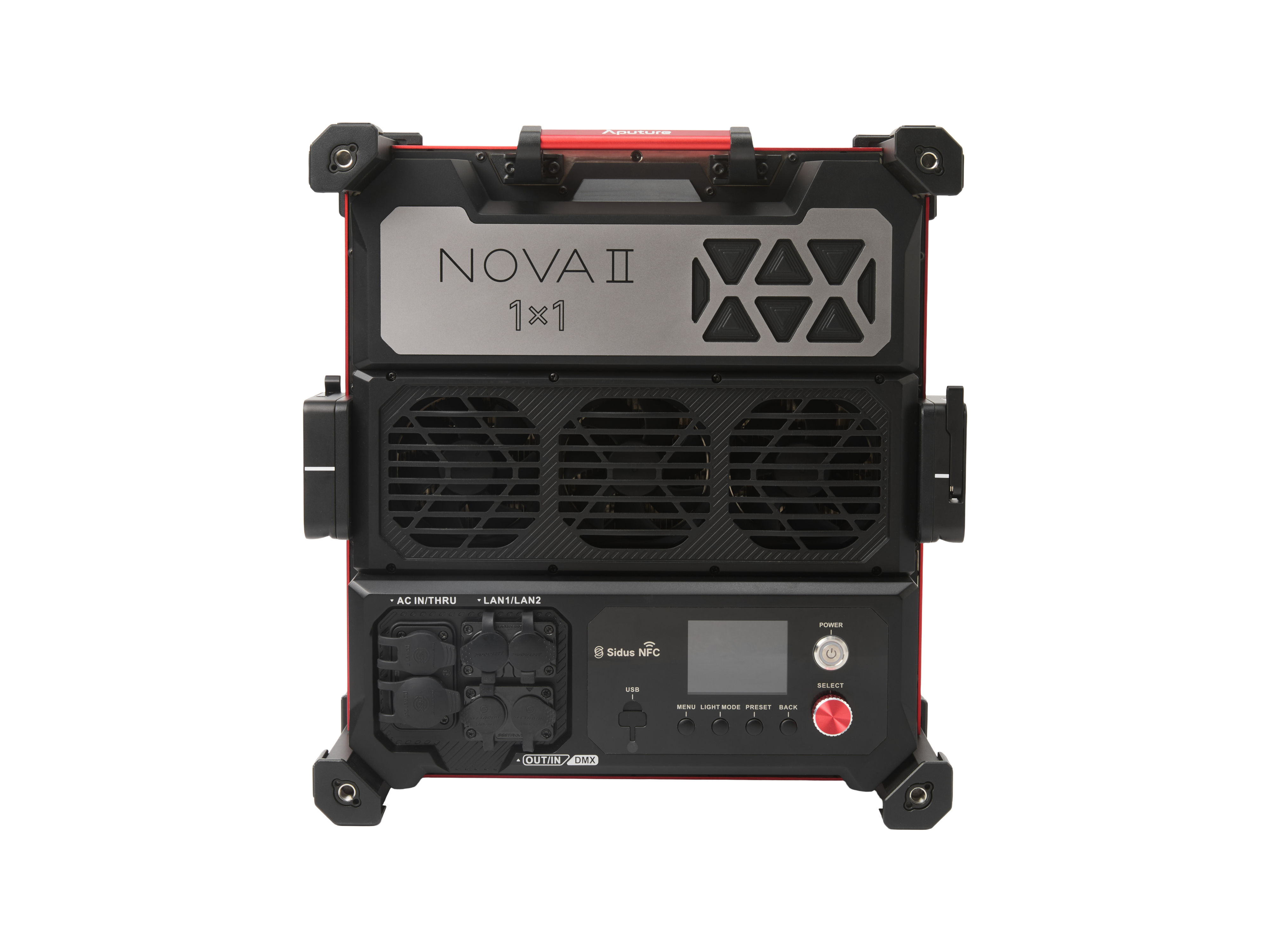

• High-resolution rear color display panel clearly communicates fixture status and settings

At its core lies Aputure’s advanced BLAIR-CG color engine, a seven-diode architecture combining Blue, Lime, Amber, Indigo, Red, Cyan, and Green emitters. This design achieves exceptional spectral accuracy and natural color reproduction across an expansive 1,800K–20,000K CCT range, with full ASC MITC ±G green-magenta control. The result is a light that offers unmatched flexibility for fine-tuning white balance, matching practical sources, or achieving consistent skin tone reproduction in any lighting environment.

With a 500W output, the NOVA II 1x1 produces an impressive 13,300 lux at 3 meters (5600K, bare bulb), making it one of the brightest fixtures in its class. Even when paired with its included flat diffusion panel, it maintains smooth, even luminance and exceptional color fidelity, supported by industry-leading metrics: CRI/TLCI ≥95, TM-30 Rf 95/Rg 100, and SSI scores of 90 (3200K) and 86 (5600K). This blend of power and precision allows lighting technicians to achieve both crisp key lighting and soft, flattering fill from a single, compact source.

Designed with versatility in mind, the NOVA II 1x1 introduces Aputure’s QuickClip front-mounting accessory ecosystem, streamlining the process of attaching modifiers directly to the fixture without traditional slide-in frames. Its removable yoke and lightweight 11.35 kg (25.02 lb) body make it ideal for rigging on trusses, stands, or ceilings, while maintaining a balanced form factor optimized for travel and on-set flexibility.

Built for professional control and durability, the NOVA II 1x1 offers Sidus Link and Sidus Link Pro wireless operation, along with 16-bit DMX512, CRMX, and Art-Net/sACN. Whether used as a standalone key light or integrated into complex lighting networks, it ensures reliable communication and intuitive operation that meets the needs of modern productions.

With its compact size, robust output, and unmatched color accuracy, the NOVA II 1x1 stands as the definitive small-format panel for professionals seeking uncompromising performance and creative control in a portable, weather-sealed design.

Specifications

• LED Chipset: BLAIR-CG
• CCT Range: 1,800K – 20,000K
• CRI: ≥95
• TLCI:: ≥95
• SSI (Tungsten): 90
• SSI (D56): 86
• TM-30 RF (Average): 95
• TM-30 RG (Average): 100
• Max Power Consumption: 650W
• Max Power Output: 500W
• Weather Resistance Rating: IP65
• Native Beam Angle: 35º
• Included Flat Diffuser Beam Angle: 95º
• Pixel Count: 1 pixel
• AC Operating Voltage: 100V ~ 240V / 50-60 Hz
• Operating Temperature: -20ºC ~ 50ºC / -4ºF ~ 122ºF
• Storage Temperature: -40ºC ~ 80ºC / -40ºF ~ 176ºF
• Control Methods: On-board, Sidus Link, Sidus Link Pro, DMX512, CRMX, Art-Net/sACN, RDM
• Control Ports
  • 1x 5-pin DMX in
  • 1x 5-pin DMX out
  • 2x locking RJ45
• Firmware Upgradeable: Sidus Link, Sidus Link Pro, USB-A
• Wireless Range (Bluetooth & CRMX): ≤100m / ≤328.1ft
• Cooling Method: Active (onboard fans)
• Lamp Head Fan Noise Levels (at 1m)
  • Smart Mode: Variable
  • High Speed Mode: 40 dBa
  • Medium Speed Mode: 35 dBa
  • Silent Mode: 0 dBa
• Weight
  • Lamp Head (Without Yoke): 21.05 Ibs (9.55 kg)
  • Removable Yoke with Junior Pin: 3.97 Ibs (1.80 kg)
  • Flat Diffuser: 2.98 Ibs (1.35 kg)
  • AC Power Cable (6m): 1.76 lbs (0.80 kg)
  • Rolling Hard Case (Optional): 27.45 lbs (12.45 kg)
• Dimensions
  • Lamp Head (Without Yoke): 15.4 x 16.0 x 5.6 in (39.1 x 40.8 x 14.3 cm)
  • Lamp Head (With Yoke): 19.4 x 22.8 x 6.1 in (49.2 x 57.9 x 15.6 cm)
  • Flat Diffuser: 15.2 x 15.5 x 1.6 in (38.5 x 39.5 x 3.9 cm)
  • Rolling Hard Case (Optional): 25.4 x 14.6 x 25.9 in (64.6 x 37.1 x 65.8 cm)

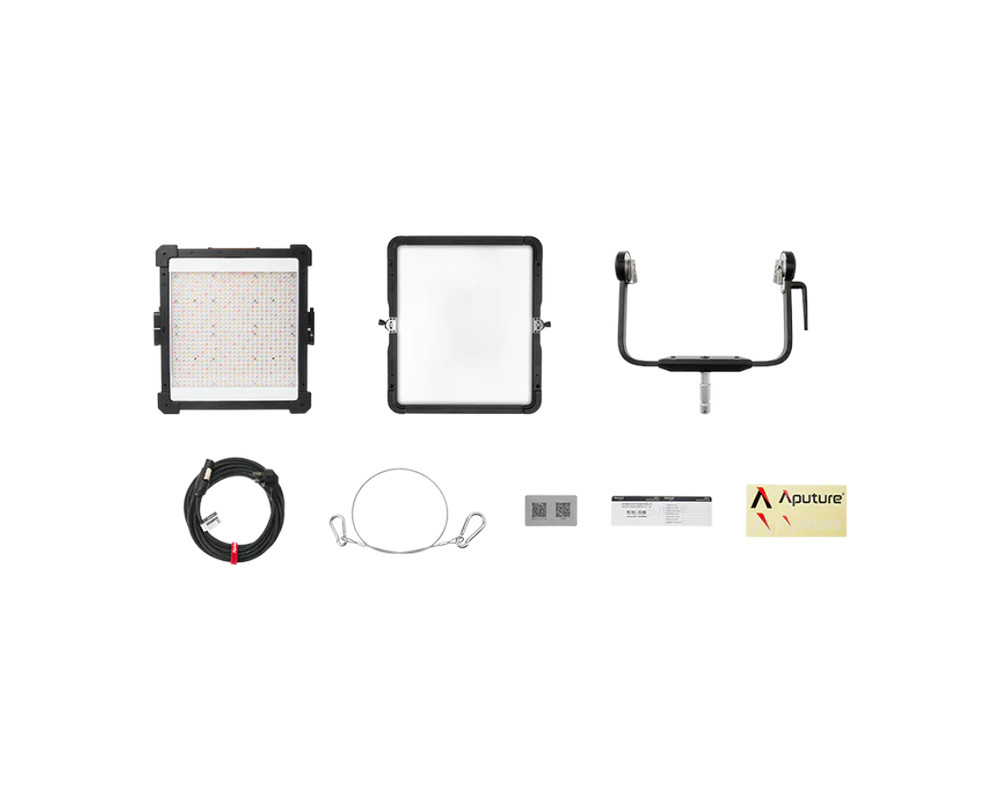

What’s in the Box

• 1x NOVA II 1x1 Lamp Head

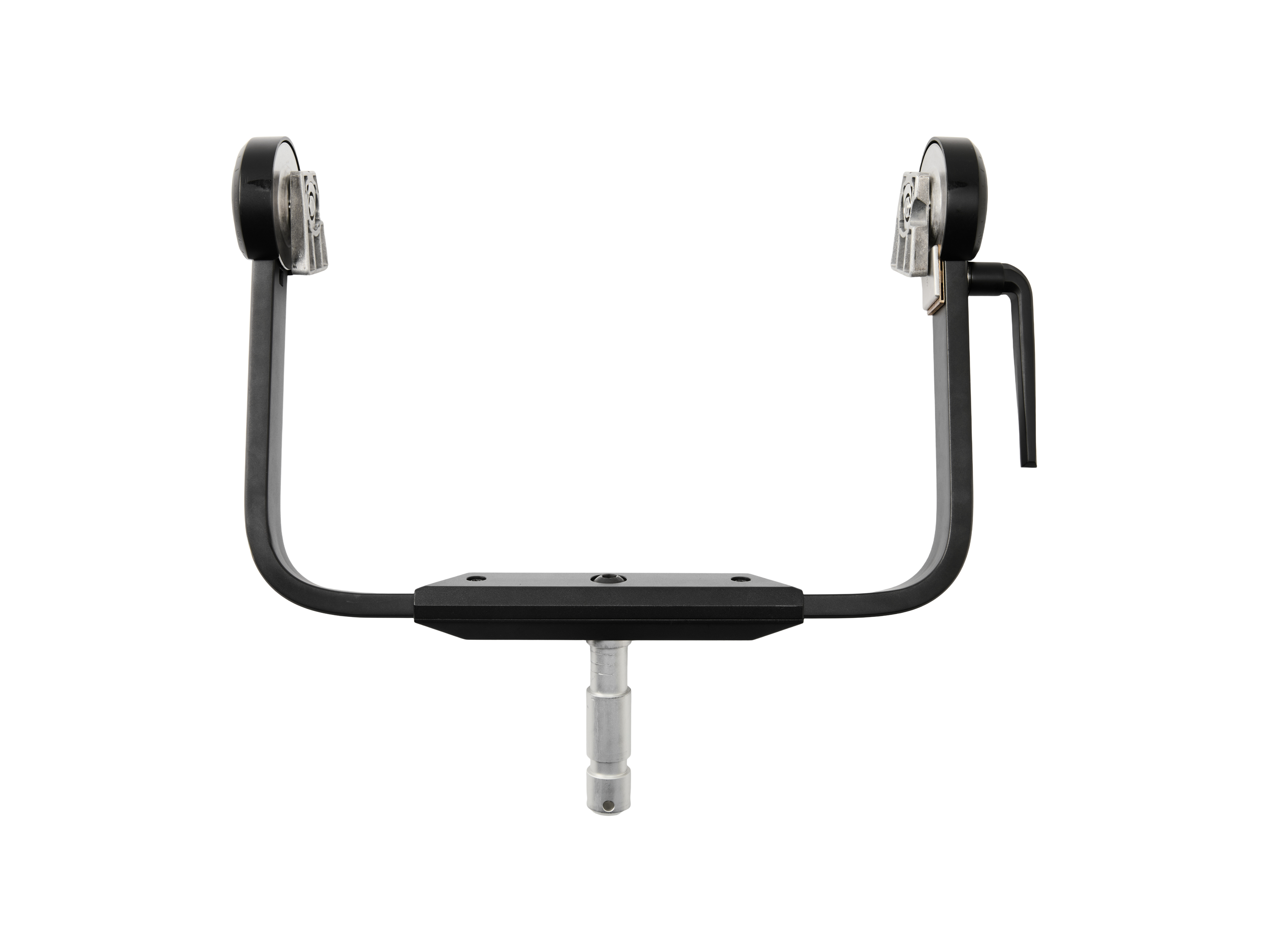

• 1x NOVA 1x1 Removable Yoke with Junior Pin

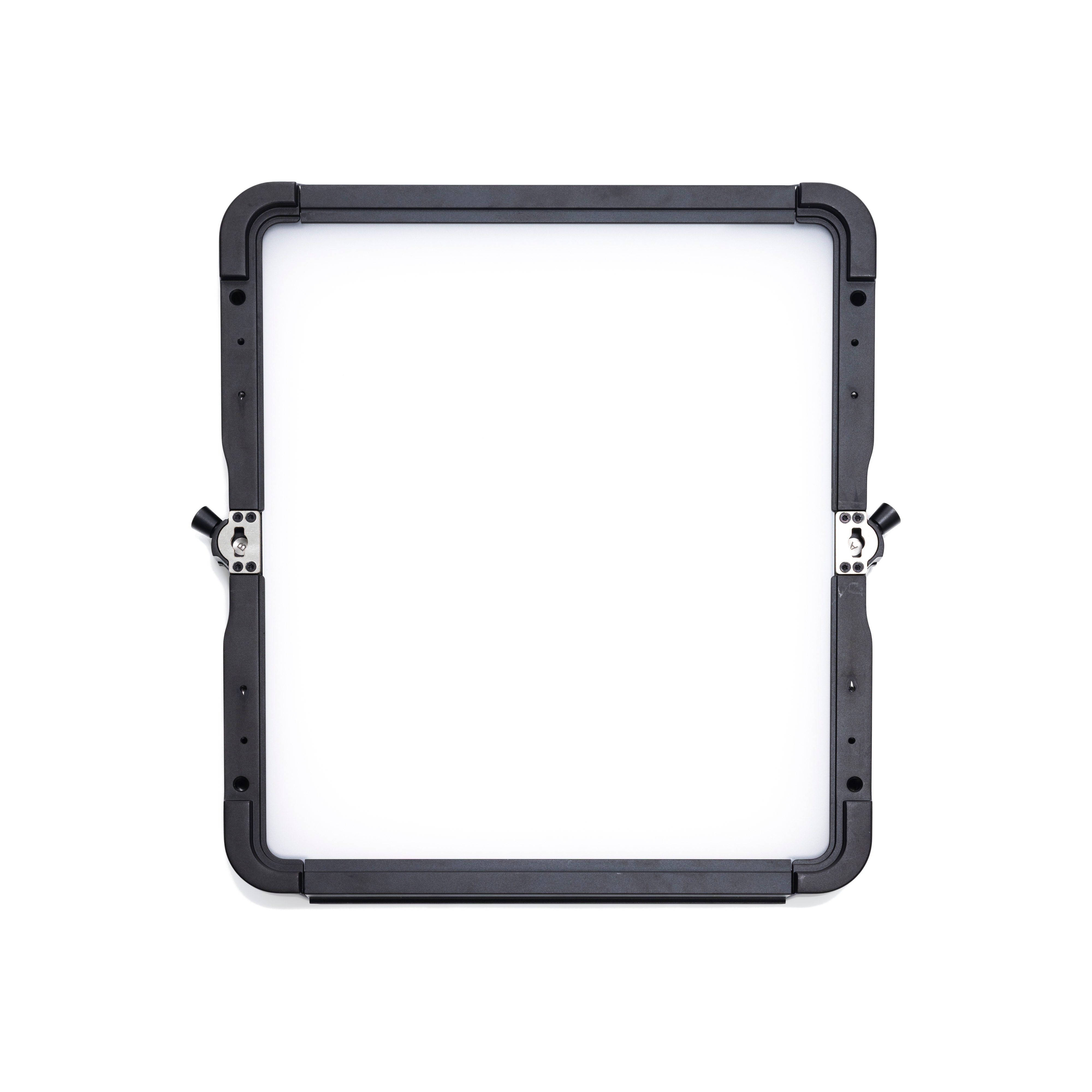

• 1x NOVA 1x1 Flat Diffuser
• 1x AC Power Cable (6m)
• 1x Safety Chain (50cm)
• 1x NOVA 1x1 Rolling Hard Case (OPTIONAL)
