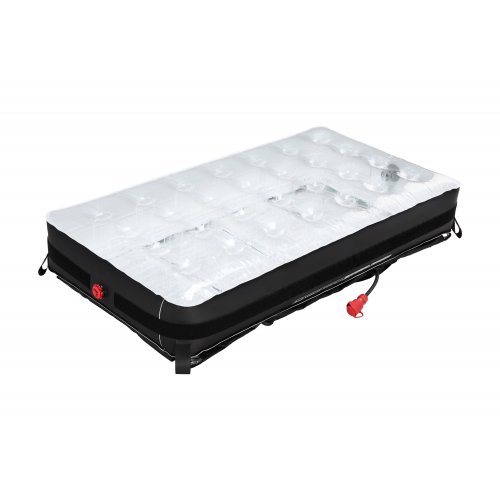

Aputure INFINIMAT Kit w/ Clear Softbox - 2x4ft, Gold Mount

Name: Aputure INFINIMAT Kit w/ Clear Softbox - 2x4ft, Gold Mount
Brand: Aputure
SKU: 62903
Price: 2990.00 CAD
Availability: OutOfStock

Model: AP10039ACC

$2,990.00 CAD

Find it for Less? Let us Know.

Shipping Charges Apply
Not In-Stock - Available to Order
Not yet reviewed

More models to choose from:

1x2ft G-Mount$2,450.00

1x2ft V-Mount$2,450.00

1x4ft G-Mount$2,690.00

1x4ft V-Mount$2,690.00

2x4ft G-Mount$2,990.00

2x4ft V-Mount$2,990.00

4x4ft$6,800.00

8x8ft$20,500.00

20x20ft$86,300.00

Description
Reviews

About: Aputure INFINIMAT Kit w/ Clear Softbox - 2x4ft, Gold Mount

The Aputure INFINIMAT is a family of full-color RGBWW pixelated LED light mats designed as part of a scalable, configurable lighting ecosystem. With multiple mat sizes, head-to-toe IP65 weather resistance, and the ability to power and control multiple lamp heads from a single control box, the INFINIMAT system offers unmatched versatility for productions where speed, weight, and adaptability are critical.

Modular full-color RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available
Traditional rigid frame softbox options separately available for 1x2, 1x4, 2x4, and 4x4 sizes
400W and 1600W control boxes available (depending on size of INFINIMAT)
Multiple mounting/rigging methods (carbon fiber bracket with K-Mount ball head for 1x2, 1x4, 2x4, & 4x4; butterfly frame for 4x4 & 8x8; truss and speed-rail frame for 8x8 & 20x20)

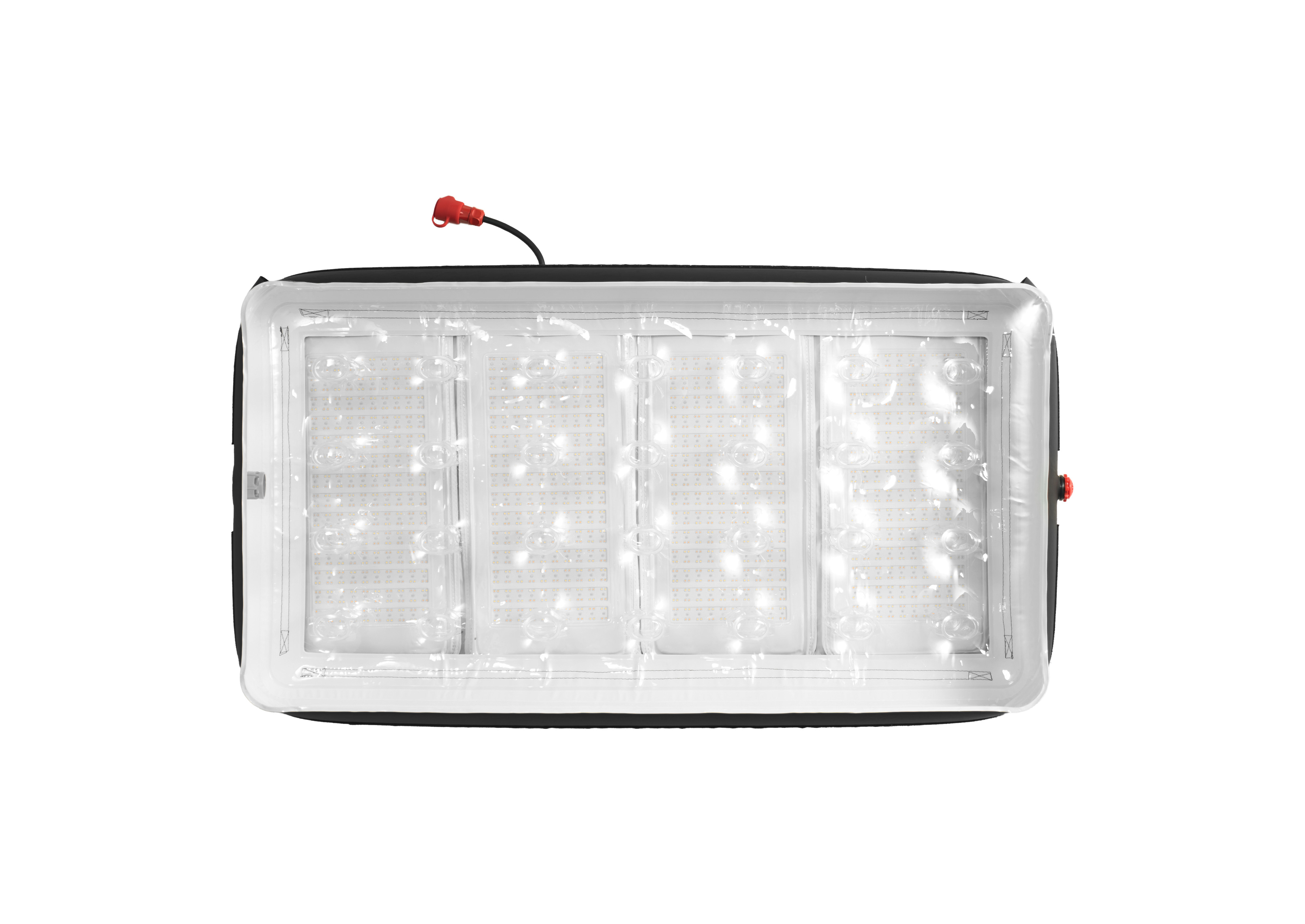

Lamp heads designed with 1x2 foot or 2x2 foot tiles for easy tile replacements
Power and control multiple INFINIMATS using a single control box (400W and 1600W control boxes available)
AC power passthrough enables multiple 400W power supplies to be daisy chained via Neutrik PowerCon cables

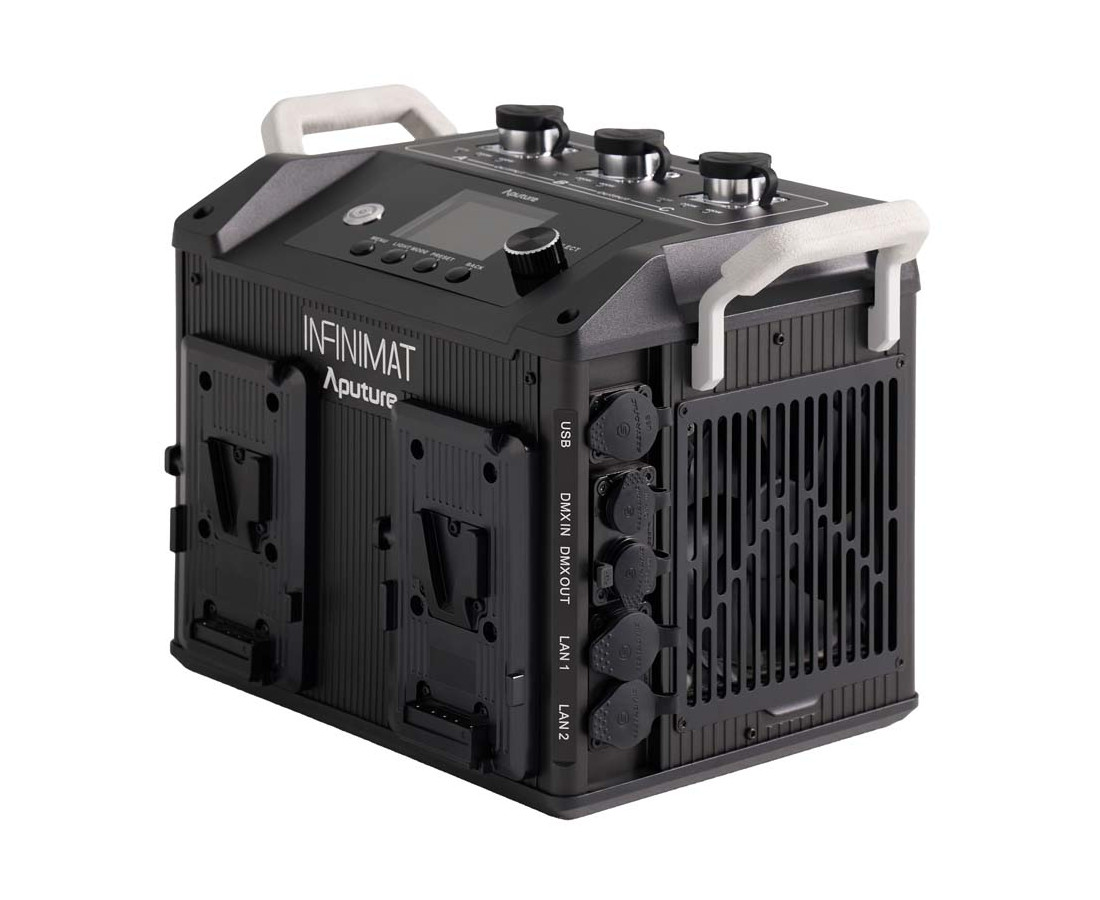

INFINIMAT 400W control box features dual V or Gold Mount battery mounts for mobile power
INFINIMAT 1600W control box supports battery operation via dual 48V DC inputs
Head-to-toe IP65 dust & water-resistant rating for lamp head and control box
Inflatable airbag provides Structural Support for lamp head, diffusion, light control grid, and light control skirt
Automatic pressure release valves on inflatable airbags to prevent overfilling of air
Included airbag repair patches to ensure continued operation of airbag even when punctured
Included light control grid and light control skirt
>90% of colors within Rec.2020 color space
Fully tunable CCT from 2,000K to 10,000K
Fully tunable green-magenta adjustment
0.1-100% stepless dimming with improved low-end dimming performance
Advanced HSI with white point CCT control
Industry-standard xy (CIE 1931), RGB, Light Source, and 300+ Gel presets
Multiple control methods: Sidus Link App, Sidus Link Pro, CRMX, Art-net & sACN via etherCON, 16-bit 5-Pin DMX512 In & Out
2 output modes: Max & Constant

Each INFINIMAT lamp head is available with two light-shaping options:

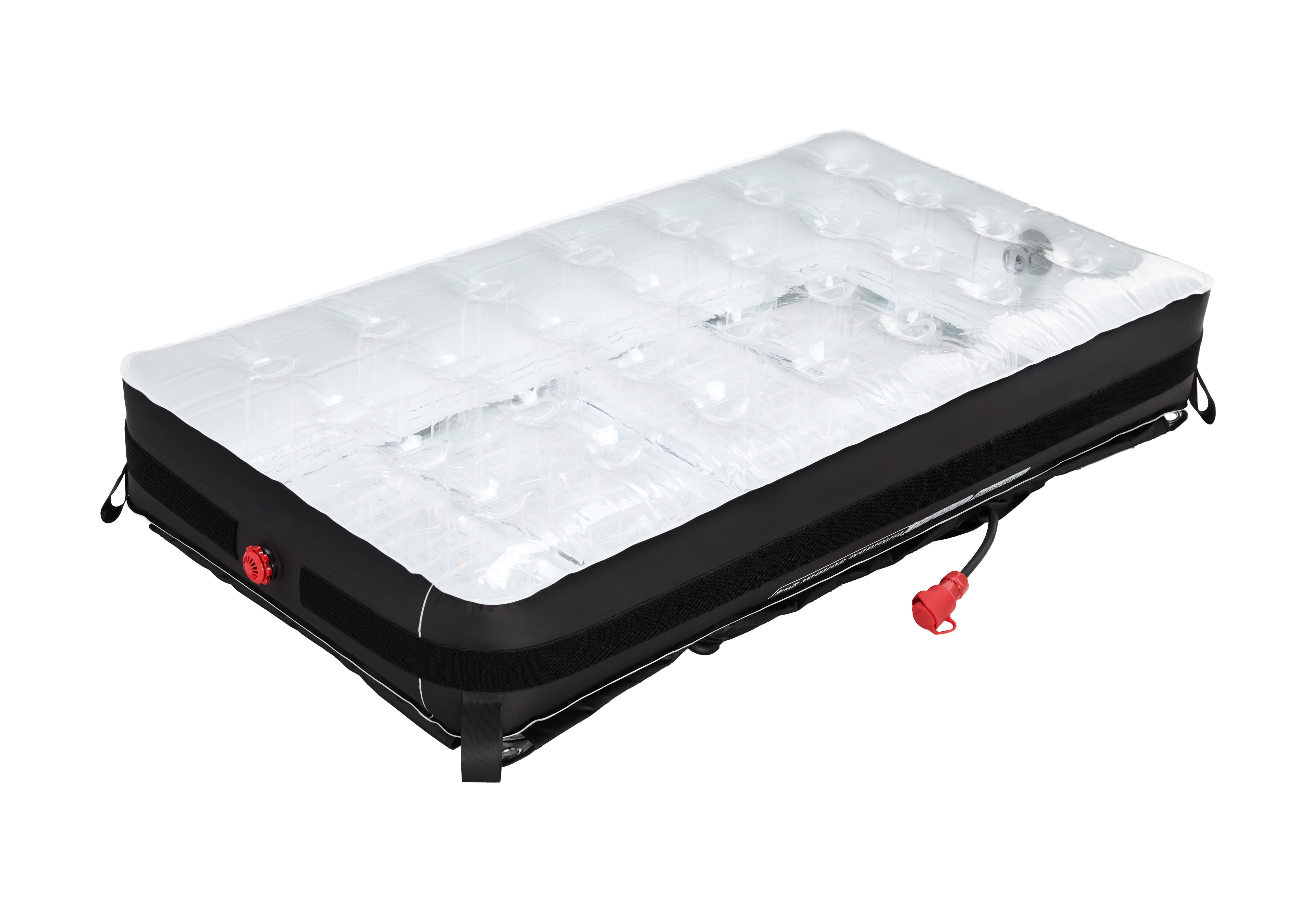

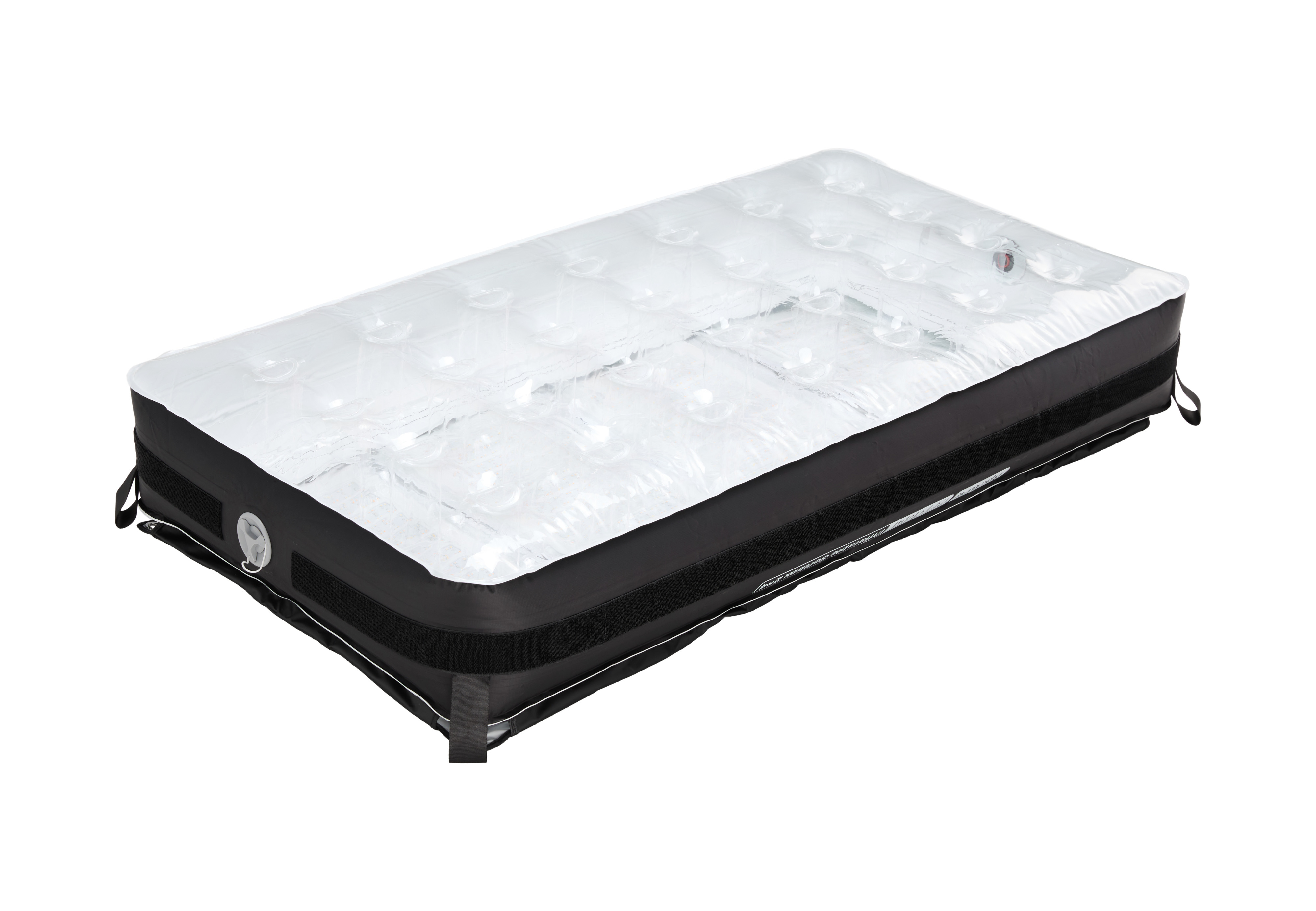

Clear inflatable airbags that provide the structural rigidity to hold the mat, diffusion cloth, lighting control grid, and skirt in place when rigged overhead or on stands. Users can operate the mat with the airbag clear for maximum output or attach included diffusion cloths for a softer source.
Rigid-frame softboxes (available for 1x2, 1x4, 2x4, and 4x4 sizes) for traditional diffusion and fixed frame support.

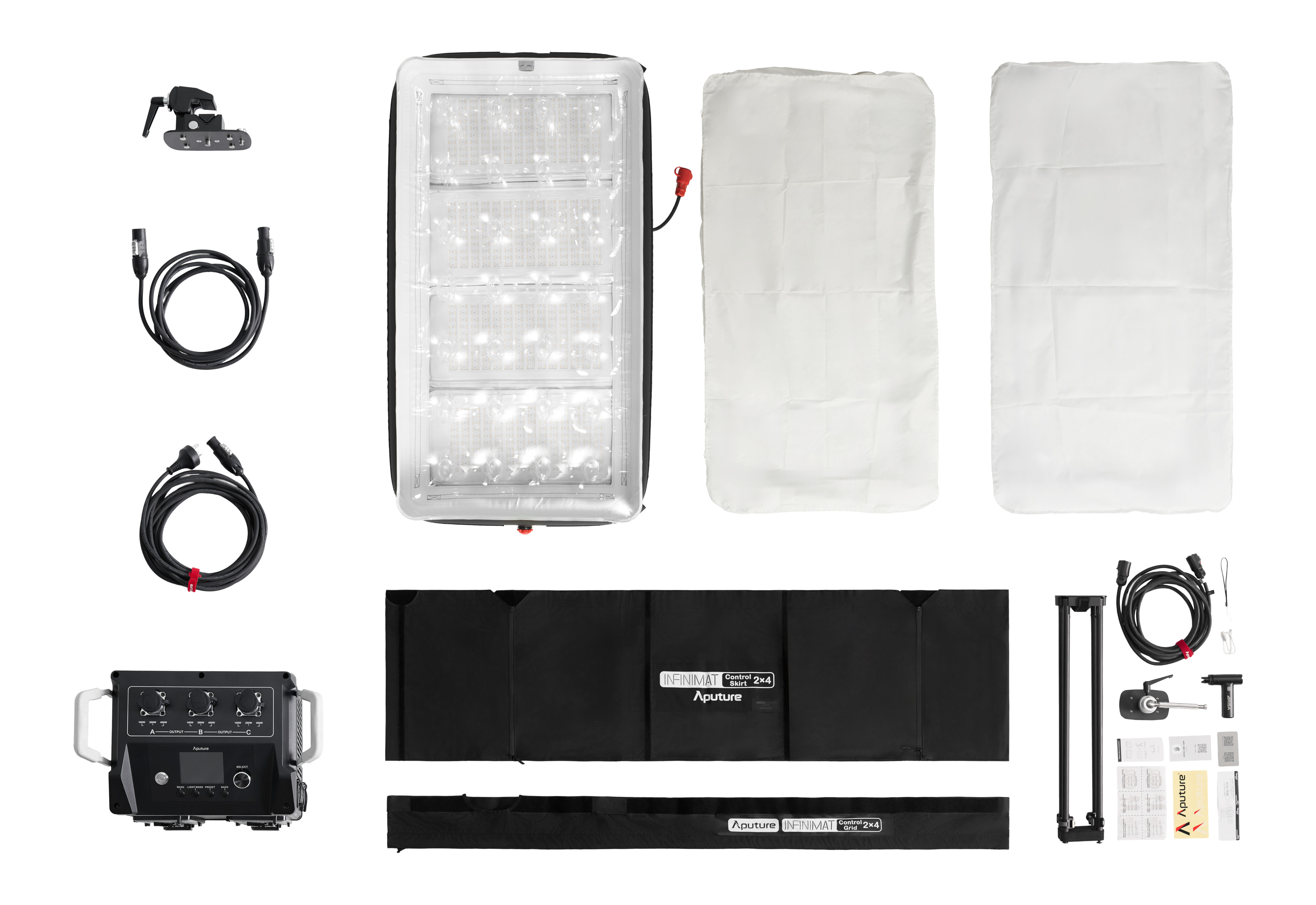

Users can configure their own kit by selecting from sizes including 1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 ft. Start with a full INFINIMAT kit—including a control box, lamp head, light-shaping option, and diffusion cloth—then expand by adding individual lamp head kits and control boxes that integrate seamlessly with your existing system and accessories.

The INFINIMAT ecosystem also supports a wide range of rigging and mounting solutions, from carbon fiber support brackets with K-Mount ball heads and TVMP adapters, to butterfly, Speed-Rail, and truss frames. Multiple mats can be combined or “tiled” together to create custom large-format soft light sources tailored to any set.

Two control box options—400W and 1600W—are available depending on your desired output and system scale. Both can power multiple lamp heads up to their rated wattage, dramatically reducing cable runs and rigging complexity. The 400W control box also features AC power pass-through, allowing multiple 400W units to be daisy-chained from a single power source for even greater efficiency.

Powered by an advanced RGBWW chipset, INFINIMAT offers a 2,000K–10,000K CCT range with green-magenta adjustment, >90% Rec. 2020 color coverage, and pixel-level control for creative lighting effects. Designed for professional motion picture production, the fixtures feature comprehensive connectivity (Sidus Link app control, LumenRadio CRMX, Art-net & sACN via etherCON, and 16-bit DMX512) and IP65-rated durability to perform reliably in the most demanding environments.

Key Advantages

Modular & expandable: Configure your own kit and grow over time.
Multi-head control: Power several lamp heads from a single control box.
Two light-shaping options: Clear inflatable airbags (all sizes) or rigid-frame softboxes (1x2, 1x4, 2x4, 4x4 only).

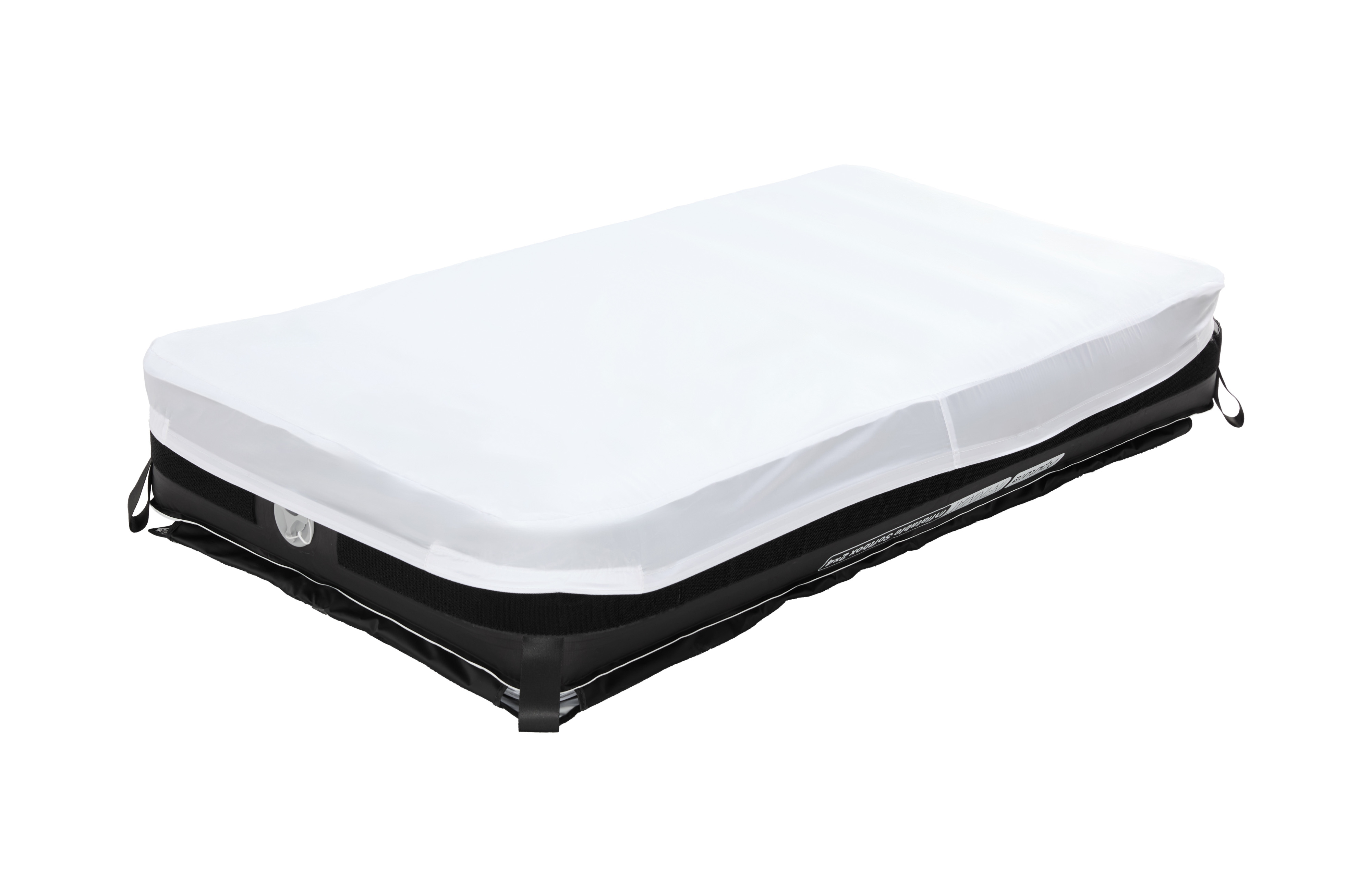

Run it clear or diffused: Operate with the clear airbag for maximum punch, or attach included diffusion cloth for a softer look.
Complete accessory ecosystem: Frames, grids, skirts, cables, and mounting solutions.
Buy individually or as kits: Full INFINIMAT kits, lamp head kits, and control boxes available separately.
Professional-grade build: IP65 weather resistance and advanced wireless/wired control.

Specifications

Colour
- CCT: 2,000K – 10,000K
- CRI: ≥96
- TLCI: ≥97
- CQS: ≥95
- SSI (Tungsten): 84
- SSI (D56): 73
- TM-30 RF (Average): 92
- TM-30 RG (Average): 100
Hardware Features
- Pixel Count: 4 pixels
- Pixel Module: 1x2
- Softbox Inflation Time (Air Pump Mini): 50 sec
- Full-Inflation Duration: 7 days
Power Specs
- Max Power Consumption: 400W
- Max Power Output: 324W
- Operating Voltage
  - DC1 & DC2 :12V-16.8V, 22V-33.6V
  - AC: 100V ~ 264V
Control and Firmware
- Control Methods: On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
- Firmware Upgradeable: Sidus Link, USB Drive
- Wireless Range (Bluetooth & CRMX): ≤100m / ≤328.1ft
- Control Box Type: INFINIMAT Control Box 400W
Environmental Specs
- Weather Resistance Rating: IP65
- Operating Temperature: -20ºC ~ 50ºC
- Storage Temperature: -20ºC ~ 85ºC
- Control Box Noise Levels
  - High Speed Mode: 29.3 dBA
  - Medium Speed Mode: 24.7 dBA
Dimensions
- INFINIMAT 2x4: 48.03 x 25in (122.0 x 63.5cm)
- INFINIMAT Air Pump Mini: 1.42 x 4.49 x 4.96in (3.60 x 11.40 x 12.60cm)
- Control Box 400W: 13.19 x 8.66 x 9.45in (33.50 x 22.00 x 24.00cm)
- Inflatable Clear Softbox 2x4: 48.03 x 25.2 x 6.69in (122.0 x 64.0 x 17.0cm)

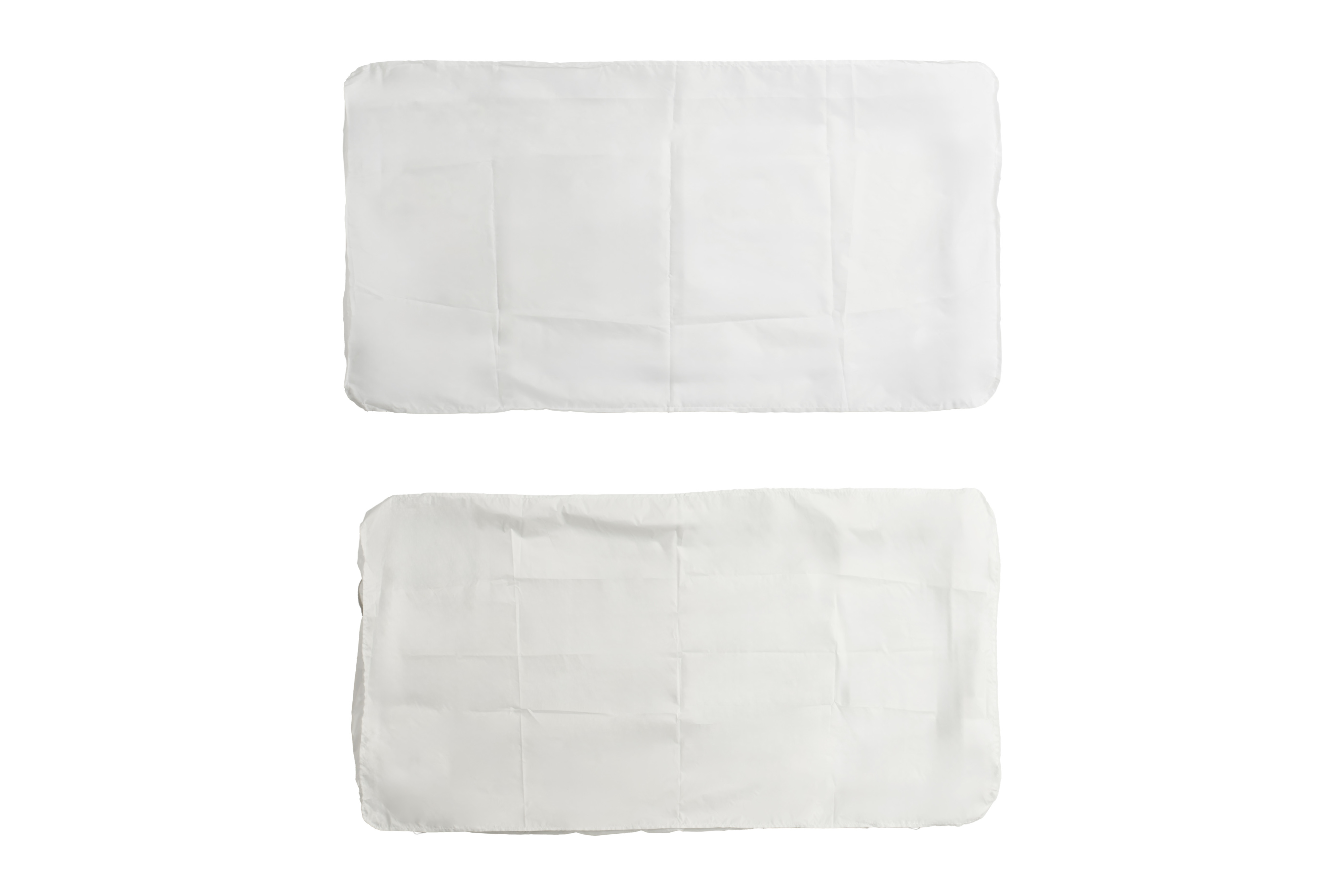

- 1-Stop or 2-Stop Diffusion Cloth: 48.4 x 25.6in (123.0 x 65.0cm)
- Light Control Skirt 2x4: 137.8 x 19.7in (350.0 x 50.0cm)
- Light Control Grid 2x4: 47.24 x 22.05in (120.0 x 56.0cm)

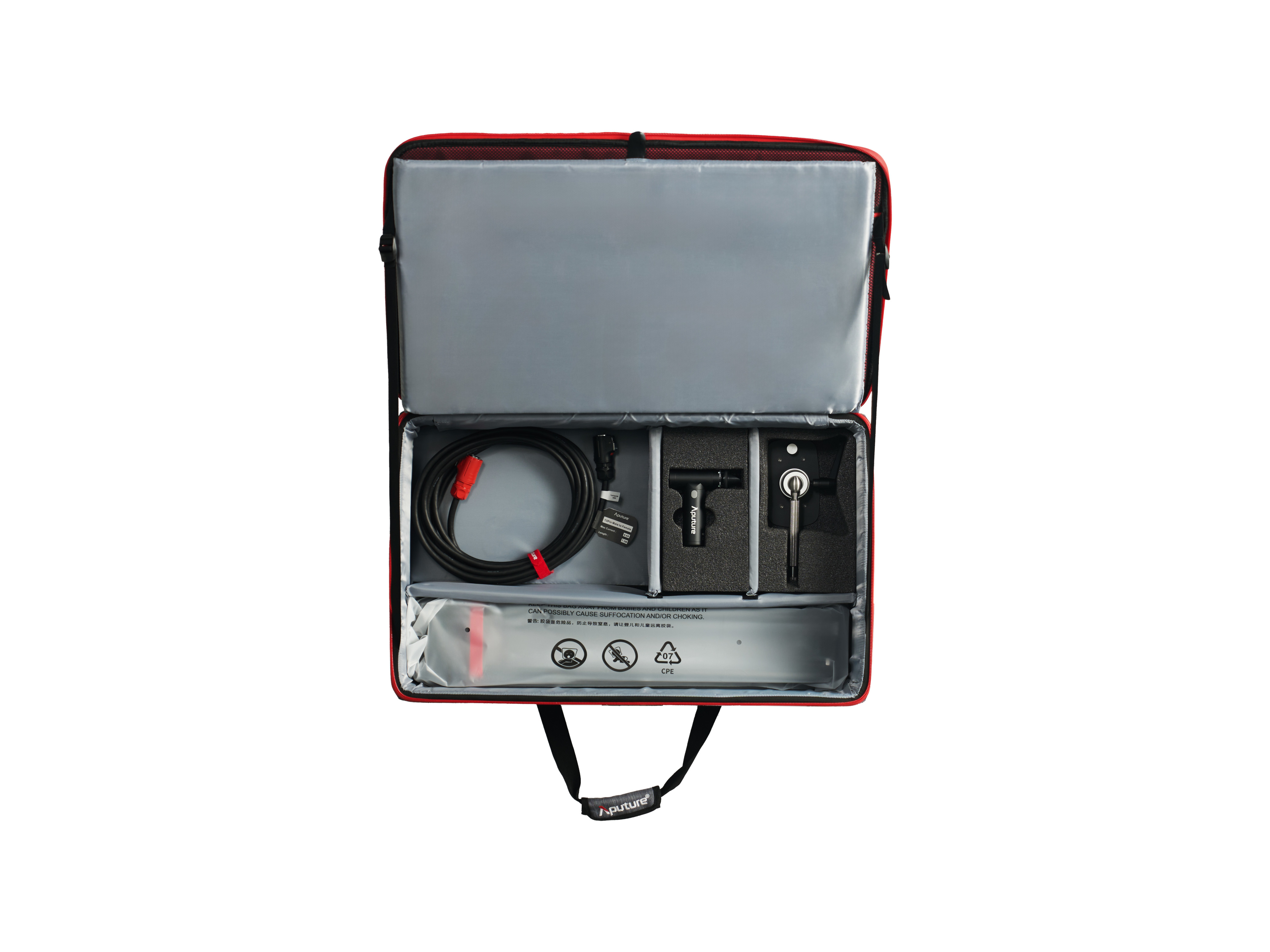

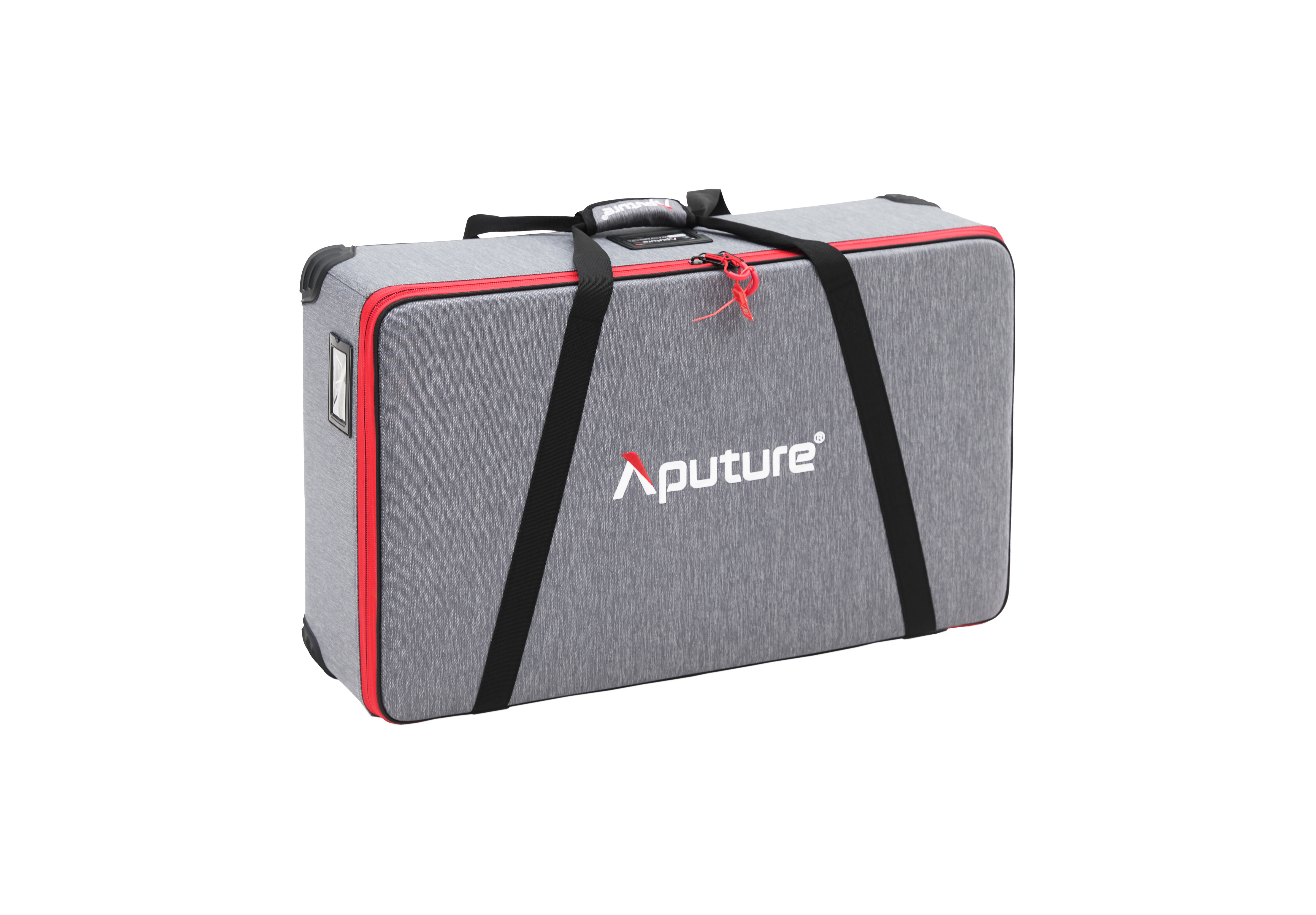

- Carrying Case (INFINIMAT LED & Clear Softbox 2x4): 30.11 x 18.50 x 10.23in (76.50 x 47.00 x 26.00cm)

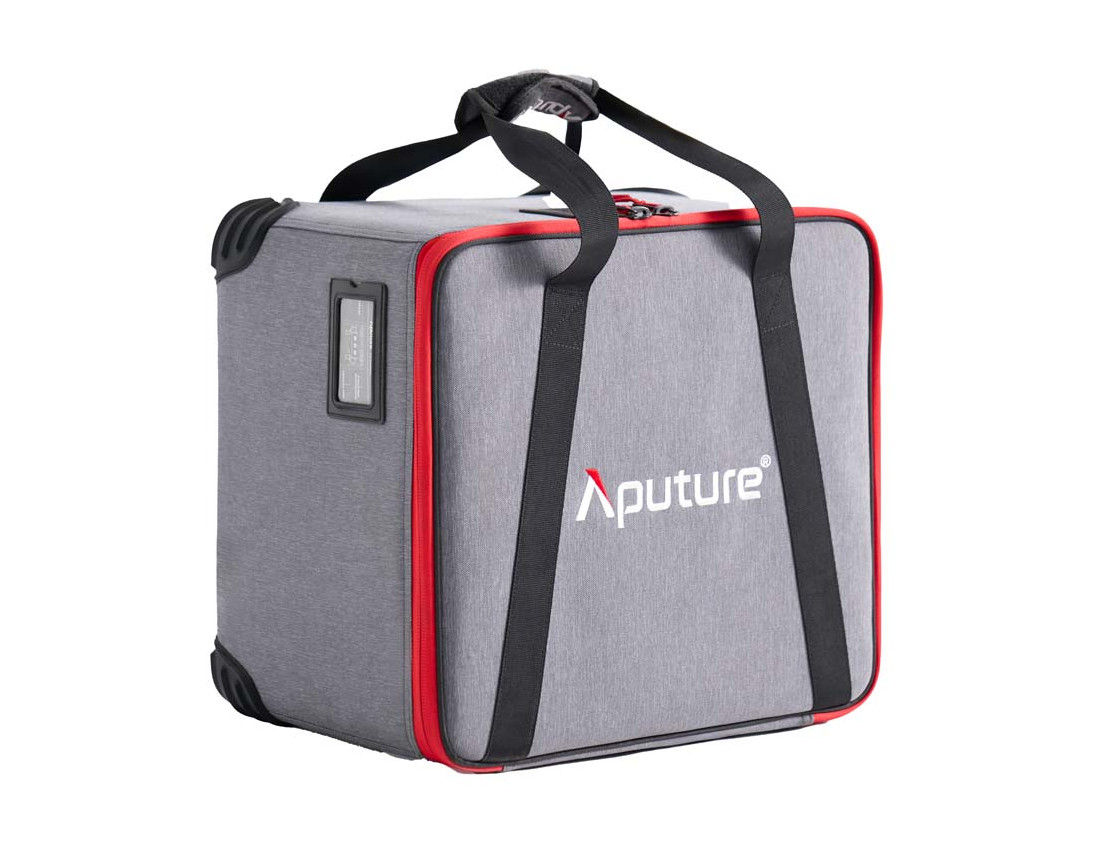

- Carrying Case (Control Box 400W Pack): 17.13 x 15.55 x 12.36in (43.50 x 39.50 x 31.40cm)
Weights
- INFINIMAT 2x4: 10.58lbs (4.80kg)
- INFINIMAT Air Pump Mini: 0.53lbs (0.24kg)
- Control Box 400W: 15.87lbs (7.2kg )
- Inflatable Clear Softbox 2x4: 2.87lbs (0.38kg)
- 1-Stop Diffusion Cloth: 0.29lb (131g)
- 2-Stop Diffusion Cloth: 0.34lb (152g)
- Light Control Skirt 2x4: 1.78lbs (0.81kg)
- Light Control Grid 2x4: 2.04lbs (0.93kg)
- Carrying Case (INFINIMAT LED & Clear Softbox 2x4): 8.82lbs (4.00kg)
- Carrying Case (Control Box 400W Pack): 6.39lbs (2.9kg)
