The Light Source Purlin Clamp 1/2in Bolt
Model: TLC PCM1/2
About: The Light Source Purlin Clamp 1/2in Bolt

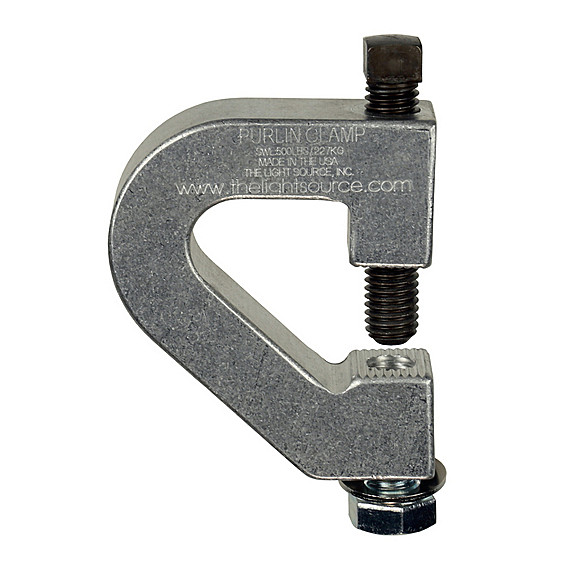

The Purlin Clamp is perfect for installing almost anything to bar joists, purlins and I-beams up to 1" thick. A 1/2"-13 × 2.5″ fully threaded square head set screw is provided for locking onto the structural member. A 1/2"-13 × 1″ grade 5 Hex Head Bolt is supplied to connect the load. Or use a 1/2"-13 tpi threaded rod to support a load at any length. The Purlin Clamp has Micro-grooves for a secure connection to beam. The 1/2" fastener Purlin Clamp body is extruded from aircraft grade aluminum and is 1" thick.
- Safe Vertical Working Load: 375lbs for 1/2" and 210lbs for 3/8"
- Hardware:
- 1/2 × 2-1/2" Square Head Set Screw
- .5 × 1″ Hex Head Cap Screw
- 1" Belleville Washer
- Dimensions: 3 3/8″ × 3 7/8"
- Weight: 0.40 lb.
