Teradek Ace Micro TX Wireless Video for USB-C Cameras and iPhone

About: Teradek Ace Micro TX Wireless Video for USB-C Cameras and iPhone

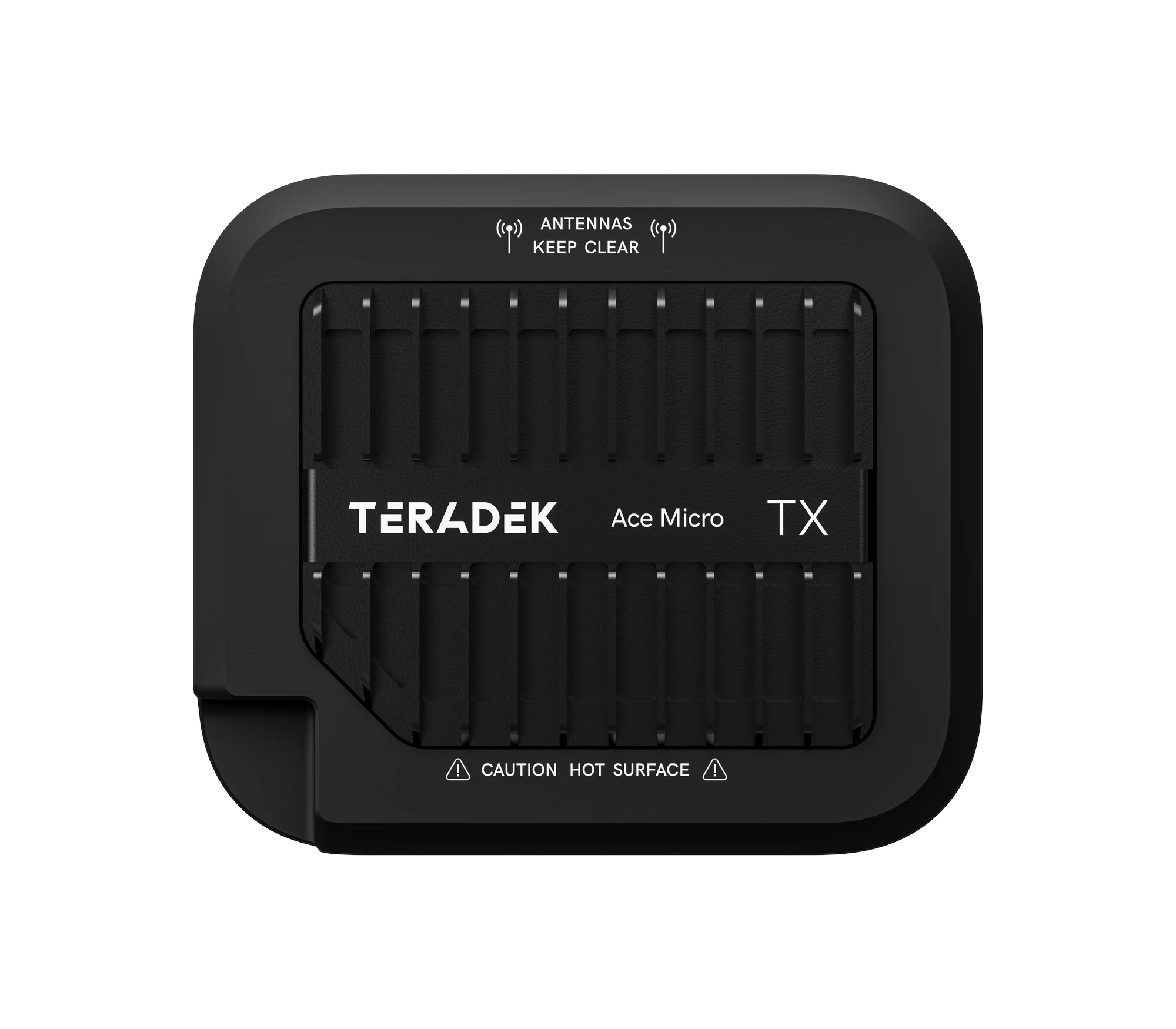

Ace Micro TX is our smallest wireless video transmitter yet. Share up to 4Kp30 uncompressed wireless video with up to six RXs at ranges up to 500’ (150m). It is cross-compatible with all Bolt 4K, Bolt 6, Bolt 7, and Ace 750 systems thanks to a shared BB3 chipset, which enables operation over 6GHz and 5GHz frequencies and delivers video with less than 1 millisecond of latency—over 70 times less latency than Wi-Fi-based solutions.

• 4Kp30 uncompressed video at ranges up to 500 feet / 150m
• Single USB-C connection for video and communication
• Cross-compatible with the full Bolt/Ace wireless video ecosystem
• Turns iPhone into a wireless camera

Ace Micro TX is designed to support a wide range of wireless video workflows with a single USB-C connection.

• Connect directly to cameras that support DisplayPort Alt Mode (DP Alt Mode) over USB-C, including Blackmagic URSA Cine and PYXIS, for the most simplified cable management solution available.
• For the first time, Ace Micro TX transforms your iPhone into a professional wireless camera. Simply mount the TX, connect via USB-C, and transmit wireless video using your preferred camera app. Seamlessly integrate your iPhone into an existing Teradek wireless video ecosystem. External USB power required.

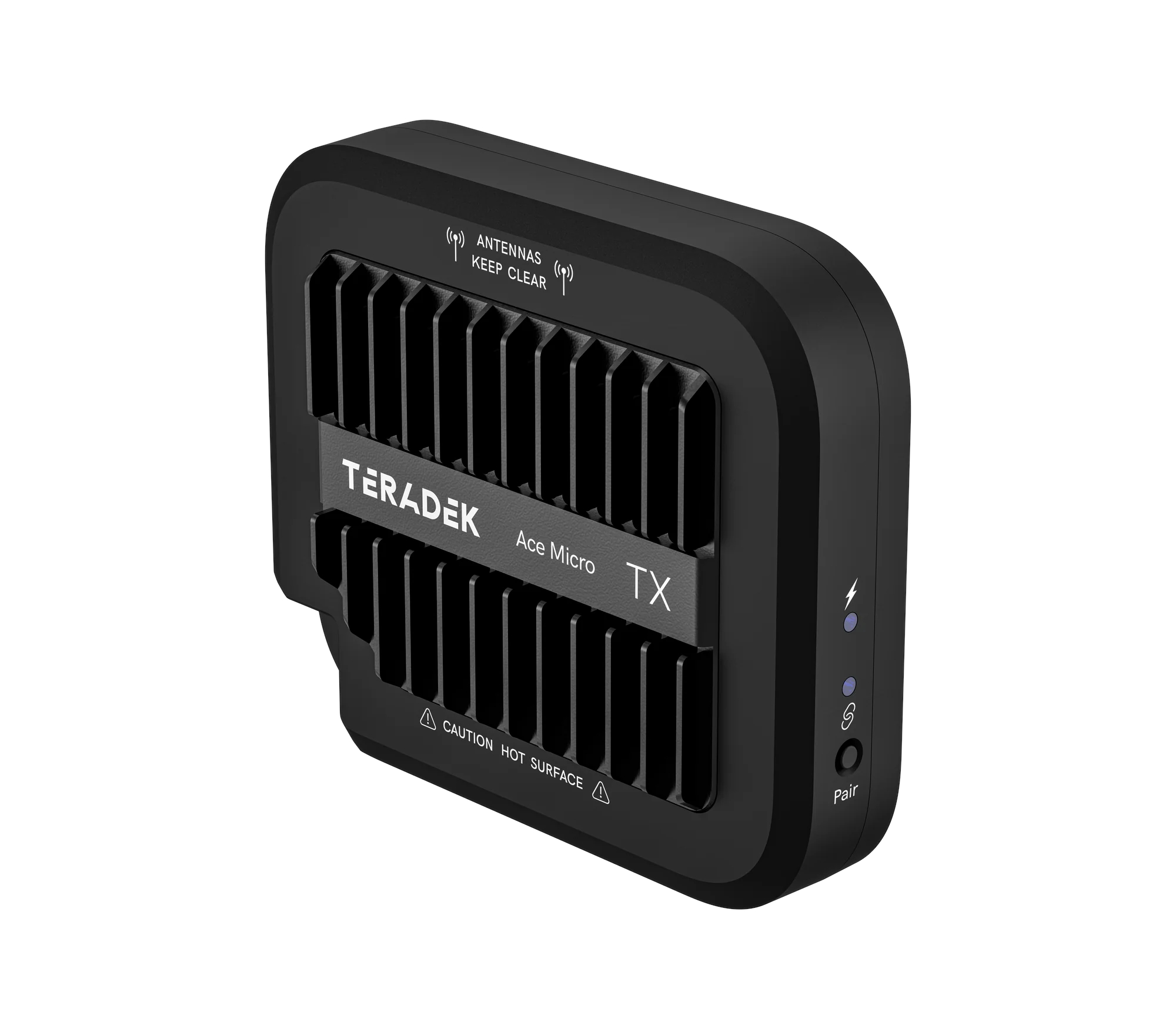

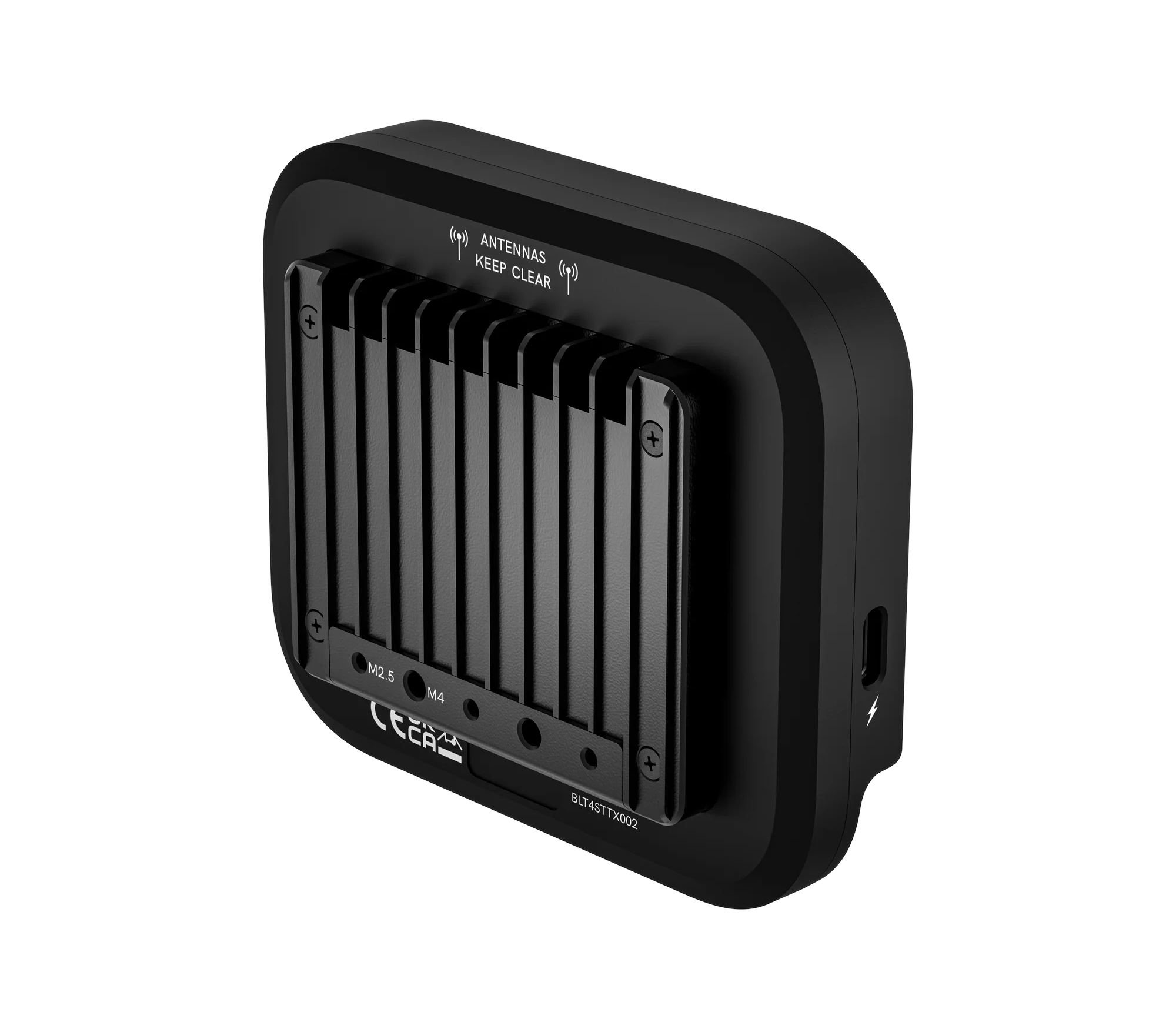

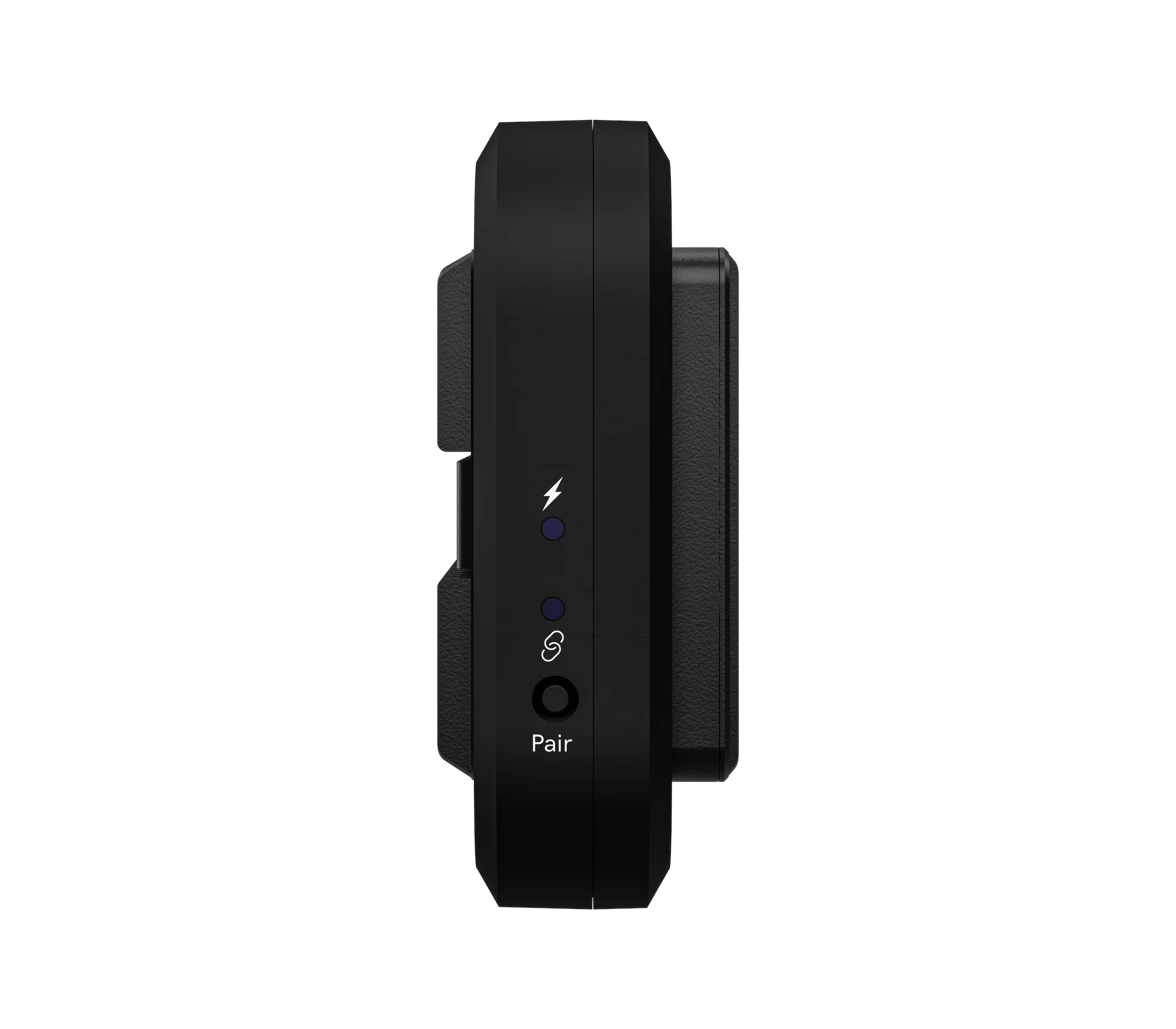

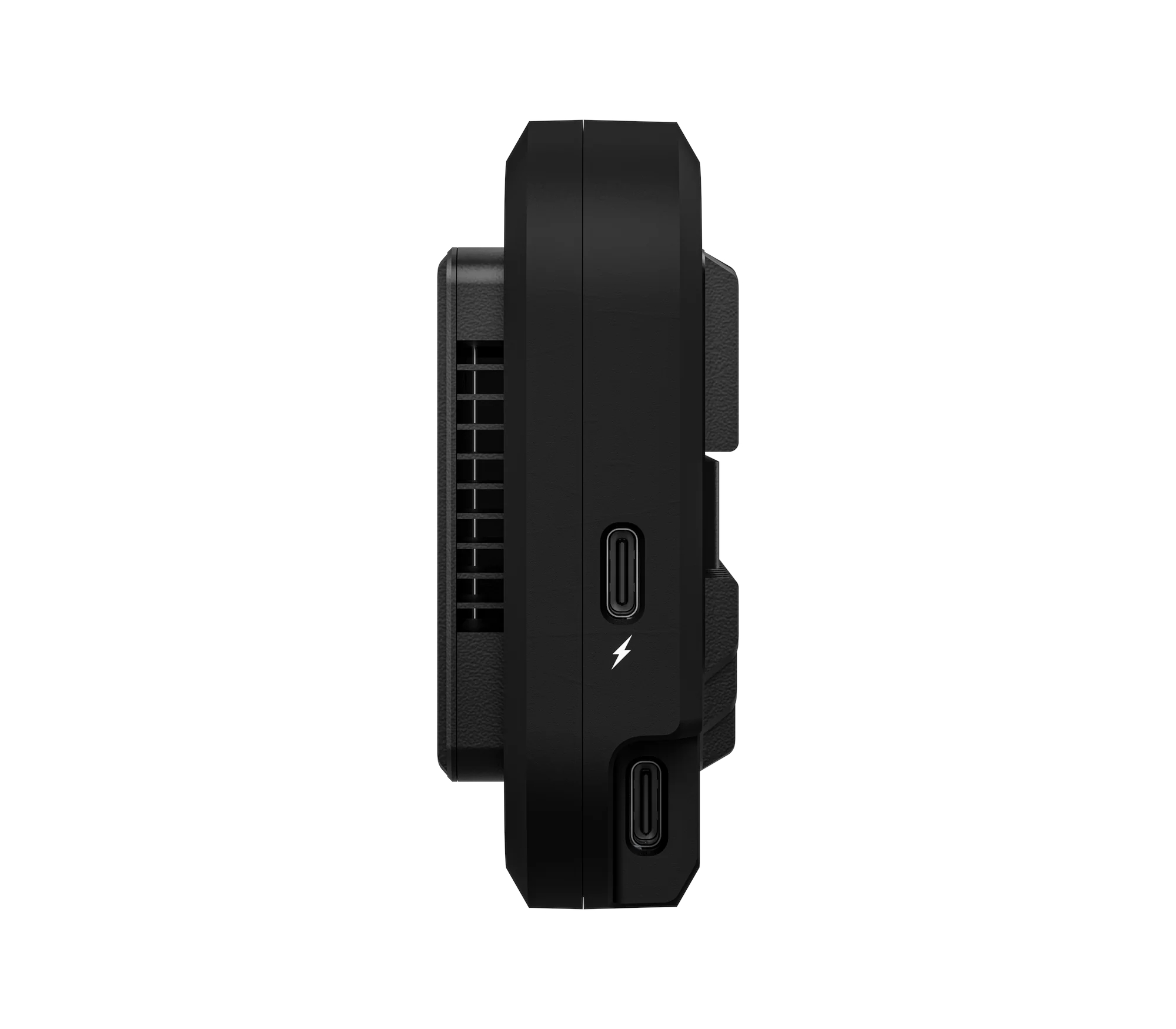

Compact hardware includes internal antennas, a quick-pairing button, and LED indicators for power and link status, M3 and M2.5 mounting points for horizontal or vertical workflows, and a USB-C port that consolidates power, video, and communication into a single cable for a streamlined setup. A secondary USB-C offers an additional, pass through power option. Ace Micro automatically detects and selects the 5GHz or 6GHz RF channel with the least interference and employs Auto-Frequency Switching to maintain optimal signal quality. Ace Micro meets all radio frequency regulations and comes with the industry’s best encryption and security features.

Specifications

• Video
  • Video Inputs: 1 x USB-C Display Port ALT mode video input
  • Color Sampling: RGB/YCbCr; 4:4:4/4:2:2/4:2:0; 8/10-bit
  • Delay Tx To Rx: <0.001sec
• Supported Resolutions
  • 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50
• Video Processing
  • Video Compression: Visually Lossless
  • Color Correction: None
• Audio Processing
  • Audio Format: 48kHz 24-bit PCM
• Inputs
  • Audio Input: Embedded DP ALT Audio Input (2 Channel)
• Interfaces
  • USB-C Port: Firmware upgrade Display Port ALT mode video in Device setup via Bolt Manager desktop app Device control via SmallHD monitor or Smartphone
• Network
  • Antennas: 2 Internal
  • Wireless: Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz
  • Rf Channel Selection: Auto
  • Encryption: AES-256, RSA-1024 key exchange
  • Rf Power: 10 dbm EIRP
  • Range: Up to 500ft, line of sight
  • Unicast Multicast: Can connect one Transmitter to up to 6 Receivers
  • Noise Rejection: Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 receiver sets in same location
  • Interoperability Compatibility: Compatible with all ACE, Bolt 4K, Bolt 6 and Bolt 7 products
  • Broadcast: No
• Power
  • Power Input: USB-C power port USB-C DP-ALT port
  • Battery: None
  • Nominal Power Consumption: 5 Watts
• Environmental
  • Operating Temperature: 0-40℃
• Physical
  • Construction: Milled Aluminum(Chassis) and regulation-compliant PCB
  • Mountability: Multiple mounting options with M4 holes spaced 20mm apart
  • Dimensions (WxHxD): 3.74 x 3.22 x 1.1 inch (95 x 82 x 28 mm)
  • Weight: 0.38 lbs (170g)

What's Included

• 1x USB-C Right Angle to USB-C Right Angle Cable, 12in
• 1x USB-C Right Angle to USB-C Right Angle Cable, 18in
• 1x Wooden Camera - Bolt-On Accessory Plate Adapter (RA, M4)
