DSAN PerfectCue Micro System w/ 4-Button Transmitter

About: DSAN PerfectCue Micro System w/ 4-Button Transmitter

The PerfectCue Micro is a compact presentation control system. It is recognized by Windows or macOS computers as a generic USB keyboard. No software installation or proprietary drivers are required. The system consists of a receiver, a handheld wireless controller, USB cables, and a canvas carry pouch.

• Compact presentation controller
• 433.92 MHz Band / 256 Channels
• Two USB-C Ports
• Programmable keystroke via App
• LED Indicators confirm wireless commands
• 250 ft range
• Includes one receiver, transmitter, 2 USB Cables, and a carry pouch

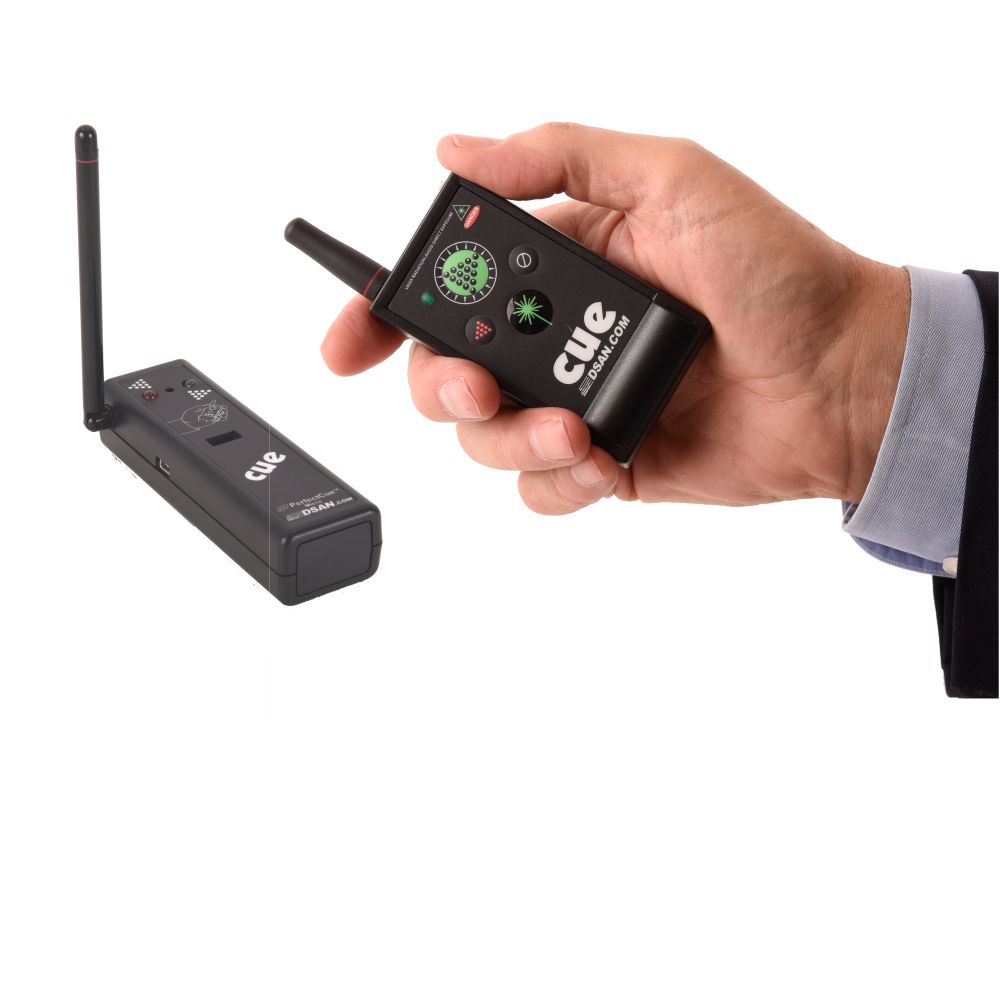

The receiver measures 4.5″ x 1″ x 1.5″ and has a solid, weighty feel. It features two USB-C jacks, an external antenna, and 8 switches to pair receiver and transmitter. It is powered via the USB connection.

The wireless controller fits comfortably in your hand, with a layout that suits both right- and left-handed users. The buttons have contoured shapes for a distinct tactile feel and deliver a precise click.

The controller communicates on the 433 MHz RF band, providing a reliable 250 ft range.

The receiver interprets the controller’s commands and sends stored, customizable keystrokes to one or multiple connected computers, allowing the PC-Micro to control two presentations simultaneously.

A configuration app, available for both Windows and macOS, can modify stored keystrokes for different presentation applications. For example, Adobe Acrobat uses PAGE UP and PAGE DOWN for navigation, while PowerPoint uses RIGHT ARROW and LEFT ARROW. The app can also insert a delay between the controller’s command and keystroke delivery.

The receiver and transmitter are paired via a 256-channel DIP switch on both units. This enables quick and simple pairing between individual units, multiple transmitters to one receiver, or multiple receivers to one transmitter. It also allows many setups to operate simultaneously without cross-interference.

The PC-Micro comes with two ultra-flexible USB cables—one 20 cm and one 100 cm—each with a USB-C to USB-A adapter.

An included canvas pouch stores the PC-Micro, wireless controller, and USB cables.

Specifications

• Range of transmitter to base cue light: 250 feet
• 433.92 MHz Band / 256 Channels
• Two USB-C Ports
• Programmable keystroke via App
• LED Indicators confirm wireless commands
• Dimensions
  • Cue light: 4.5 x 1 x 1.5 inch
  • Transmitter (including antenna): 5 x 2 x 0.75 inch
  • Pouch: 6 x 6 x 2 inch
• Weight (w/pouch): 1 lb

What's Included

• 1x Ultra compact cue light
• 1x PC-AS4 transmitter
• 2x 3-foot USB cable
• 1x Canvas carry pouch
