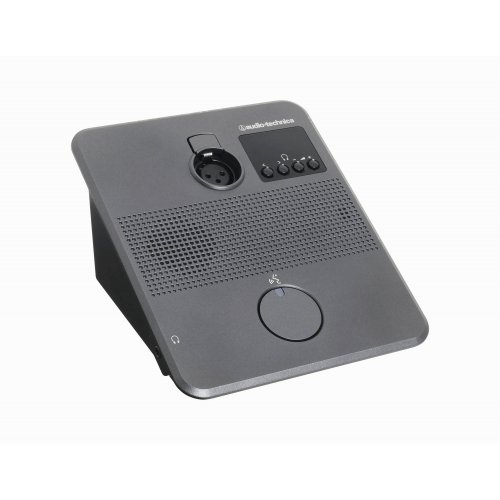

Audio Technica Discussion Unit for ATUC-50 Digital Discussion System
Model: ATUC-50DUA
About: Audio Technica Discussion Unit for ATUC-50 Digital Discussion System
The ATUC-50DU has a 3-pin XLRF-type input for use with ATUC-M43H, ATUC-M58H and ATUC-M32L microphones. Includes a talk/request-to-talk button, channel/volume display, channel selection buttons, built-in speaker, 3.5 mm (1/8") headphone jack with volume control, two LED indicators, and two RJ-45 ports for daisy-chaining DU/IU/INTs. Designed for tabletop or recessed mounting. For wired or wireless systems.
- Connect up to 100 discussion units to one control unit
- Cascade up to 300 discussion units using multiple control units
- High-quality speaker for enhanced intelligibility
- Clear LED display for volume control and channel selection
- Individual Automated Gain Control (AGC), Mic gain and Mic EQ
- Multicolour LED bar on the DU (rear side)
- Multicolour LED on the Speak button
- Uses standard Cat 5 (and above) cabling
- Connects easily through a daisy chain or ring topology
Specifications
- Dynamic Range: 107dB A-Weighted
- Frequency response: +1.0, -2.0dB 20Hz - 20kHz, refer to +4dBu output @1kHz
- Sampling Frequency: 24bit /48kHz
- Signal-to-Noise Ratio: 87dB A-Weighted
- Connections
- Inputs: Mic x 1
- Outputs: Headphones x 1
- CHAIN: DU / CU terminals
- Headroom: 20dB
- Equivalent Input Noise: Less than -121dBu Rs=150ohm
- Total Harmonic Distortion: Less than 0.07% @1kHz unity
- Phantom Power: DC +24V
- Power Supply: DC +48V
- Power Consumption: 2.2W
- Operating Temperature Range: 0-40℃
- Operating Humidity: 25-85%
- Dimensions: 5.32 x 5.84 x 3.32 inch (135 x 148.3 x 84.2mm)
- Weight: 1.26 lbs (570g)
What's Included
- Quick Setup Guide
- Warranty Sheet
UPC: 4961310150761
