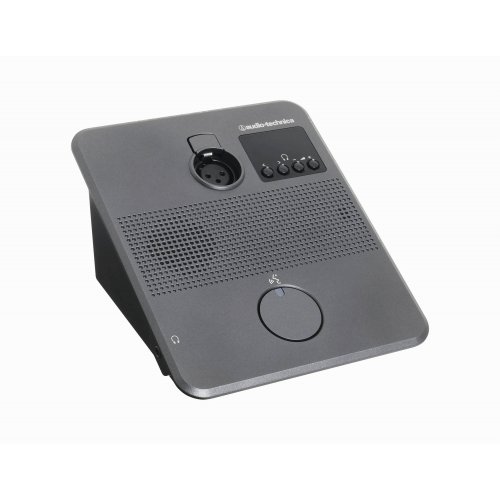

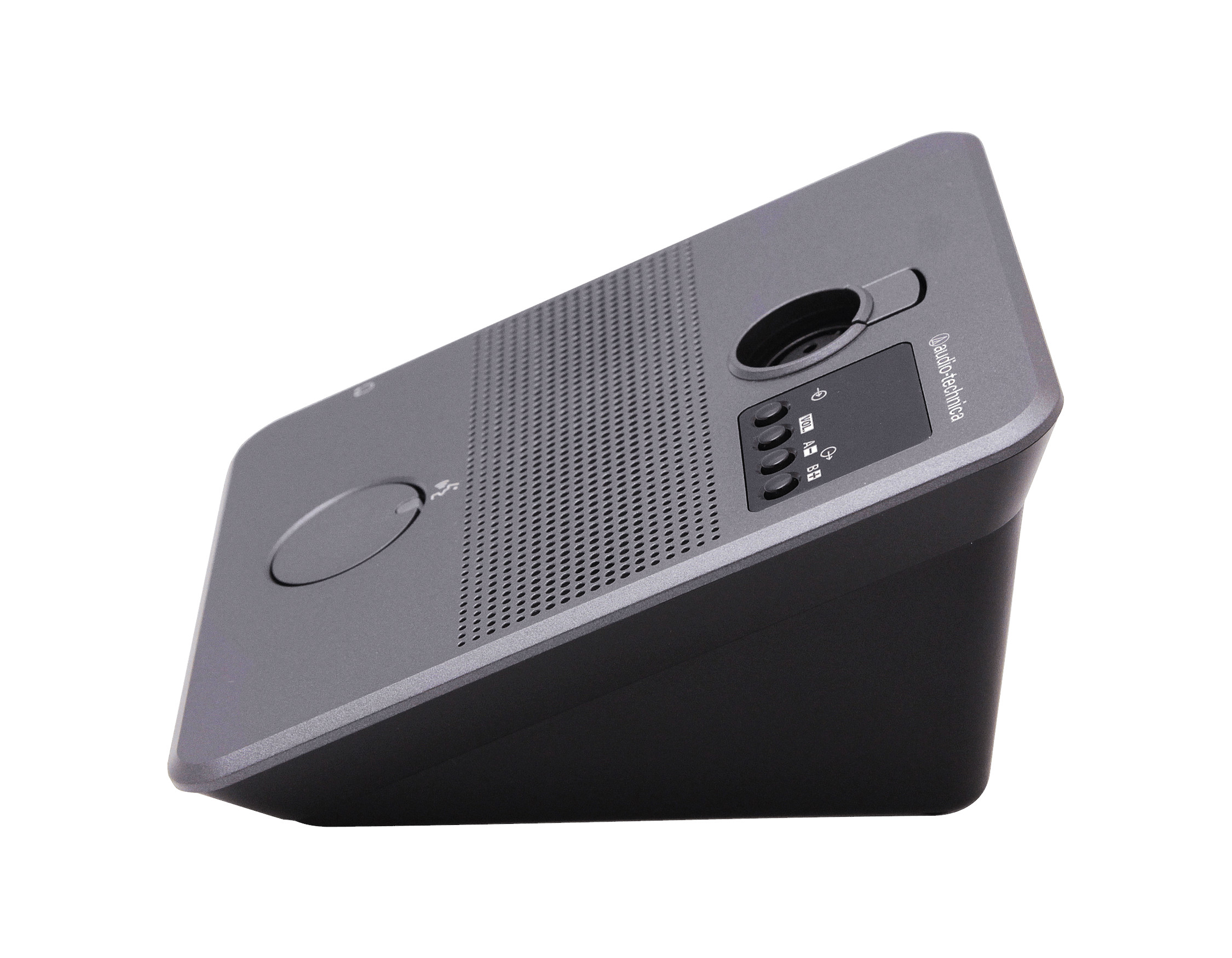

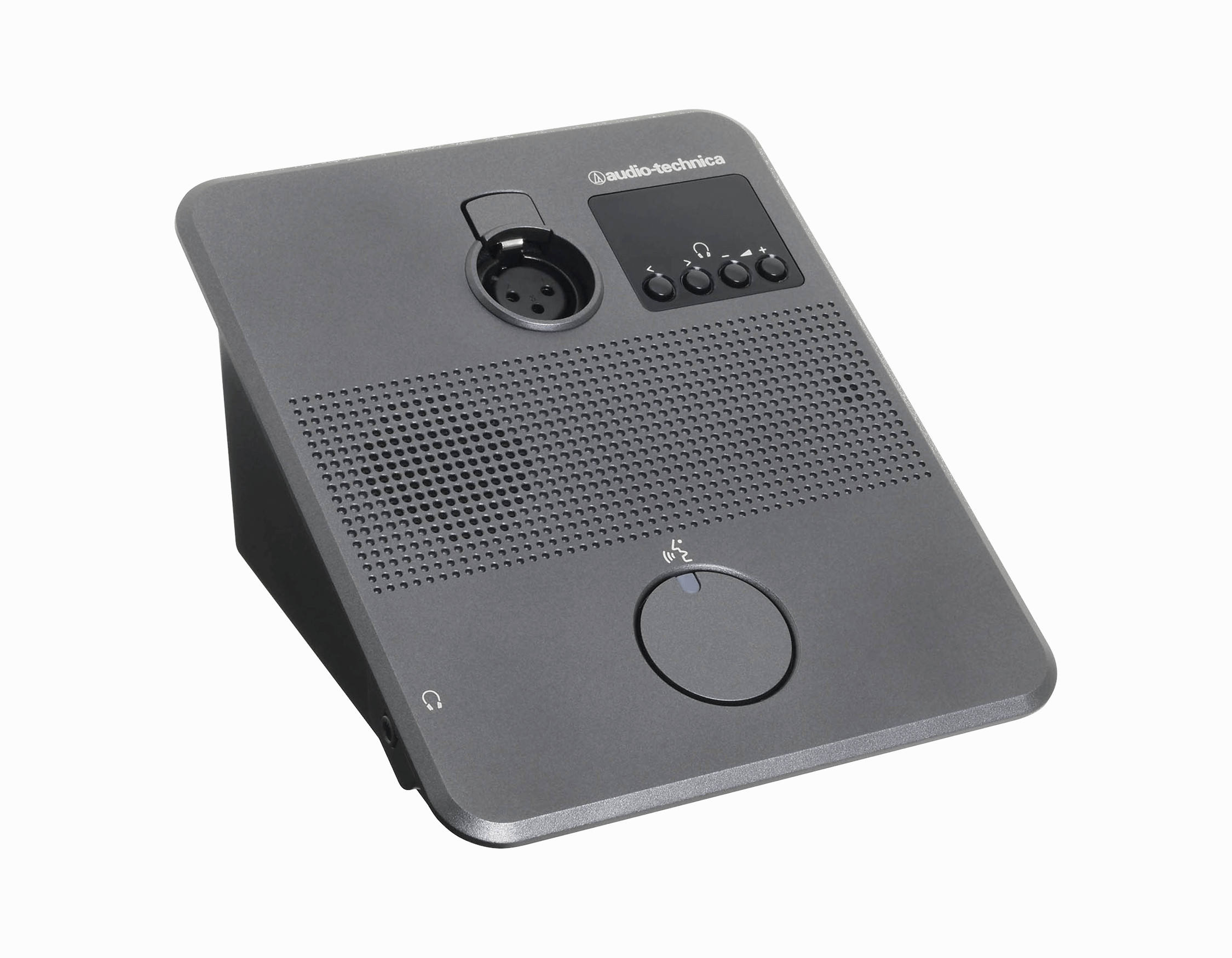

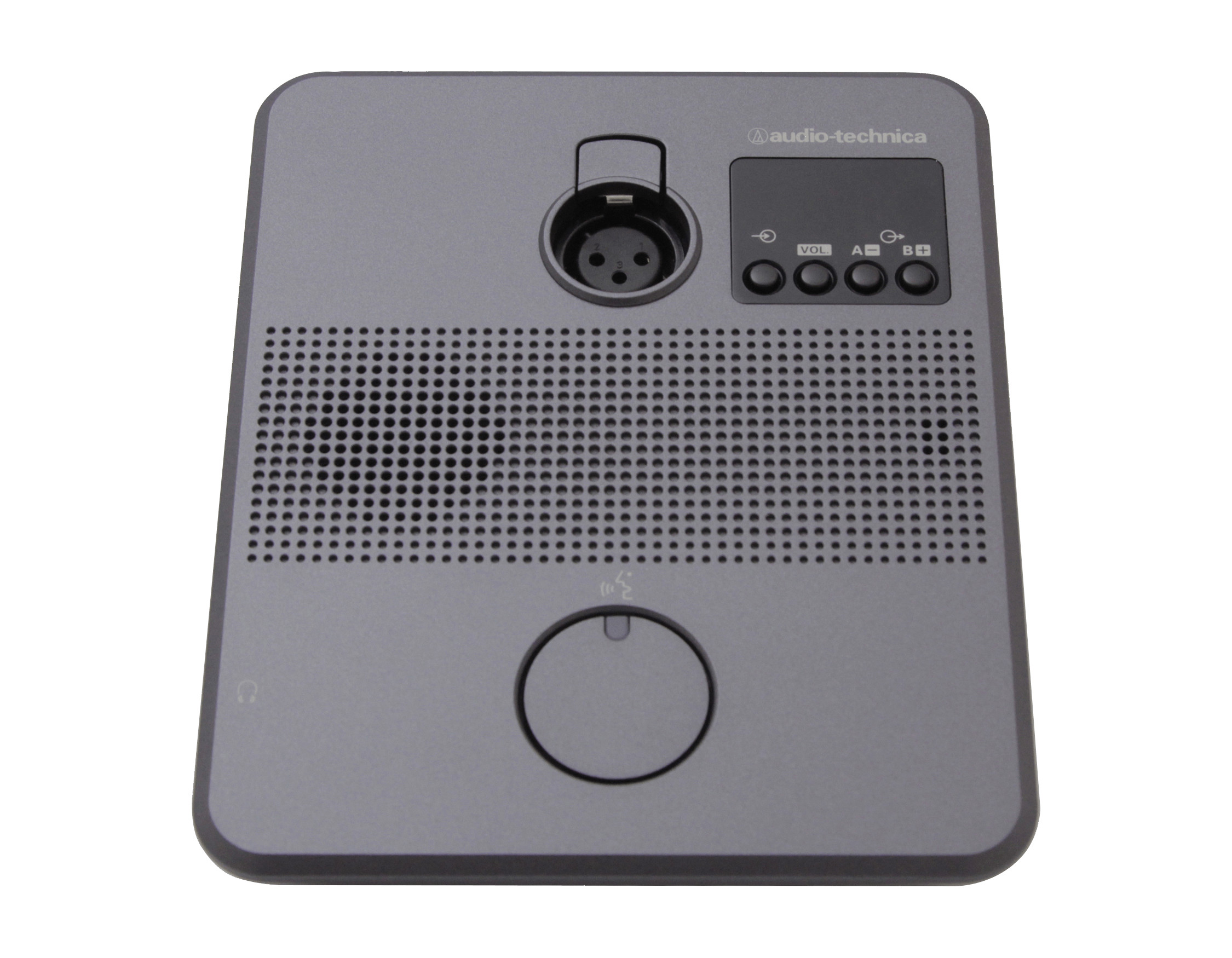

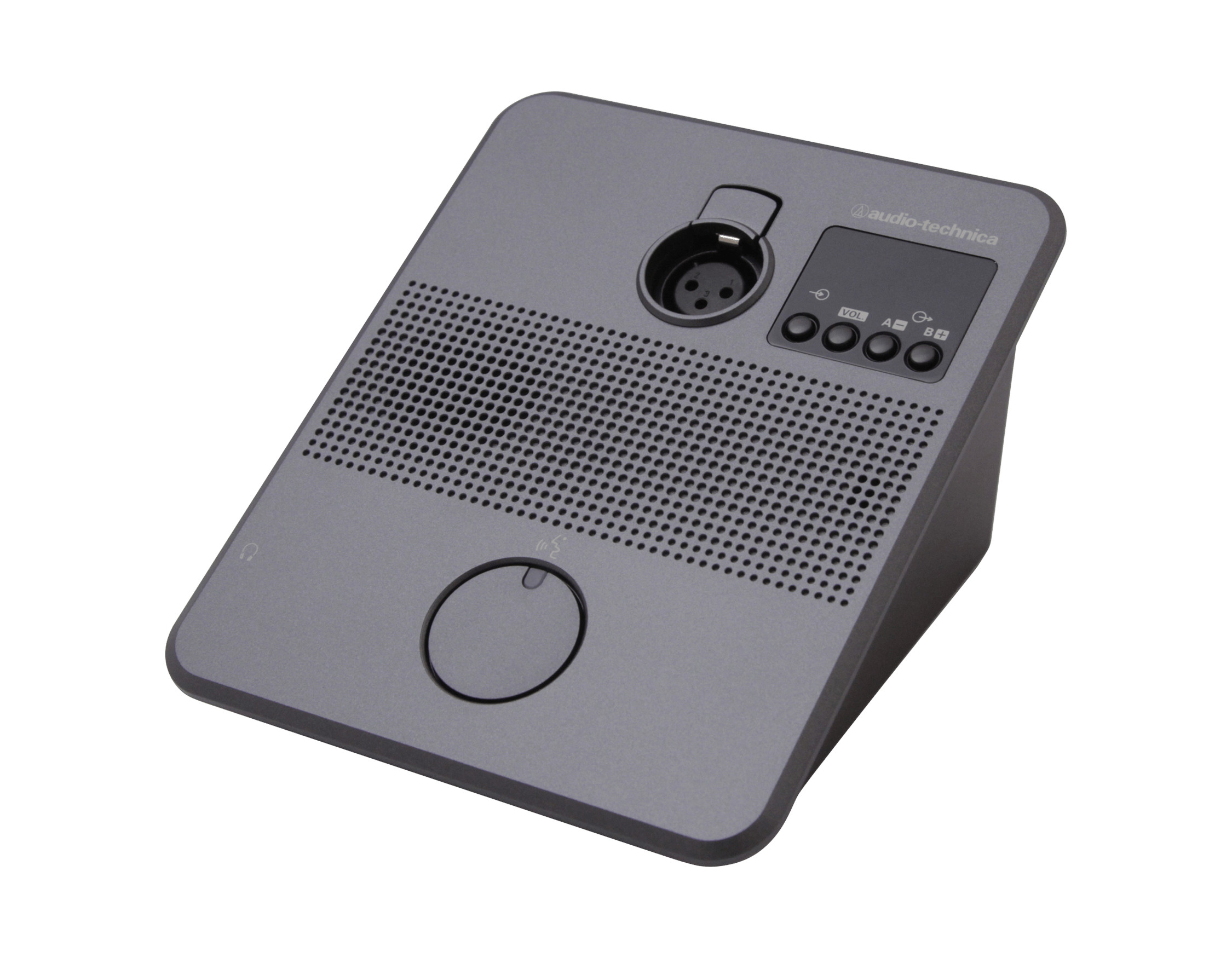

Audio Technica Interpretation Unit for ATUC-50 Digital Discussion System
Model: ATUC-50INT
About: Audio Technica Interpretation Unit for ATUC-50 Digital Discussion System

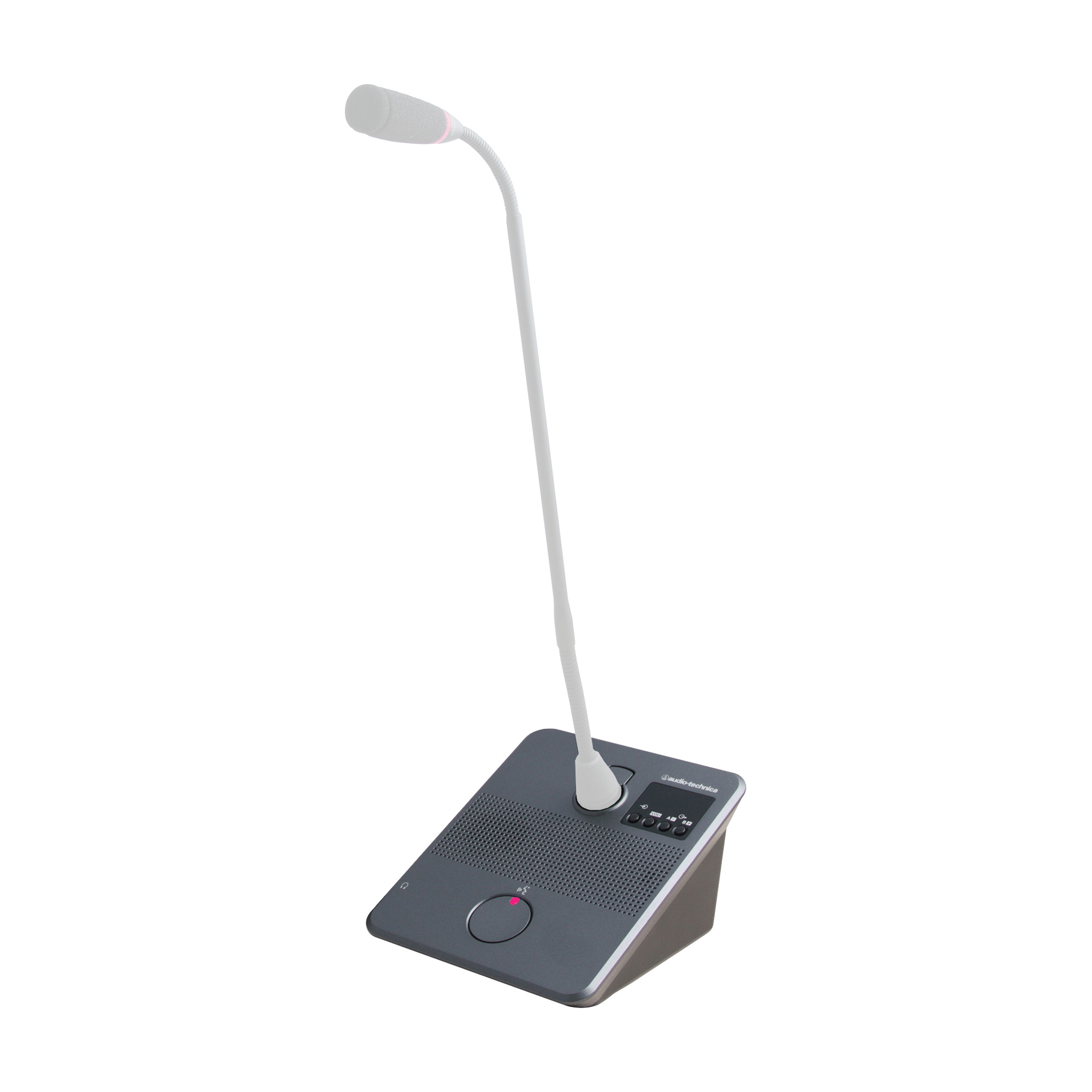

The ATUC-50INT has the same body as the ATUC-50DU, but is programmed for use by interpreters in bi- or trilingual discussion applications. It has a 3-pin XLRF-type input for use with ATUC-M43H, ATUC-M58H and ATUC-M32L microphones. Includes a talk button, volume/channel/language group display, channel selection buttons, A/B interpretation languages selection buttons, built-in speaker, 3.5 mm (1/8") headphone jack with volume control, two LED indicators, and two RJ-45 ports for daisy-chaining DU/IU/INTs. Designed for tabletop or recessed mounting. For wired or wireless systems.
Specifications
- Dynamic Range: 107 dB A-weighted
- Frequency response: + 1.0, – 2.0dB, 20Hz~20kHz, refer to +4dBu output @ 1kHz
- Sampling Frequency: 24 bit /48 kHz
- Signal-to-Noise Ratio: 87 dB, A-weighted
- Connections
- Inputs: MIC (Neutrik XLR-F)
- Outputs: Headphones x 1
- LINK /CHAIN: DU RJ45 A /B terminals
- Headroom: 20 dB
- Equivalent Input Noise: Less than –121dBu, Rs =150 ohm
- Total Harmonic Distortion: Less than 0.07% @1kHz unity
- Phantom Power: DC +24V
- Power Supply: DC +48V
- Power Consumption: 2.2 W
- Operating Temperature Range: 0-40° C
- Operating Humidity: 25-85%
- Dimensions: 5.32 x 5.84 x 3.32 inch (135 x 148.3 x 84.2mm)
- Weight: 1.26 lbs (570g)
What's Included
- Quick setup guide
- Warranty sheet
UPC: 042005193271
