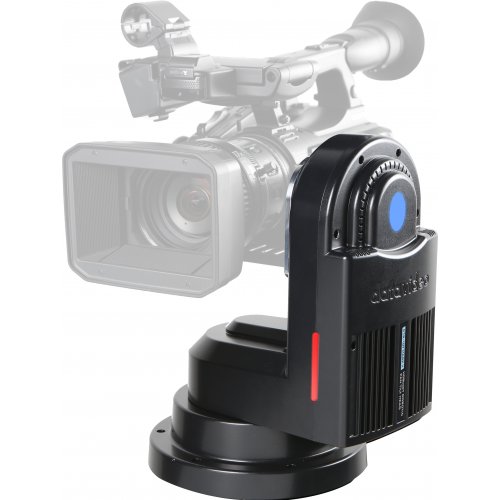

Datavideo PTR-10T MKII HDBaseT Robotic Remote Pan Tilt Head PTZ

About: Datavideo PTR-10T MKII HDBaseT Robotic Remote Pan Tilt Head PTZ

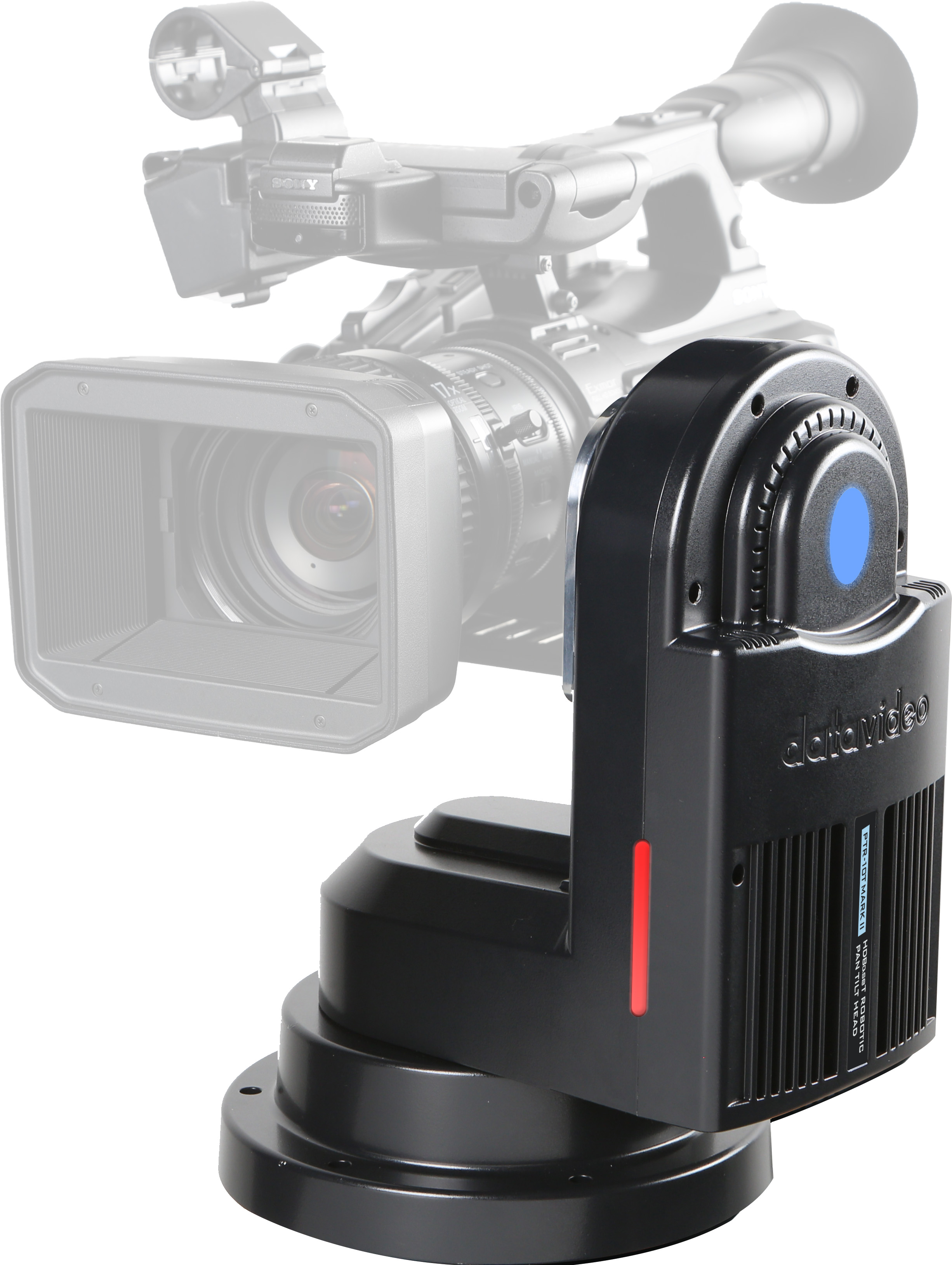

Datavideo’s brand-new PTR-10T Mark II is a robotic pan-tilt head that is designed to turn any small size video camera or block cameras into a roboti

A sleek design fits seamlessly in your studio. With its weight of 3.4 Kg, it can be placed on any heavy-duty tripod or mounted on the wall and ceiling which brings up a lot of flexibility for your video production.
The PTR-10T Mark II can be controlled by the included IR controller, VISCA protocol controller, Datavideo RMC-180 Camera controller, RMC-300A Universal Remote-Control Panel, HS-1600T series and compatible with HDBaseT over Ethernet and other integration solutions such as Crestron.

D-tap connector for DC output

The D-tap connector is widely used in the broadcast industry as a standard for powering accessories from battery or mains power. This will make it easier for you to find a ready-made power cable for your specific camera. Included is a D-tap to DC 5.5mm with lock for Datavideo cameras.

Selectable DC voltage output for different cameras (7.4 / 8.4 / 10 / 12V )

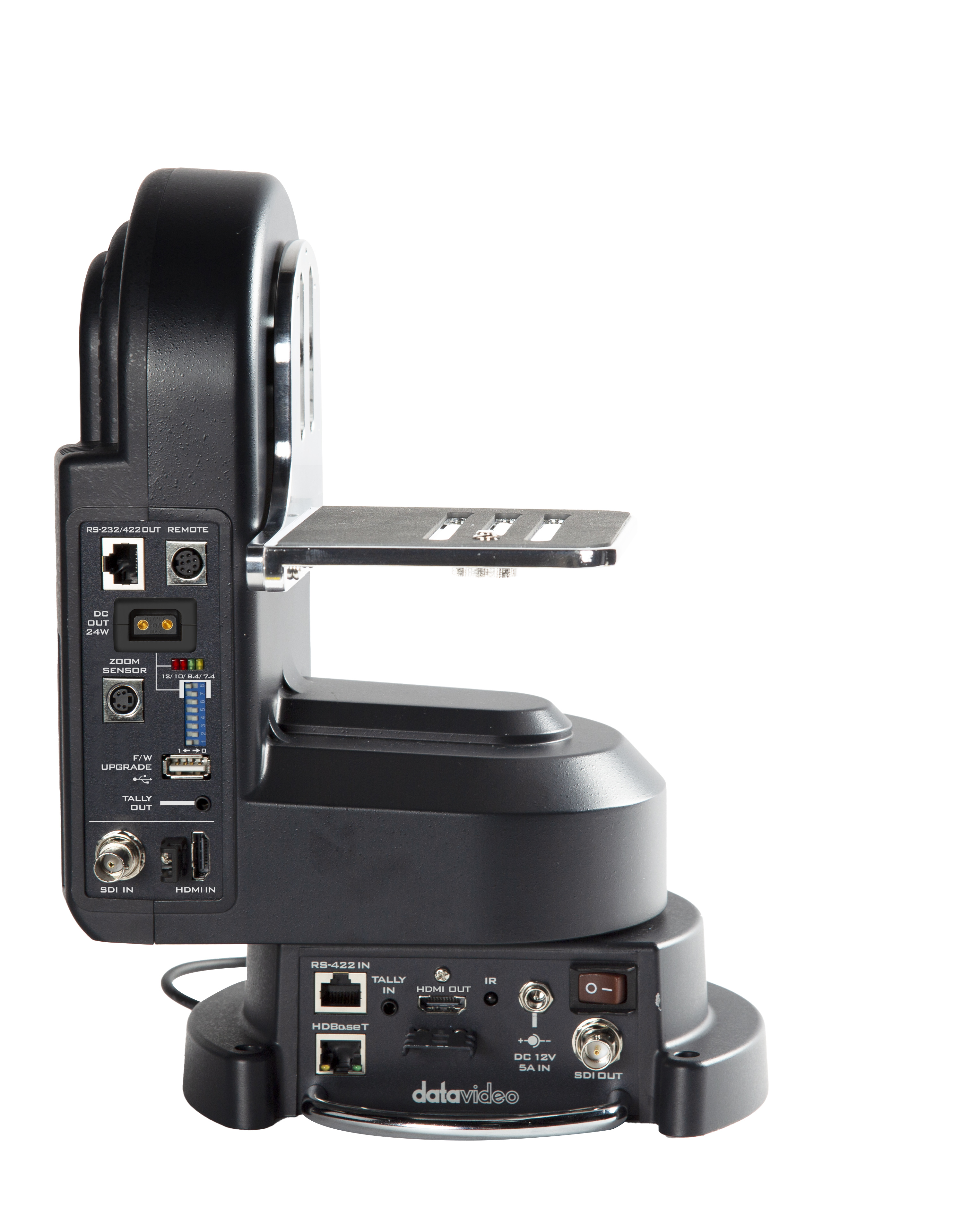

Video Interface

• HDMI x 1
• SDI x 1
• HDBaseT x 1 (HDBaseT)

Video Output

• 2160p 29.97/25
• 1080p 59.94/50
• 1080i 59.94/50
• 720p 59.94/50

Control Unit

• RMC-180
• RMC-300C
• VISCA Protocol Controller
• IP Control
• IR remote

Panning / Tilting Range

• Pan: 340°
• Tilt: ±45°

Panning / Tilting Speed

• Pan: 0.2~15° /Sec
• Tilt: 0.1~10° /Sec

Preset

• Pan/Tilt position 50

Control Distance

• 1,200M by RS422
• 100M by DVIP

Control Protocal

• Sony VISCA
• DVIP

Control Input

• RS-422
• HDBaseT

Maximum Load

• 4 KG Max

Control Output

• RS-232
• RS-422
• BX-Lens
• LanC

Power Requirement

• DC 12V~ 18V, 3A (Without Camera)
• DC 12V~ 18V, 5A (With Camera)

Power Supply - DC 12V, 2A Max
Operating Temp. Range - 0~40 C°
Operating Humidity Range - 10~80%
Storage Temp. Range - 10~60 C°
Storage Humidity Range - 5~80%
Weight - 3.4 kg
Dimension (LxWxH) - 230 x 190 x 300 mm
