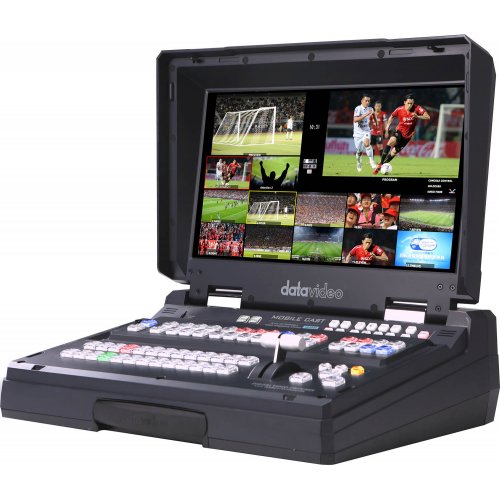

Datavideo HS-3200 12-Input HD-SDI Switcher / Streamer

About: Datavideo HS-3200 12-Input HD-SDI Switcher / Streamer

A complete and portable solution for on-the-go live productions

This professional studio includes a built-in switcher, recorder, streaming encoder, audio delay, and monitor, which can easily be carried to your next live production location.

Perfect for large-sized live video productions

Supports 12 inputs and 9 outputs in full 1080p resolution.

Create stunning video effects with advanced features

8 x PIP, 4 x upstream keyers, 2 x DSK and 2 x independent logos or dual chromakeyer.

Stream to Facebook Live, YouTube, Twitch and more

The built-in H.264 web streaming encoder allows you to stream your show to Facebook, YouTube or Twitch in no time.

Built-in animations and backgrounds

Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.

Specifications

• Video Standard: Full HD
• Video Format
  • 1080p 50/59.94/60Hz
  • 1080i 50/59.94/60Hz
  • 720p 50/59.94/60Hz
• Input Routable / Crosspoint: All 12 repeatable

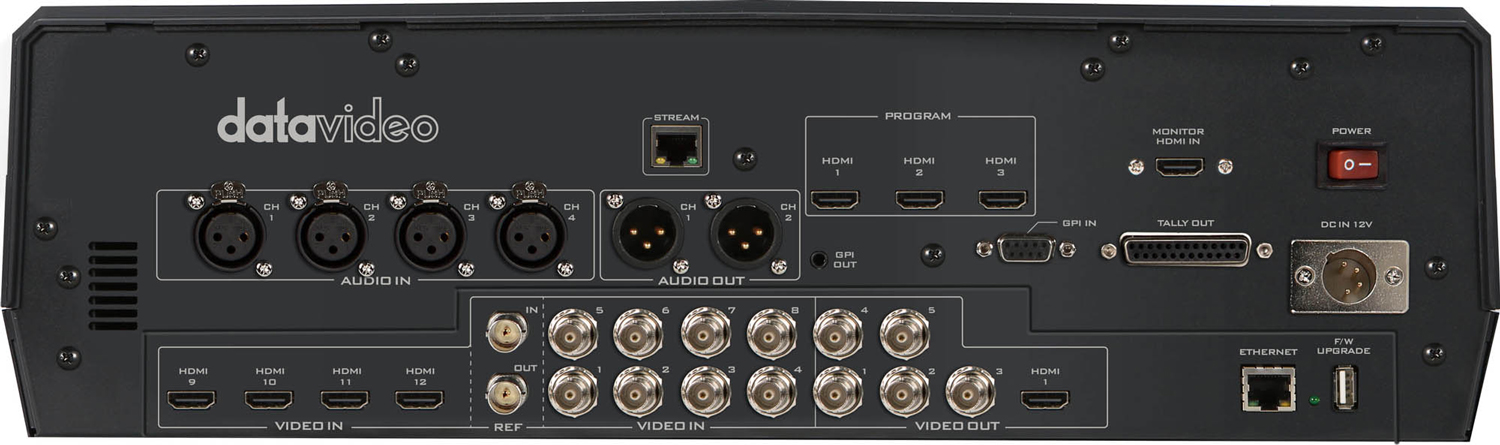

• Video Input
  • 8x SDI
  • 4x HDMI
• Computer Graphic Interface
  • 4 via HDMI
• Video Output
  • 5xSDI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input1-12, STILL1, STILL2, Flex source
  • 1xHDMI assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input1-12, STILL1, STILL2, Flex source
  • 3x HDMI: PGM
• Audio Input: 4x Balanced XLR
• Audio Output: 2x Balanced XLR
• Embedded Audio Support: Up to 16 framesInput up to 16 channels, Output 4 channels
• Audio Delay Calibration: Up to 16 frames
• A+V Switching: Yes
• USK: 4
• DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
• Picture in Picture: 8 (4x PIP, 4x Flex Source)
• Logo Insertion: 2
• Built-in Monitor Display: 17.3” HD TFT LED backlit, 1920x1080 pix
• Built-in Intercom & Tally: N/A
• Streaming Video Encode:
  • H.264 / AVC, Main/ High Profile
  • Configurable Bit-rate up to 10Mbps
• Streaming Audio Encode
  • AAC-LC
  • Configurable bit rate range from 32Kbps to 384Kbps
  • Sample rate: 48KHz, 16bit
• Streaming Protocol
  • TS over TCP/UDP (unicast & multicast)
  • RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)
  • RTMP/RTMPS (Publish)
• Streaming Control: Web browser UI for configuration and control Socket commands
• Recording File System: FAT, exFAT, NTFS
• Recording File Format: MP4
• Recording Setting Control: Web UI for system configuration and control
• Special Features
  • 4 Chroma-Key Virtual Studio
  • 9 stinger transition and 4 user preset
  • Built in TC-200 CG interface
  • Streaming encoder and recorder
  • 12x9 matrix seamless switch
• Dimension (LxWxH): 455 x 355 x 134 mm
• Weight: 17.8 Lbs (8.1 kg), Reinforce Plastic Case
• Power: DC 12V, 11A
• Operating Temp. Range: 0~40 °C
• Options: CB-22H/23H/46/47/60/61/62
