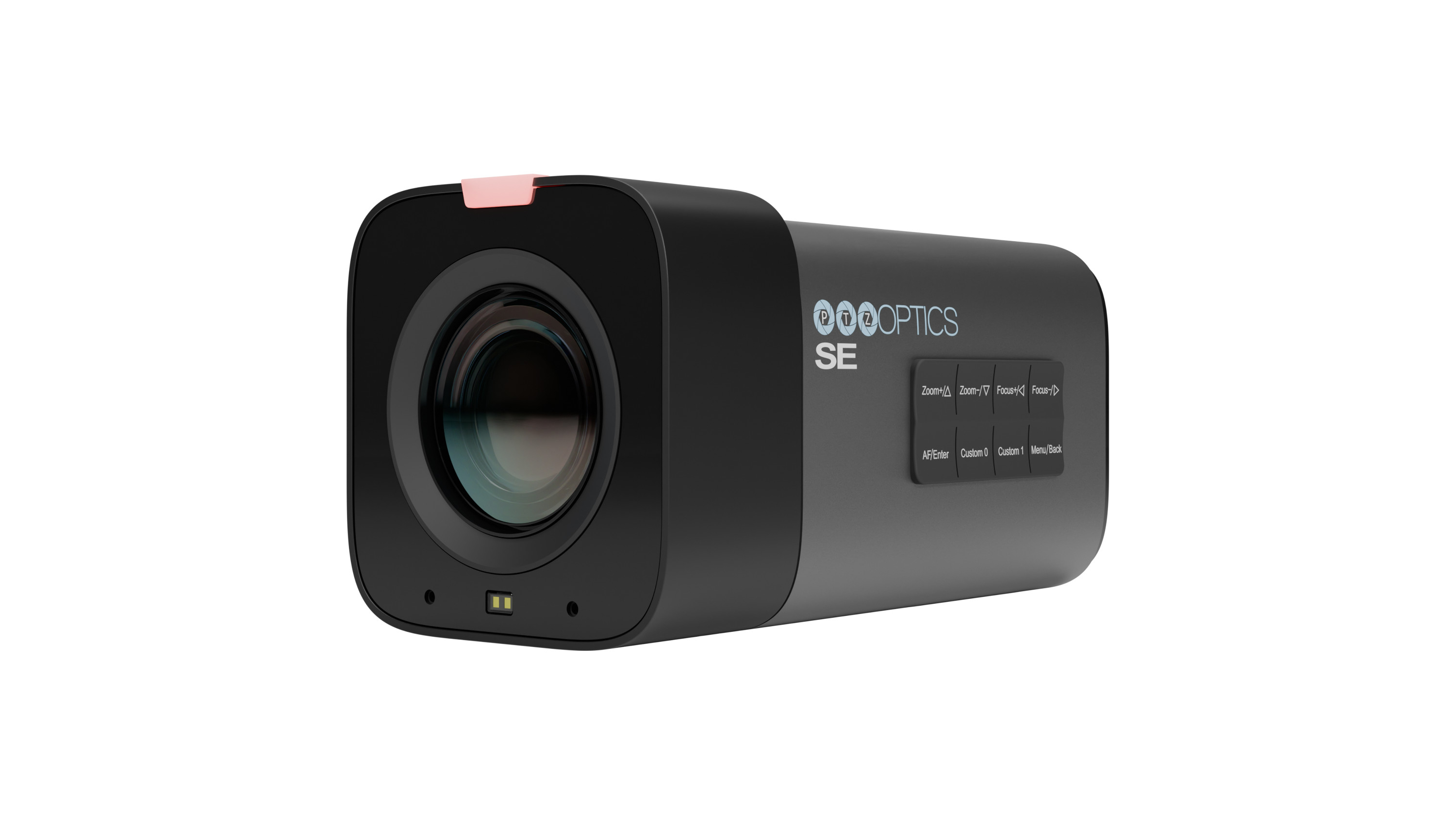

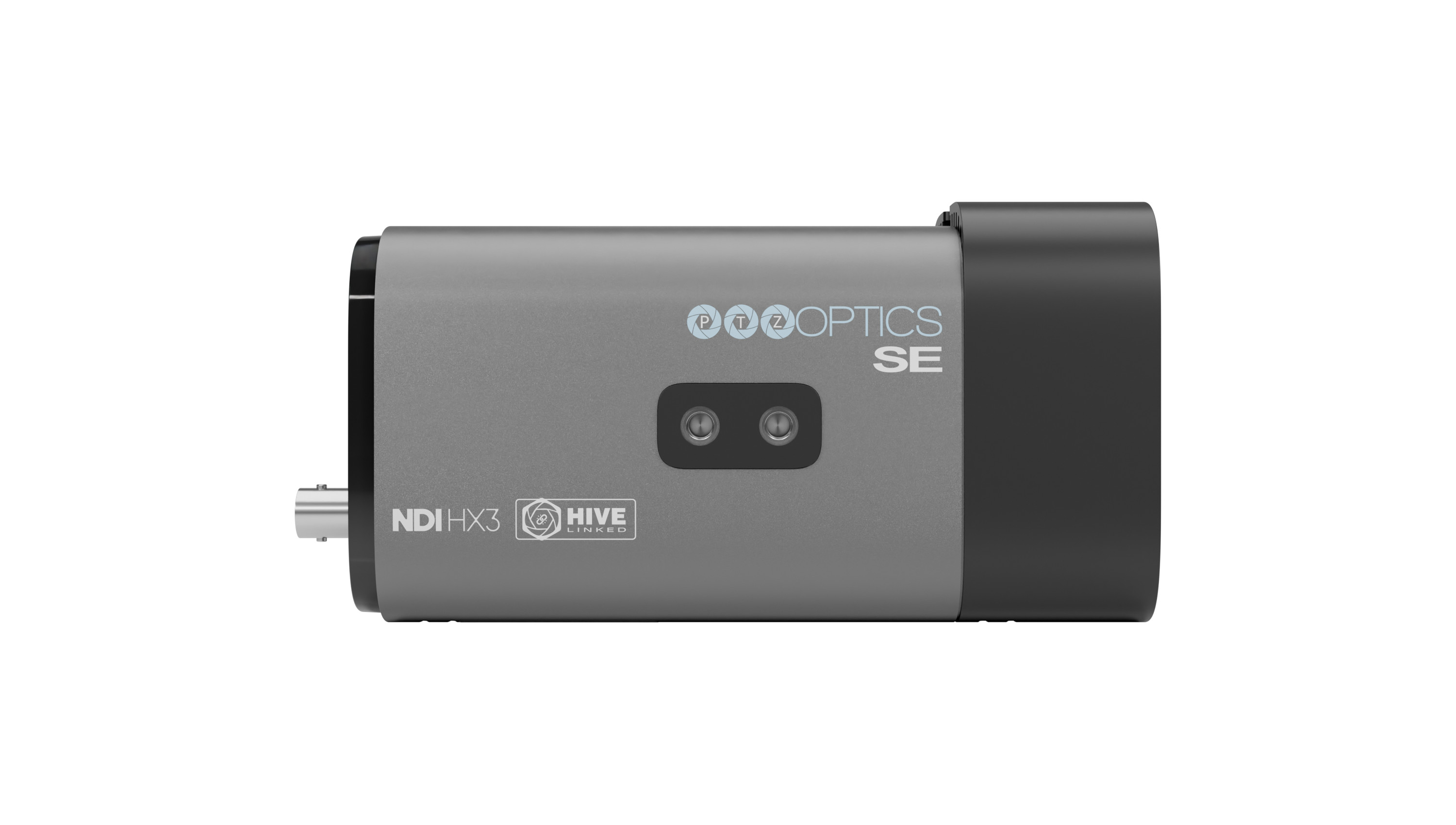

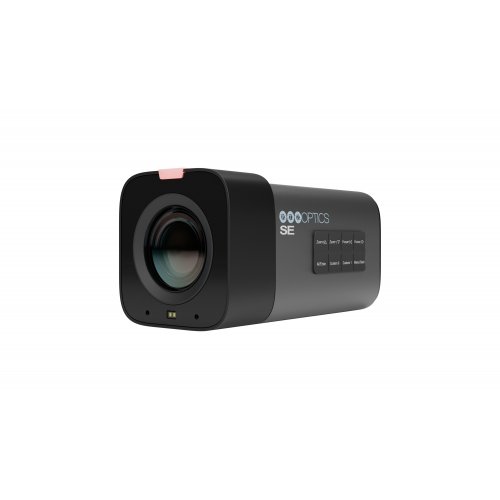

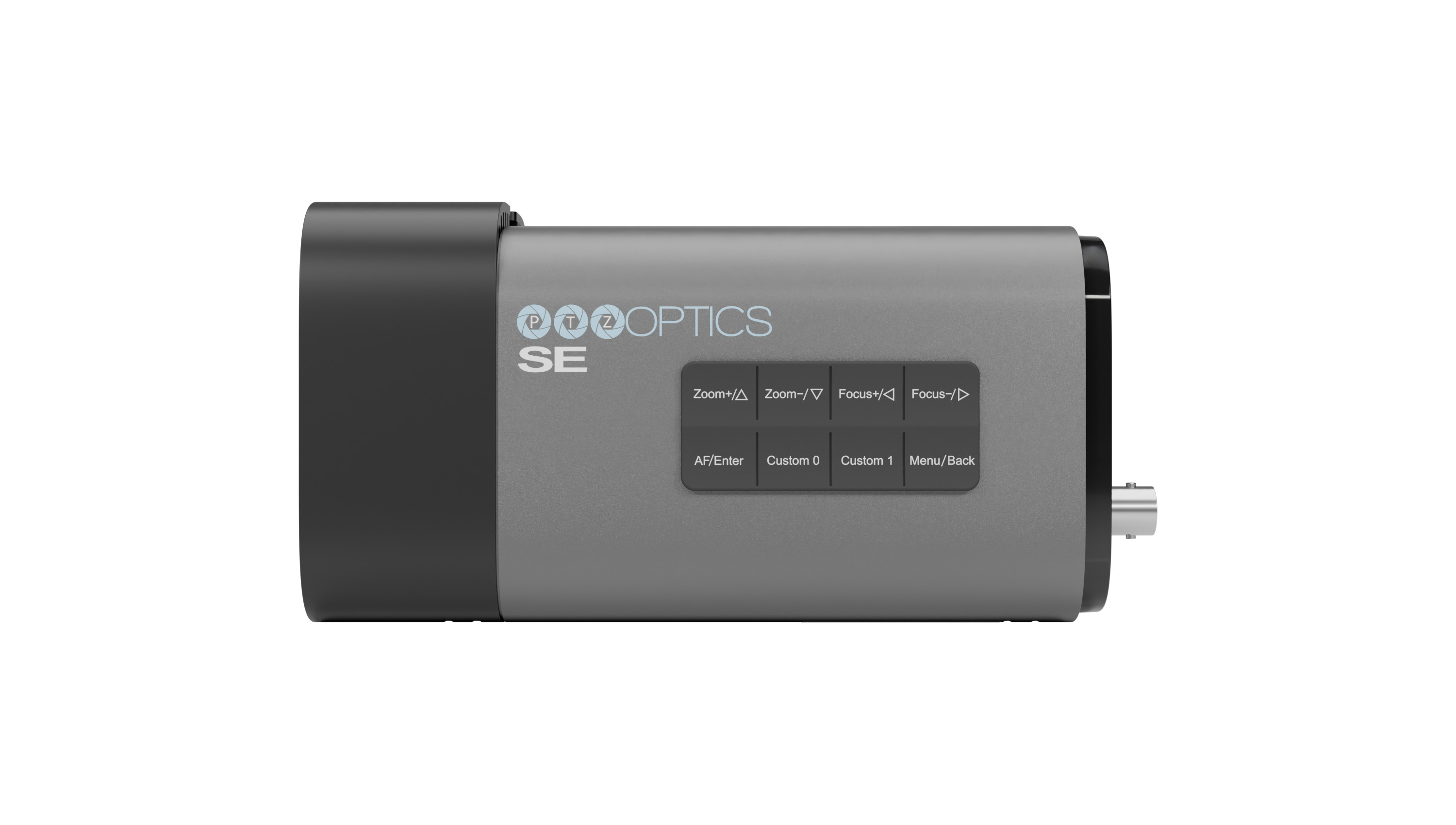

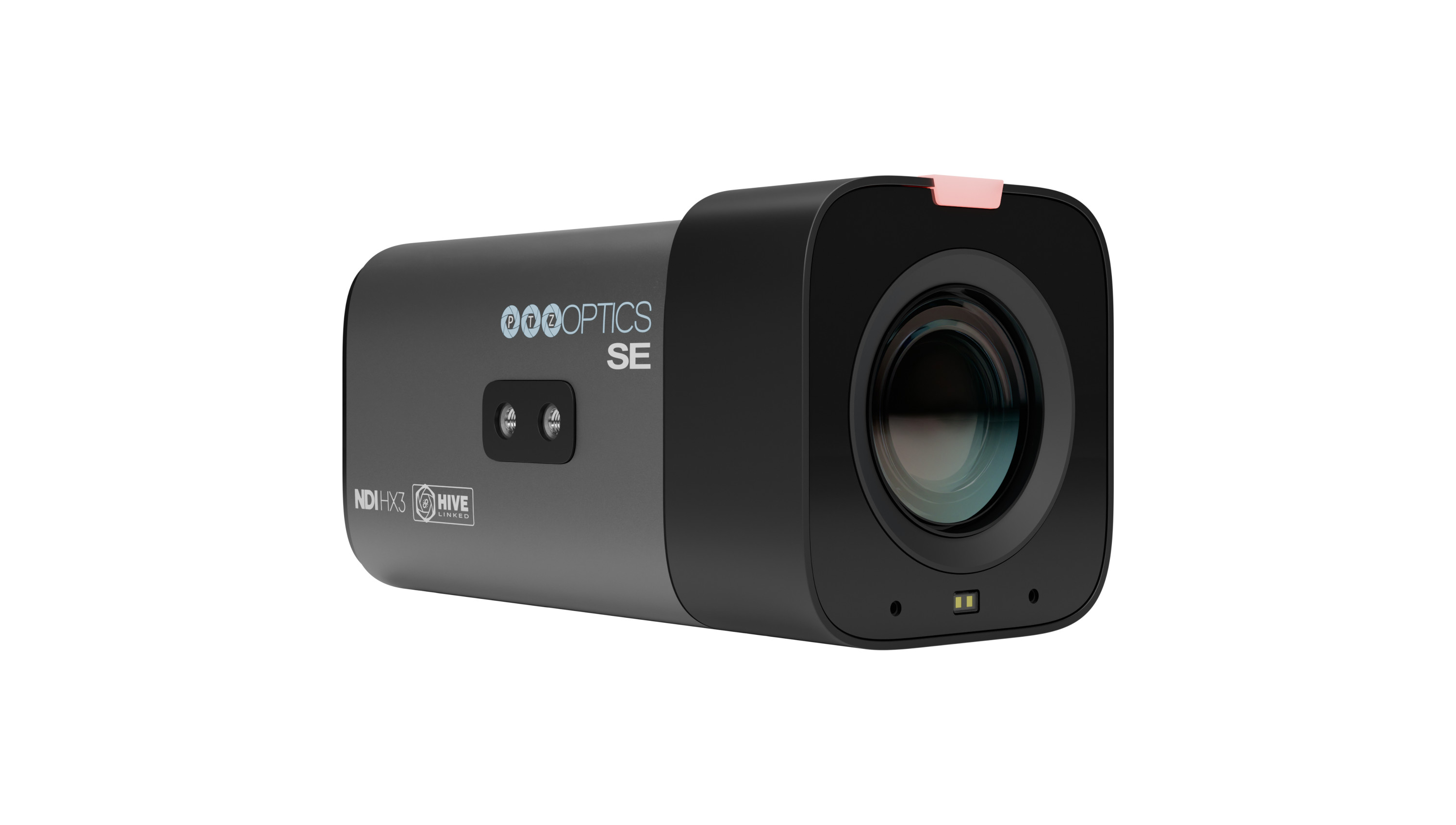

PTZOptics Studio SE 20X (Grey)

About: PTZOptics Studio SE 20X (Grey)

Meet the perfect entry into the high-definition fixed camera experience. Whether you’re adding to an existing studio setup or just getting started in videography, PTZOptics’ Studio SE is the perfect choice, providing crisp 1080p resolution and 12X or 20X zoom. Even better, the Studio SE is Hive Linked for instant connection to our easy-to-use online platform, Hive Studio, which provides future-ready connectivity and camera control from anywhere.

• 1080p 60fps Resolution
• 12x or 20x Optical Zoom
• Compact & Modern Fixed Design
• Hive-Linked for Smooth Integration
• SDI, HDMI, USB, and IP Outputs with NDI HX3

The Studio SE features SDI, HDMI, USB, and IP output and comes native with NDI HX3, making it simple to add to video production setups, connect directly to a live production switcher, stream over a network, or record through an SDI interface.

• Built In Microphone: Enhance your productions with the convenience of a built-in microphone.
• Multiple Control Options: IR remote, Web UI, PTZ Control App, USB port, PTZOptics Joysticks, Camera Management Platform, and PTZOptics Hive-Studio.
• Simultaneous Outputs:
  • HDMI or SDI + IP + RTMP + NDI
  • HDMI or SDI + USB
  • HDMI or SDI + IP + USB
• 1080p HD: Next generation SONY UHD CMOS sensor for shooting high-quality 1080p video at 60 FPS. Adjustable to numerous other resolutions and frame rates.
• Simple Network Discovery: Easily discover and connect to a network.

Specifications

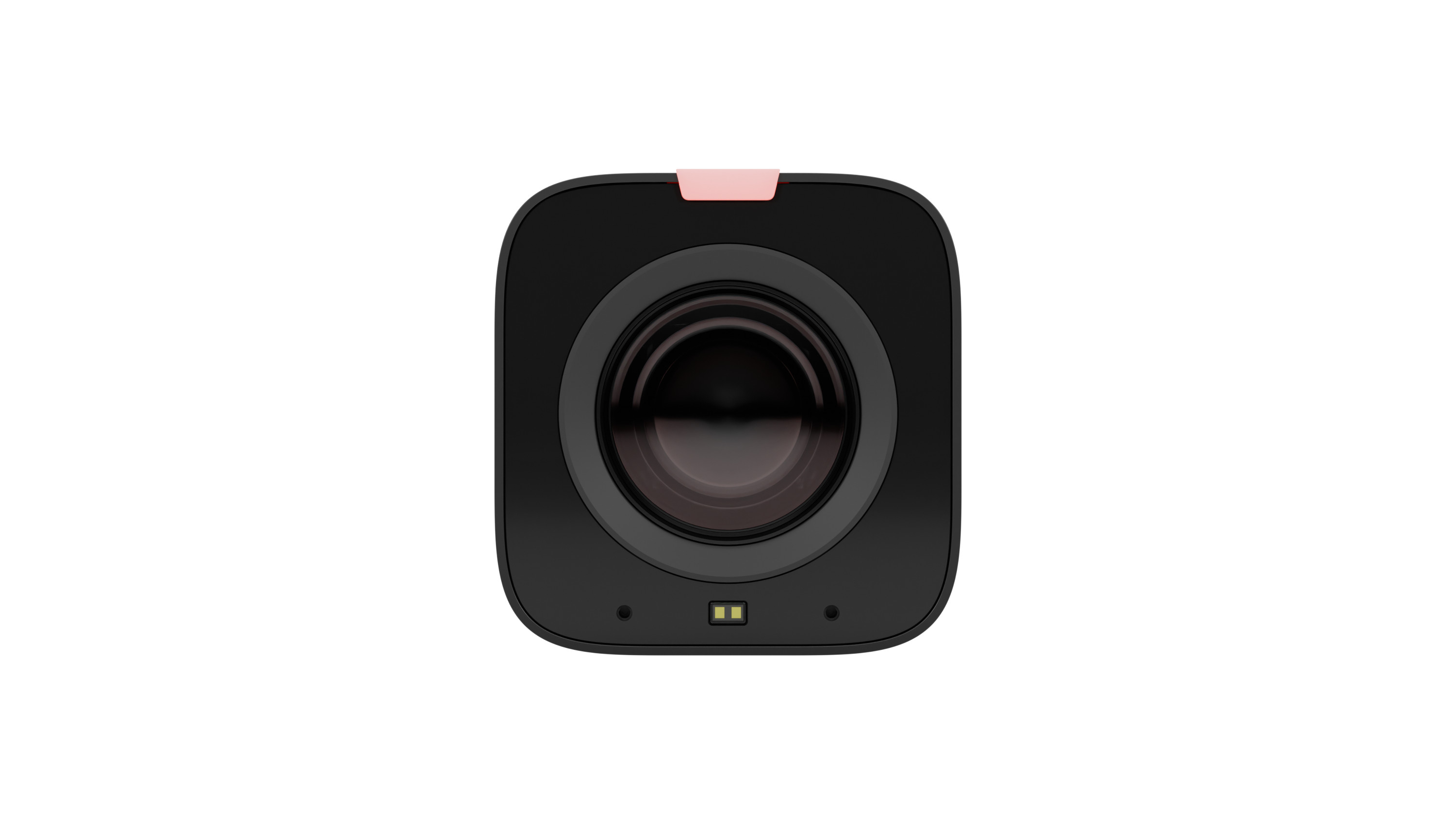

• Camera & Lens
  • Lens:  1/2.8 inch, CMOS
  • Image Sensor: 8MP, Effective Pixels: 8.4M
  • Digital Zoom
    • Off (3840x2160)
    • 2X (1920x1080)
    • 4X (960x540)
    • 8X (480x270)
    • 16X (256x144)
  • Resolution and Frame Rate
    • HDMI
      • 1920x1080p-60/59.94/50/30/29.97/25,
      • 1920x1080i-60/59.94/50,
      • 720-60/ 59.94/ 50/ 30/ 29.97
    • SDI
      • 1920x1080p-60/59.94/50/30/29.97/25,
      • 1280x720p-60/59.94/50/30/29.97
  • Optical Lens Focal Length (Zoom): f =  4.7mm ~ 94mm, F1.6 ~ F3.6
  • Optical Lens Field of View
    • Horizontal:  3.5° ~ 60.7°
    • Vertical: 1.9° ~ 34.1°
  • Display Field of View:  67.8°
  • Min Lux: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter: 1/30s ~ 1/10000s
  • Presets: 255 Presets
  • Preset Accuracy: 0.1⁰
  • Image Flip: Supported
  • Image Mirror: Supported
  • Image Freeze: Supported

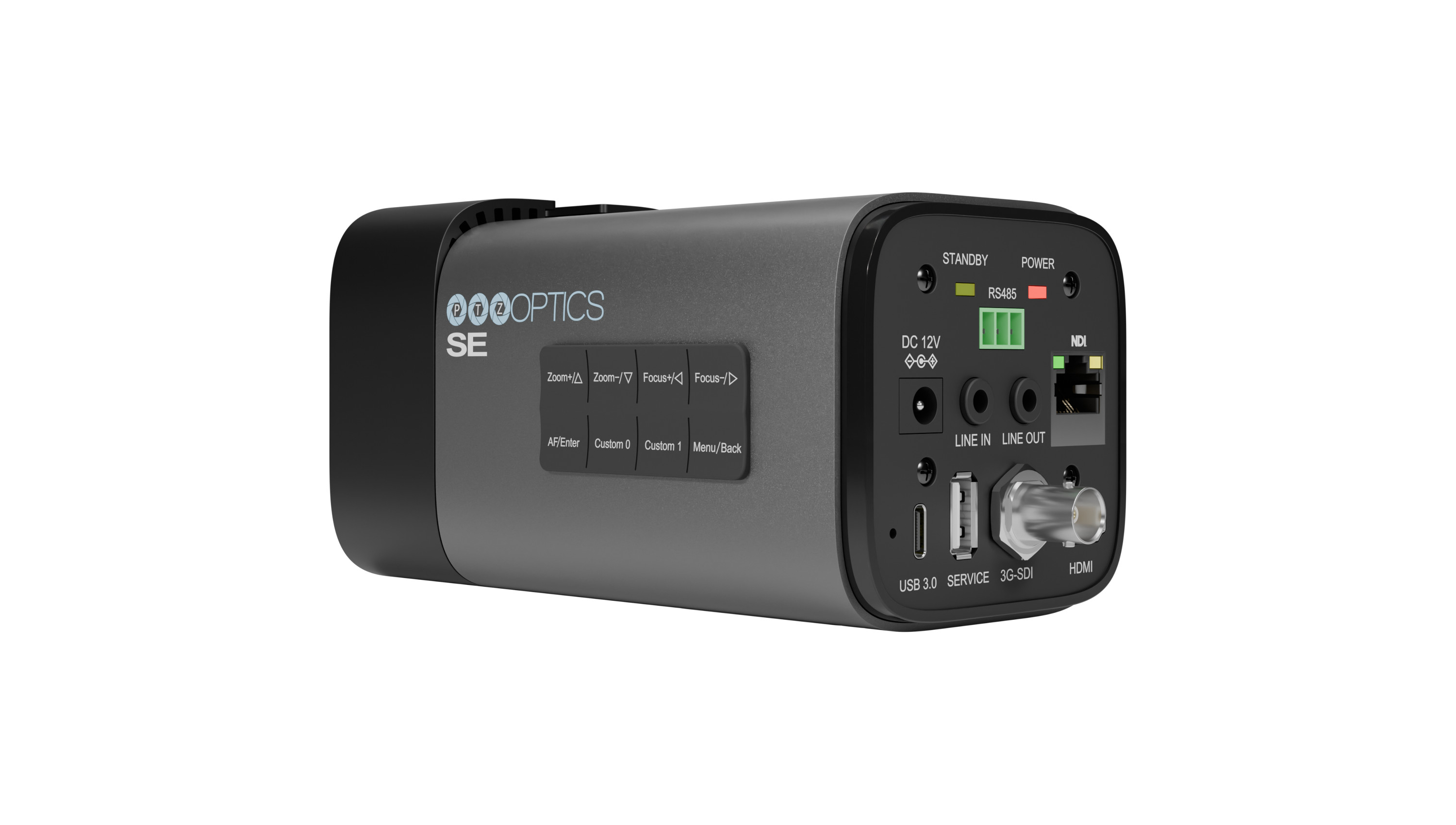

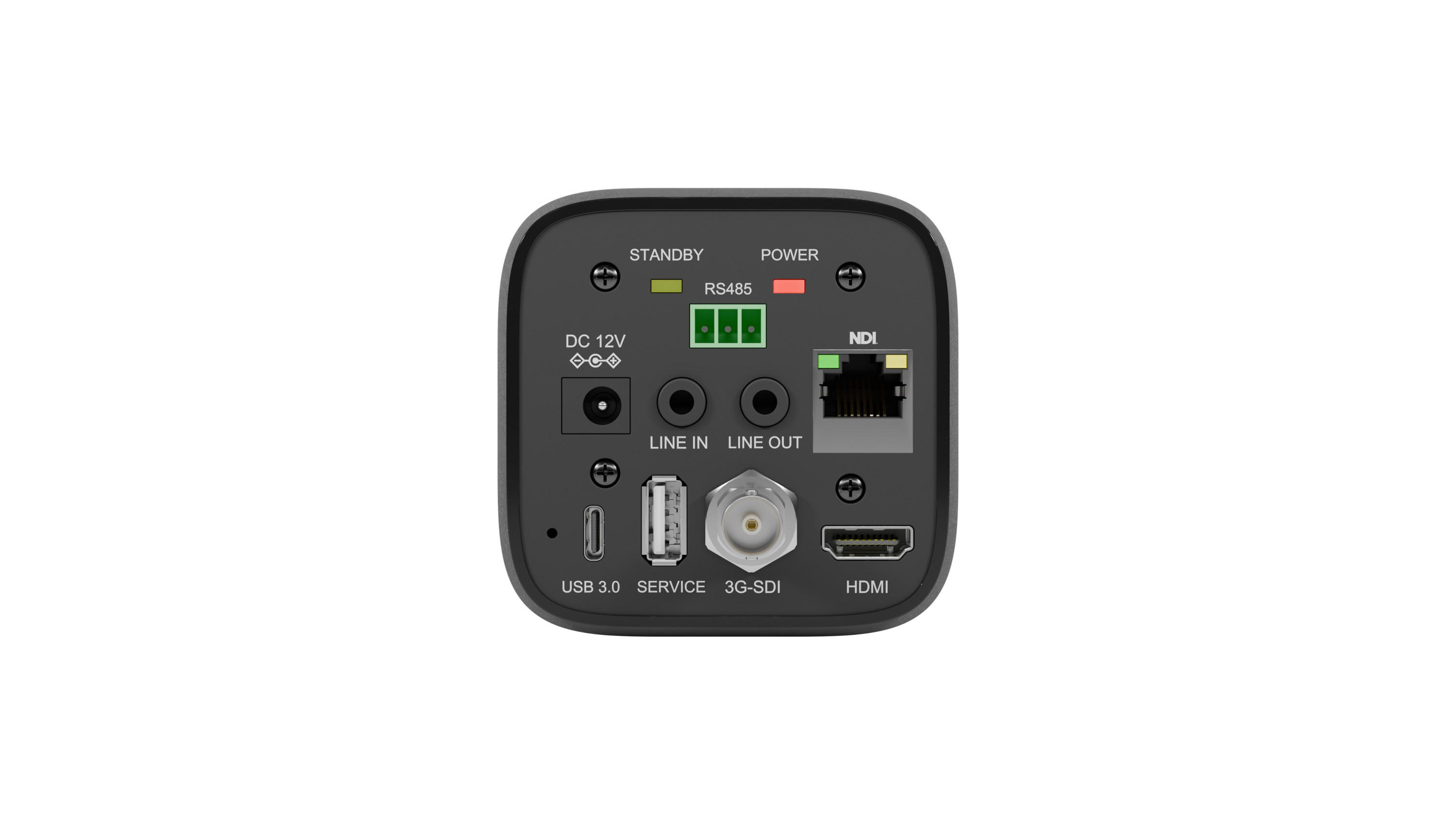

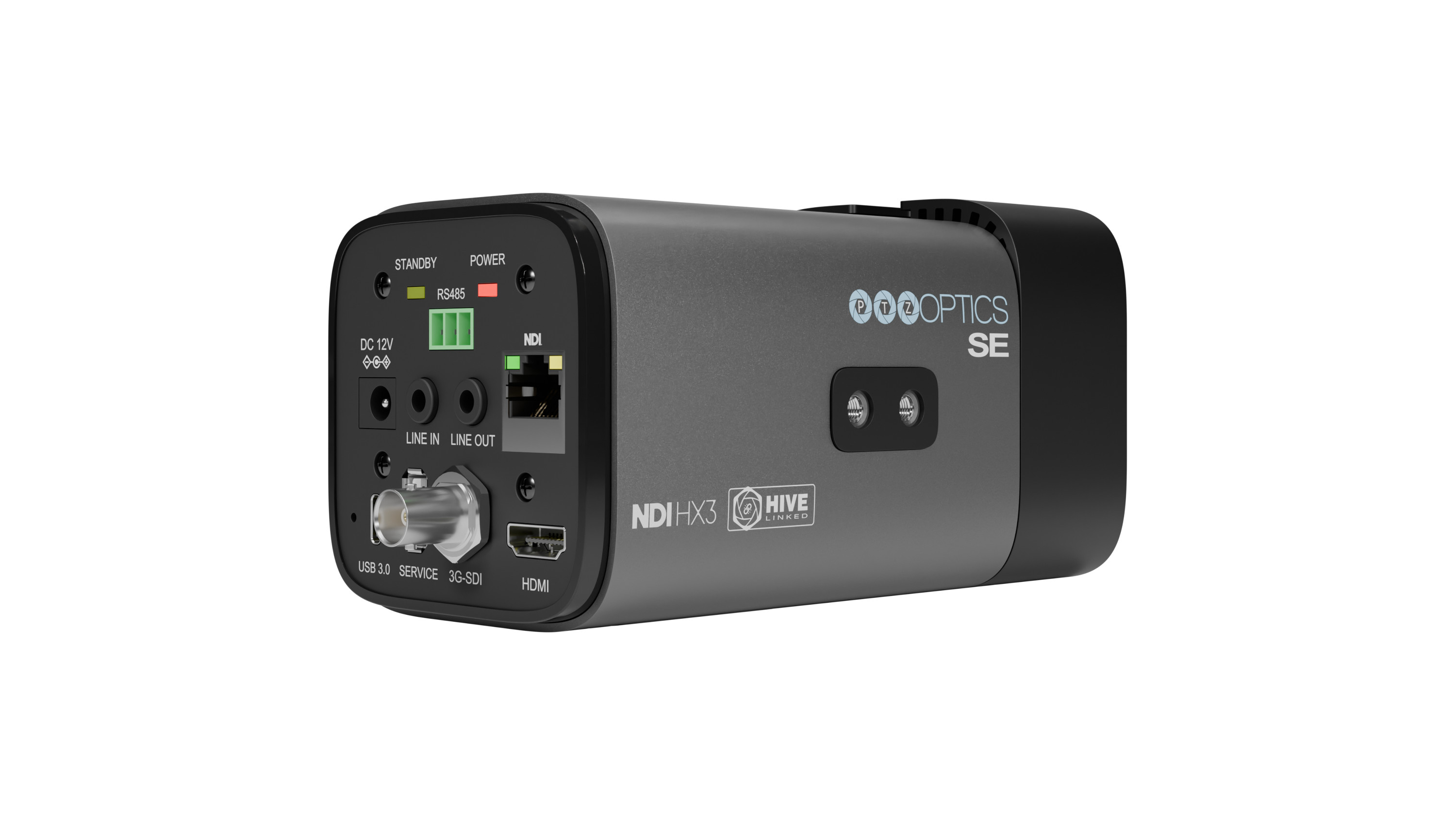

• Connections
  • HD Video Output
    • 1x RJ45: 10/100/1000M Adaptive Ethernet Port | NDI HX2 enabled
    • 1x HDMI: version 2.0
    • 1x USB: 3.0 Type C
    • 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M
  • Audio Interface
    • 1x 3.5mm Line level Input
    • 1x 3.5mm Line level Output
  • Video Formats
    • USB
      • YUY2: Max resolution: 1920x1080p@30
      • MJPEG: Max resolution: 1920x1080p@30
      • H.264 AVC & SVC: Max resolution: 1920x1080p@30
    • H.265: Max resolution: 1920x1080p@30 ( RSTP/NDI HX3 only)
  • Compression Standards: H.264 / H.265 / MJPEG / YUY2 (H.265 HEVC via RTSP/NDI HX3 only)
  • UVC Version Supported: UVC 1.1
  • Supported Protocols: TCP/IP, UDP, HTTP, RTSP, RTMP/RTMPS, ONVIF, NDI HX2, SRT, Multicast, etc.
  • IR: 4x IR Addresses, Max distance 30ft / 9m
  • Power Supply: JEITA type (DC IN 12V) / PoE (802.3at)
  • Current Consumption: Max 2A
  • Power Consumption: Max. 18W
• Physical
  • Material: Aluminum, Plastic
  • Color: Gray
  • Dimensions (LxWxH): 5.7 x 2.99 x 3.09 inch (145 x 76 x 78.5 mm)
  • Weight: 1.4 lbs (0.64kg)
  • Working Environment: Indoor
  • Humidity Range: 10% - 80%
  • Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C )
  • Storage Temperature: -40°F ~ 140°F (-40°C ~ 60°C)

What’s in the Box

• Studio SE
• 12V 2A International Power Supply
• Lens Cap
• USB A-C Cable
• Quick Start Guide
• IR Remote
• 2 AAA Batteries
