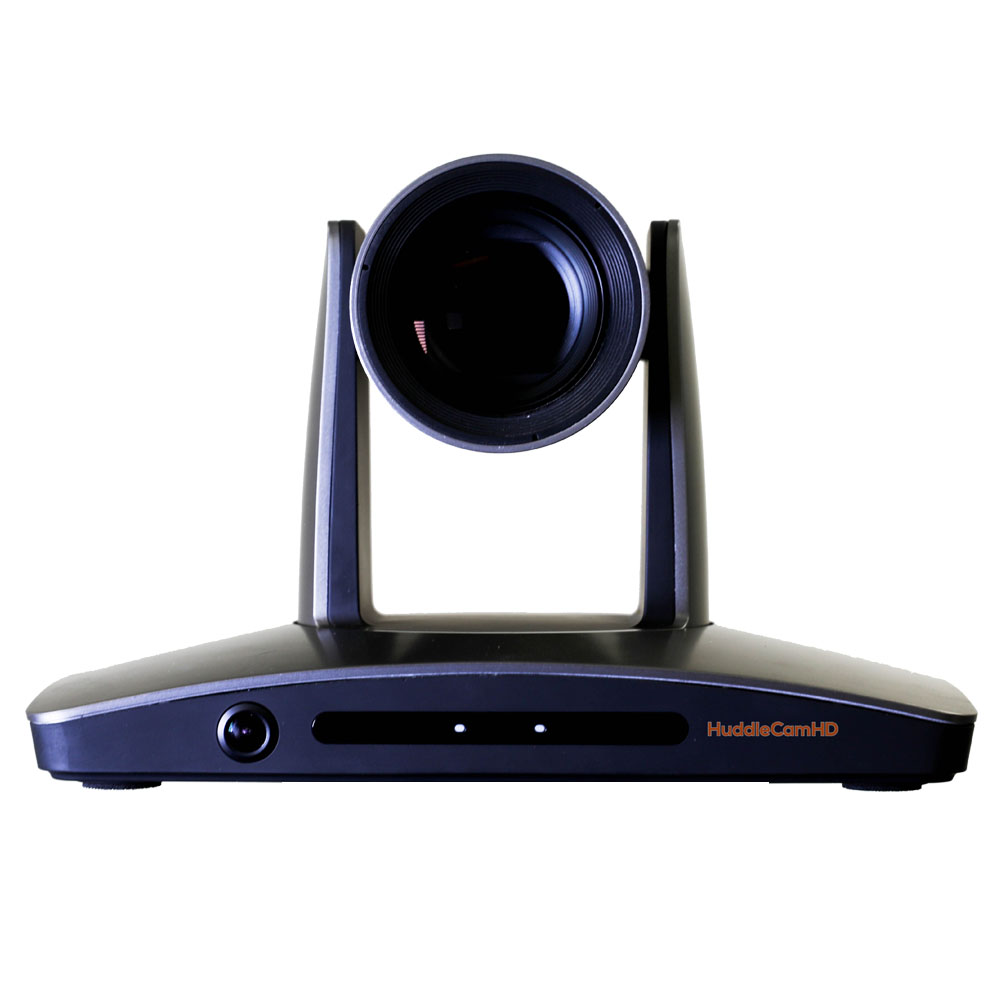

HuddleCamHD HuddleView Auto-Framing Conference Camera w/ SDI, USB, IP (No Box)

About: HuddleCamHD HuddleView Auto-Framing Conference Camera w/ SDI, USB, IP (No Box)

• NOTE 1: ​This item includes the Huddleview Camera and power supply. The original box and packaging materials (remote, RS-232 & USB cables) are not included.
• NOTE 2: There is a small scratch on the body of the camera.

The HuddleView uses artificial intelligence to make sure all of your participants are being captured by the camera with no interaction.

Camera Setup Time = Zero

Eliminate the setup and have your meeting room camera zoom into to capture everyone in full detail without a remote.

Universally Compatible

All HuddleCamHD cameras have been designed for plug and play compatibility with web-based video conferencing software such as: Skype, GoToMeeting, WebEX or Zoom. Enjoy seamless integration even with live streaming applications such as Facebook Live.

Be seen in 1080p

Crystal clear High Definition 1080p video with lossless 12X optical zoom letting you get up close to see and interact with your team.

Easy Set Up

With HuddleCamHD you are getting the easiest solution possible. Simply plug your camera into your computers USB port and start your video conference.

Plug-and-Play USB Connectivity

Easily connect your camera to a PC, Mac or ChromeBox without the need for additional software. For best results use a quad-core processor.

Ideal Field of View

The HuddleView has an ideal field of view for long and narrow rooms. Wide enough to capture your entire table but narrow enough to zoom across the room onto a white board or area of interest.

Use your favorite software

Works with virtually every online video conferencing software with no need for additional drivers or proprietary connections.

Camera Presets

Access camera presets with the included IR remote control. Easily control your cameras pan tilt and zoom along with other fine tuning setting from your remote control.

IP Camera Control

Manage cameras remotely and control from anywhere on your network. Integrate the camera into a larger control systems such as Crestron or AMX.

Features

• Frame Rate: 60fps 1920 x 1080p, 60fps 1280 x 720p
• Lens Zoom: 12X Optical Zoom
• Video CMOS Sensor: 1/2.8” EXMOR 2.14 Mega Pixel
• Pan Movement: ±170°
• Tilt Rotation: Up: +90°, Down: -30°
• Presets: 256 Presetss
• Video Signal: USB 3.0, SDI, DVI, RTSP, RTMP
• Working Environment: Indoor
• Power LED: Blue LED to signal power
• Control: IR, RS-232, & RS-485
• Color: Gray
• Warranty: 1 Year parts and labor

Technical Specifications

• Baud Rate: 9600 bps
• Controller Signal Config: Dip-Switch Pin 6/TTL Signal
• Input Voltage: 12V DC (10.5-14V DC)
• Input Power: 20W (Max)
• Power Supply Adapter: 12V DC 2A
• Material: Aluminum, Plastic
• Weight: 2.64 lbs (1.2 kg)
• Dimensions (in.): 9.6W x 5.7D x 6.4H [7.2H w/ Tilt Up]
• Dimensions (mm.): 243W x 145D x 163H [183H w/ Tilt Up]
