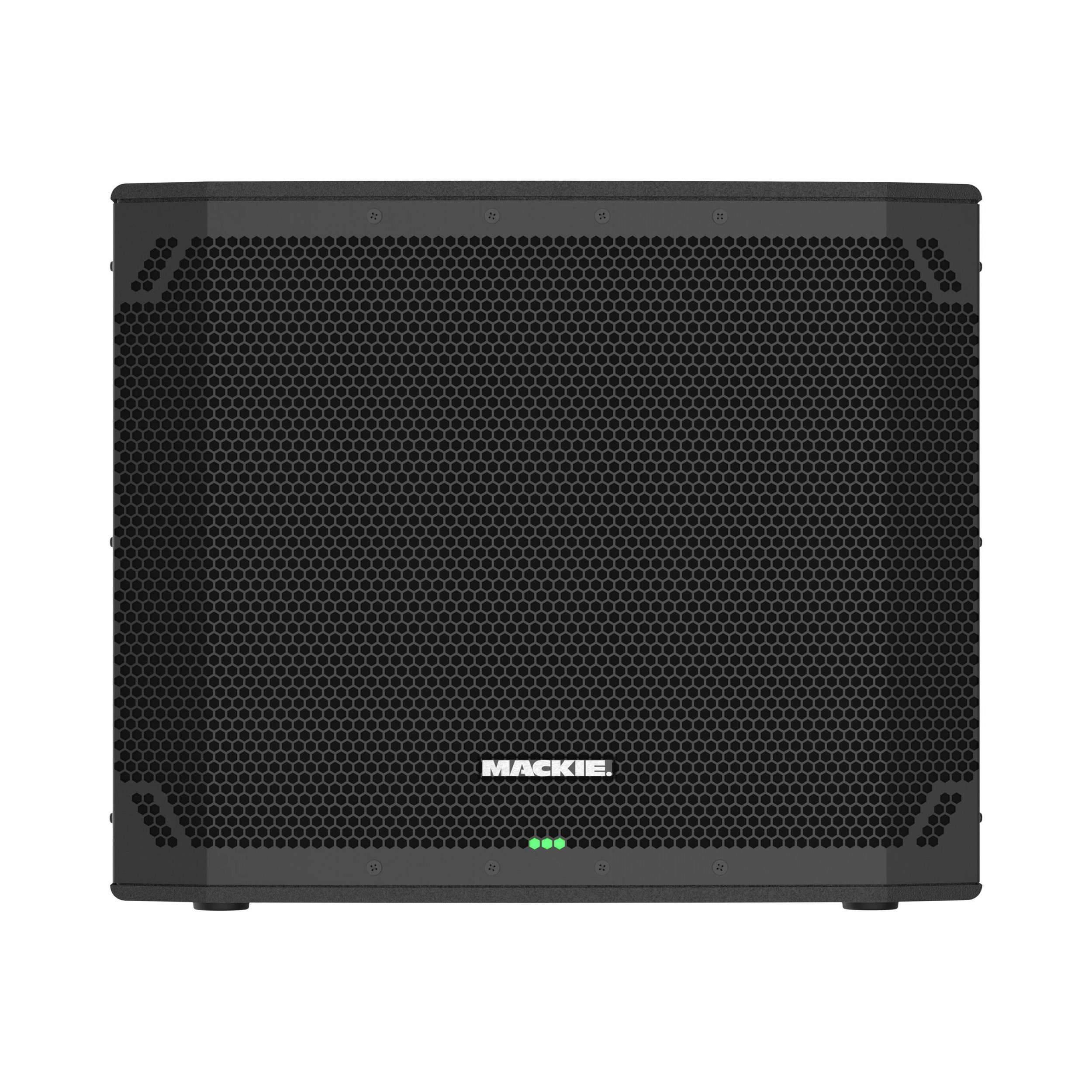

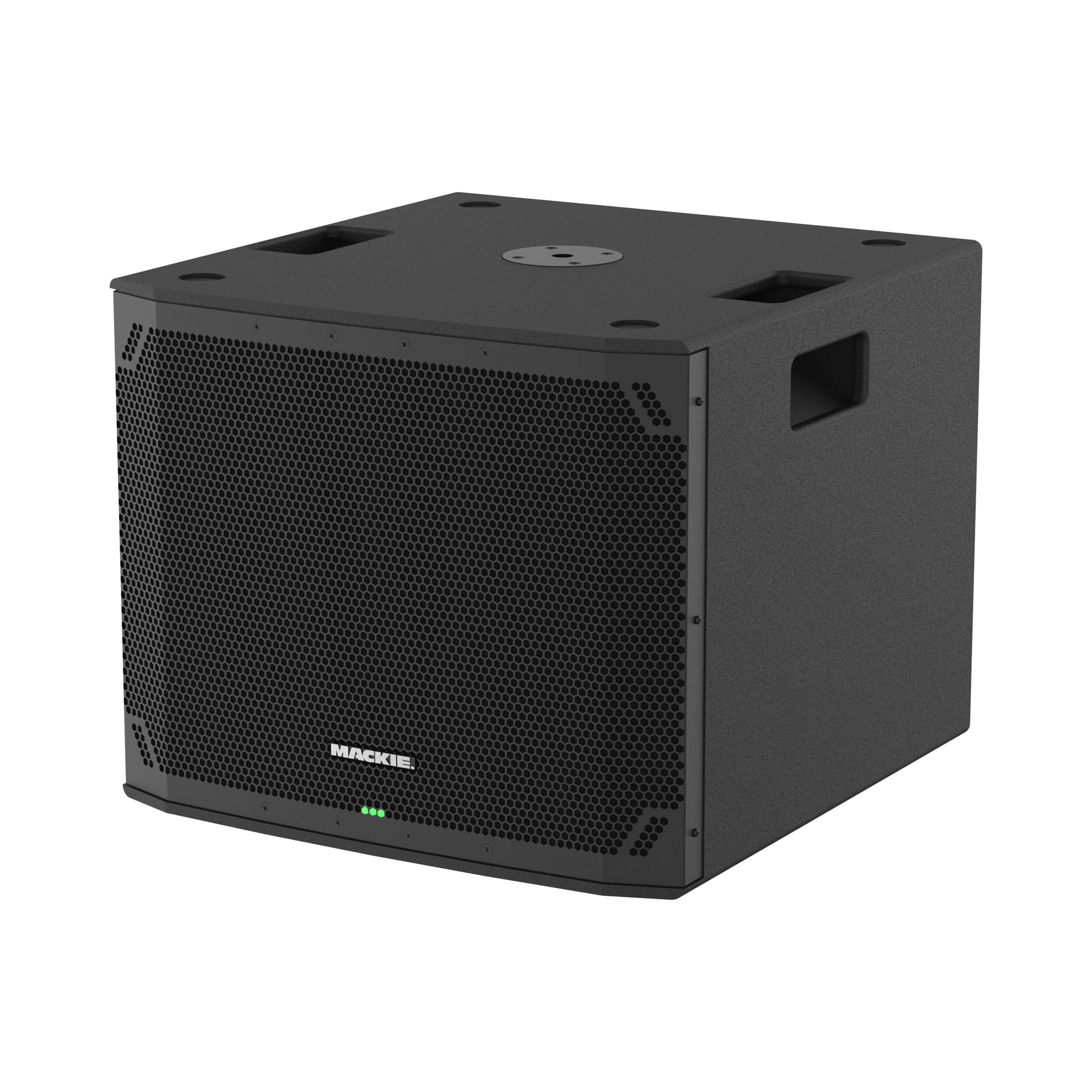

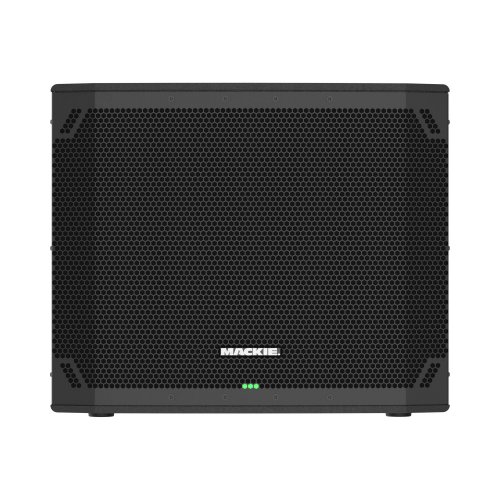

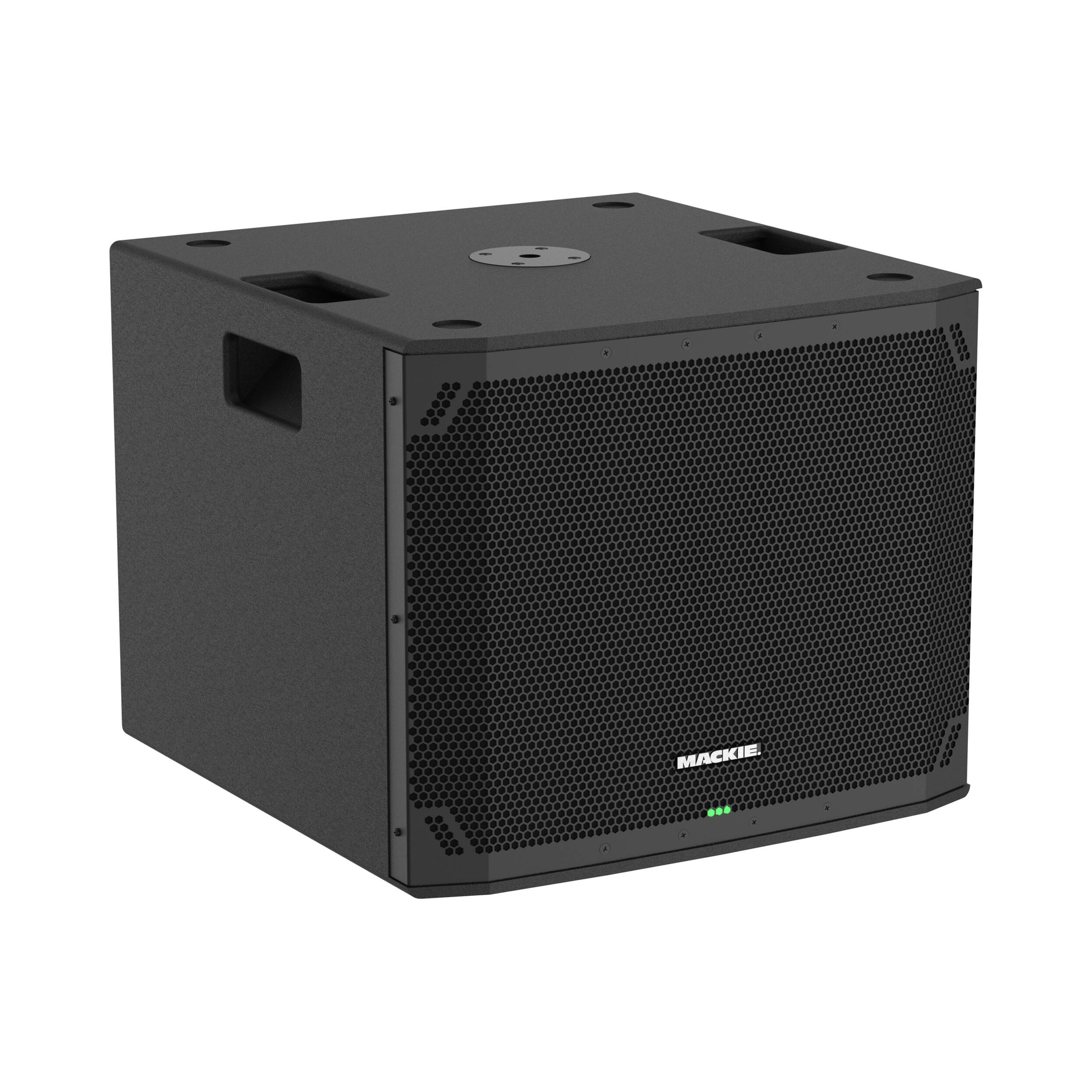

Mackie Thump15Sv4 15in 1400W Powered Subwoofer

About: Mackie Thump15Sv4 15in 1400W Powered Subwoofer

Mackie pulled from decades of experience at the top of the audio industry to create Thumpv4 loudspeakers and subwoofers, pushing Thump Series to a new level of professional excellence. Craving some extra oomph for your PA system? You need a subwoofer. Thump15Sv4 shakes the floorboards with massive bass that gets people on their feet, for moments that leave a lasting impression. Connect loudspeakers. Dial in the perfect low end. Feel the difference of a professional subwoofer that brings music alive with complex basslines and punchy kicks.

• A True Workhorse for Gigging Professionals
  • 1400W Class-D amplifier for 132 dB maximum SPL
  • 15” high-performance woofer for 27 Hz low frequency
  • Built-Like-A-Tank to conquer every gig while lightweight with built-in handles for easy loading
• Tailor the Bass to Your Loudspeakers With High Pass Modes
  • Connect loudspeakers to high-pass outputs and select from four modes
  • All modes include 1.4 ms alignment delay
    • Thump 12: Thump12v4 loudspeakers (140 Hz crossover)
    • Thump 15: Thump15v4 loudspeakers (110 Hz crossover)
    • Thump GO: Thump GO loudspeakers (150 Hz crossover)
    • Variable: Set crossover manually to match any loudspeakers

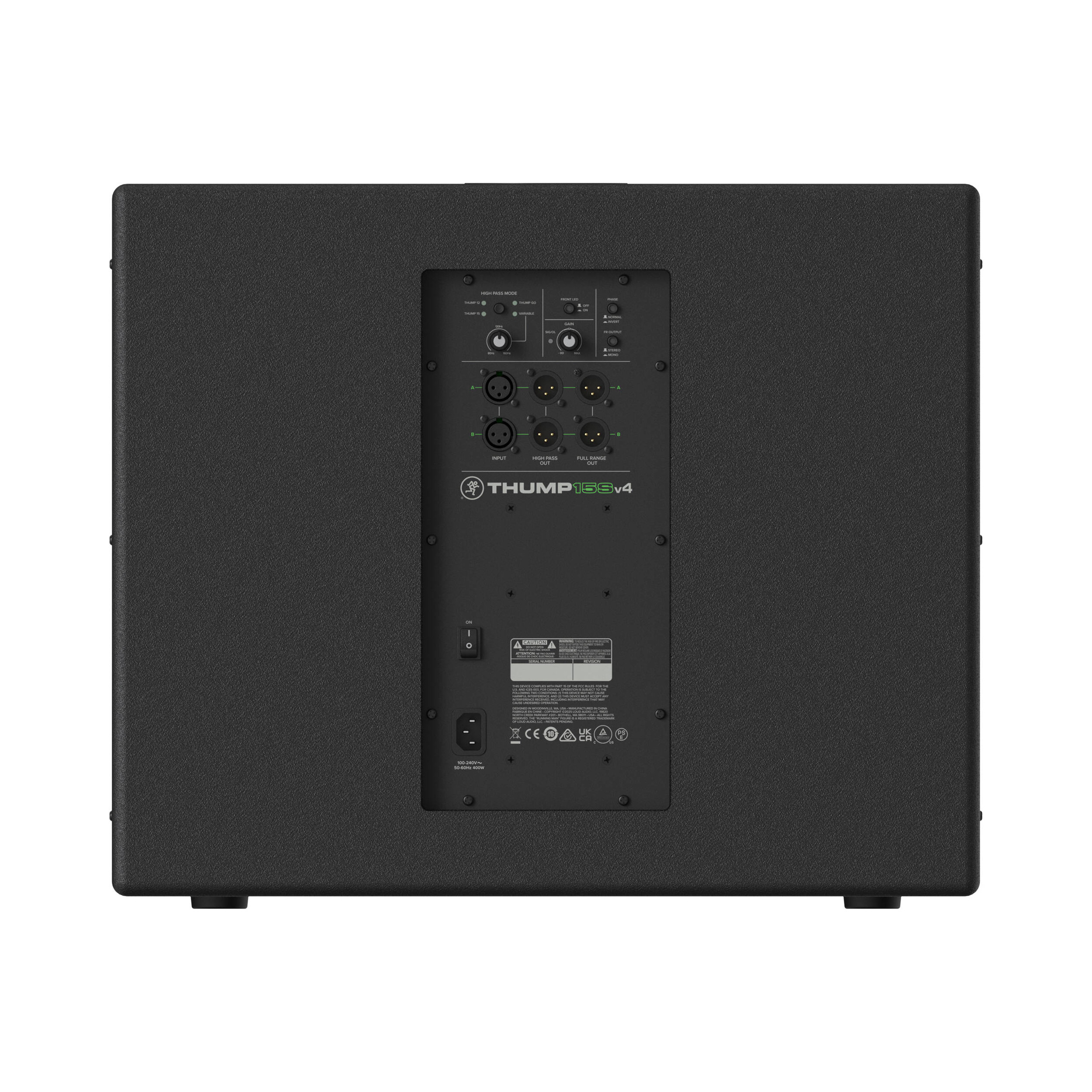

• Connect to Versatile Inputs and Outputs
  • Stereo XLR inputs: Connect to DJ controller, mixer or other source
  • Stereo XLR high-pass outputs: Connect to loudspeakers and select your high pass mode
  • Stereo XLR full-range outputs: Chain the full, unaltered signal to the next subwoofer
• Essential Subwoofer Features
  • Phase invert switch
  • Defeatable front LED
  • Stereo or mono summing for single or dual subwoofer deployment
  • Variable level control (Muted to +6 dB)
  • Front LED On/Off

Complete Your Thump System With a True Workhorse

Thump15Sv4 combines our 1400W Class-D active subwoofer amplifier with a 15” high-performance woofer, for massive 132 dB maximum SPL and 27 Hz low frequency performance.

• 1400W Class-D Amp: Ultra-reliable, consistent performance and massive 132 dB SPL volume.
• 15” Woofer: High-performance driver reaches floor-shaking 27 Hz low frequency.
• Built Like a (Lightweight) Tank: Rugged enough to handle any gig but lightweight with handles for easy loading.

Tailor the Bass to Your Loudspeakers With High Pass Modes

This 15 inch subwoofer is the perfect match for Thumpv4 loudspeakers (or any PA speakers) with selectable high pass modes, plus a “variable” mode for setting the crossover yourself.

• Thump 12: Use with Thump12v4 12in professional powered loudspeakers.
• Thump 15: Use with Thump15v4 15in professional powered loudspeakers.
• Thump GO: Use with Thump GO battery-powered loudspeakers.
• Variable: Set the crossover manually to match any connected loudspeakers

Build an All-in-One System

Stack your pole-mountable Thump loudspeaker above Thump15Sv4 using the dedicated Mackie SPM400 speaker pole (sold separately) to create an all-in-one powerhouse PA system, projecting sound across the entire area while keeping floor space clear for getting down.

Specifications

• Acoustic Performance
  • Frequency Response (–10 dB): 27 Hz – 160 Hz
  • Frequency Response (–3 dB): 34 Hz – 160 Hz
  • Maximum SPL Peak: 132 dB
• Transducers
  • Low Frequency: 15 in / 381 mm woofer
• Power Amplifiers
  • System Power Amplification
    • Rated Power: 1400 watts peak
  • Low Frequency Power Amplifier
    • Rated Power: 1400 watts peak
    • Rated THD: <1%
    • Cooling: Convection
    • Design: Class D
• Input / Output
  • Input Type: 2x Female XLR Balanced
  • Line Impedance: 10k Balanced
  • Output: Male XLR Balanced [2x Full Range, 2x High Pass]
  • Full Range Output: Stereo / Mono
  • Phase: Normal / Invert
  • Output Impedance: 150
• Line Input Power
  • Detachable line cord: 100–240V~, 50–60 Hz, 400W
  • AC Connector: 3-pin IEC 250 VAC, 10 A male
  • Power Supply Type: Switchmode Universal mains regulated power supply with PFC
• Safety Features
  • Transducer Protection: Peak and RMS limiting
  • Environmental Protection: Power supply and amplifier thermal protection
  • Display LEDs: Front LED, High Pass Mode, Signal/Overload
  Physical
  • Built-in handles
  • Rugged, modern construction
  • M20 thread for SPM400 speaker pole (sold separately)
  • Dimensions (HxWxD): 18.5 x 22.1 x 23 in (470 x 561 x 584mm)
  • Weight: 57.4 lbs (26kg)
