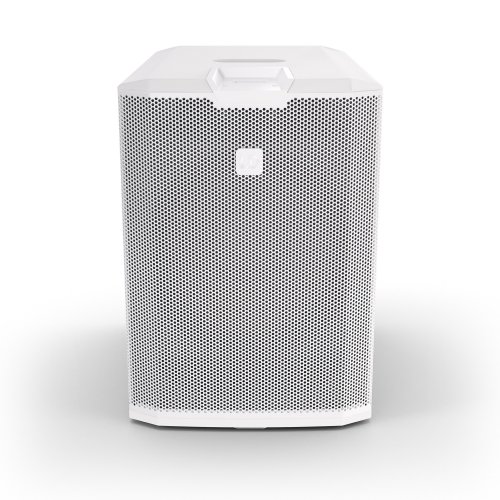

LD Systems MAUI 28 G3 Powered 12" Subwoofer - White

About: LD Systems MAUI 28 G3 Powered 12" Subwoofer - White

Crisper and more powerful bass with additional LD MAUI 28 G3 SUB subwoofer. With the MAUI 28 G3 SUB subwoofer, you extend the cardioid characteristics of our professional column speaker series right into the bass range.

• Powered 12" subwoofer with flow-optimised bass-reflex ports
• 12" custom-designed woofer with deep bass down to 37 Hz
• Preset for cardioid subwoofer configuration
• DynX DSP (Gen.2) technology for distortion-free sound at maximum volume
• Automatic set-up detection (MAIN / FOLLOWER)
• Rugged subwoofer housing made out of polyurea-coated birch plywood
• Shockproof front grille for ultimate speaker protection
• Four ergonomic handles for easy handling

Simply position the SUB next to your MAUI 28 G3 facing the rear direction, switch on the Cardioid preset and you will have a quieter and controlled Low-End on the back while still keeping the punch on the front. Low-End frequencies on the back of the system will be dampened by -15 dB. For extra Bass, keep the SUB in the same direction as your MAUI 28 G3 and switch off the Cardioid preset.

Setting up the SUB with your MAUI 28 G3 is straight forward and fast. Thanks to its automatic set-up detection system the SUB immediately switches to FOLLOWER mode as long as no column is attached.

Also recommendable is the protection cover and castor board to make transportation easy and keep the SUB as long as possible free of any touring-damage.

The MAUI 28 G3 SUB Wfeatures the same design construction as the MAUI 28 G3 W subwoofer and will be the perfect addition to get your Low-End in control.

Specifications

• General
  • Product type - PA subwoofer
  • Type - Subwoofer
  • Color - White
  • Max. SPL (Peak) - 127 dB
  • Frequency response (-10dB) - 37 Hz - 200 Hz
  • Features - Bluetooth Audio Streaming, DSP-based Signal Processing, Excellent Sound Dispersion, Mono/ Stereo Application
  • Dimensions Subwoofer (W x H x D) - 370 x 527 x 472 mm
  • Subwoofer weight - 22.8 kg
• Subwoofer
  • Woofer dimensions - 12 "
  • Woofer dimensions (mm) - 305 mm
  • Woofer magnet - Ferrite
  • Woofer brand - Custom-made
  • Woofer voice coil - 3 "
  • Woofer voice coil (mm) - 76.2 mm
  • Cabinet construction - Bass Reflex
  • Housing material - 15 mm Multiplex
  • Cabinet surface - Polyurea
• Amplifier module (integrated in subwoofer)
  • Amplifier - Class D
  • System output (RMS) - 1030 W
  • System output (Peak) - 2060 W
  • Protection circuits - DC protection, Multiband limiter, short circuit, thermal protection
  • Cooling - Convection
  • Controls - Bluetooth HOLD TO LINK button, Cardioid On/Off, Main level, Power On/Off, Sub level
  • Indicators - Bluetooth, Cardioid On/Off, Follower mode, Limit, Power, Protect (protection circuit engaged), Signal, Subwoofer Mode
  • Mains connector - IEC power cable (included)
  • Operating voltage - 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 V AC, 50-60 Hz
  • Fuse - T 5AL / 250 V
  • Power consumption - 400 W
  • Ambient temperature (operating) - 0 - 40 °C
  • Relative Humidity - < 80% (non-condensing)
  • Line Inputs - 2
  • Line Input Connectors - Combo XLR / TRS
  • Line Outputs - 1 x Sub OUT, 2 x THRU
  • Line Output Connectors - XLR male
  • Number of speaker outputs - 1
  • Loudspeaker Output Connectors - Custom-made multipin
  • Bluetooth Standard - A2DP
  • Bluetooth Audio Decoder - AAC, SBC
• DSP characteristics
  • Bit depth AD/DA converter - 24 bit
  • Sampling frequency - 48 kHz
