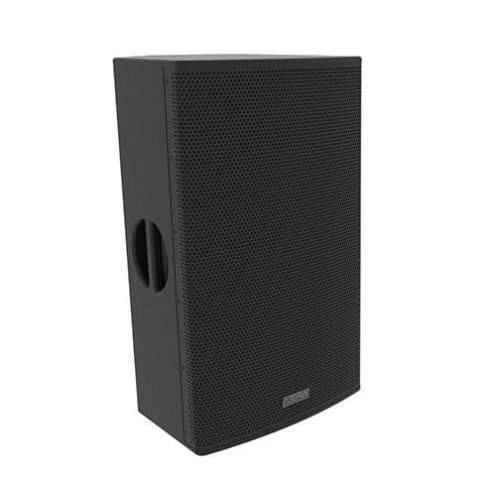

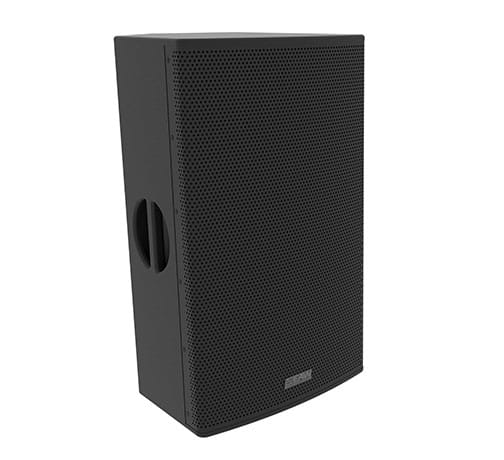

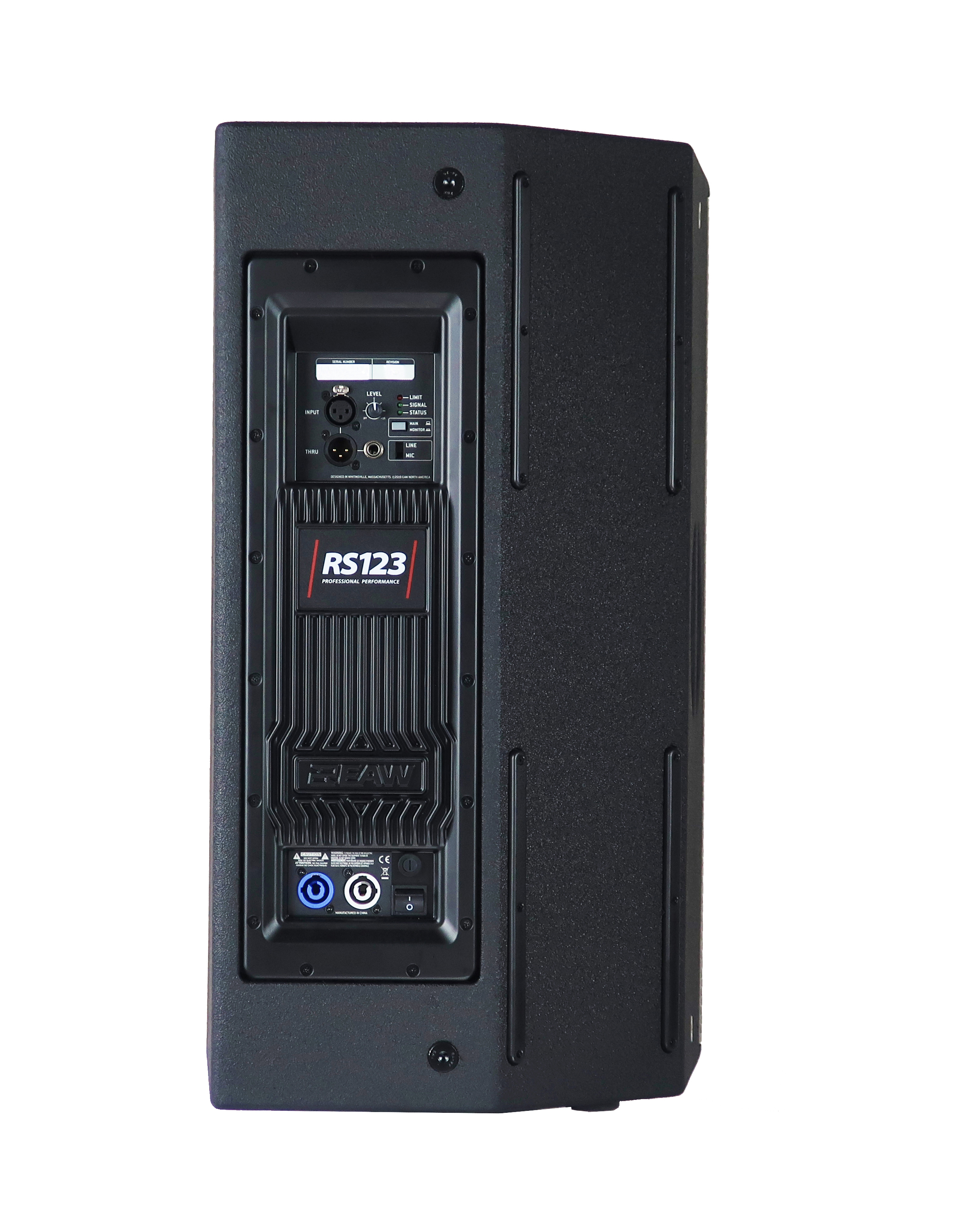

EAW RS123 12in Powered Speaker

About: EAW RS123 12in Powered Speaker

The RS Series delivers EAW signature performance in a portable and lightweight wooden enclosure. Each enclosure in the series is first designed around the latest breed of touring grade HF and LF transducers. The intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. Pattern control of the RS Series is further enhanced by the unique, constant directivity HF horn; a design theory first proven in our legendary MK Series, a series born from the audio performance needs of stadiums throughout the world.

The lightweight and durable wooden enclosure has been meticulously designed to eliminate resonance and houses onboard bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Our Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple RS Series enclosures within a venue or performance space.

• Leading-edge touring grade transducers
• EAW Focusing for unmatched clarity and accuracy
• Rotatable MK inspired horn for EAW signature pattern control
• Lightweight and durable wooden enclosure with M10 threaded suspension points

Applications

• Houses of Worship
• Theatres, Auditoria and Performing Arts Centers
• Live Music Clubs
• Corporate AV Houses
• Live Production/Regional Rental Houses
• Dry Hire

Specifications:

• Max SPL: 138dB
• Operating range: 55 Hz to 20 kHz
• Nominal Beamwidth: 90° Horizontal and 60° Vertical, Constant Directivity, User Rotatable
• LF Transducer, Loading: 12in Cone, 2.5in Voice Coil, Vented
• HF Transducer, Loading: 1.4in Exit, 3 in voice coil neodynium compression driver, Horn Loaded
• Operating Mode: Bi-Amp LF, HF
• Signal processing: DSP w/EAW Focusing™ and DynO™
• Modes: Main / Monitor, HPF Select
• Input: Electronically Balanced XLR / TRS
• Loop: Electronically Balanced XLR
• Amplifier: Type Class – D Max Output LF/HF (Peak) – 1500W
• AC Mains (nominal): Connector – Neutrik PowerCON®, Input – 100-120V or 200-240V, 50-60Hz
