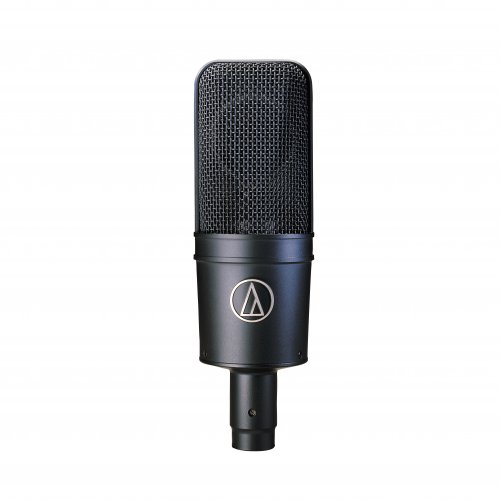

Audio Technica AT4033a Cardioid Condenser Microphone
Model: AT4033A
About: Audio Technica AT4033a Cardioid Condenser Microphone
The latest edition of the legendary AT4033 microphone, the side-address AT4033a offers low-noise, symmetrical, transformerless circuitry that results in exceptional transient response and clean output signals. A studio classic and bluegrass favorite, the AT4033 cardioid studio condenser is the microphone that broke the US$1000-barrier in its class. A strong up-front presence characterizes the sonic signature of this 40 Series pro-audio classic. The AT4033a’s 80Hz high-pass filter easily switches between flat frequency response and a low-end roll-off that diminishes ambient noise and popping with closely-miked vocals. Includes the AT8449a shock mount for superior isolation.
Features:
- Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- The 2-micron-thick, vapor-deposited gold diaphragm undergoes a five-step aging process so that the optimum characteristics achieved remain constant over years of use
- Floating-construction capsule assembly provides isolation from noise and vibration
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Custom shock mount provides superior isolation
| ELEMENT | Fixed-charge back plate, permanently polarized condenser |
| POLAR PATTERN | Cardioid |
| FREQUENCY RESPONSE | 30-20,000 Hz |
| LOW FREQUENCY ROLL-OFF | 80 Hz, 12 dB/octave |
| OPEN CIRCUIT SENSITIVITY | -32 dB (25.1 mV) re 1V at 1 Pa |
| IMPEDANCE | 100 ohms |
| MAXIMUM INPUT SOUND LEVEL | 145 dB SPL, 1 kHz at 1% T.H.D.; 155 dB SPL, with 10 dB pad (nominal) |
| NOISE | 17 dB SPL |
| DYNAMIC RANGE (typical) | 128 dB, 1 kHz at Max SPL |
| SIGNAL-TO-NOISE RATIO | 77 dB, 1 kHz at 1 Pa |
| PHANTOM POWER REQUIREMENTS | 48V DC, 3.2 mA typical |
| SWITCHES | Flat, roll-off; 10 dB pad (nominal) |
| WEIGHT | 13.4 oz (380 g) |
| DIMENSIONS | 6.69" (170.0 mm) long, 2.10" (53.4 mm) maximum body diameter |
| OUTPUT CONNECTOR | Integral 3-pin XLRM-type |
| ACCESSORIES FURNISHED | AT8449a shock mount for 5/8"-27 threaded stands; microphone dust cover; protective carrying case |
| AUDIO-TECHNICA CASE STYLE | R1 |
UPC: 4961310137816
Reviews: Audio Technica AT4033a Cardioid Condenser Microphone
Warranty: Audio Technica AT4033a Cardioid Condenser Microphone
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
One Year, parts and labour against manufacturer defects (Import Series and 3000 Series Wireless - Two Years; Artist Elite, 4000/5000 Series Wireless, 40 Series, many Broadcast Series, Midnight Blues and Value Cable - Five Years; Premium Cable - Lifetime).
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Audio Technica do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
