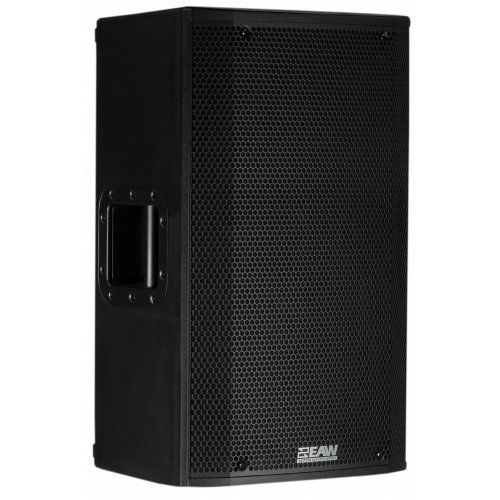

EAW LA123 1500W 12in Active Speaker

About: EAW LA123 1500W 12in Active Speaker

The LA Series delivers EAW signature performance in a portable and lightweight package. Each enclosure in the series is first designed around high quality HF and LF transducers. The unique and intelligent features of the series include EAW Focusing which provides unmatched musical clarity and tonal accuracy. The conical horn featured in the LA series provides consistent high frequency performance throughout coverage area. The asymmetric pattern of the horn maintains high frequency directivity where it is required and eliminates unwanted reflections.

• High quality transducers for best-in-class performace
• Lightweight and durable resonant free enclosure
• EAW Focusing for unmatched clarity and accuracy
• Linear Conical waveguide optimized for pole mount and monitor applications

The lightweight and durable enclosure has been meticulously designed to eliminate any enclosure resonance and houses on-board bi-amplified electronics (1500W) featuring signature EAW DSP including Focusing and DynO. Our Resolution software platform is a powerful and easy-to-use simulation software that accurately predicts the performance of one or multiple LA Series enclosures within a venue or performance.

Specifications

• Frequency Response: 47 Hz to 20 kHz
• Max SPL: 137dB
• Operating Mode: Bi-Amp LF, HF
• Subsystem
  • LF Transducer, 12in Cone, 2.5in Voice Coil,Vented
  • HF Transducer, Loading, 1.4in Exit, 3in voice coil neodymium compression driver, Linear Conical Waveguide
• Nominal Beamwidth: 90° Conical, Vertically Asymmetric (+40, -50)
• Power Handling: 1500W
• Connections:
  • Neutrik PowerCON®
  • Input Type: Electronically Balanced XLR / TRS
  • Loop Type: Electronically Balanced XLR
• Dimensions: 25.2 x 15 x 14.4in (640 x 380 x 365mm)
• Weight: 40lb (18kg)
