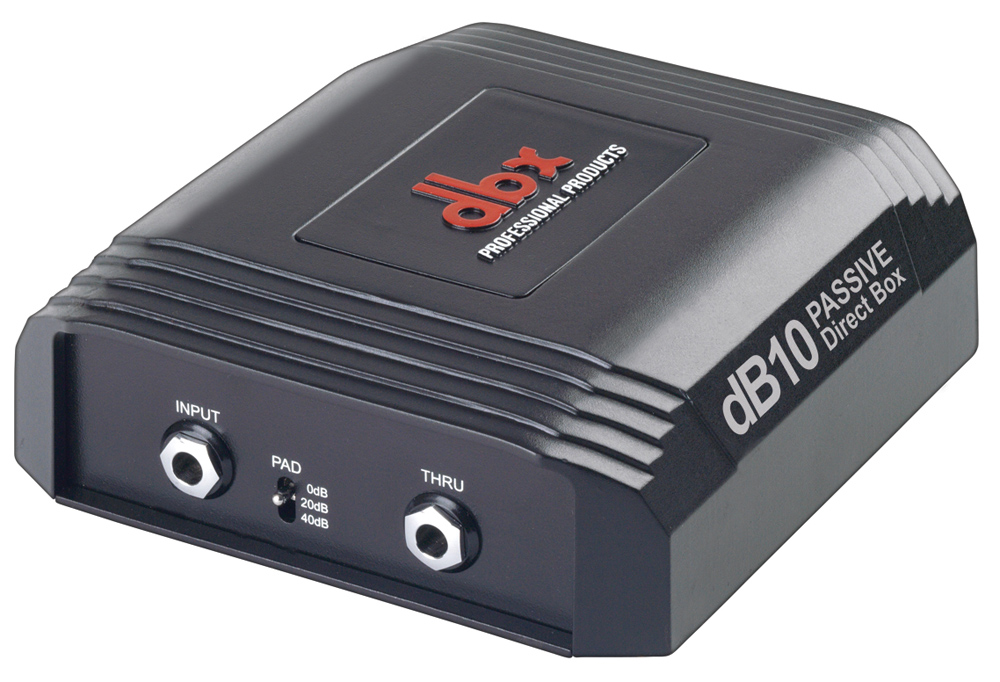

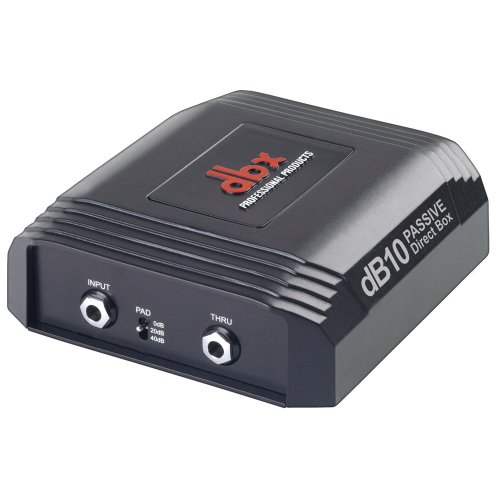

DBX DB10 Direct Box
Model: DBXDB10V
About: DBX DB10 Direct Box
Features
- Premium Performance
- Rugged Design
- Stackable Chassis with Durable Rubber Foot
- Gold-plated Neutrik® XLR Connector
- Premium Chrome Toggle Switches
- Hi-Z 1/4" Input Jack
- Parallel 1/4" Thru Jack
- Transformer Isolated
- Premium Shielded Custom dbx Transformer
- Balanced XLR Lo-Z Output
- 3-Way 0/20/40 dB Pad Switch
- Flat/High-Cut Filter Switch
- Output Polarity Invert Switch
- Ground Lift Switch
- 4 Year Warranty!
INPUT SECTION
- Input: 1 instrument/line/speaker level
- Connector: 1/4" jack
- Type: Unbalanced, RF filtered
- Impedance: 150k Ohm typical
- Max Input Level: +20dBu (0dB pad)
- +40dBu (20dB pad)
- +60dBu (40dB pad)
OUTPUT SECTION
- Thru Output: 1 parallel connection from input jack
- Connector: 1/4" jack
- Type: Unbalanced, RF filtered
- Main Output: 1 line level
- Connector: XLR male jack
- Type: Balanced
- Impedance: 150 Ohm typical
- Max Output Level: 0dBu
PERFORMANCE
- Transformer: Custom dbx mu-metal-shielded
- Frequency Response: 20Hz to 20kHz, +/-2.5dB
- Noise: <-105dB unweighted, 22kHz BW
- THD: <0.01%, 20Hz to 20kHz BW
- <0.005%, 1kHz
GENERAL
- Dimensions: 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
- Weight: 1.4 lbs / 0.65 kg
UPC: 691991401015
