AtlasIED AP-S15A 15A Power Conditioner w/ IEC Input 8 + 1 Output
Model: AP-S15A
About: AtlasIED AP-S15A 15A Power Conditioner w/ IEC Input 8 + 1 Output
The AP-S15A and AP-S15LA feature noise filtering for unwanted Radio Frequency Interference (RFI) that is commonly introduced into AC lines by nearby radio transmitters or wireless products. EMI filters are also incorporated to reduce noise from Electromagnetic Interference (EMI) generated by items such as electric motors and switching power supplies.
Unstable AC Mains voltage is one of the main reasons for equipment failure. The amount of energy that can be injected into the power system can be immense with voltages reaching 6kV or amperage peaks of 3000A. These spikes are very fast and usually only last for a very short period of time. The AP-S15A and AP-S15LA circuitry is very fast and can suppress unwanted energy within a nanosecond response and sustain the suppression up to 2 milliseconds, thus ensuring virtually trouble free protection. The AP-S15A and AP-S15LA include a 12 foot removable IEC cord with retainer bracket. The AP-S15LA has incorporated a front panel pull-out dimmable LED tube light to light a rack.
Features
- 9 Total Outlets

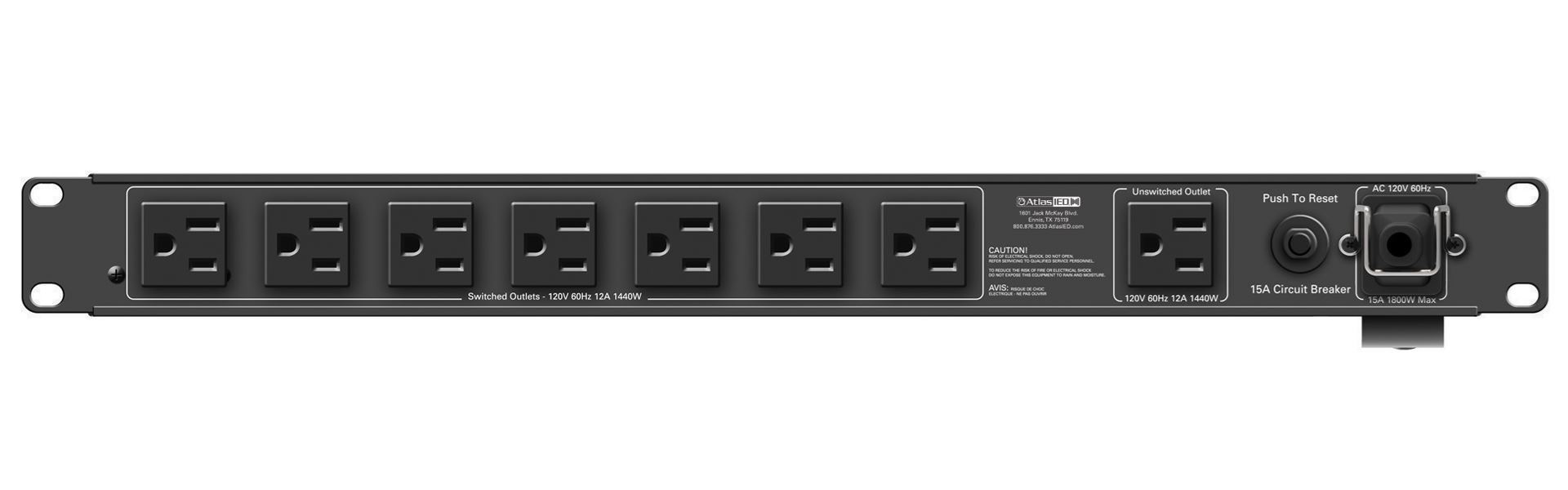

- 8 Rear Panel Outlets: 7 Switched and 1 Unswitched

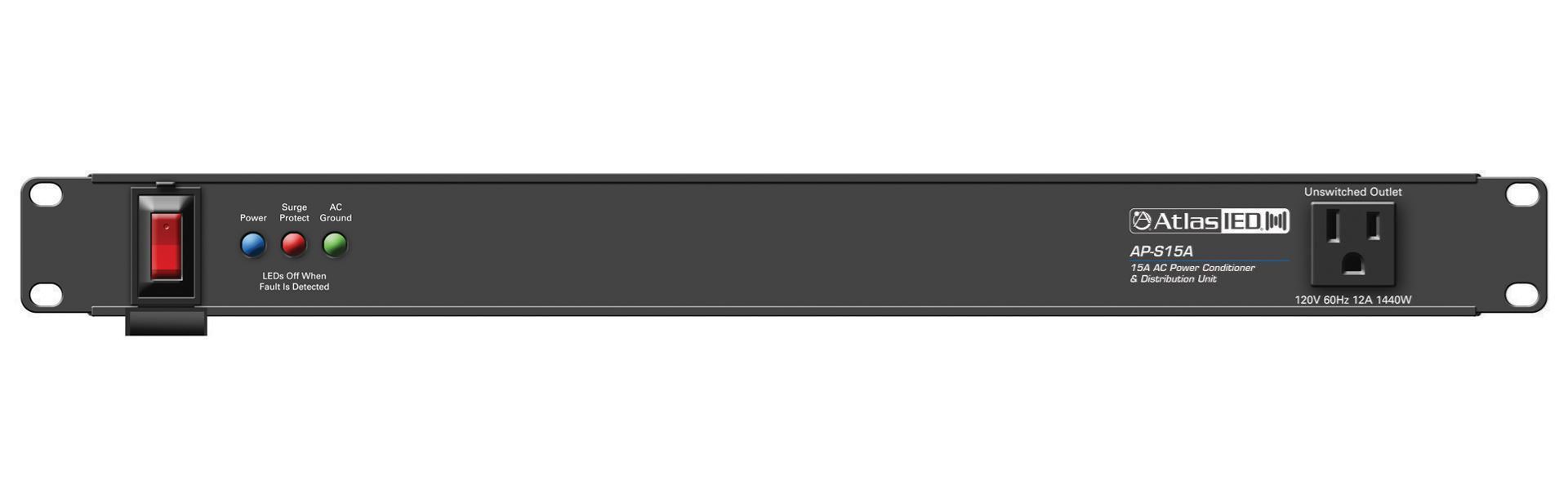

- 1 Front Panel Outlet, Unswitched
- Spike Suppression Up to 6000V
- Removable IEC Power Cord with a Retainer Bracket
SPECIFICATIONS
- Load Rating 15 Amps
- Certified to Safety Listing UL 60950-1 Standard
- Operating Voltage 102-132VAC
- Minimum Spike Clamping Voltage 460 VRMS @ 3000A
- Maximum Spike Clamping Voltage 6000kV
- Power Consumption 6 Watts
- AC Mains Power Cord 12' (4m)
- Height 1.75" (44.5mm)
- Width 19" (482.6mm)
- Depth 5" (127mm)
- Weight 5 lbs. (2.27 kg)
