Audio Technica ES Wireless 4-Bay Body-Pack and Handheld Charging Station Bundle
Model: ESW-CHG5AD
About: Audio Technica ES Wireless 4-Bay Body-Pack and Handheld Charging Station Bundle

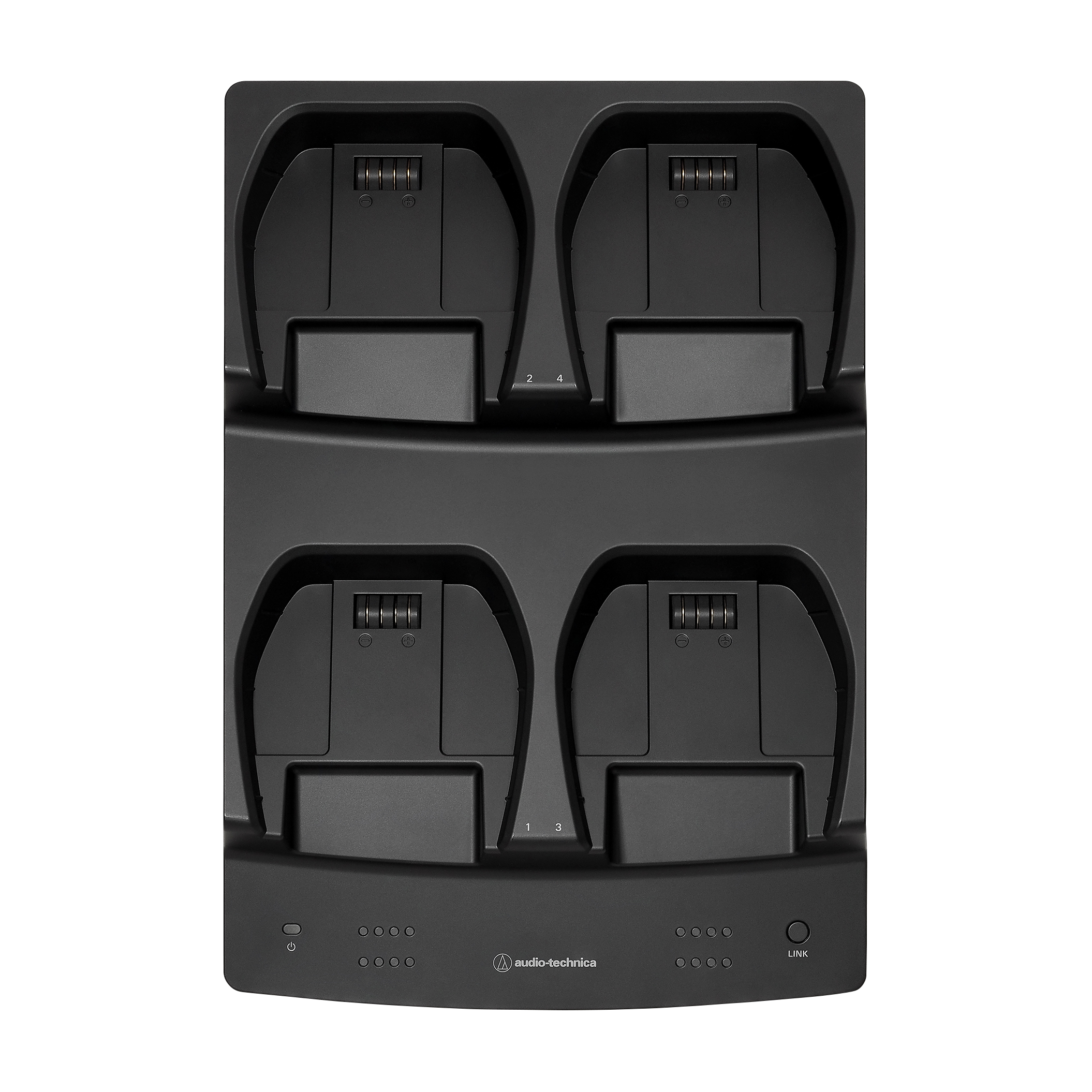

Four-Bay Charging Station
- Rapid recharge in as little as 2 hours
- Linking of up to 2 charging stations with just one AC adapter and Cat 5e cable
- Charging status and battery level display in A-T Wireless Manager software
- Remote firmware updating on all docked transmitters
Specifications
- Power supply - 12 V DC, 3.0 A
- Charging output
- When charging one to four transmitters: 4.2 V DC, 1.5 A
- When charging five or six transmitters: 4.2 V DC, 1.1 A
- When charging seven or eight transmitters: 4.2 V DC, 0.7 A
- Power consumption - When charging four transmitters: 30.6 W
- Charging time (ESW-T4106/ESW-T4107)[1]
- When charging one to four transmitters: Approx. 50 minutes (50% charged), approx. 2 hours (100% charged)
- When charging five or six transmitters: Approx. 1 hour 10 minutes (50% charged), approx. 2 hours 50 minutes (100% charged)
- When charging seven or eight transmitters: Approx. 1 hour 40 minutes (50% charged), approx. 3 hours 40 minutes (100% charged)
- Network - IP Control: 100 Mbps
- Operating temperature range - 0◦ C to 40◦ C (32◦ F to 104◦ F)
- Dimensions - 209.9 mm (8.3”) x 303.9 mm (12”) x 65.4 mm (2.6”) (W x D x H)
- Weight - 866 g (31 oz)
- Included accessories - Link cable, link plate, link plate screws, AC adapter (AD-SA1230XA), AC cord
NOTE: Charging Station only, transmitters not included.
UPC: 042005212590
Reviews: Audio Technica ES Wireless 4-Bay Body-Pack and Handheld Charging Station Bundle
There are currently no product reviews.
Warranty: Audio Technica ES Wireless 4-Bay Body-Pack and Handheld Charging Station Bundle
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
One Year, parts and labour against manufacturer defects (Import Series and 3000 Series Wireless - Two Years; Artist Elite, 4000/5000 Series Wireless, 40 Series, many Broadcast Series, Midnight Blues and Value Cable - Five Years; Premium Cable - Lifetime).
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Audio Technica do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
