DPA N-DR1 Dual Channel Digital Wireless Receiver w/ Dante

About: DPA N-DR1 Dual Channel Digital Wireless Receiver w/ Dante

N-Series offers the N-DR1 Digital Dual Channel Receiver, designed with ease-of-use in mind and packed with high-end functionality.

• Wideband – 470 - 870 MHz bandwidth in each unit

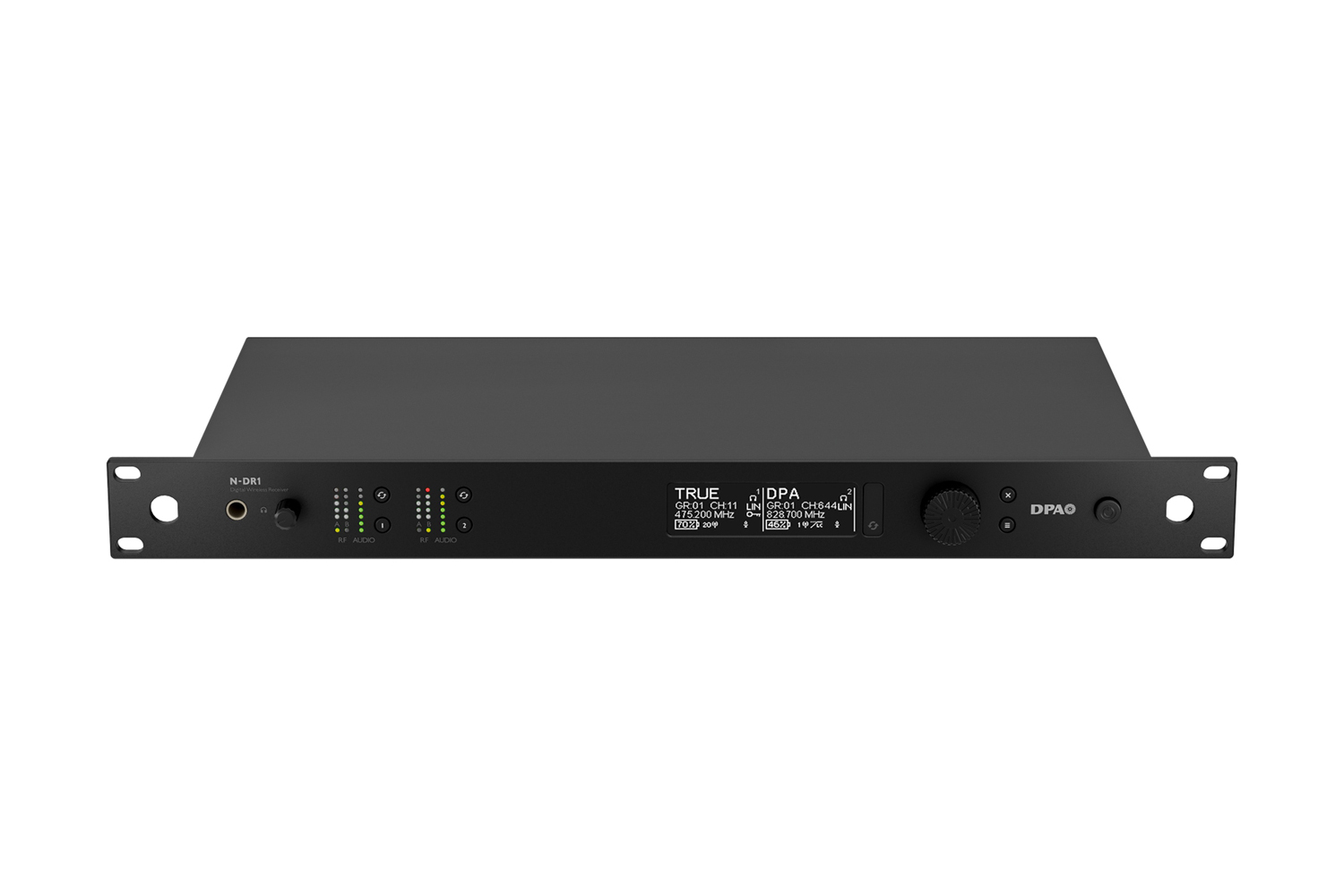

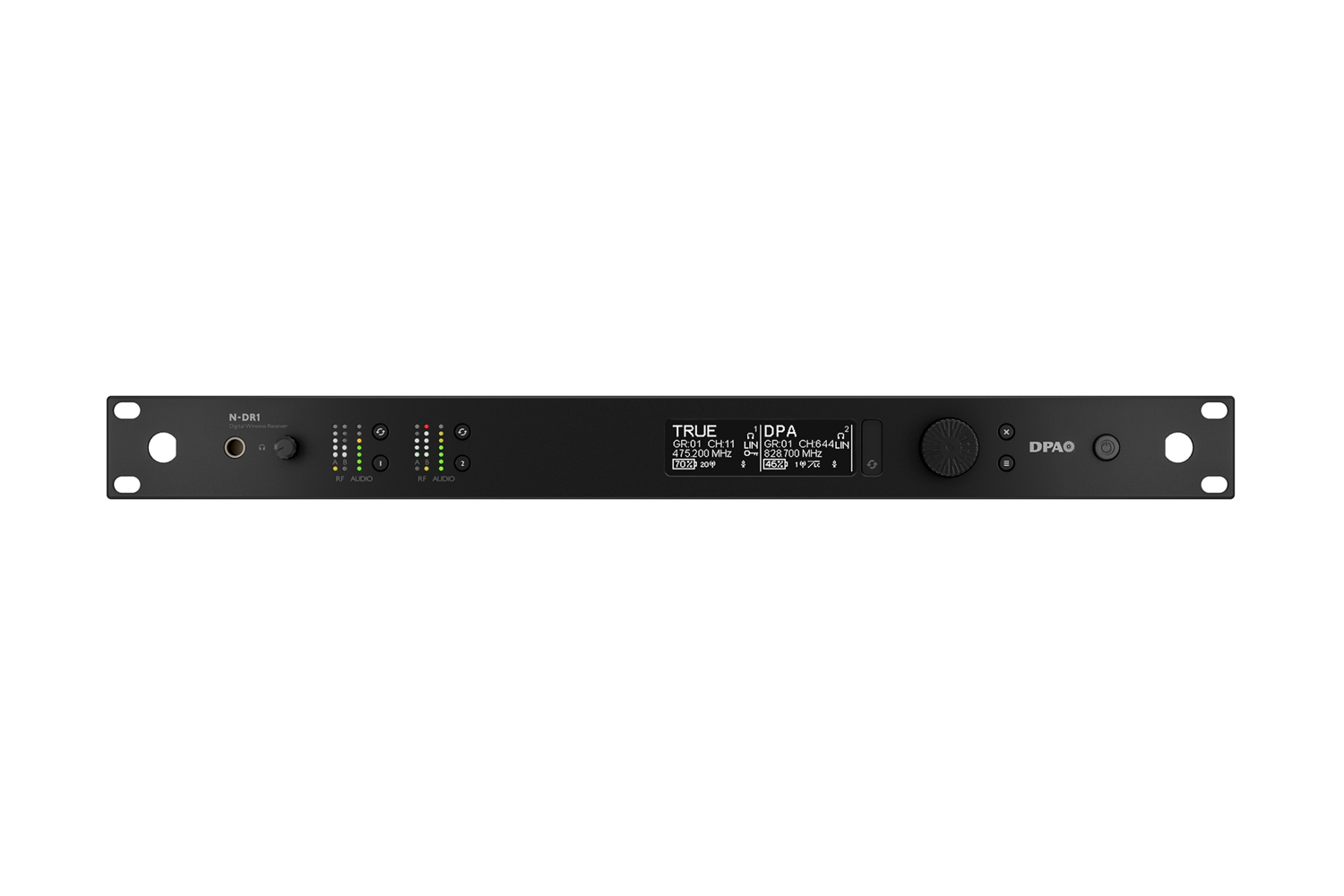

• Sleek front panel design offers an easy overview of features
• LAN control with built-in switch for loop through
• Dante Switched and Redundancy modes
• Antenna inputs with power for active antennas and active loop through
• Optional analog output version available
• 126 dB true dynamic range

True Radio Diversity

The N-DR1 Digital Dual Channel Receiver is based on a true diversity set-up, also known as radio diversity, where the two antennas are internally hooked up to two radio circuitries. Each antenna input has its own radio. This differs from systems that offer antenna-diversity where there is only one built-in radio which must shift between the two antennas.

Dante Digital standard

The N-DR1 Digital Dual Channel Receiver is equipped as standard with a Dante output. This output features the ability to run both a single connection and in true redundancy, i.e. Primary/Secondary set-ups for highest security.

We encourage users of the system to stay in the digital domain, using the Dante output, to avoid signal degradation. Every time the signal is converted from digital to analog and back again, there is signal loss as well as added latency.

Protection and privacy

The N-Series takes security of data seriously, offering AES256 encryption for privacy, which is paramount when using a wireless system in a corporate or governmental environment.

Amazing channel packing

The number of channels that any system can pack depends on the availability of availability of spectrum, but in an ideal world with no governmental restrictions and disturbing TV channels or radio frequency transmitting systems, the DPA wireless system can reach a stunning 800 possible channels.

In practical terms a user is limited to the allowed slots given in the specific area where the equipment is being used. Due to this you can rest assured that you can always find a free spot for your DPA wireless mics to operate in.

The system has an equal distance ability meaning that each channel needs 500 kHz spacing to the next channel. This is without Inter Modulation Distortion (IMD) components between the transmitters.

Minimal latency

The small delay that is always present with digital wireless systems is just below 3 milliseconds (2.9 ms) for the N-Series.

Specifications

• RF Frequency Range: 470 - 870 MHz (Varies by region)
• RF Input Impedance: 50 Ω
• RF Tuning Steps: 25 kHz
• RF Sensitivity: -96 dBm at 10^-5 BER
• Audio Polarity: Positively increasing sound pressure produces positive going voltage on relevant audio outputs
• Working Range: 100 m (330 ft) Range depends on the RF enviroment, i.e. absorption, reflection and interference
• Audio Dynamic Range (system) Digital: 126 dB
• Audio Frequency Response: 20 - 20 kHz (±1 dB)
• Latency: <2.9 ms

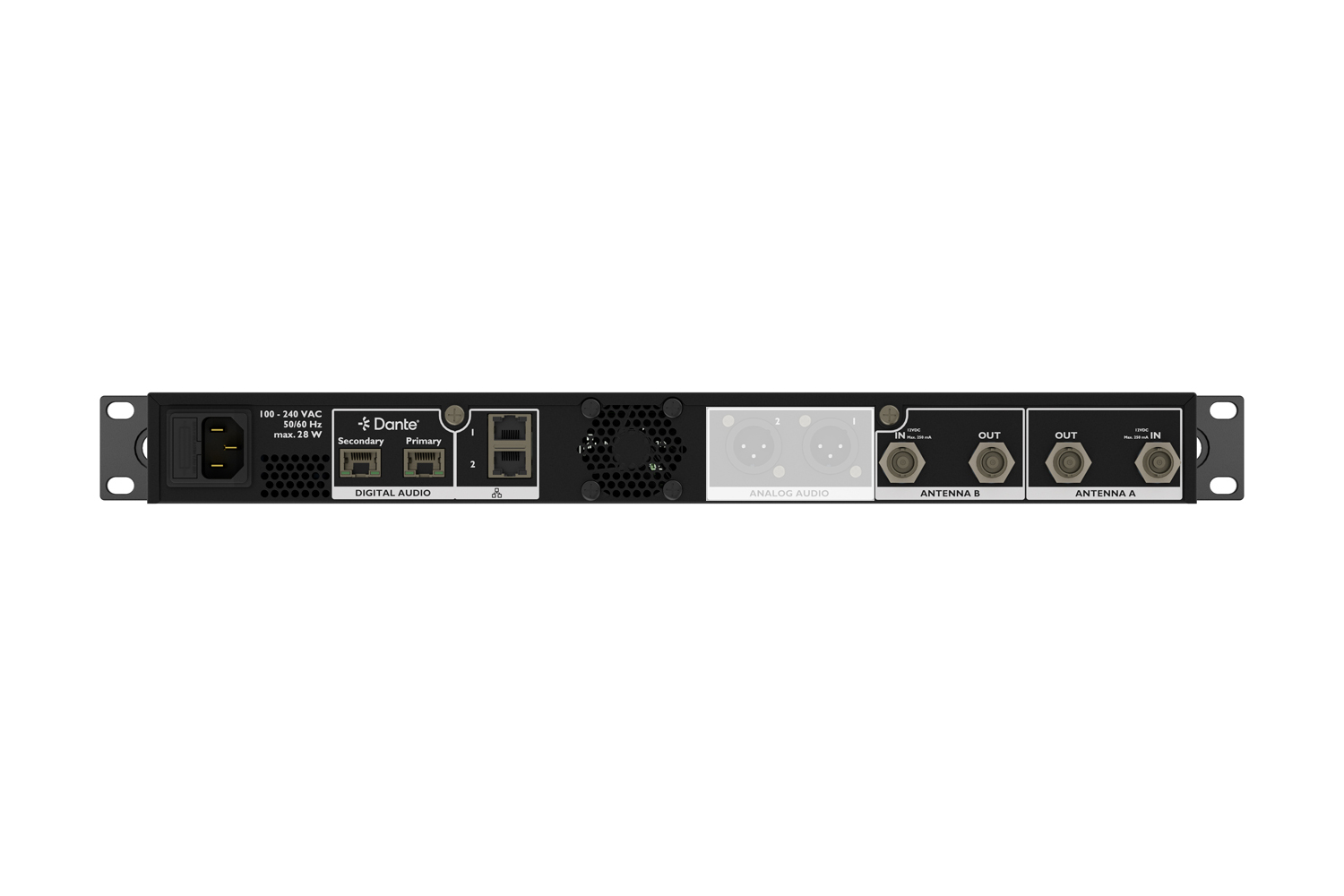

• Dante Interface: Primary / Secondary on separate connectors from Control Network
• Digital Audio Trim: -20 dB to +40 dB on the receiver side, selectable in increments of 1 dB
• RF Input Bias Voltage: 12 volts, max 250 mA per antenna
• RF Input Connector type: BNC
• Dante Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Network Interface: Switched (dual port) Ethernet, max 100 Mbps
• Network Addressing: DHCP or Manual IP
• Supply Voltage, Autosensing: 100VAC - 240VAC
• Power, Max: 28 W
• Colors: Black, Matte black
• Housing Type: Steel and Aluminium
• Operating Temperature: -10°C to 50°C (14°F to 122°F)
• Storage Temperature: -20°C to 50°C (4°F to 122°F) Without batteries installed
• Dimension (HxWxD): 1.7 x 19 x 9.7 in (44 x 482 x 246 mm)
• Weight: 7.94 lb (3.6 kg)
