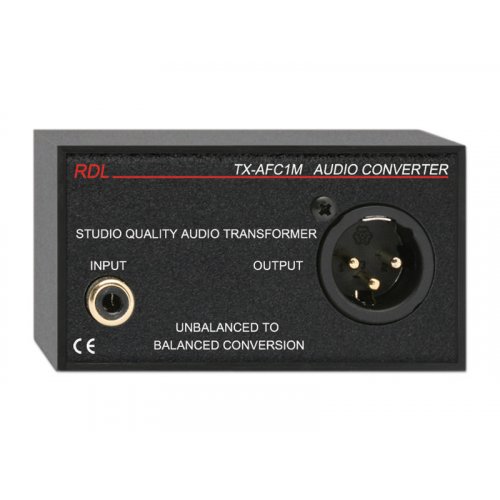

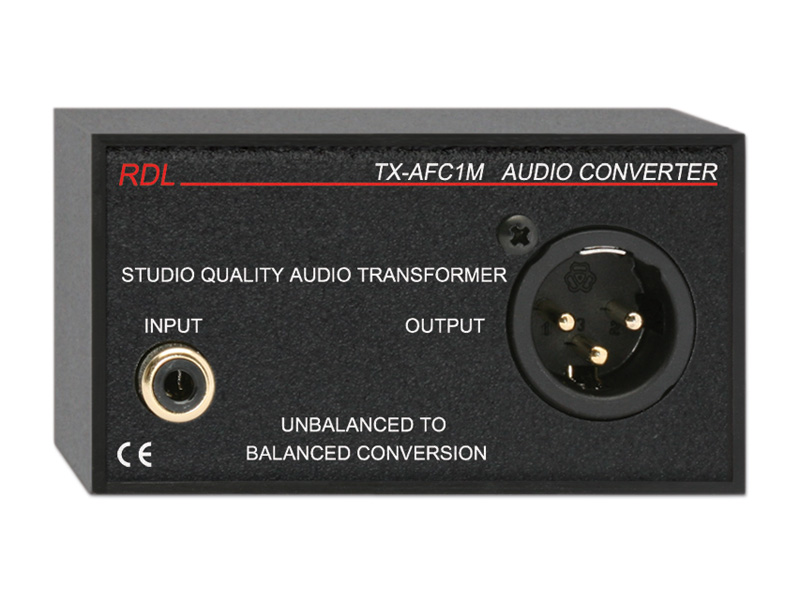

RDL TX-AFC1M Unbalanced to Balanced Transformer
Model: RDL TX-AFC1M
About: RDL TX-AFC1M Unbalanced to Balanced Transformer
Features:
- Studio Quality Bifilar Audio Transformer
- Connectorized Audio Format Conversion
- Galvanic Isolation with the Convenience of RDL TXs
- Gold Contacts on Input and Output
- Unbalanced to Balanced Conversion
- Unity Gain
- Frequency Response: 20 Hz to 20 kHz (+/- 0.1 dB)
-
THD: < 0.06% (50 Hz to 20 kHz, -10 dBV input)
0.0015% (Typ. 1 kHz, -10 dBV input) - Input: -10 dBV (+22 dBu max.), 10 kΩ Phono jack
- Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)
- Insertion Loss: 0.25 dB (20 Ω source; 10 kΩ load)
UPC: 813721016096
Reviews: RDL TX-AFC1M Unbalanced to Balanced Transformer
There are currently no product reviews.
Warranty: RDL TX-AFC1M Unbalanced to Balanced Transformer
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
