Glensound Signature DAC 1 Stereo Digital To Analogue Converter
Model: DAC 1
About: Glensound Signature DAC 1 Stereo Digital To Analogue Converter
DAC 1 Overview:
The Signature DAC 1 is a broadcast specification, stereo digital to analogue audio converter.

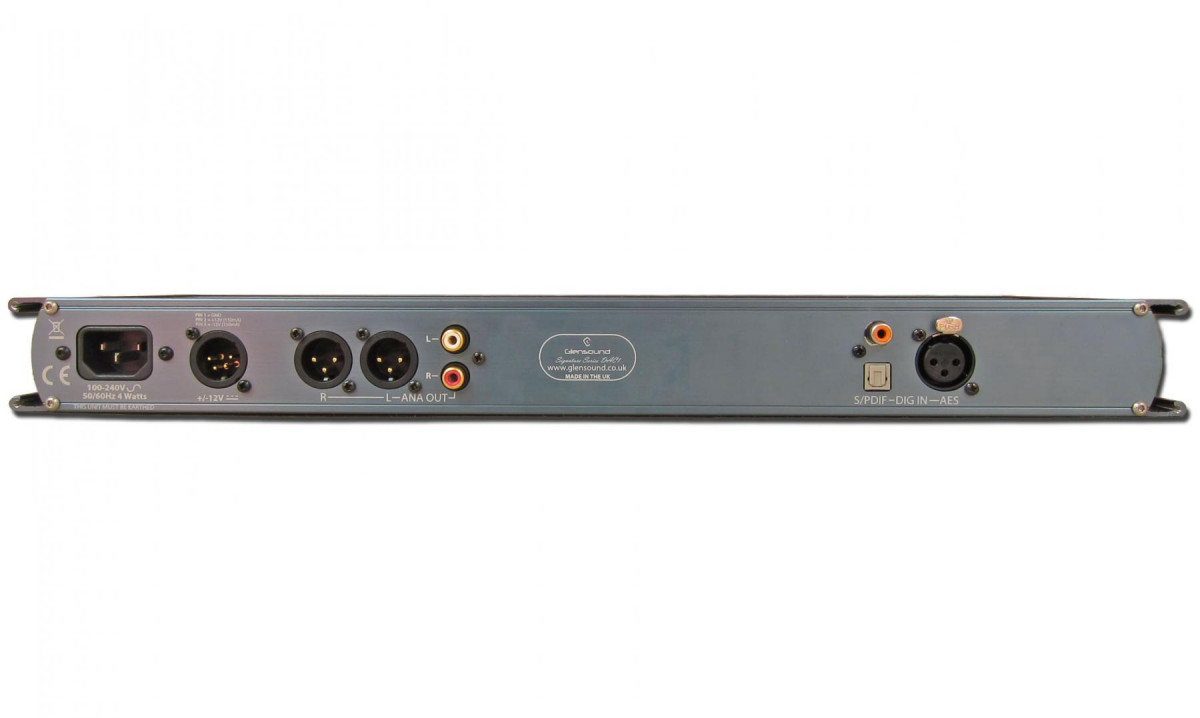

The digital inputs are available separately in three formats:
- 3 pin XLR using AES
- RCA phono plug using S/PDIF
- optical connectors using TOSLINK
The analogue outputs are available separately in two formats:
- balanced XLR connections
- unbalanced RCA phono connections

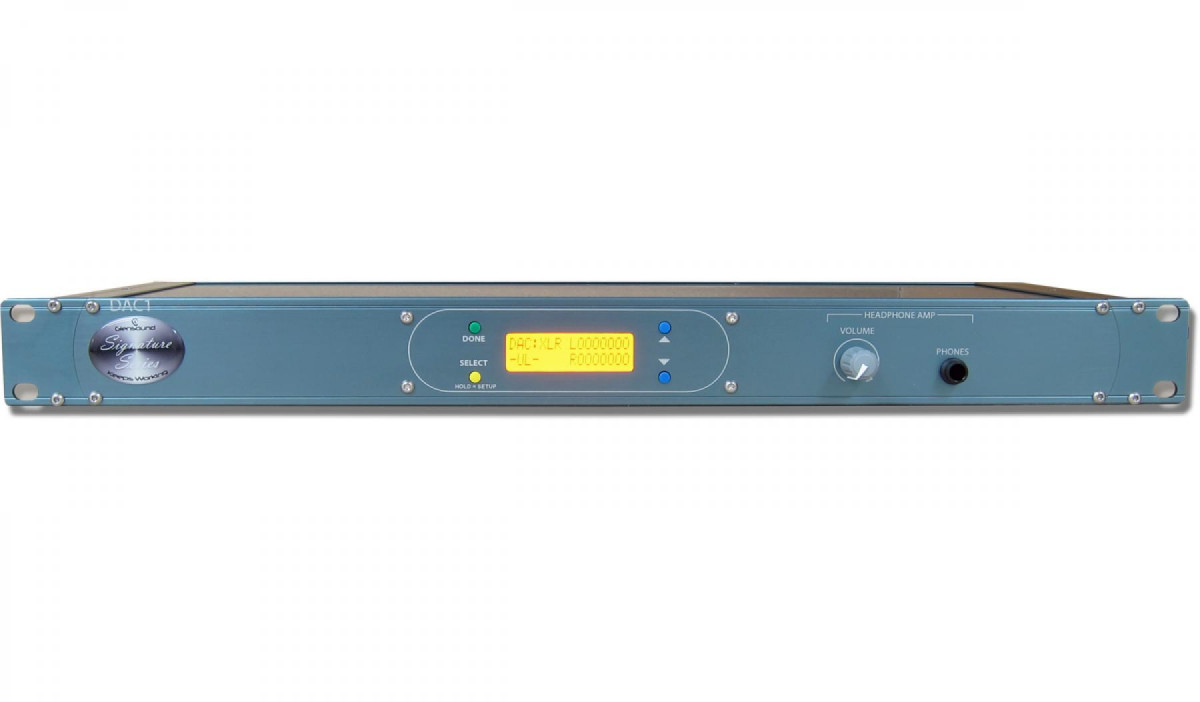

The front panel features a 6.35mm stereo jack socket for headphones monitoring, with a full size pot to adjust the volume level.
A front panel screen shows current operation mode and allows configuration of all unit parameters.
Power is provided by an internal switch mode power supply, with a wide input range.
There is also an input for external 12V DC power. The 12V DC input can be connected to the optional Signature PS1 external DC Master Power Station, for situations where a redundant power supply is desirable.
