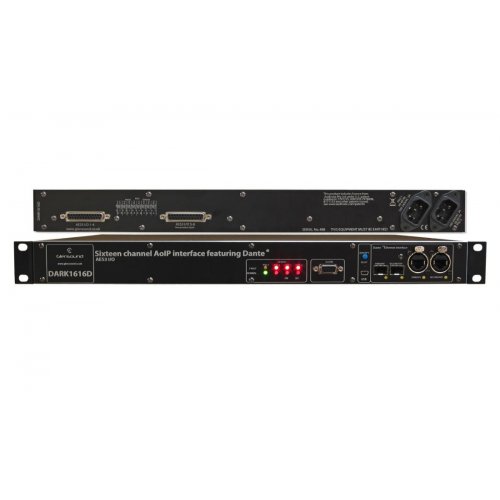

Glensound DARK1616D Dante/AES67 Interface
Model: DARK1616D
About: Glensound DARK1616D Dante/AES67 Interface
DARK1616D Overview:
The Glensound DARK1616D is a digital to digital converter designed to connect AES3 audio circuits to/ from a Dante/ AES67 audio network.
Dante network audio is a common protocol for distributing high quality linear audio over standard IP networks and it is widely used by many audio equipment manufacturers. The Glensound DARK1616D Dante audio interface will be compatible with any other manufacturers Dante audio interface. Further details of Dante network audio can be found at www.audinate.com.
Being designed for live on-air broadcast applications the Glensound DARK1616D has been designed with multiple redundancy capabilities. It has 2 mains power sources and it also has fully redundant network connections for both Copper & Fibre circuits.

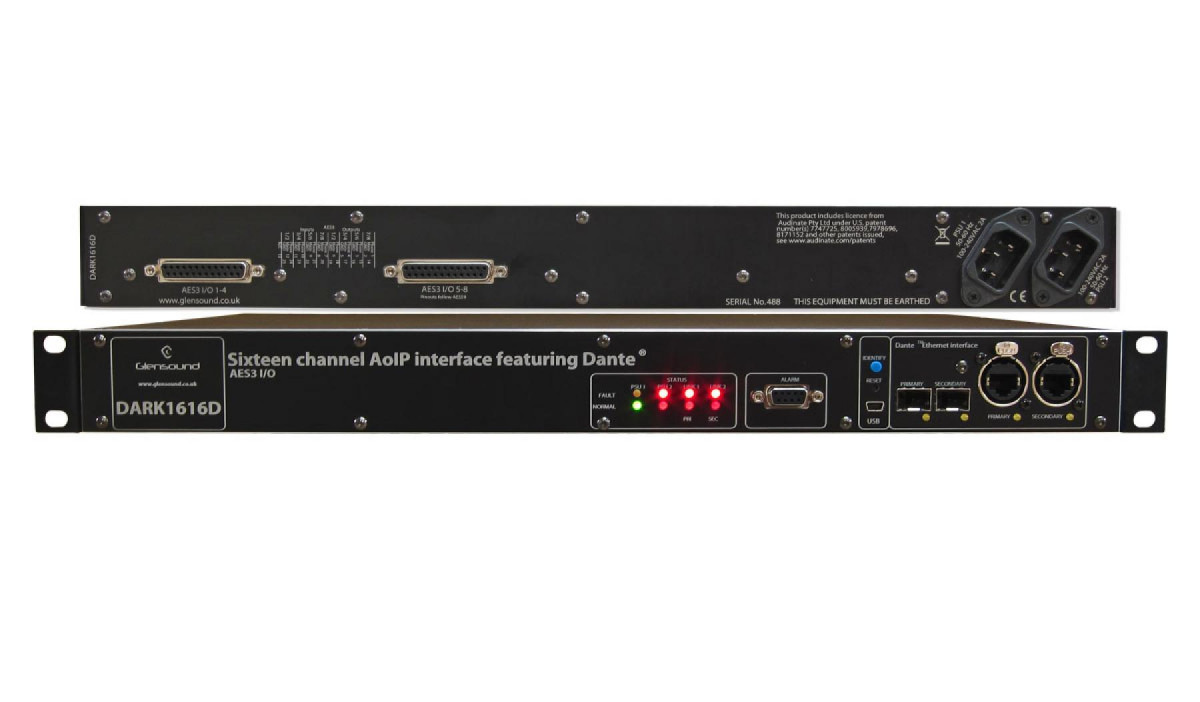

The DARK1616D provides 8 balanced AES3 inputs and 8 balanced AES3 outputs to the Dante network on rear panel D25 connectors wired to AES59 (also known as the Tascam standard).
NETWORK OPTIONS:
DANTE/AES67 VERSION
Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
Type: Fully redundant primary & secondary circuits
Sample Frequency: 48K
Resolution: 24 Bit
Control & Routing: Via Free Dante Controller
AES67: Can be configured for AES67
- Physical: 2 x Neutrik Ethercons Cat6 RJ45s & 2 x SFP slots
- Type: Fully redundant primary & secondary circuits
- AES67: Yes
- High Sample Rates: 44.1kHz - 192kHz
- PTPv2: Master or Slave, IEEE-1588-2008 standard
- SMPTE ST 2110-30: Yes. Including level C and CX
- SMPTE ST2022-7: Yes. Seamless data switching
- NMOS IS-04 (Disovery): Yes
- NMOS IS-05 Routing): Yes
