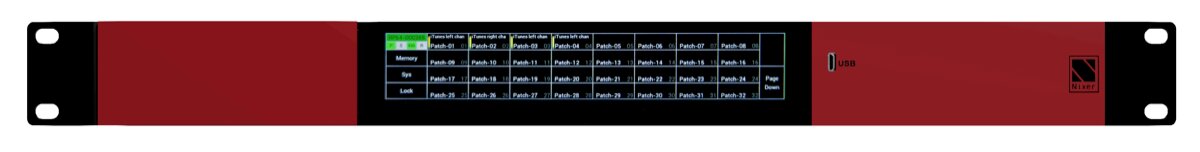

Nixer RP64 - 1U 19in Rack Mount AoIP Patch
Model: NIX00658
About: Nixer RP64 - 1U 19in Rack Mount AoIP Patch
Based on the latest Nixer audio processor, the RP64 is a 64 input to 64 output digital Audio over IP 'patch' panel. Using an intuitive interface, it is possible to connect any input to any output. This facilitates the quick and easy repatching of critical signals without the need of having to use a laptop and Dante Controller and the inherent delays this brings. The RP64 patching reconnection is near instantaneous.
- Simple and Intuitive Operation to rapidly route critical signals from a dedicated operator/engineering position in the event of equipment failure
- 64 inputs, 64 outputs (@ 48kHz)
- No external laptop and cumbersome software patching
- Near instantaneous audio switching
- Large colour LCD touchscreen for quick and easy re-patching of critical signals
- Reset and recall route status from memory
- Compact 1RU design (less than 120mm deep) for deployment in any frame, desk or custom location
- PoE power or via external DC input for power redundancy
- Primary and Secondary network ports
- OSC control via RJ45 (under development, contact Sales for further information).
3 base configurations
- RP64 - 64 input, 64 output patch unit, front panel display
- RP64 EQ - 66 inputs with 2 band EQ, 68 output patch unit, front panel display, stereo line out and AES I/O
- RP64 CV2 - 66 inputs with 2 band EQ, 68 output patch unit, no front panel display, stereo line out and AES I/O
Power to the RP64 can be either via PoE on the Primary RJ45 port and/or via the 24V DC power input. Using both PoE and the DC input enables power redundancy. Also, on the rear panel there is a secondary RJ45 port for either redundant or switched AoIP connections. In addition to this there is a Control port for controlling the RP64 via OSC and a Remote RJ45 port for use with optional hardware remotes.
Please Note, the remote port is not compatible with standard ethernet
Specifications
- Patching of up to 64 inputs to 64 outputs (32 inputs to 32 outputs at 96kHz)
Functionality
- 64 x 64 channel patch matrix (32 x 32 at 96kHz)
- Patch inputs "one to one" to output
- Patch any input to any output
- Patch one input to many outputs
Dante
- AES67 compatible
- SMPTE 2110 compatible
- Fully compatible with New Dante Domain Manager – Dante option only
Sample rates supported
- 44.1kHz
- 48kHz
- 88.2kHz
- 96kHz
Bit Depth supported
- 16bit
- 24bit
- 32bit
AoIP inputs
- Dual 1Gbps RJ45
- 1Gbps or 100Mbps operation
- User configurable for Switched or Redundant operation
- Network configuration information available via menu
Control input
- Single RJ45 100Mbs
- OSC remote control of the product
Remote Control
- Single RJ45 - NOT ethernet
- Wired remote control option on RJ45 connector
- For use with optional hardware remote controllers
- RS485 balanced TX and RX pairs
- 5V feed to connected device (up to 200mA)
- Note: this connector is not compatible with standard ethernet connectors
Other Ports
- USB port is also used for product firmware updates
Power input
- PoE (13W) on Primary RJ45 connector
- 2.5mm DC inputs socket for use with external 24V 2amp adaptor
- Both power inputs can be active at the same time for redundancy
LCD
- 6.6” (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution
- LED backlight (adjustable brightness via software)
- multi touch capacitive touch overlay with gesture support
Product Sizes
- Dimensions - 494mm wide by 120mm deep by 44mm height
- Weight - 1.0kg
- 19inch rack mounting ears can be removed for desktop us
