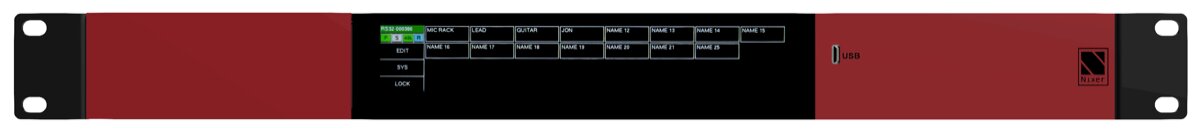

Nixer RS32 1U 19in Rack Mount AoIP Switch

About: Nixer RS32 1U 19in Rack Mount AoIP Switch

Based on the latest Nixer audio processor, the RS32 is a 32-way digital Audio over IP switch with 64 digital inputs and 64 digital outputs. Switches can be configured as either 2 inputs to 1 output changeover or 1 input to 2 output changeover. They can be selected individually or linked together to make larger switches up to a maximum of 32 ways. Any switch can be activated by the intuitive touchscreen interface. Switches operate almost instantaneously and negate the need of having to use a laptop and a controller program and the inherent delays these bring.

• Simple and Intuitive Operation to switch to backup signals from a dedicated operator/engineering position.
• 32 individual 2x1 or 1x2 switches can also be linked to make a maximum 32 way changeover. Each switch is user defined via touchscreen.
• No external laptop and cumbersome software re-routing
• Near instantaneous audio switching
• Large colour LCD touchscreen for quick and easy re-patching of critical signals
• Reset and recall route status from memory
• Compact 1RU design (less than 120mm deep) for deployment in any frame, desk or custom location
• PoE power or via external DC input for power redundancy
• Primary and Secondary network ports
• OSC control via RJ45 (under development, contact Sales for further information).

Power to the RP64 can be either via PoE on the Primary RJ45 port and/or via the 24V DC power input. Using both PoE and the DC input enables power redundancy. Also, on the rear panel there is a secondary RJ45 port for either redundant or switched AoIP connections. In addition to this there is a Control port for controlling the RP64 via OSC and a Remote RJ45 port for use with optional hardware remotes.

Please Note, the remote port is not compatible with standard ethernet

Specifications

• 32x 2 by 1 switches at 48kHz (16x 2 by 1 switches at 96kHz)

Sample rates supported

• 44.1kHz
• 48kHz
• 88.2kHz
• 96kHz

Bit Depth supported

• 16bit
• 24bit
• 32bit

Dante

• AES67 compatible
• SMPTE 2110 compatible
• Fully compatible with New Dante Domain Manager – Dante option only

AoIP inputs

• Dual 1Gbps RJ45
• 1Gbps or 100Mbps operation
• User configurable for Switched or Redundant operation
• Network configuration information available via menu

Control input

• Single RJ45 100Mbs
• OSC remote control of the product

Remote Control

• Single RJ45 - NOT ethernet
• Wired remote control option on RJ45 connector
• For use with optional hardware remote controllers
• RS485 balanced TX and RX pairs
• 5V feed to connected device (up to 200mA)
  • Note: this connector is not compatible with standard ethernet connectors

Power input

• PoE (13W) on Primary RJ45 connector
• 2.5mm DC inputs socket for use with external 24V 2amp adaptor
• Both power inputs can be active at the same time for redundancy

Other Ports

• USB port is also used for product firmware updates

LCD

• 6.6” (168mm) diagonal 24-bit colour LCD with 1440xRGBx240 resolution
• LED backlight (adjustable brightness via software)
• multi touch capacitive touch overlay with gesture support

Product Sizes

• Dimensions -  494mm wide by 120mm deep by 44mm height
• Weight -  1.0kg
• 19inch rack mounting ears can be removed for desktop use
