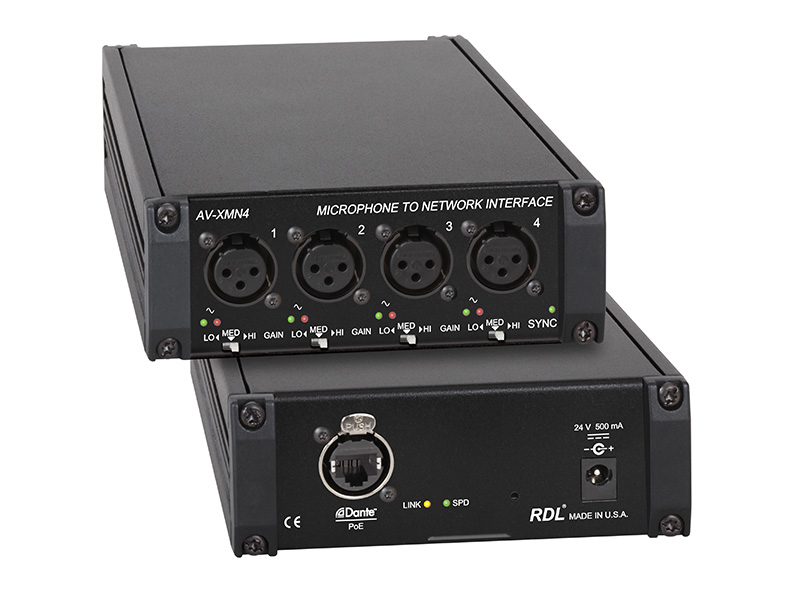

RDL AV-XMN4 4-Channel Microphone to Dante Interface
Model: RDL AV-XMN4
About: RDL AV-XMN4 4-Channel Microphone to Dante Interface
The AV-XMN4 is an interface that converts four XLR microphone inputs to Dante network audio channels. Special software is not required to configure the AV-XMN4. Each XLR input is equipped with a switch to set the gain for dynamic or condenser microphones. A dual-LED VU meter displays the level for each input to facilitate selection of the ideal gain range. P48 phantom voltage is supplied to each microphone input. The AV-XMN4 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance.
The AV-XMN4 may be powered from an external 24 Vdc power supply, available separately. The AV-XMN4 is equipped to operate from a PoE enabled network switch. The AV-XMN4 will reserve power from the switch even while being powered from an external 24 Vdc supply. If PoE power and an external 24 Vdc supply are both feeding an AV-XMN4, the unit will run from the external supply and will seamlessly switch over to PoE power upon loss of the external supply. Valid power and synchronization to the Dante network is indicated by a green LED visible from the front of the unit.
The AV-XMN4 is constructed in a durable, professional all-metal enclosure suitable for use on stage or in studio, or mounted to any flat surface. For fixed installations, mounting brackets are included. The chassis is designed to protect the front panel slide switches from accidental damage. This full-featured AV-PAK product is engineered and manufactured in the U.S.A for continuous duty in demanding installations.
Features:
- Dante Network Interface for Four Audio Mic Inputs
- Each XLR Input Provides Switch-Selectable Mic Gain: 40 dB, 48 dB or 62 dB
- 48 V Mic Phantom (P48) on each input
- Four XLR Front-Panel Inputs
- Converts Four Standard XLR Mic Audio Sources to Dante Network Channels
- Special Software Not Required for Module Setup
- High Resolution 24 Bit Analog to Digital Conversion
- LED Indicator for Valid Power and Network Sync
- Operation from PoE Power (Class 0, IEEE 802.3af) or external 24 Vdc
- Mounts on a Microphone Stand using an RDL SF-MSM1
UPC: 813721019950
Reviews: RDL AV-XMN4 4-Channel Microphone to Dante Interface
Warranty: RDL AV-XMN4 4-Channel Microphone to Dante Interface
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
