RDL D-J1 Microphone Input Wall Plate

Model: RDL D-J1

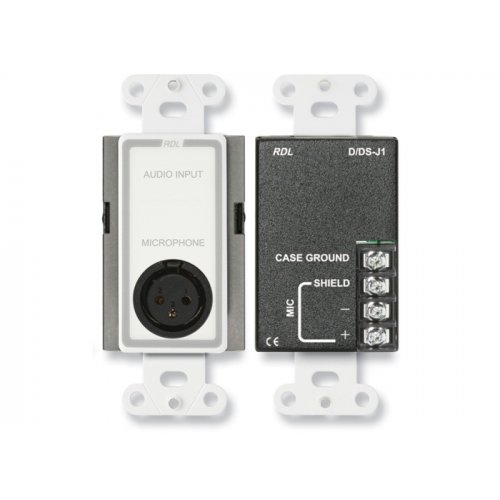

RDL D-J1 Microphone Input Wall Plate
  • Free Shipping on orders over $199
  • Not In-Stock - Available to Order
  • Not yet reviewed




About: RDL D-J1 Microphone Input Wall Plate

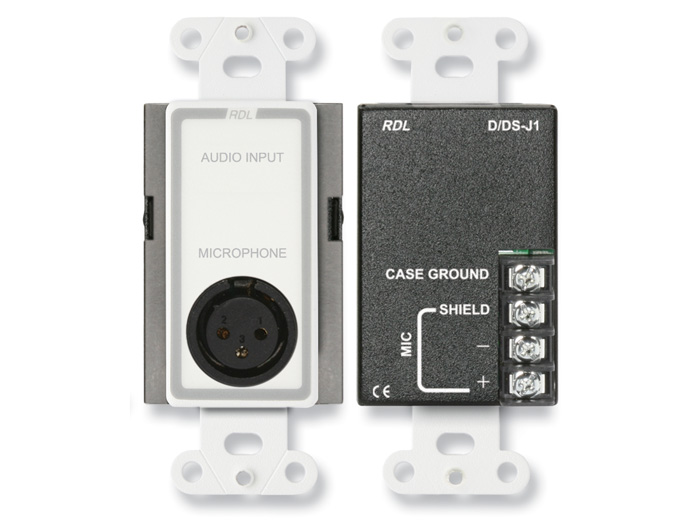

The D SERIES-J1 is a complete microphone input panel assembly. Connections to the female front‑panel XLR jack are made on a rear barrier block. Four terminals are provided: CASE GROUND, SHIELD (XLR pin 1), + (XLR pin 2) and - (XLR pin 3). The installer may install a jumper between the SHIELD connection and CASE GROUND if desired. The back of the D SERIES-J1 is finished with a metal enclosure clearly labeled for easy installation.

The D SERIES-J1 fits directly into back boxes, available from RDL to fit cabinets or US or international walls (RDL WB-1U). They may be mounted directly into cabinets or most standard US single gang electrical boxes.

Features:

  • Wall Mounted Microphone Input Panel
  • XLR Input Connector with Gold Contacts
  • Barrier Block Wiring Connections
  • Ground-Lift Terminals on Barrier Block

UPC: 813721015242

Reviews: RDL D-J1 Microphone Input Wall Plate

There are currently no product reviews.


Warranty: RDL D-J1 Microphone Input Wall Plate

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
