Sescom SES-X-FA2 Audio Fiber Extender
Model: SES-X-FA2
About: Sescom SES-X-FA2 Audio Fiber Extender

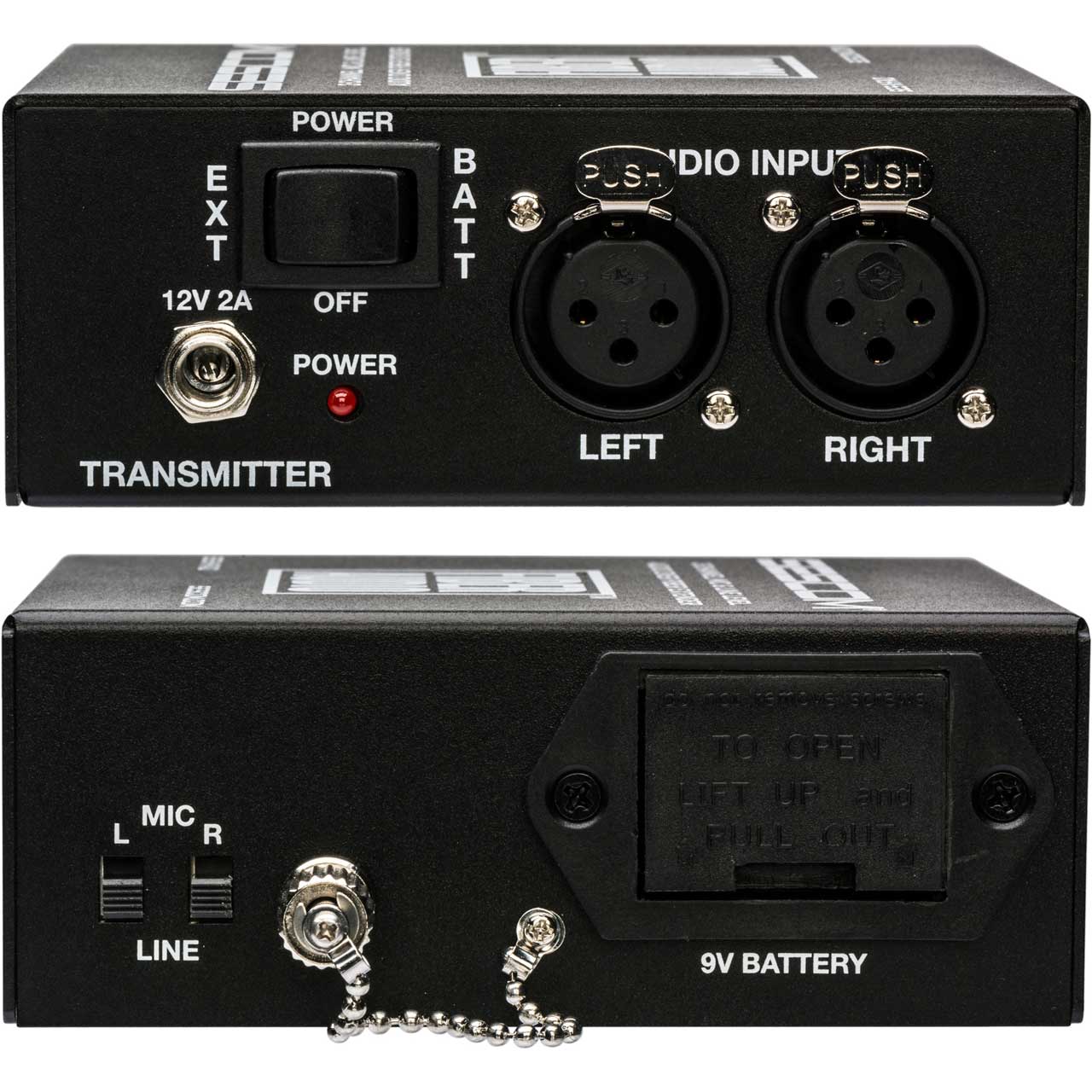

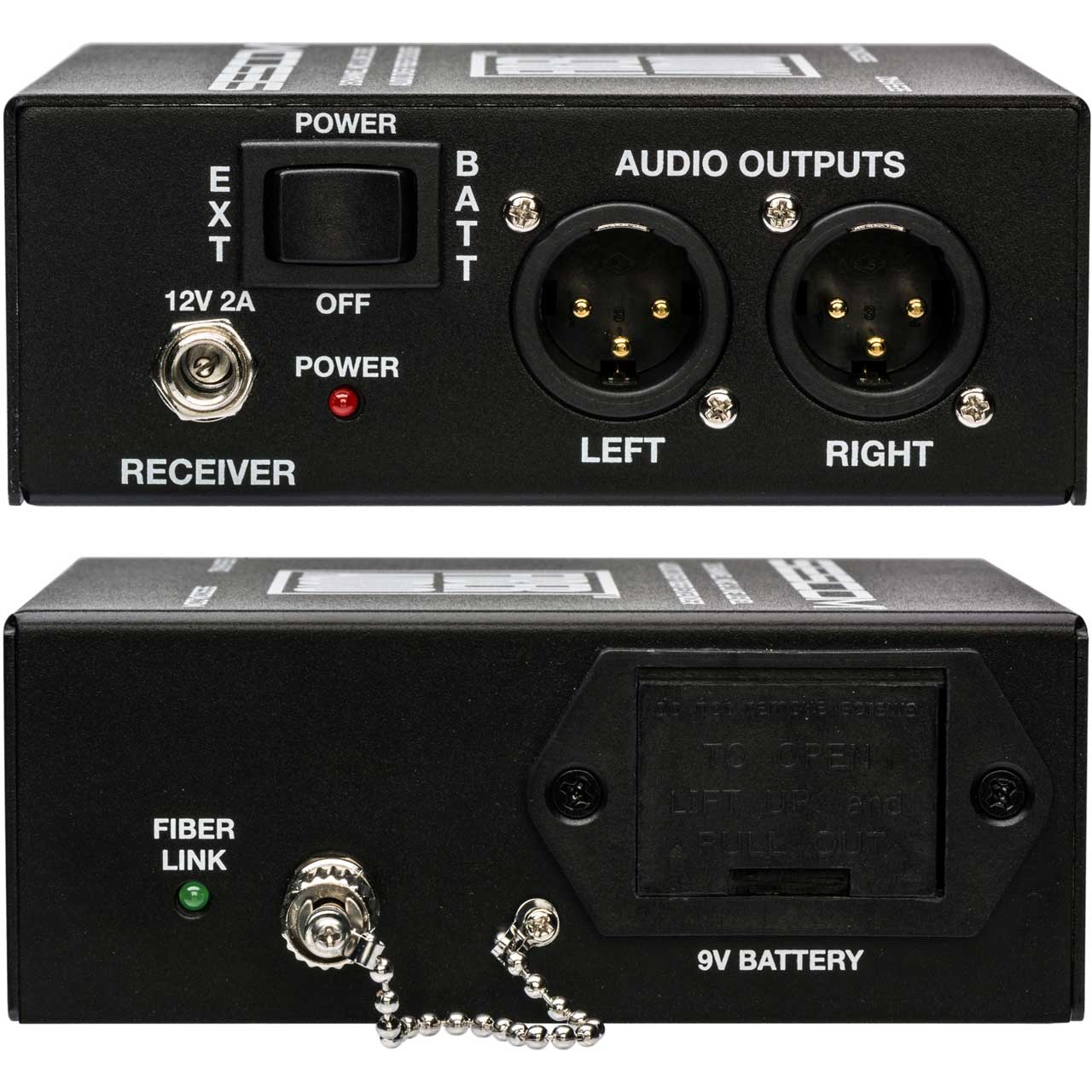

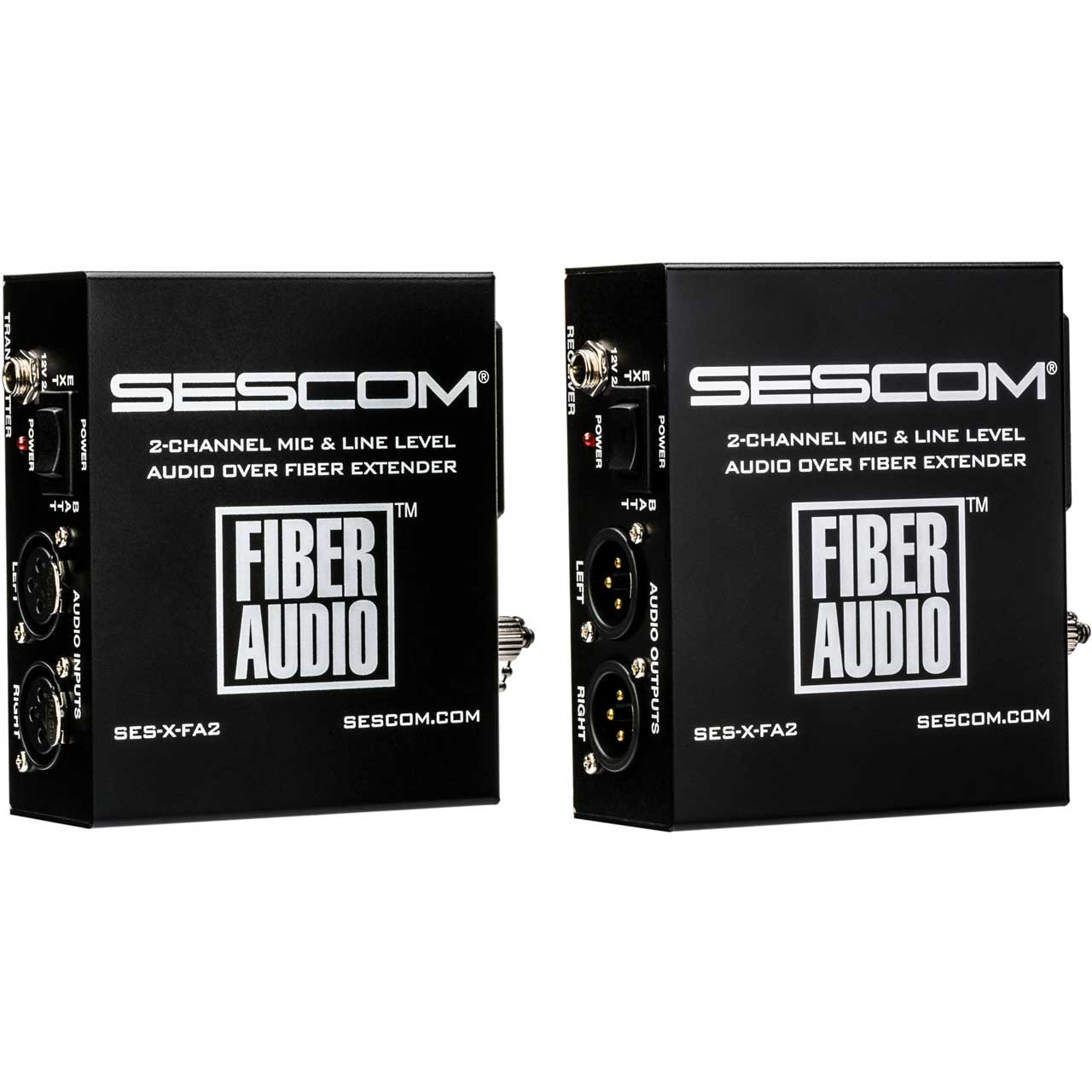

The SES-X-FA2 battery-powered audio over fiber extender sends 2 channel balanced mic or line level audio signals up to 12.4 miles over a single mode fiber cable. The transmitter and the receiver each feature two balanced XLR inputs and two XLR outputs, and a simplex ST connector. The transmitter includes a switch for selecting mic or line level for each channel. Designed for studio or field applications, the transmitter and the receiver can be powered with AC power adapters or 9VDC batteries (both included).
Specifications:
- Portable 2-Channel Analog Audio to Fiber Transmission
- 24-Bit Digitally Encoded Analog Audio
- Multimode Fiber up to 984 feet / Single Mode Fiber up to 12.4 miles
- Switchable Balanced Mic or Line Level
- Wide Dynamic Optical Range Requires No Optical Adjustments
- Power: AC Adapter or Standard 9VDC Battery (Alkaline Battery Runtime: Approx 4 hours)
- Simplex ST Connectors
- Bit Rate: 24bit / Sample Rate: 48Khz
- Signal to Noise Ratio > 85dB
- Input Impedance: 10KΩ
- FCC & RoHS Compliant
- Mic Level: -30dB / Line Level: 0dB in/0dB out
- Dimensions Each Unit: 4.33 x 3.62 x 1.65 in / Weight Each Unit: 7.9 oz
Note:
- Not for use with IFB systems where audio is modulated with voltage
- Not for use with phantom powered devices
