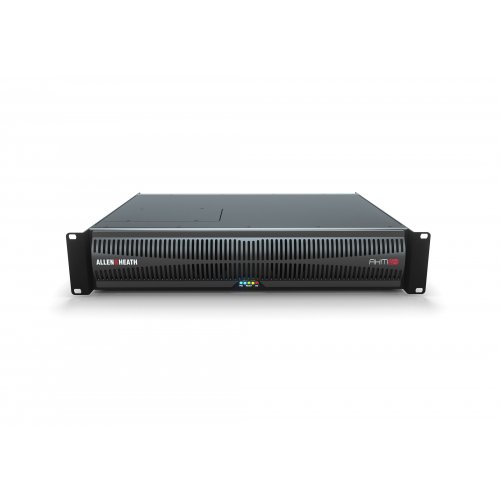

Allen & Heath AHM-64 64x64 Audio Matrix Processor
Model: AHM-64
About: Allen & Heath AHM-64 64x64 Audio Matrix Processor
The most powerful matrix processor in the range, AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.
- 64x64 processing matrix
- 12x12 local analogue I/O
- I/O Port for audio networking, up to 128x128
- Dante 96kHz 64x64 optional card (AES67 and DDM ready)
- 128x128 built-in SLink port for audio expansion
- 64 configurable processing outputs – mono / stereo zones or speaker processing
- 96kHz FPGA core with ultra-low latency
- Compatible with IP1, IP6, IP8 remote controllers
- 2x2 local GPIO plus networkable GPIO interface
- TCP/IP protocol for third party integration
- Crestron, AMX and Extron drivers
- DC backup power supply
- Mac / Windows System Manager software
- Custom Control app and editor for BYOD
- 32 user profiles
- Integrated stereo playback
- Event scheduler
ACOUSTIC ECHO CANCELLATION
The Acoustic Echo Cancellation (AEC) module for AHM-64 provides multiple channels of AEC and is designed for teleconferencing and videoconferencing scenarios.
SOUND MANAGEMENT
- 8x Automatic Mic Mixers
- ANC (Ambient Noise Compensation)
- Priority Ducking
- 8-band PEQ, dynamics and delay on every input and zone
- Speaker processing with x-over filter, delay, limiter and PEQ
- Processing expansion module
UPC: 6938122250611
Videos: Allen & Heath AHM-64 64x64 Audio Matrix Processor
Reviews: Allen & Heath AHM-64 64x64 Audio Matrix Processor
Warranty: Allen & Heath AHM-64 64x64 Audio Matrix Processor
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
Limited One Year Warranty on most products. See user manual for details.
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
