Shure SLX-D+ Portable Digital Wireless Bodypack System

About: Shure SLX-D+ Portable Digital Wireless Bodypack System

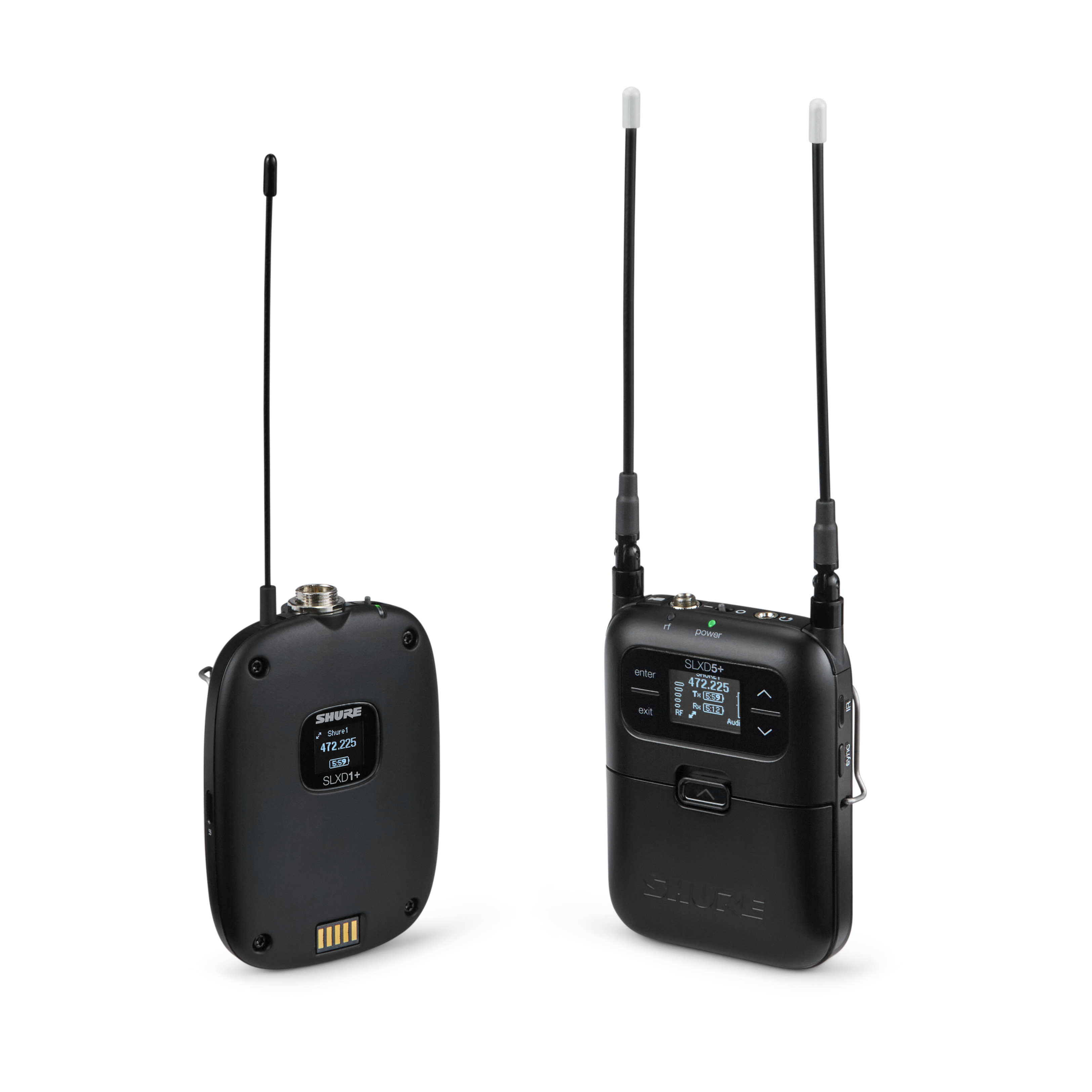

The SLXD15+ portable bodypack wireless system features the SLXD5+ Portable Receiver and the SLXD1+ bodypack transmitter for videographers, ENG and field production, film and location sound applications. Delivering wireless excellence, wherever required, wide-tuning SLXD+ transmitters and receivers stay in sync courtesy of a dedicated ShowLink Ease control link. Manage interference, scan for new channels and update for clear transmission automatically. Also monitor and configure via a paired mobile device.

Trusted by Professionals, Engineered for Everyone.

• Powerful, portable digital wireless system for on-camera cold shoe mounting and audio bag use
• Transparent 24-bit digital audio quality with >118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
  • Up to 11 simultaneous systems in 6 MHz TV bands
  • Up to 14 simultaneous systems in 8 MHz TV bands
• Dual 1/8” outputs including a headphone monitor out and switchable line/mic output
• Automatic Setup – once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
  • Changing the transmitter frequency once open frequency is identified
  • Adjust power output level
  • Lock and unlock transmitter controls
  • Transmitter firmware updates
• Use Multi-Mic Mode to scan and sync over IR multiple clean frequencies, and monitor multiple sources from a single receiver with user-configurable front-panel controls
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur.
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Up to 8 hours (SLXD1+)  / up to 5.5 hours (SLXD5+) of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories
• Portable ergonomic design with rugged metal construction

Specifications

• SLXD1+ Transmitter
  • AUDIO INPUT
    • Connector: 4-Pin male mini connector (TA4M)
    • Configuration: Unbalanced
    • Impedance: 1 MΩ
    • Maximum Input Level: 8.2 dBV (2.57 Vrms, 7.27 Vpp)
    • Preamplifier Equivalent Input Noise (EIN): –118 dBV
  • RF OUTPUT
    • Antenna Type: 1/4 Wave
    • Occupied Bandwidth: <200 kHz
    • Modulation Type: Shure Propietary Digital
    • Power: 1 mW/10 mW
      • Varies by region
  • Housing: PC/ABS
  • Battery Type: Rechargeable Li-Ion or 1.5 V AA batteries
  • Dimensions (HxWxD): 3.86 x 2.68 x 1.0 in (98 x 68 x 25.5 mm)
  • Weight: 0.2 lbs (89 g)
• SLXD5+ Receiver
  • ​RF INPUT
    • Spurious Rejection: >75 dB (Typical)
    • Impedance: 50 Ω
    • Phantom Power Protection: Yes
    • Antenna Type: 1/4 Wave Whip
  • AUDIO OUTPUT
    • Audio Frequency Response: 20 Hz – 20 kHz (+1, -3 dB)
    • Connector Type: 1/8" (3.5 mm), x2
  • Configuration
    • Balanced (Mono): Tip=audio +, Ring=audio –, Sleeve=ground
    • Dual Mono: Tip = left, Ring = Right, Sleeve = Ground
  • Impedance (Camera)
    • Balanced (Mono) Line: 450 Ω
    • Balanced (Mono) Mic: 240 Ω
    • Dual Mono Line: 400 Ω
    • Dual Mono Mic: 200 Ω
  • Full Scale Output
    • Camera (Balanced Line): 15 dBV
    • Headphone: 13 mW @ 64 Ω Load
  • GENERAL
    • Housing Aluminum
    • Power Requirements
      • Battery: Rechargeable Li-Ion or 1.5 V AA batteries
      • Power Supply: SBC-DC-903 Battery Eliminator, or 5 VDC via USB-C
    • Dimensions (HxWxD): 4.21 x 2.68 x 1.0 in (107 x 68 x 25.3 mm)
    • Weight: 0.4 lb (182 g)

What's in the Box

• 1x SLXD5+ Single-Channel Portable Wireless Receiver
• 1x SLXD1+ Bodypack Transmitter
• 1x WA311 Non-Conductive Cold Shoe Mount Adapter
• 4x AA batteries
• 1x Leather protective sleeve with integrated belt clip
• 2x Zippered Carrying Pouches
