Lectrosonics ZS-LRHMa L-Series Camera Mount Plug-on Kit (Freq: A1)

About: Lectrosonics ZS-LRHMa L-Series Camera Mount Plug-on Kit (Freq: A1)

The new L Series units all share a wide tuning range of three standard Lectrosonics blocks, or 67.5 to 76.8 MHz, depending on the specific frequency band, and employ Lectrosonics' patented Digital Hybrid Wireless® technology for compandor-free audio along with compatibility modes for interoperability with older analog systems. Like all our other products, the L Series units are made in the USA and feature machined aluminum housings, user-friendly setup and reliable operation. The ZS-LRHMa kit makes it easy to put these products right to work on the job. Everything you need is here: transmitter, receiver, mounting hardware and connecting cables. Even batteries are included!

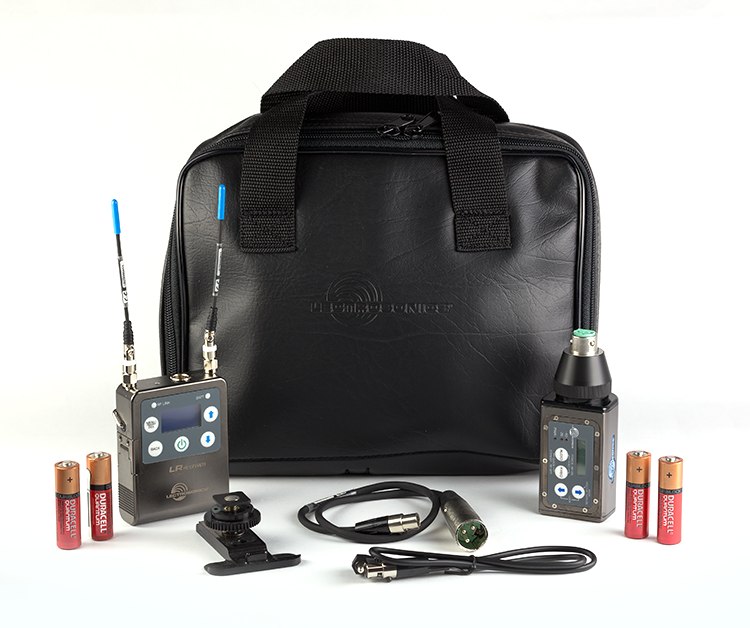

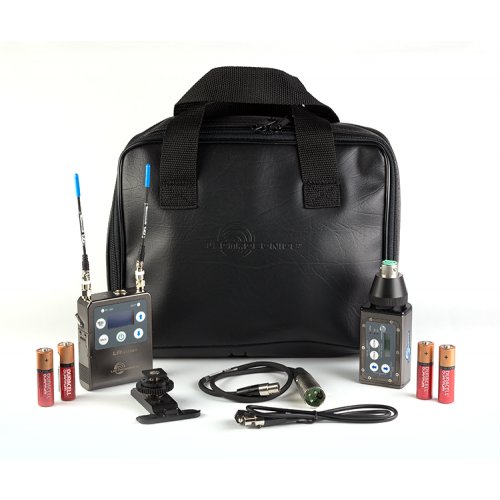

Containing the following items:

• 1) LR receiver
• 1) HMa transmitter
• 1) LRSHOE camera shoe mount for LR Receiver
• 1) MCSRXLR cable, TA3F to XLRM
• 1) MCLRTRS cable, TA3F to 1/8" TRS
• 1) CCMINI zippered pouch

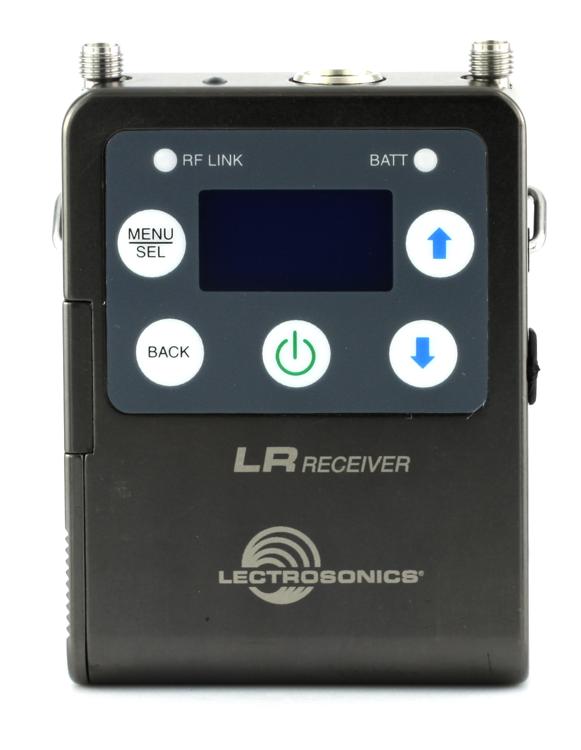

LR Receiver

• Tunes over a 75 MHz range*
• Tracking front-end filters
• Digital Hybrid Wireless® with compatibility modes for use with earlier transmitters
• Compact size powered by two AA batteries or an optional battery eliminator
• LCD with RF spectrum scanning
• SmartSquelchTM noiseless muting adapts automatically for near/far operation
• DSP-based pilot tone for squelch control
• USB port for firmware updates
• IR sync port for transmitter setup

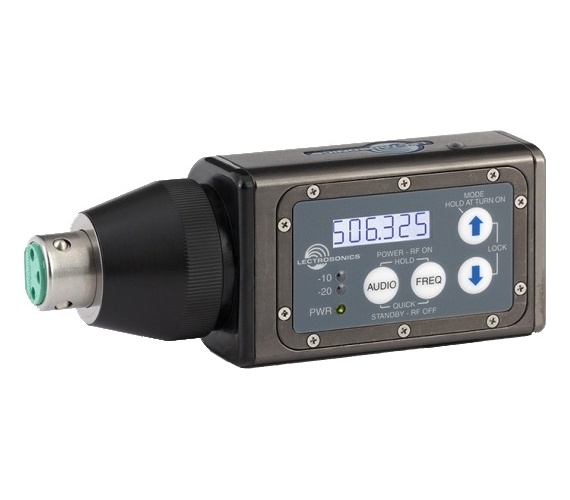

HMa Transmitter

• Accepts audio from any microphone or audio source with an XLR connector
• Selectable 5, 15, 48 volt phantom power
• 76 MHz tuning range in 100 kHz or 25 kHz steps for up to 3072 frequencies
• (941 band offers 695 frequencies over 19 MHz tuning range with 25 kHz steps)
• Selectable 50/100 mW output power
• Adjustable low frequency roll-off
• Powered by two AA batteries
• USB port for firmware updates
• IR (infrared) port for fast setup
• Solid machined aluminum housing
