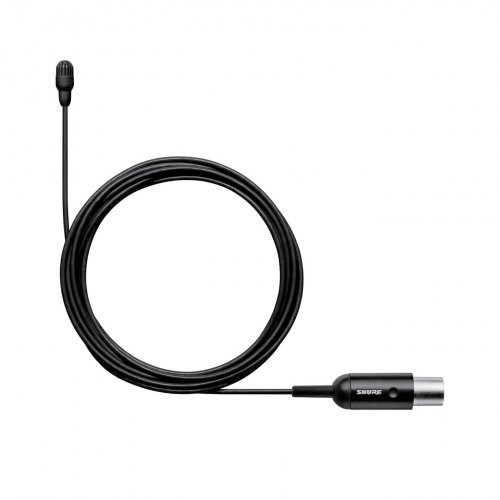

Shure TwinPlex TL47 Subminiature Lavalier Mic w/ TA4F & Accessories - Black

About: Shure TwinPlex TL47 Subminiature Lavalier Mic w/ TA4F & Accessories - Black

The expressively natural sounding TwinPlex TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it’s the go-to line for flexibility.

• With a variety of colors and connectors, the TL47 is ideal for nearly any application
• Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
• Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
• Best-in-class low self-noise and dynamic range for cleaner audio production
• Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
• Paintable 1.6 mm cable that is immune to memory effect and kinks
• Dual redundant ground in cable serves as secondary shield for longevity
• Sound signature: Natural
• Sensitivity: Low
• Colors: White, Tan, Cocoa, Black
• Connectors: LEMO, MTQG/TA4F, MicroDot, XLR/Preamp, NC (bare wire)
• Accessories: Available with or without accessories

In dialogue or monologue. Song or speech. A single word can affect the whole story. Through sweat, noise, and wear and tear, your little lavalier has an enormous job to do. Shure TwinPlex stands up to the toughest conditions to make every word a clear statement of quality. Natural audio at high or low frequency, the innovative dual-diaphragm captures the complete weight of your voice. And the capsule design maximizes effective surface area in an easy-to-conceal package. So sound suits performer, not the other way around.

No more “sweat-outs.” The superhydrophobic coating keeps perspiration from upstaging the sound. And the medical-grade cable technology flexes to fit the costume design and the demanding schedule. So your lavalier rises to the challenge, night after night.

The TwinPlex TL47 is available with connector options for most bodypack transmitters, color options that meet numerous situational needs, and mounting choices for all professional applications. The low sensitivity can handle the most critical acoustic environments without distortion, and the 1.6 mm paintable cable stands up to the most demanding use. With extensive solutions for any application, it’s the go-to line for flexibility.

Specifications

• Microphone Capsule: Dual-Diaphragm, Prepolarized Condenser
• Polar Pattern: Omnidirectional
• Frequency Response: 20 Hz to 20 kHz
• Sensitivity: -45.0 dBV (5.62 mV) at 1kHz
• Self-Noise (A-Weighted, Equivalent Acoustical): 24.5 dB SPL-A
• Signal-To-Noise Ratio: 69.5 dB
• Output Clipping Level: 3.0 dBV,1 kHz (at 1% THD, typical)
• Maximum SPL: 142.0 dB SPL (1 kHz at 1% THD, typical)
• Dynamic Range: 117.5 dB (typical)
• Microphone Current Draw: 120 to 240 µA, typical
• Bias Voltage (Recommended Operating Voltage): 5 VDC
• Housing: Molded ABS
• Polarity
  • LEMO, NC, MDOT: Positive pressure at diaphragm leads to negative voltage with respect to ground
  • MTQG/TA4F, XLR connector: Positive pressure at diaphragm leads to positive voltage with respect to ground
• Cable Diameter: 1.6 mm
• Cable Length
  • MTQG/TA4F, LEMO, MDOT: 66 in. (1.67 m)
  • NC, XLR connector: 96 in. (2.43 m)
• Microphone Length: 13.5 mm
• Microphone Diameter: 5.6 mm
• Net Weight with Cable: 12.0 g (0.42 oz.)

What's Included

• 1x TwinPlex TL47 Lavalier Mic w/ TA4F Connector
• 3x Frequency Caps, Flat Response
• 2x Frequency Caps, Presence Response
• 1x Single Tie Clip
• 1x Dual Tie Clip
• 5x Standoff for Tie Clip
• 1x Vampire Mount
• 1x Sticky Vampire Mount
• 1x Foam Windscreen
• 1x Clear Sticky Mount
• 10x Sticky Mount Adhesives
• 1x Storage Case for TL Lavalier
