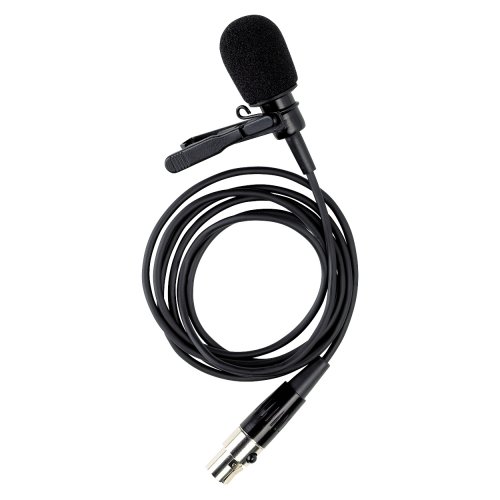

Electro-Voice RE92Tx Directional Lavalier Microphone

About: Electro-Voice RE92Tx Directional Lavalier Microphone

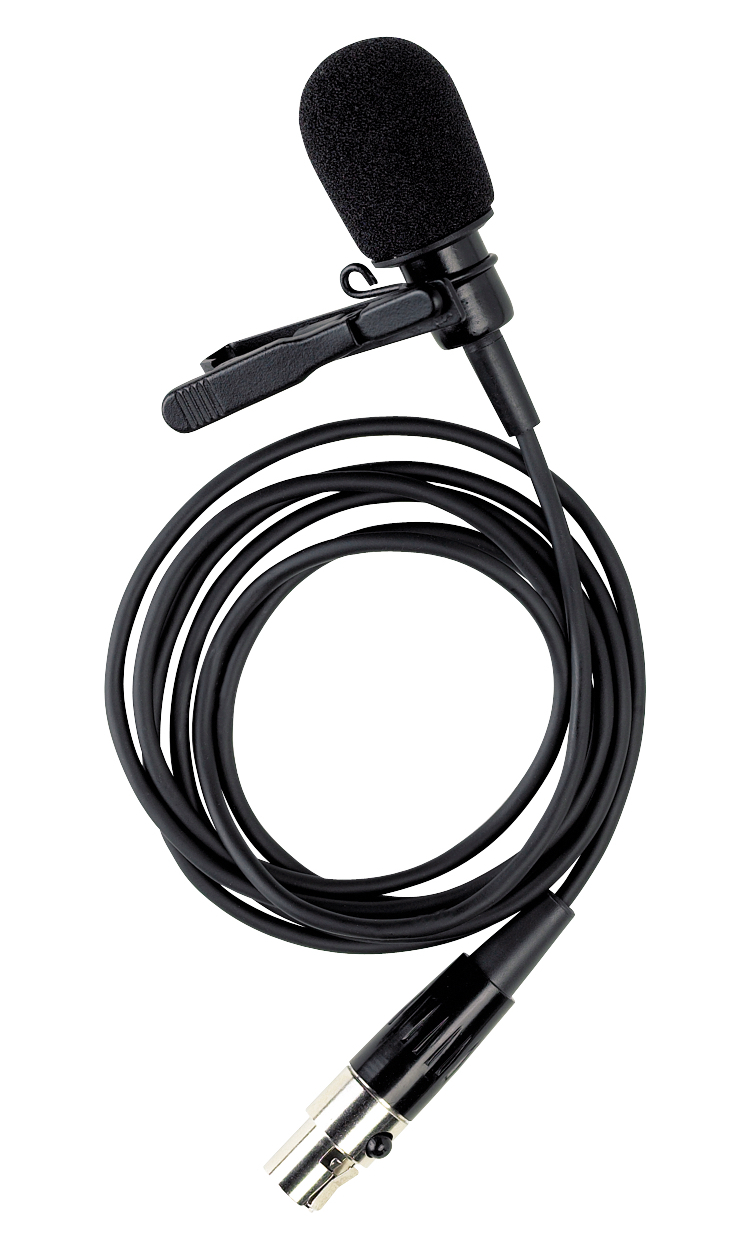

The RE92TX is a professional quality miniature cardioid, electret condenser lavalier microphone. It is designed for unobtrusive miking of speech and instruments, making it an excellent choice for use in many broadcast, stage performance, and presentation purposes. Its small size makes the RE92TX ideal for theatre, interviews, public address systems, and houses of worship. The RE90TX has a cardioid polar pattern for high gain before feedback. The RE92TX condenser element provides clear and natural sound reproduction. The included two-stage windscreen minimizes wind noise and popping. The RE92TX comes supplied with 4 feet of cable, terminated with a 4-pin TA4F connector, and a tie clasp with non-reflecting black finish.

• Wide, Smooth Frequency Response
• Cardioid Polar Pattern
• Includes Two-Stage, Press-on Windscreen
• Terminated with Female TA4F Connector

Specifications

• Generation Element - Self-Biased condenser, back electret 2-micron thick, gold sputtered diaphragm
• Frequency Response - 40 Hz to 20,000 Hz
• Polar Pattern - Cardioid
• Sensitivity, Open Circuit Voltage, 1 kHz - 5.6mV/Pascal
• Clipping Level (1% THD) - >135 dB SPL
• Equivalent Noise - <30 dB SPL “A” weighted (0 dB=20 micropascals)
• Dynamic Range - >105 dB
• Output Impedance, 1 kHz - 1500 ohms
• Power Requirements - 5 VDC
• Current Consumption - < 500 uA
• Cable - 0.100 in (2.54 mm) diameter x 4 ft (1.2 m) long
• Connector Wiring
  • Pin #1 - Ground, Shield
  • Pin #2 - Audio, White
  • Pin #3 - Bias Voltage, Red
  • Pin #4 - N/C
• Color - Nonreflecting black
• Environmental Conditions
  • Relative Humidity 0-50%: -29° to 74°C (-20° to 165°F)
  • Relative Humidity 0-95%: -29° to 57°C (-20° to 135°F)
• Dimensions - Diameter = 0.412 in (10.5 mm) Length = 0.948 in (24.1 mm), less strain relief
• Net Weight - 0.81 oz (23 grams) with connector
• ​Accessories Included
  • Two Stage Windscreen
  • Tie Clip
