Electro-Voice RE97LTX Mini Theatrical Omni Lapel Microphone (Black)

About: Electro-Voice RE97LTX Mini Theatrical Omni Lapel Microphone (Black)

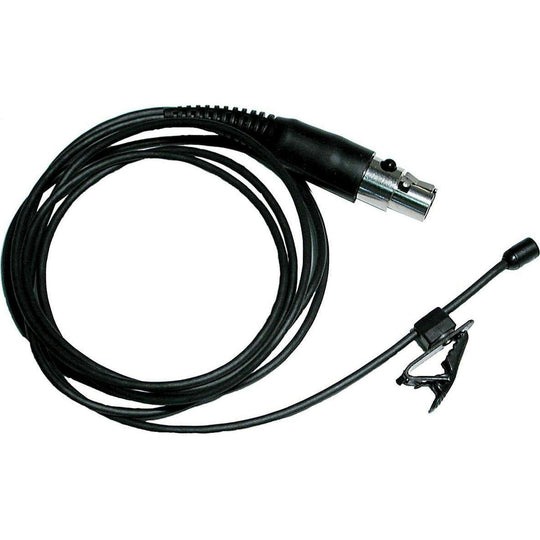

The Electro-Voice RE97LTx is an ultra-miniature, omnidirectional, condenser microphone designed for applications that demand a high quality microphone element that is practically invisible when worn by the speaker or performer. The RE97LTx is intended for spoken-word use in theatrical performance, fixed installations, corporate AV presentations, houses of worship, or any venue where a full-range, natural, and well-balanced sound is required from an inconspicuous, lightweight microphone.

The output of the RE97LTx is clean and accurate, while the omni-directional polar pattern ensures uniform output regardless of the microphone’s angle relative to the sound source. The provided clip is a convenient anchor for the microphone on a lapel, tie, or shirt collar.

The supplied windscreens can be utilized in windy environments and to reduce breath noise. The RE97LTx has a shielded 4ft cable terminated in a genuine Switchcraft TA4F connector and is ready for use with standard EV and Telex body-pack transmitters including the EV REV-BP, BPU-2/CSB-1000 and Telex WT-500/WT-1000.  The wire to the body-pack is ultraflexible, and may be easily concealed.

• Ultra-Miniature Size for Inconspicuous Use
• Omnidirectional Polar Pattern to Provide Clean Sound and Uniform Response
• Lightweight, Low Profile, Rugged Construction
• Superior Sound Quality
• Terminated with Female TA4F Connector for use with any EV Wireless Bodypack Transmitter
• Available in Black or Beige Finish

Specifications

• Transducer - Condenser, Back-Electret
• Freq. Response - 50 Hz - 15 kHz
• Polar Pattern - Omnidirectional
• Sensitivity, 1 kHz - -48 dBV, 4.0 mV/Pascal
• Maximum SPL - >120 dB SPL
• Equivalent Noise - 32 dBA
• Dynamic Range - 88 dB
• Output Impedance, 1 kHz - 3000 Ohms
• Power Requirements - +5 VDC
• Current Consumption - 310 μA
• Polarity - Positive Pressure on Diaphragm Produces a Positive Voltage on Pin 2
• TA4F Connector Wiring
  • Pin 1 - Ground
  • Pin 2 - Audio
  • Pin 3 - Bias Voltage
  • Pin 4 - Unused
• Colors Available - Black, Beige
• Net Microphone Weight -  10.5 g (0.4 oz)
