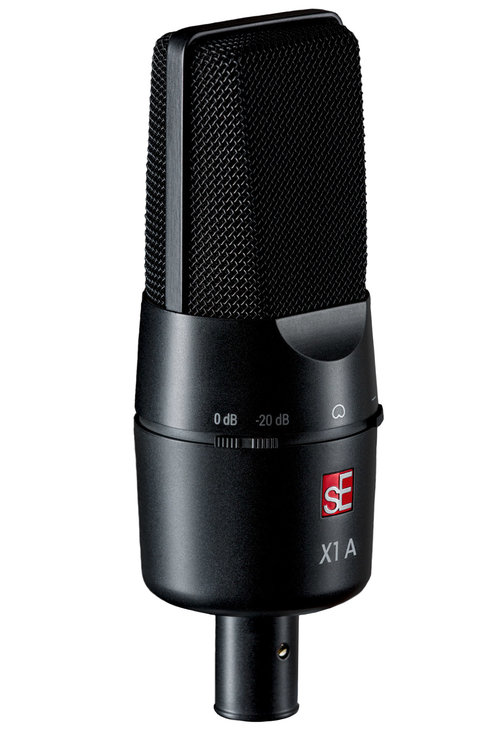

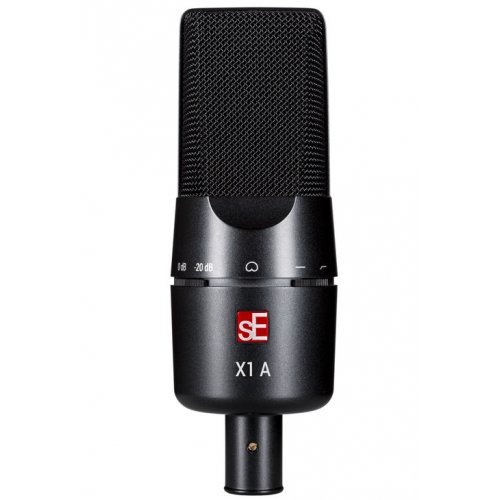

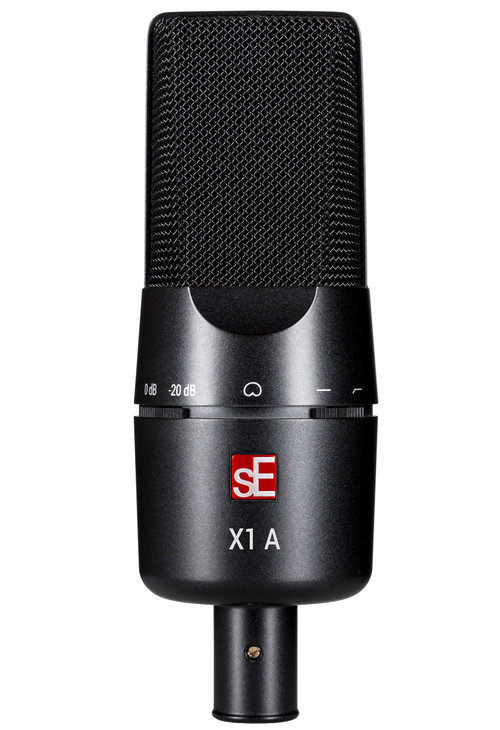

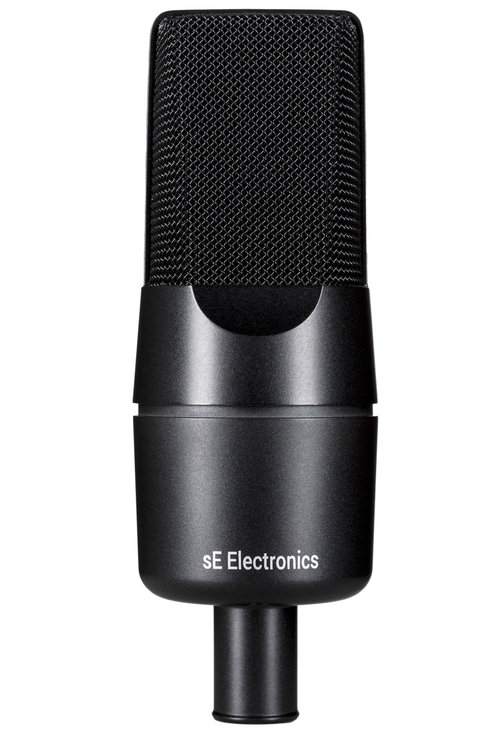

sE Electronics X1 A Condenser Microphone

About: sE Electronics X1 A Condenser Microphone

When it was introduced in 2010, the X1 brought a new level of quality to its price point, competing easily with microphones costing several times as much. But that didn't stop sE from trying to outdo themselves again.

With a newly-developed condenser capsule and an exterior based on the rugged metal chassis of the X1, the X1 A offers first-class sound & specifications at an even better "home studio" cost, featuring an extremely natural frequency response, massive SPL-handling capabilities (150dB!), switchable attenuation and low-cut filters, and a perfectly balanced sensitivity level - so it's at home on absolutely any source.

• Newly-developed condenser capsule with the same rugged metal chassis of the X1 SERIES
• First-class sound & specifications at an even better "home studio" cost
• Extremely natural frequency response, massive SPL-handling capabilities (150dB!)
• Switchable attenuation and low-cut filters, with a perfectly balanced sensitivity level
• 100 Hz bass-cut filter and -20 dB attenuation pad

ALL-METAL HOUSING & PREMIUM FINISH

Unlike the cheaply constructed bodies of some other "entry-level" microphones, the X1 A's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish ensures a great look for years to come.

INTEGRATED WINDSCREEN

Eliminates the need for an external pop filter, and provides an extra layer of safety and security for the all-important capsule.

COMPLETELY NEW ACOUSTIC DESIGN

The X1 A's new condenser capsule design is a work of art, delivering stellar sonic performance on any source with incredible speed, accuracy, and well-balanced frequency response.

The electronics have also undergone a complete overhaul, and exhibit better specifications and sound - on and off the test bench - than any other microphone in its class.

ATTENUATION & LOW CUT SWITCHES

The -20 dB pad switch on the left provides extended dynamic range, enabling a wide range of applications and close-mic techniques for even the loudest instruments...think super-heavy electric guitars, fortissimo brass instruments, and heavy-footed kick drums.

On the right, the 100 Hz low-cut switch helps eliminate low-frequency rumble or footfall noise, and compensates for excessive bass with close-mic techniques (proximity effect).

GOLD-PLATED XLR CONNECTOR

Ensures loss-free, reliable signal connection for years and years of demanding studio use.

Specifications

• Components
  • Capsule: 2 / 3" Back-electret Condenser
• Power
  • Electrical impedance: <50 Ohms
  • Recommended load impedance: >1k Ohms
  • Connectivity: 3-pin male XLR connector
  • Powering: 48V Phantom Power (P48 according to IEC 61938)
• Sound
  • Polar patterns: Cardioid
  • Frequency range: 20 Hz - 20 kHz
  • Sensitivity: 20 mV / Pa (-34 dBV)
  • Max SPL: 130 / 150 dB (0 / 20 dB pad, (0.5% THD @ 1kHz)
  • Equivalent noise level: 16 dB
  • Dynamic range: 114 / 134 dB (0 / 20 dB attenuation pad)
  • Signal to noise ratio: 78 dB
  • Low-cut filter: 100 Hz, 6 dB / Oct, switchable
  • Attenuation pad: 20 dB, switchable
  • Current consumption: 4.0 mA
• Dimensions (Dia. x L): 2.28 x 6.65 in (58 x 169 mm)
• Weight: 0.86 lb (390 g)

What's in the Box

• X1 A microphone
• Swivel mic clip
• Thread adapter
