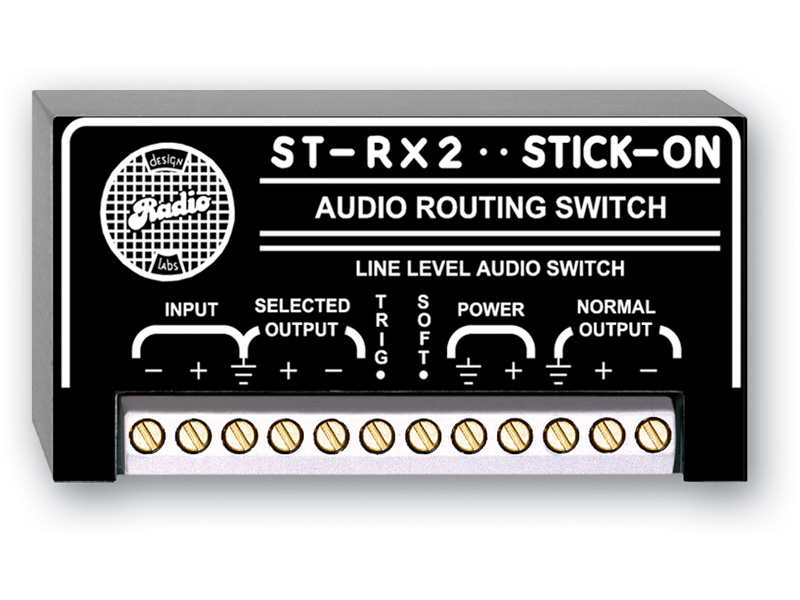

RDL ST-RX2 Audio Routing Switcher - 1x2

Model: RDL ST-RX2

RDL ST-RX2 Audio Routing Switcher - 1x2
  • Free Shipping!
  • Usually Ships in 7-10 Days
  • Not yet reviewed




About: RDL ST-RX2 Audio Routing Switcher - 1x2

The ST-RX2 has a single line-level audio input and two line-level audio outputs. In the absence of a control input, the NORMAL module output is fed from the audio input. When the TRIG control terminal is connected to ground, the input audio is fed to the SELECT output and the NORMAL output is switched off. When the TRIG terminal is again disconnected from ground, then the SELECT output is turned off and the NORMAL output is fed from the input. The module contains no relays or other mechanical devices. The control circuits utilize solid-state switching to route the input signal to one of the balanced output line drivers with off attenuation better than 80 dB at all audio frequencies. Soft switching is used to eliminate clicks or pops.

The control current required at the TRIG terminal is so minimal (< 0.5 mA) that the ST-RX2 can be controlled from nearly any source from switches to logic circuits.

The ST-RX2 may be controlled using the RDL D-RC2ST or the D-RT2 remote controls.


UPC: 813721011794

AVShop.ca is a Canadian authorized RDL Radio Design Labs retailer.

Reviews: RDL ST-RX2 Audio Routing Switcher - 1x2

There are currently no product reviews.


Warranty: RDL ST-RX2 Audio Routing Switcher - 1x2

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

Radio Design Labs, Inc., also referred to as RDL®, warrants to the Purchaser that products manufactured by RDL are free from defects in material and workmanship. This warranty applies to the period of three years from the date of shipment, except for component parts or products purchased from other sources and supplied by RDL. Such component parts or products bear only the warranty of the manufacturer thereof in effect at the time of shipment to the Purchaser.
