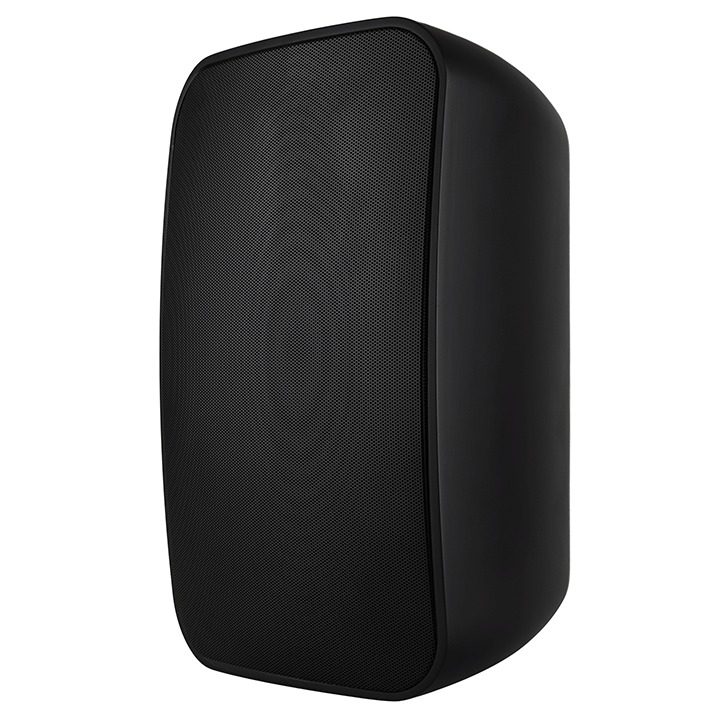

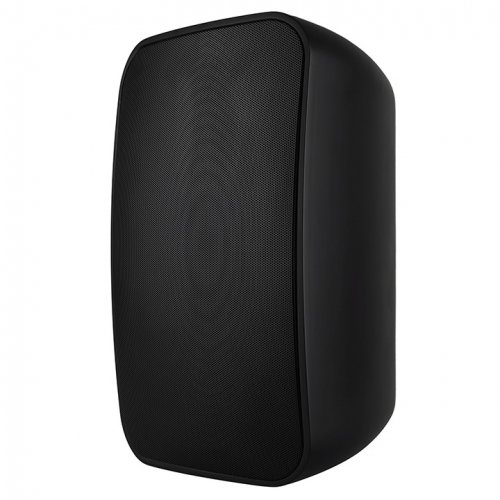

Sonance PS-S83WT Surface-Mount Woofer (Single) - Black
Model: 40207
About: Sonance PS-S83WT Surface-Mount Woofer (Single) - Black
Sonance Professional Series PS-S83WT Surface-Mount Woofer features the Patented FastMount® bracket and front cable connection to speed up the installation process and provide a clean appearance.
The IPX4 rated construction features a weatherproof high-impact, extreme temperature resistant cabinet and corrosion-proof powder coated aluminum grille, lending itself perfectly in both indoor and outdoor applications.
An ultra-high-excursion 8” polypropylene woofer delivers effortless and impactful low bass extension and augmentation, at any sound pressure level, making it the perfect partner for the PS-S43T, PS-S53T and PS-S63T Speakers.
A full-fidelity transformer delivers uncompromised sonic performance in either high (70V, 100V) or low (8 Ohm) impedance.
Additionally, the Sonance PS-S83WT is certified for UL 1480 and UL 2239.

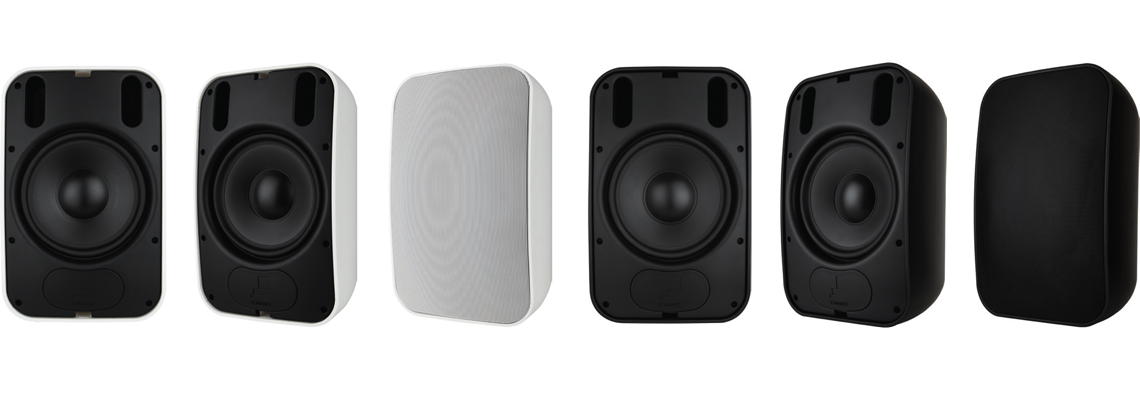

Available in either black or white (paintable).
Specifications
- Frequency Range (-10dB) - 32Hz – 300Hz
- Frequency Range (-3dB) - 50Hz – 150Hz
- Power Capacity - 200 Watts Continuous Program Power | 125 Watts Continuous Pink Noise
- Nominal Sensitivity - 88dB
- Nominal Coverage Angle - 180 degrees x 180 degrees coverage
- Directivity Factor (Q) - N/A
- Directivity (DI) - N/A
- Rated Maximum SPL - 110dB @ 1 meter (3.3 feet) average, 116dB peak
- Rated Impedance - 8 Ohms nominal, 6 Ohms minimum
- Transformer Taps - 120W, 60W, 30W (15W 70V)
- Crossover Point - 150Hz
- Overal Dimension - 14.02” Height x 9.01” Width x 8.58” Depth (356mm x 229mm x 218mm)
- Net Weight - 16.80lbs (7.62kg) each
- Shipping Weight - 21.49lbs (9.75kg) each
- Unit of Measure - Each
- Color - Black or White
- Grille - Powder Coated Aluminum Friction Fit
- LF Driver - 8” (203mm) Polypropylene Cone, Butyl Rubber Surround
- HF Driver - N/A

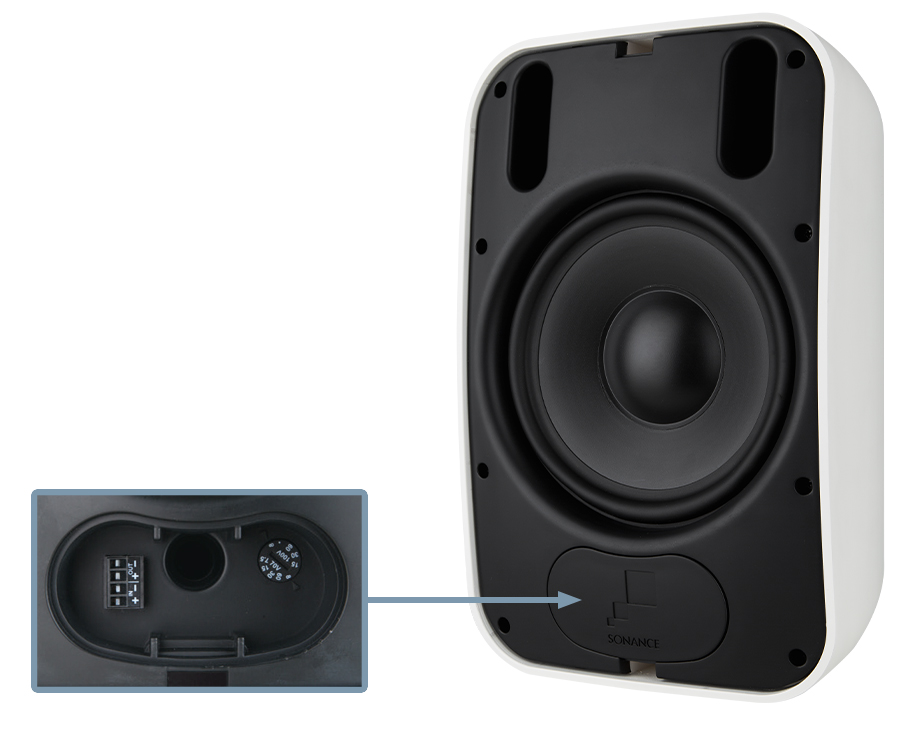

- Input Connectors - Front-mounted four pin, Euroblock with loop output connections
- Safety Agency - UL 1480, UL 2239
- Mount Bracket - U-Bracket with Sonance FastMount
- Environmental & UV - Conforms to MIL-STD-810 for humidity, salt spray, temperature, IEC 529 IPX4 splash-proof rating
UPC: 041093401510
Reviews: Sonance PS-S83WT Surface-Mount Woofer (Single) - Black
Warranty: Sonance PS-S83WT Surface-Mount Woofer (Single) - Black
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
5 Year Limited Warranty
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
For Quebec Residents - Disclosure under the Consumer Protection Act
In compliance with Bill 29, AVShop.ca and Sonance do not guarantee the availability of replacement parts, repair services, or maintenance information for any products. Any applicable manufacturer warranties will remain in place.
