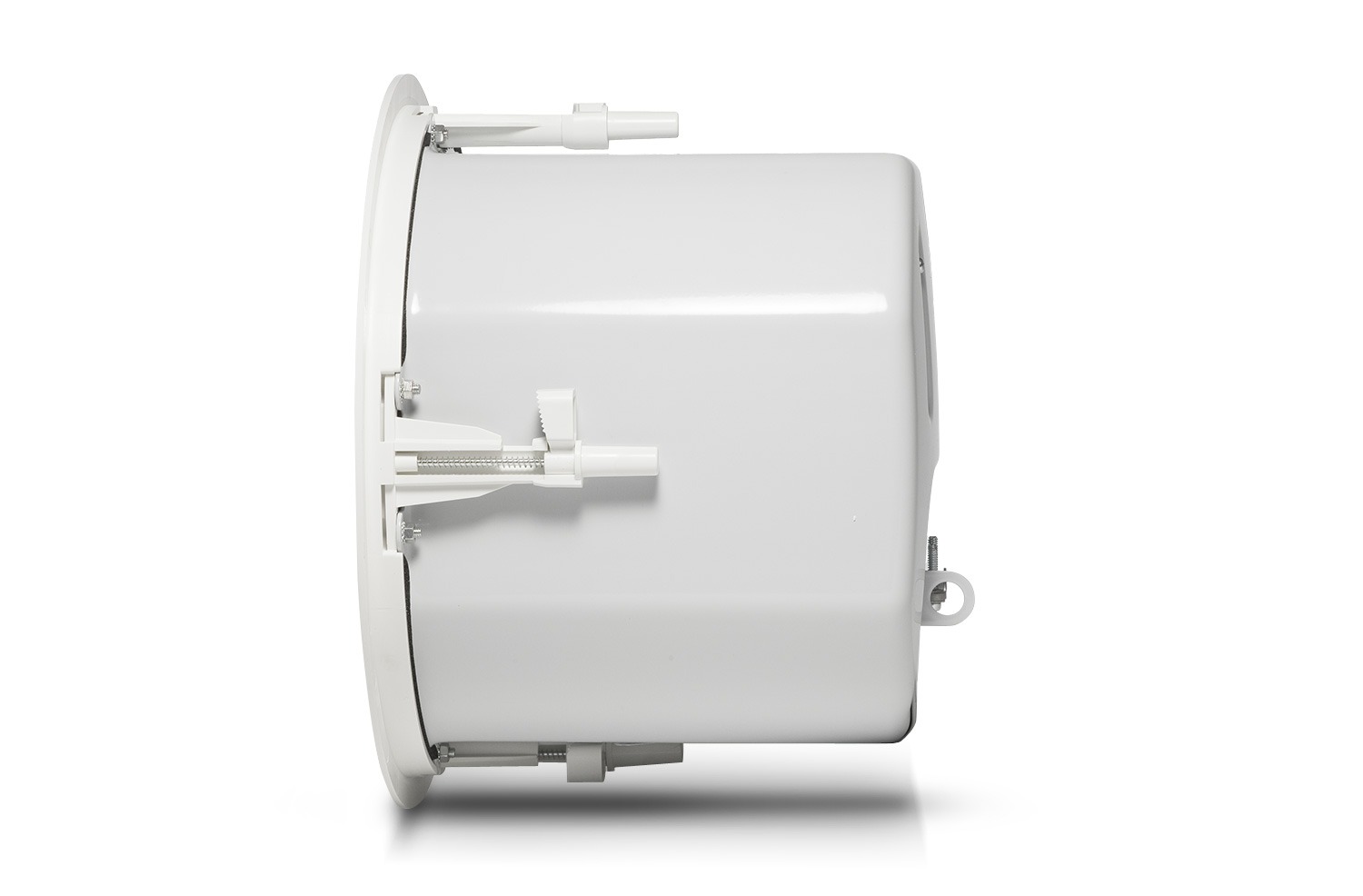

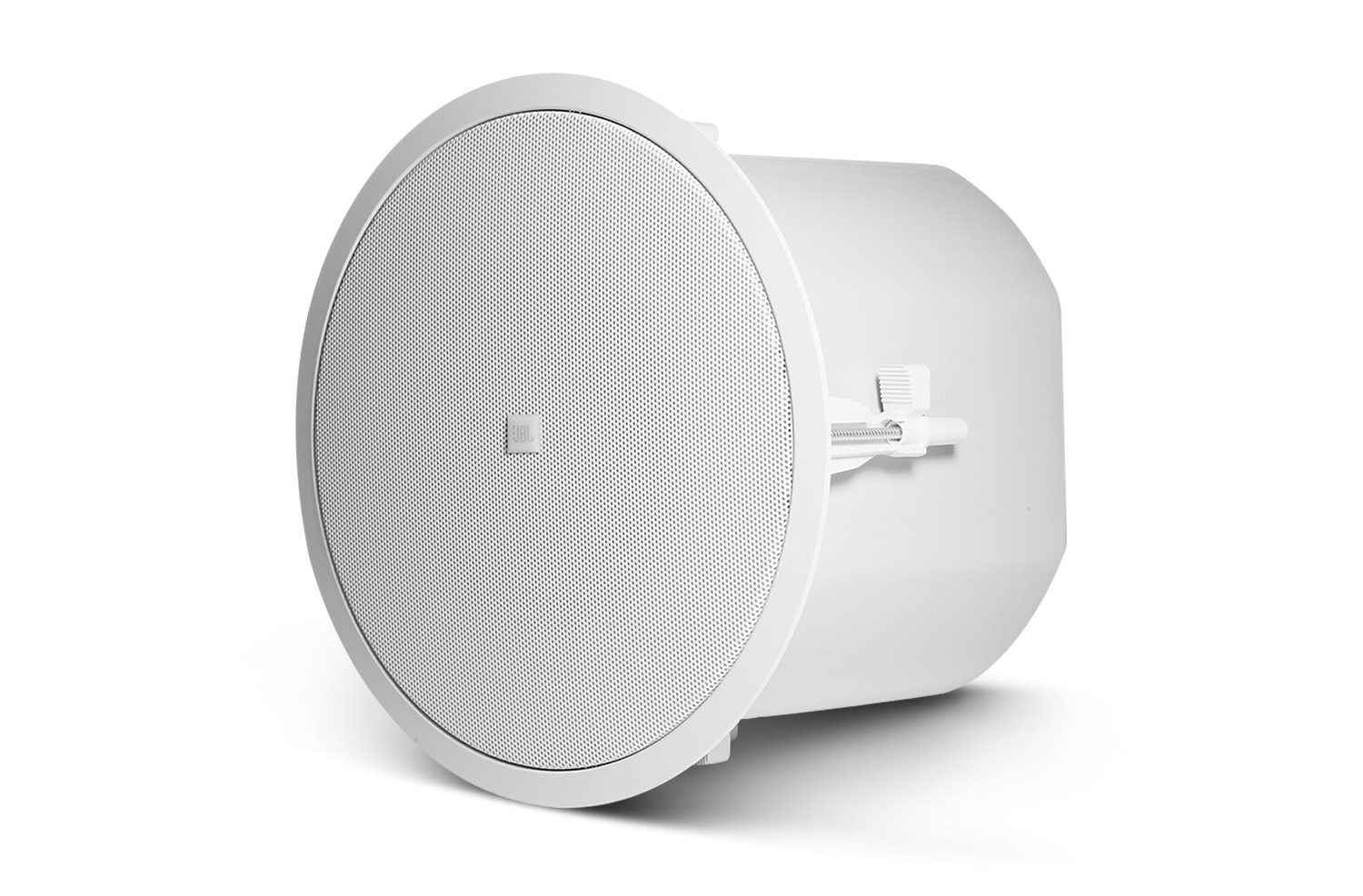

JBL Control 226C/T 6.5in Coax Ceiling Loudspeaker (Pair)
Model: CONTROL-226C/T
About: JBL Control 226C/T 6.5in Coax Ceiling Loudspeaker (Pair)
The JBL Professional Control 226C/T is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in ceiling mount applications.
Features
- Consistent 120° broadband pattern control for exceptional coverage

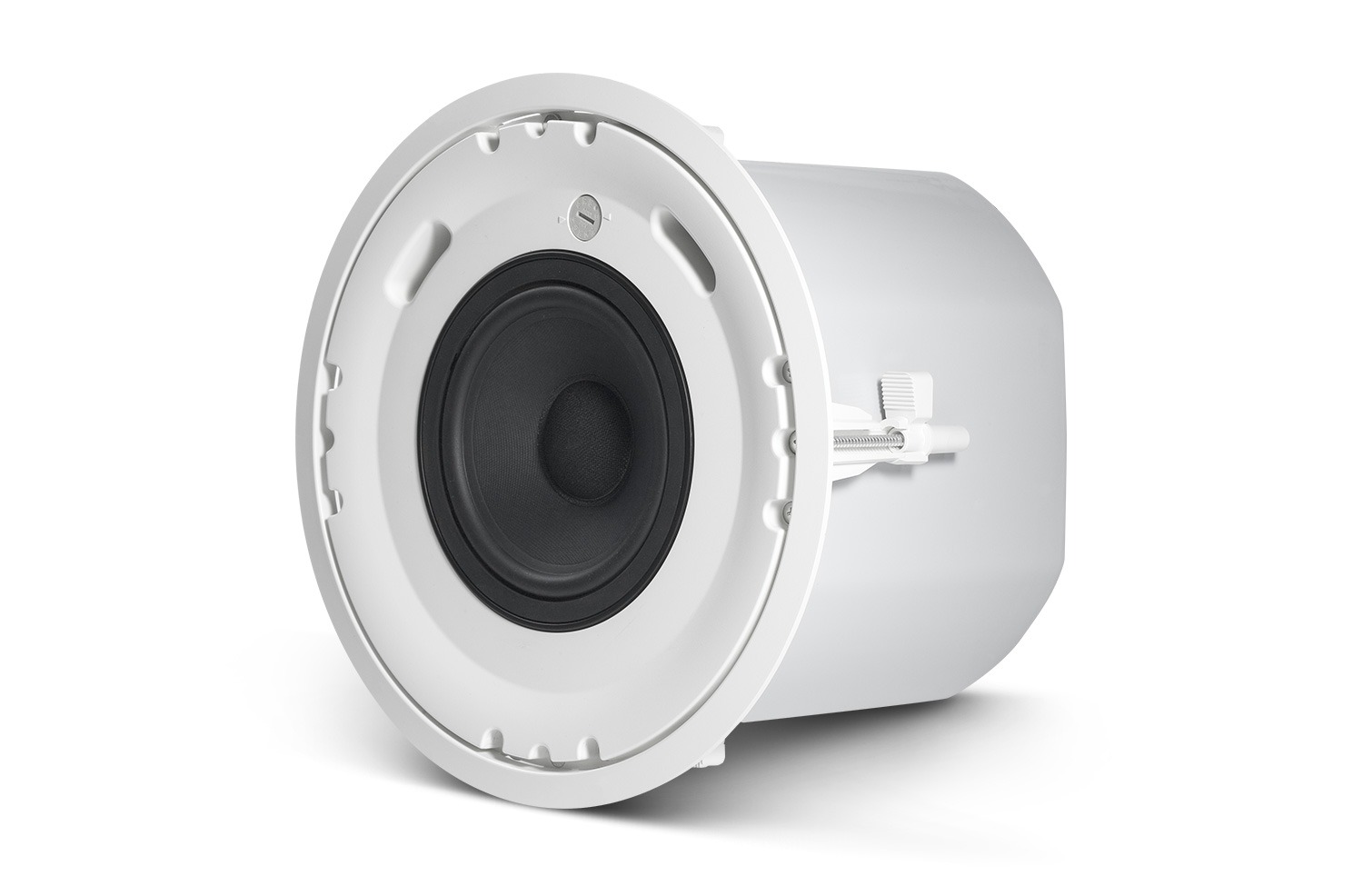

- Coaxial design featuring:
- Kevlar-reinforced 165 mm (6.5 in) woofer
- 25 mm (1 in) compression driver
- Extraordinary clarity for speech and vocals with extended frequency response for music
- 150 Watts Power Handling
- Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- Integrated back can with clean, contemporary grille
Specifications
- Frequency Range (-10dB) - 47 Hz - 19 kHz
- Power Rating
- IEC Long-Term System Power Rating:
- 150 W continuous pink noise (600 W peak), 2 hrs 100 W continuous pink noise
- (400 W peak), 100 hrs
- Transformer Taps - 68W, 34W, 17W (& 8.5W @ 70V), plus transformer bypass
- Sensitivity - 90 dB (1 kHz - 16 kHz)
- Coverage Angle - 120° conical, constant directivity
- Drivers
- LF Driver: 165 mm (6.5 inch)
- HF Driver: compression driver, 25 mm (1 inch) coil
- Dimensions (H x Dia) - Ø 330 mm (13 in) round baffle x depth from back of baffle of 246 mm (9.7 in)
- Net Weight (each) - 9.1 kg (20.0 lb)
- Shipping Weight (pair) - 23.9 kg (52.5 lb)
- Maximum SPL (1m)
- 112 dB (low-impedance, 118 dB peak)
- 108 dB (top 70V/100V tap)
- Impedance - 8 ohms (in direct/bypass setting)

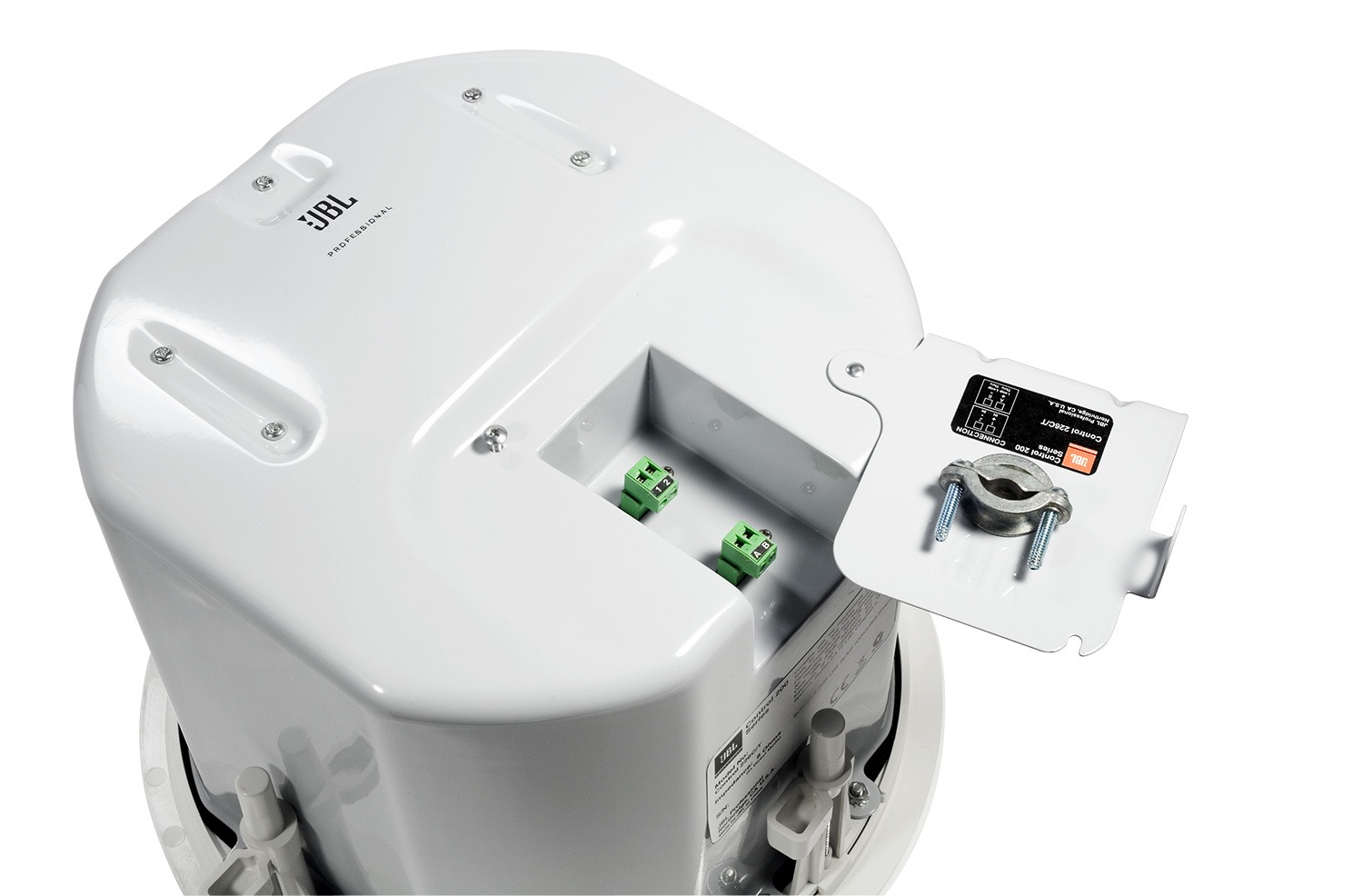

- Input Connectors - Removable locking connector with screw-down terminals.
- Color - White
- Safety Agency - Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
- Backcan - formed steel (included "blind-mount")
- Baffle/Rim - ABS baffle with UL94-V0 flame class fire rating.
- Ceiling Cutout Size - 307 mm (12.1 in) diameter (cardboard cutout template included)
- Plenum Usage - Yes, backcan included
- Included Accessories
- Press-in Grille
- C-Ring, Tile Rails
